Collection
LAPP 53112720 N/A M20 Brass Brass 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M20
Material
Brass
Clamp Ø
7 mm
Terminal Ø (max.)
13 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 15.12
-6 %
€
Highlights & Details
SKINTOP ® EX screwed cable gland MS-M ATEX
- For areas at risk to explosions
Technical specifications
- Product type
Cable gland
- Factory colour
Brass
- External thread
M20
- Material
Brass
- Clamp Ø
7 mm
- Terminal Ø (max.)
13 mm
- Thread length
8 mm
- Min. temperature
-30 °C
- Max. temperature
+100 °C
IP68 (up to 5 bar)
- Spanner size
24 mm
- Halogen-free
No
- Content
1 pc(s)
- Dim
- RoHS-compliant
Yes
- Manufacturer part #
53112720
- Type
SKINTOP® MS-M ATEX M20 x 1,5
- Material (details)
Body: nickel plated brass, insert: polyamide, sealing ring: CR/NBR, O-Ring: NBR
- Type
M20 x 1.5
- Temperature range
-30 - +100 °C
Variants(All information is without VAT, plus shipping costs)
Clamp Ø
Terminal Ø (max.)
External thread
7 mm
13 mm
M20
Minimum order quantity: 1
Multiple: 1
€ 14.28*
LAPP 53112700 Cable gland M12 Brass Brass 1 pc(s)
3 mm
7 mm
M12
Minimum order quantity: 1
Multiple: 1
€ 10.08*
LAPP 53112710 N/A M16 Brass Brass 1 pc(s)
4.5 mm
10 mm
M16
Minimum order quantity: 1
Multiple: 1
€ 10.92*
LAPP 53112730 Cable gland M25 Brass Brass 1 pc(s)
9 mm
17 mm
M25
Minimum order quantity: 1
Multiple: 1
€ 15.96*
LAPP 53112740 Cable gland M32 Brass Brass 1 pc(s)
11 mm
21 mm
M32
Minimum order quantity: 1
Multiple: 1
€ 21.84*
LAPP 53112750 Cable gland M40 Brass Brass 1 pc(s)
19 mm
28 mm
M40
Minimum order quantity: 1
Multiple: 1
€ 33.61*
LAPP 53112760 Cable gland M50 Brass Brass 1 pc(s)
26 mm
35 mm
M50
Minimum order quantity: 1
Multiple: 1
€ 38.65*
Documents & Downloads
Datasheet
Datasheet 601235 LAPP 53112720 N/A M20 Brass Brass 1 pc(s)
User & Safety Instructions
User & Safety Instructions 601235 LAPP 53112720 N/A M20 Brass Brass 1 pc(s)
Information
Information 601235 LAPP 53112720 N/A M20 Brass Brass 1 pc(s)
Description
Specially designed for use on electrical equipment in hazardous areas (ATEX E 1041x/UL 79,903) of the increased safety "e"
Scope of delivery

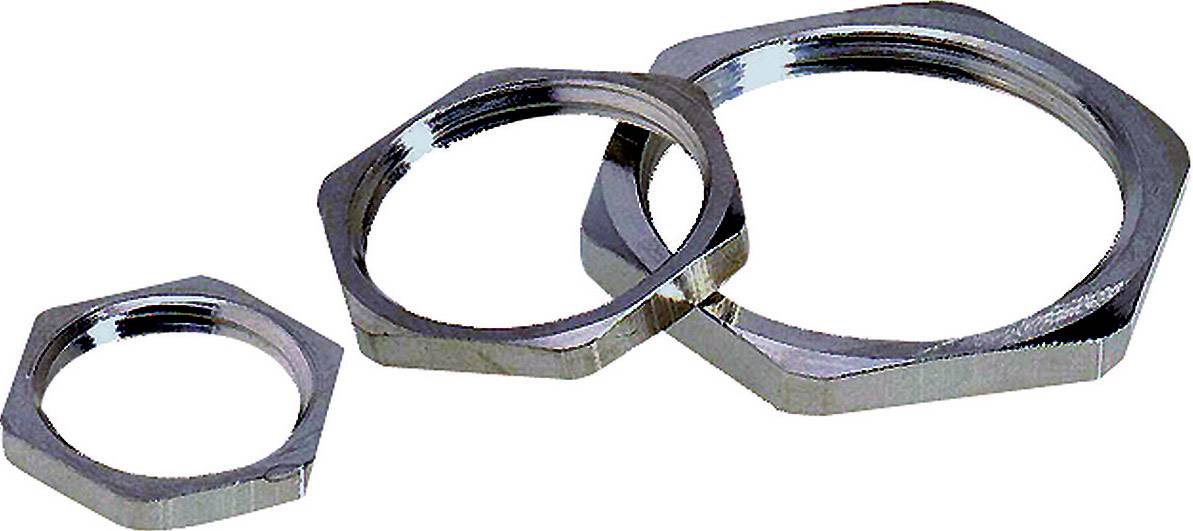

- Locknut not included.
