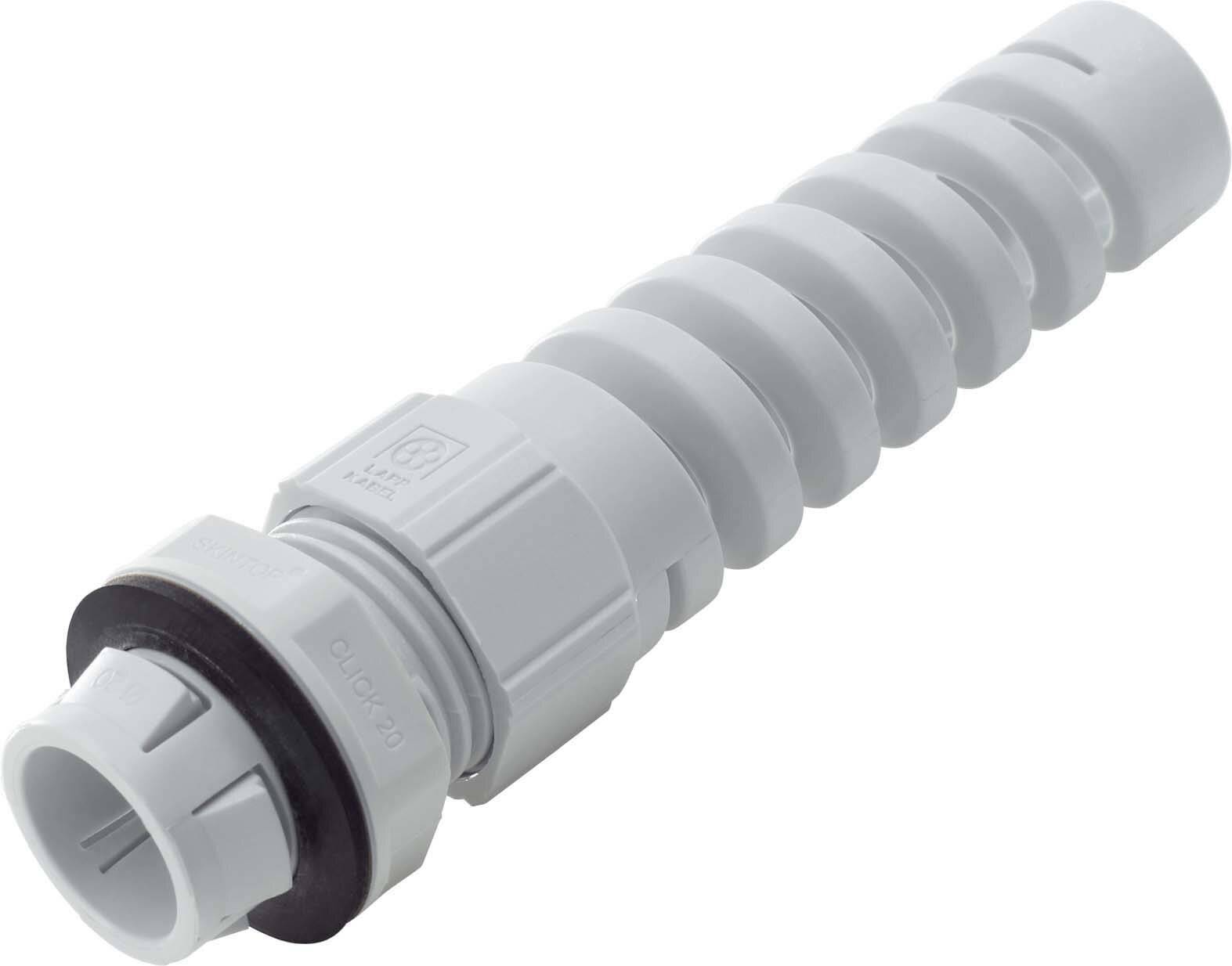

LAPP 53112890 Cable gland with bend relief M25 Polyamide Silver-grey (RAL 7001) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M25
Material
Polyamide
Clamp Ø
9 mm
Terminal Ø (max.)
17 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.61
10
7% = € 0.27
€ 3.34
25
11% = € 0.38
€ 3.23
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 3.61 / piece)
€ 3.61
plus VAT.
14-day return policy included
Highlights & Details
LAPP 53112890 Cable gland with bend relief M25 Polyamide Silver-grey (RAL 7001) 1 pc(s)
- Up to 70% time saving through innovaive Rastsystem/Vibrationprotected.
Technical specifications
- SW1 / SW2 mm: 30 / 34
- Product type
Cable gland
- Features
with bend relief
- Factory colour
Silver-grey (RAL 7001)
- External thread
M25
- Bore diameter
25,3 (-0,2) mm
- Material
Polyamide
- Clamp Ø
9 mm
- Terminal Ø (max.)
17 mm
- Thread length
8 mm
- Length
127 mm
- Min. temperature
-20 °C
- Max. temperature
100 °C
IP68
- Spanner size
30 mm
34 mm
- Dimensions
(C x D x M) 127 x 8 x 25.3 (- 0.2) mm
- Halogen-free
No
- Content
1 pc(s)
- Dim
(C x D x M) 127 x 8 x 25.3 (- 0.2) mm
- RoHS-compliant
Yes
- Manufacturer part #
53112890
- Type
SKINTOP® CLICK BS M25 LGY
- Material (details)
Body: Special: Polyamid
Thick: Special Elastomer
- Type
SKINTOP® CLICK BS M25 LGY
- Clamping range diameter mm
9 - 17 mm
- Temperature range
-20 - +100 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 603389 LAPP 53112890 Cable gland with bend relief M25 Polyamide Silver-grey (RAL 7001) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 603389 LAPP 53112890 Cable gland with bend relief M25 Polyamide Silver-grey (RAL 7001) 1 pc(s)
Information
Information 603389 LAPP 53112890 Cable gland with bend relief M25 Polyamide Silver-grey (RAL 7001) 1 pc(s)
Description
Now, the innovative Click-system is also with additional bending spiral protection, towards/for protection and towards/for safety of flexible cables and lines. The electronic equipments and machines, that are moved in normal use, is the attached line to VDE 0730 against excessive bend protection. For safet
and indulgence of cables for example
Hand attachments
moving machine parts
Apparatus
Light and sound range
Robot industry
and indulgence of cables for example
Hand attachments
moving machine parts
Apparatus
Light and sound range
Robot industry
