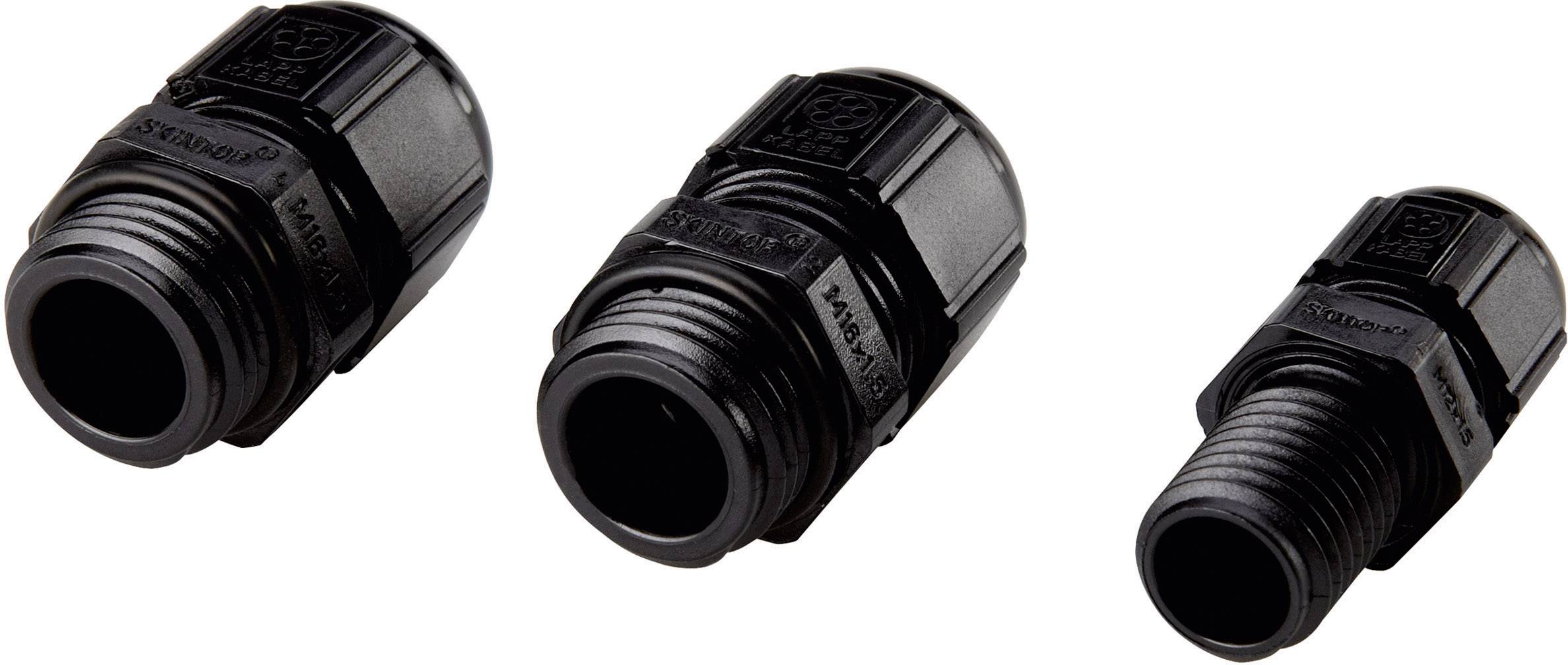

LAPP 53113321 Cable gland M12 Polycarbonate (PC) Black (RAL 9005) 100 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M12
Type
With O-Ring
Material
Polycarbonate (PC)
Clamp Ø
3.5 mm
Datasheet (PDF)
Technical specifications
- Product type
Cable gland
- Factory colour
Black (RAL 9005)
- External thread
M12
- Type
With O-Ring
- Material
Polycarbonate (PC)
- Clamp Ø
3.5 mm
- Terminal Ø (max.)
7 mm
- Thread length
15 mm
- Min. temperature
-40 °C
- Max. temperature
+125 °C
IP68
- Spanner size
15 mm
- Halogen-free
No
- Content
100 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
53113321
- Type
SKINTOP® SOLAR PLUS M12 MIT O-RING
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1044053 LAPP 53113321 Cable gland M12 Polycarbonate (PC) Black (RAL 9005) 100 pc(s)
User & Safety Instructions
User & Safety Instructions 1044053 LAPP 53113321 Cable gland M12 Polycarbonate (PC) Black (RAL 9005) 100 pc(s)
Description
UV and ozone resistant. UL 746C-UL F1 outdoor use. High strain relief. Permanent vibration protection. Highly flame-retardant according to UL 94 V-0/94 5VA.
