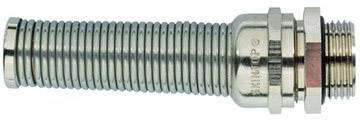

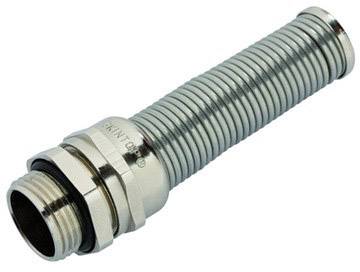

LAPP 53806769 Cable gland M12 Brass Brass 25 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M12
Material
Brass
Clamp Ø
1 mm
Terminal Ø (max.)
5 mm
Datasheet (PDF)
Number (Package size 25 pc(s))
Total (€ 23.36 / piece)
€ 584.03
plus VAT.
Only 4 Set(s) available
Highlights & Details
SKINTOP® screwed cable gland BS-M with bend protection spiral
- Metric PA6 plastic screwed gland with bend protection spiral for additional functional safety
- UV resistant
Technical specifications
- Product type
Cable gland
- Factory colour
Brass
- External thread
M12
- Material
Brass
- Clamp Ø
1 mm
- Terminal Ø (max.)
5 mm
- Thread length
6.5 mm
- Min. temperature
-25 °C
- Max. temperature
+100 °C
IP68 (up to 10 bar)
- Spanner size
16 mm
- Halogen-free
No
- Content
25 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
53806769
- Type
SKINTOP® BSR-M METALL M12x1,5
- Material (details)
Body: Polyamide, seal: CR/NBR
- Temperature range
-20 - +100 ºC °C
- Case material
Brass
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1500402 LAPP 53806769 Cable gland M12 Brass Brass 25 pc(s)
User & Safety Instructions
User & Safety Instructions 1500402 LAPP 53806769 Cable gland M12 Brass Brass 25 pc(s)
Description
For securing flexible cables for example on hand tools and moving machine parts, the bend protection is an important feature for cable care and functional safety.
