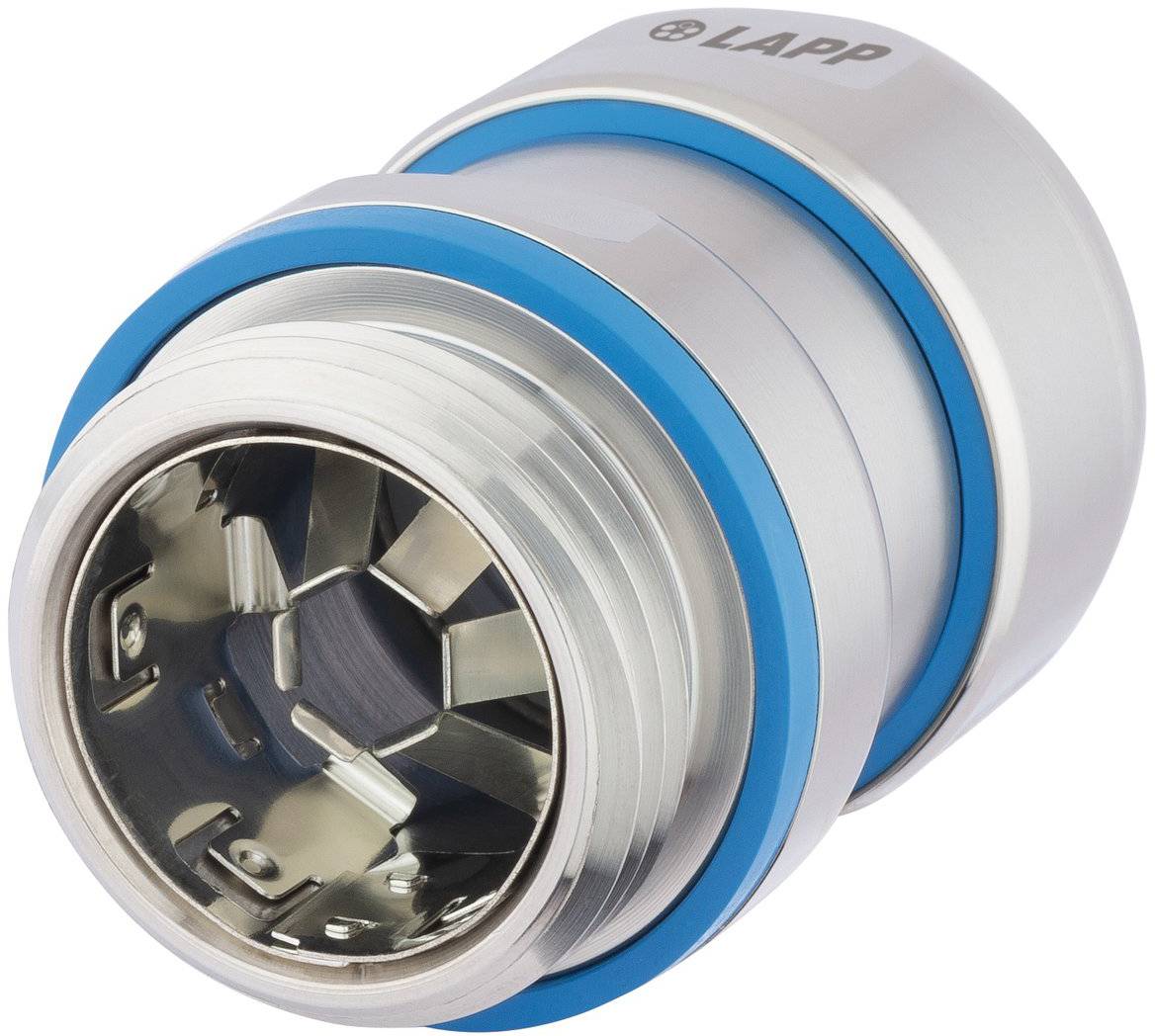

LAPP 54114310 Cable gland UV-resistant 5 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
Clamp Ø
6.5 mm
Terminal Ø (max.)
9 mm
Features
UV-resistant
Content
5 pc(s)
Datasheet (PDF)
Technical specifications
- Product type
Cable gland
- Features
UV-resistant
- Clamp Ø
6.5 mm
- Terminal Ø (max.)
9 mm
- Content
5 pc(s)
- Manufacturer part #
54114310
- Type
SKINTOP® HYGIENIC SC NPT 3/8"
FALSE
20 mm
7.8 mm
TRUE
TRUE
Sealing ring
Other
NPT
FALSE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3521929 LAPP 54114310 Cable gland UV-resistant 5 pc(s)
User & Safety Instructions
User & Safety Instructions 3521929 LAPP 54114310 Cable gland UV-resistant 5 pc(s)
Description
SKINTOP® HYGIENIC SC NPT 3/8" cable gland; NPT 3/8"; clamping range (min./max.): 6.5 - 9 mm; wrench size 1: 20; UV resistant; IP 68 - 10 bar (30 min), IP 69; EMC shielding
