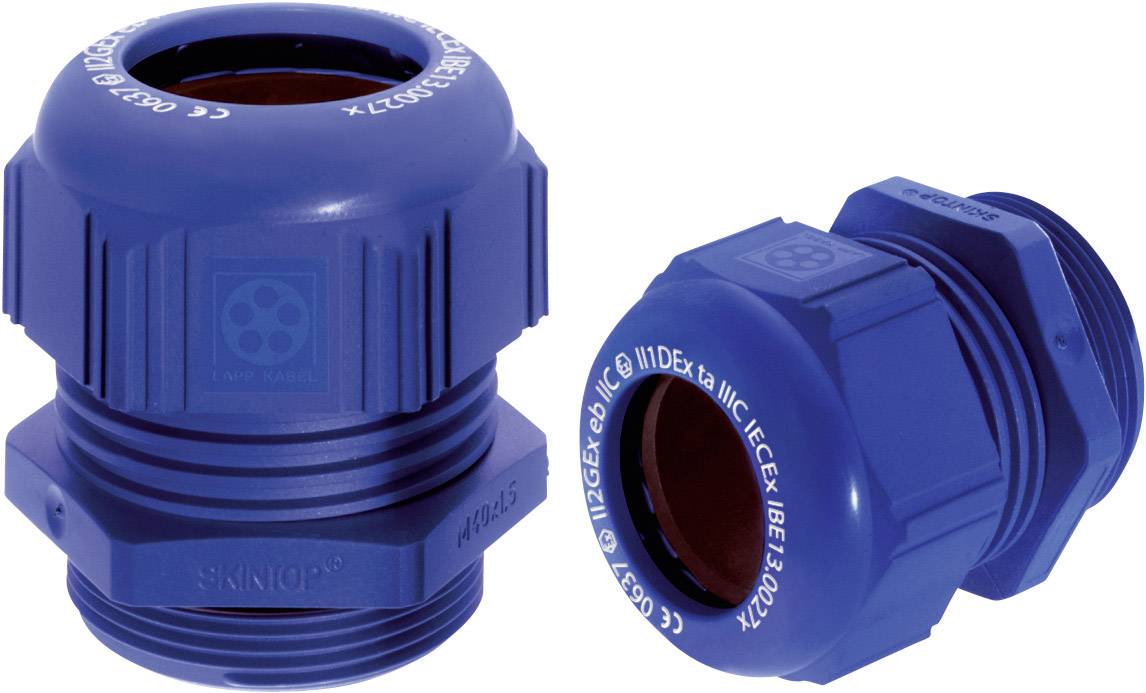

LAPP 54115440 Cable gland M32 Polyamide Blue (RAL 5015) 25 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M32
Material
Polyamide
Clamp Ø
12 mm
Terminal Ø (max.)
21 mm
Datasheet (PDF)
Highlights & Details
SKINTOP ® K-M ATEX plus cable gland
- UV-resistant
Technical specifications
- Product type
Cable gland
- Factory colour
Blue (RAL 5015)
- External thread
M32
- Material
Polyamide
- Clamp Ø
12 mm
- Terminal Ø (max.)
21 mm
- Thread length
10 mm
- Min. temperature
-20 °C
- Max. temperature
+80 °C
IP68
- Spanner size
36 mm
- Halogen-free
No
- Content
25 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
54115440
- Type
SKINTOP® K-M 32X1,5 ATEX PLUS BU
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1043906 LAPP 54115440 Cable gland M32 Polyamide Blue (RAL 5015) 25 pc(s)
User & Safety Instructions
User & Safety Instructions 1043906 LAPP 54115440 Cable gland M32 Polyamide Blue (RAL 5015) 25 pc(s)
Description
High protection class. Resistance to cold. High strain relief. Large, variable clamping ranges. Permanent vibration protection.
