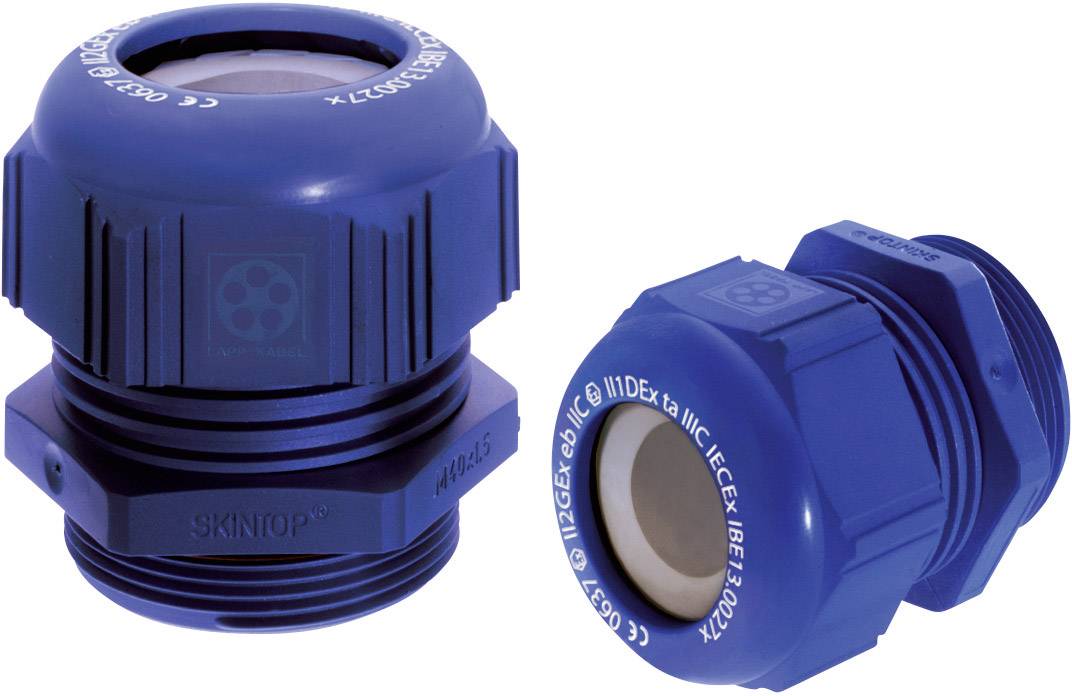

LAPP 54115455 Cable gland M40 Polyamide Blue (RAL 5015) 10 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M40
Material
Polyamide
Clamp Ø
16 mm
Terminal Ø (max.)
23 mm
Datasheet (PDF)
Highlights & Details
SKINTOP ® KR-M ATEX plus cable gland
- UV-resistant
- This text is machine translated.
Technical specifications
- Product type
Cable gland
- Factory colour
Blue (RAL 5015)
- External thread
M40
- Material
Polyamide
- Clamp Ø
16 mm
- Terminal Ø (max.)
23 mm
- Thread length
10 mm
- Min. temperature
-20 °C
- Max. temperature
+80 °C
IP68
- Spanner size
46 mm
- Halogen-free
No
- Content
10 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
54115455
- Type
SKINTOP® KR-M 40X1,5 ATEX PLUS BU
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1043920 LAPP 54115455 Cable gland M40 Polyamide Blue (RAL 5015) 10 pc(s)
User & Safety Instructions
User & Safety Instructions 1043920 LAPP 54115455 Cable gland M40 Polyamide Blue (RAL 5015) 10 pc(s)
