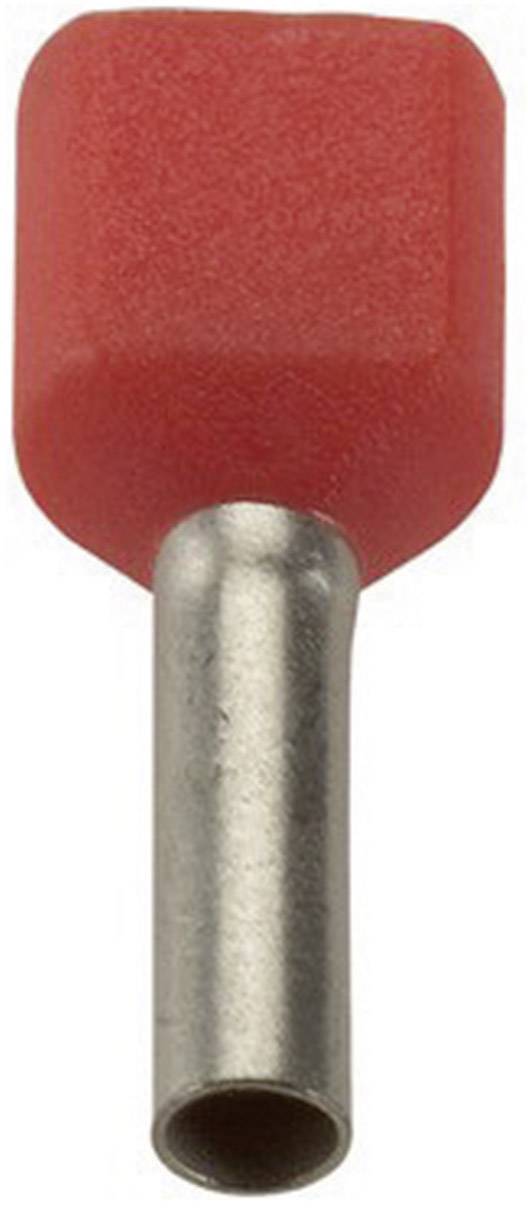

LAPP 61802010 Twin ferrule 1 mm² Partially insulated Red 500 pc(s)
EAN:
Part number:
Item no:
Product type
Twin ferrule
Cross section per core
1 mm²
Sleeve length
8 mm
Insulation type
Partially insulated
Content
500 pc(s)
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 21.84
3
4% = € 0.95
€ 20.89
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 500 pc(s))
Total (€ 0.04 / piece)
€ 21.84
plus VAT.
Only 6 Set(s) available
Highlights & Details
TWIN WIRE-END SLEEVES
- 15 mm
- Red
Technical specifications
- Product type
Twin ferrule
- Cross section per core
1 mm²
- Sleeve length
8 mm
- Insulation type
Partially insulated
- Factory colour
Red
- Country colour code
DIN
- Content
500 pc(s)
- Contact material
Cathode copper, tin plated
- AWG max.
18
- Manufacturer part #
61802010
- Insulation material
PP
- Length
15 mm
- Cross-section x Length
1 mm² x 8 mm
- RoHS-compliant
Yes
- Temperature range
-5 - +105 °C
- Type
AHI-TWIN 2X1 RD
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1021167 LAPP 61802010 Twin ferrule 1 mm² Partially insulated Red 500 pc(s)
User & Safety Instructions
User & Safety Instructions 1021167 LAPP 61802010 Twin ferrule 1 mm² Partially insulated Red 500 pc(s)
Description
Twin wire-end sleeve, insulated cable end sleeves for 2 strands-conductor, halogen-free. Twin cable end sleeves in the selection box. Special shape of the plastic collar makes it possible to simultaneous recording of 2 stranded conductors. By properly performed crimping of two conductors in a twin wire-end sleeve is a professional electrical and mechanical connection.
