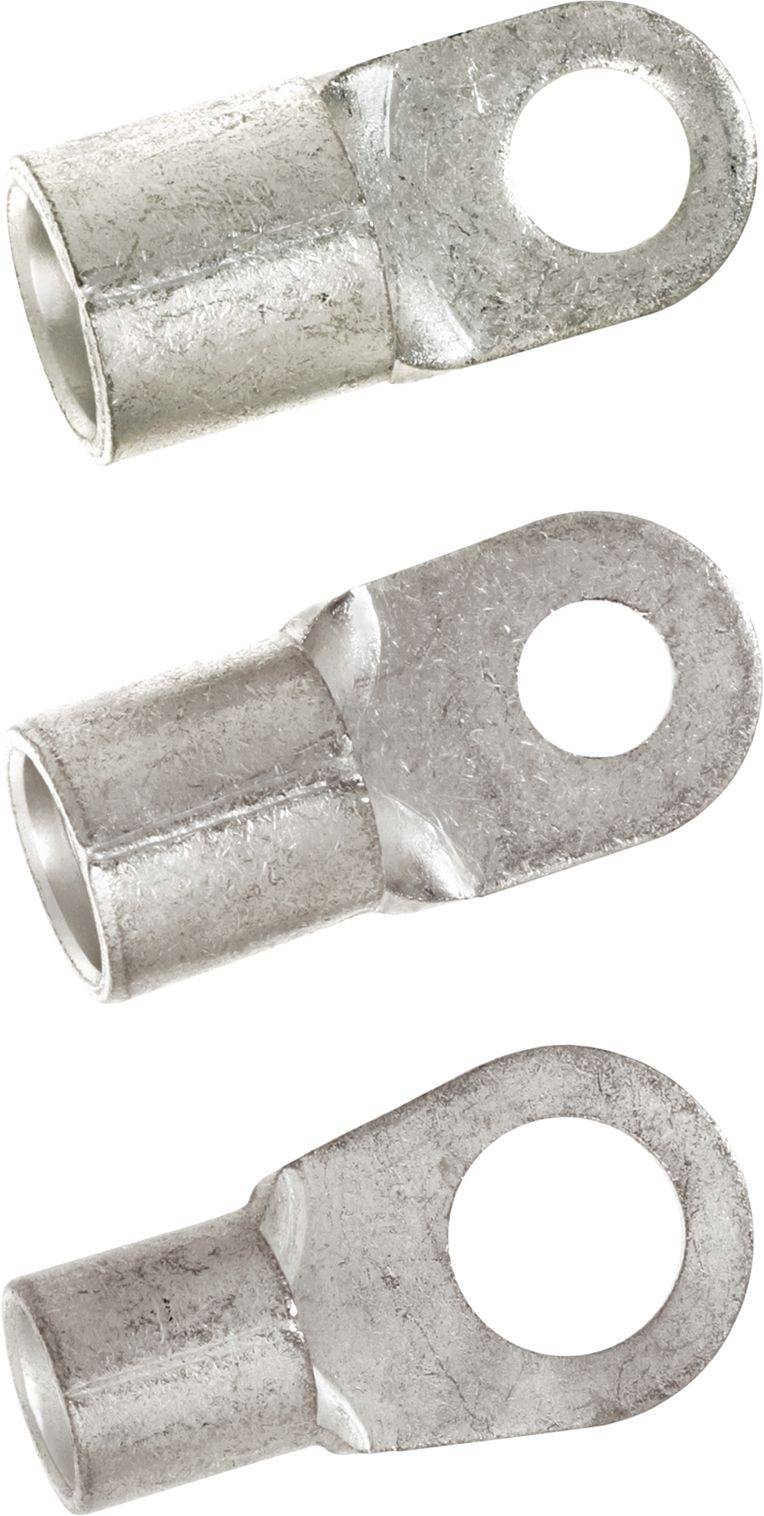

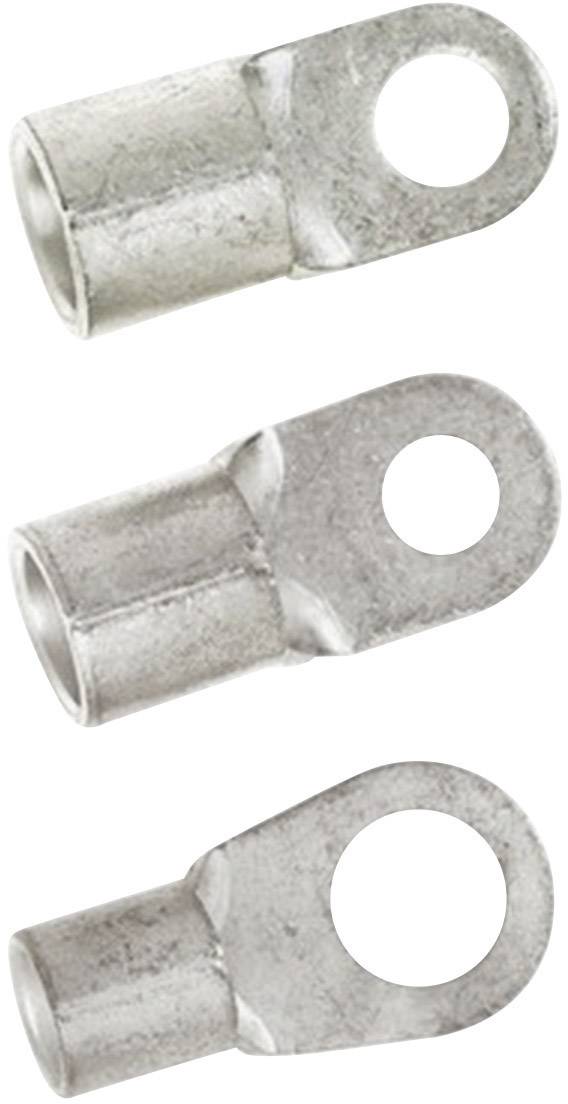

LAPP 63204075 Ring terminal no insulation Cross section (max.)=1.50 mm² Hole Ø=8.4 mm Not insulated Metal 100 pc(s) Piec
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Ring terminal
Hole Ø
8.4 mm
Insulation type
Not insulated
Content
100 pc(s)
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 100 pc(s))
Total (€ 0.13 / piece)
€ 12.60
plus VAT.
Only 4 Set(s) available
Highlights & Details
Ring cable lugs KB
- 0.50 - 1.50 mm²
Technical specifications
- Packaging type
Piece
- Product type
Ring terminal
- Hole Ø
8.4 mm
- Insulation type
Not insulated
- Factory colour
Metal
- Content
100 pc(s)
- Contact material
Cathode copper, tin plated
- Manufacturer part #
63204075
- Type
KB1-8R DIN 46234
- AWG max.
16
- AWG (min.)
22
- max. cross section
1.50 mm²
- Min. cross section
0.50 mm²
- Insulation material
Metal
- Dimensions
8.4 mm
- Cross-section range
0.50 - 1.50 mm²
- RoHS-compliant
Yes
- Features
no insulation
- Support sleeve
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1024102 LAPP 63204075 Ring terminal no insulation Cross section (max.)=1.50 mm² Hole Ø=8.4 mm Not insulated Metal 100 pc(s) Piec
User & Safety Instructions
User & Safety Instructions 1024102 LAPP 63204075 Ring terminal no insulation Cross section (max.)=1.50 mm² Hole Ø=8.4 mm Not insulated Metal 100 pc(s) Piec
Description
Non-insulated crimp cable lugs KB according to DIN 46234, high-quality electrolytic copper for good conductivity, low resistance. Areas of application: for head of class 2, 5 and 6, switching cabinet and system construction, trains and buses.
