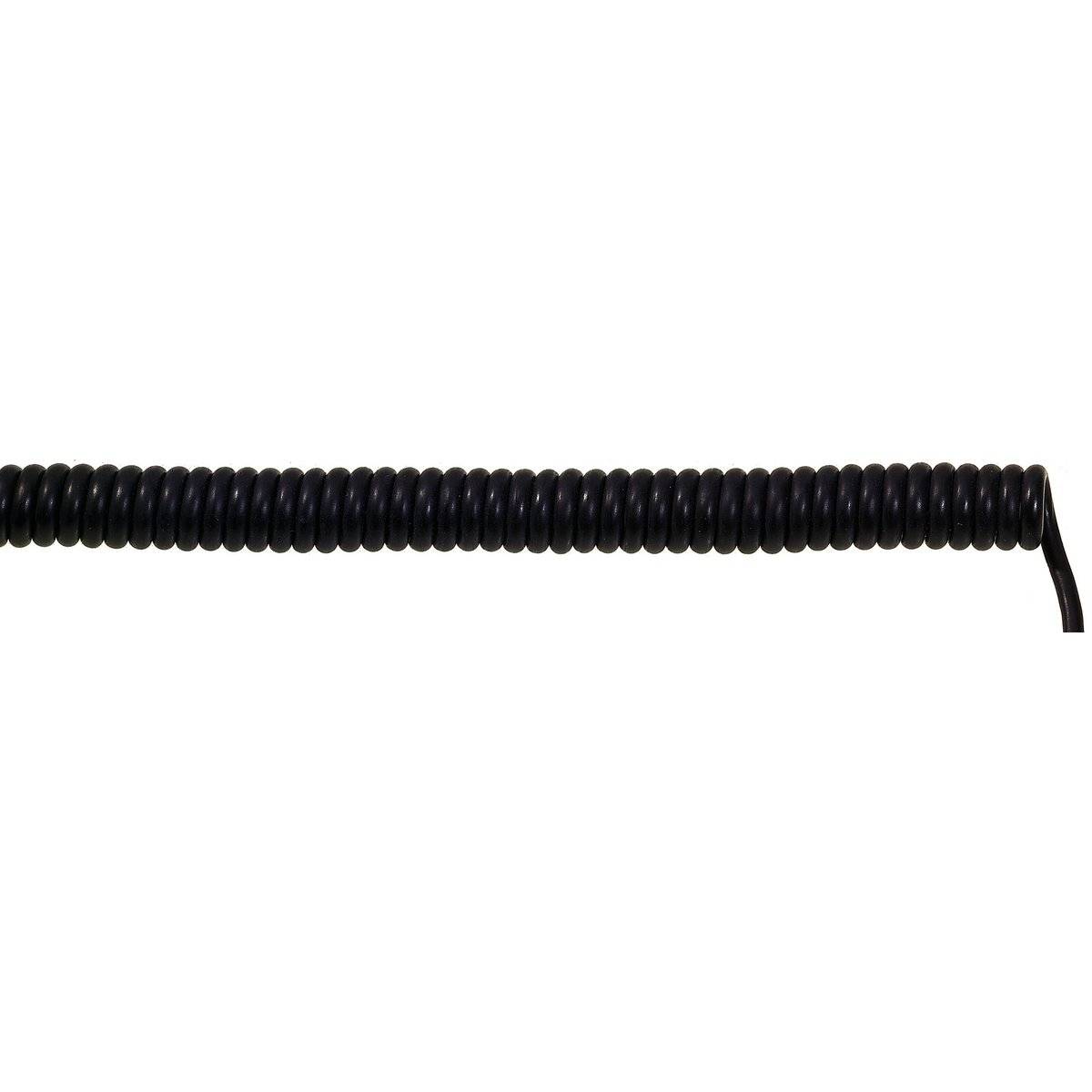

LAPP 73220244 Spiral cable UNITRONIC® SPIRAL 500 mm / 2000 mm 2 x 0.25 mm² Black 1 pc(s)
EAN:
Part number:
Item no:
Product type
Spiral cable
Cable type
UNITRONIC® SPIRAL
Spiral length (min.)
500 mm
Spiral lenght (max.)
2000 mm
No. of leads
2 x
Datasheet (PDF)
Technical specifications
- Product type
Spiral cable
- Cable type
UNITRONIC® SPIRAL
- Spiral length (min.)
500 mm
- Spiral lenght (max.)
2000 mm
- No. of leads
2 x
- Cross section (each core)
0.25 mm²
- Cross section
2 x 0.25 mm²
- Cable features
Shielded
- Outside Ø
4.7 mm
- Factory colour
Black
- Content
1 pc(s)
- Shielded
Yes
- Manufacturer part #
73220244
- Insulation material
Polyvinyl chloride
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (flexible installation)
50 °C
- Type
UNITRONIC® SPIRAL 2x0,25/500
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3474864 LAPP 73220244 Spiral cable UNITRONIC® SPIRAL 500 mm / 2000 mm 2 x 0.25 mm² Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3474864 LAPP 73220244 Spiral cable UNITRONIC® SPIRAL 500 mm / 2000 mm 2 x 0.25 mm² Black 1 pc(s)
Description
UNITRONIC ® SPIRAL 2x0.25/500 spiral cable; 2X0.25; 500mm - 2000mm; Wire color code: DIN 47100; PUR; Shielded, flexible
