Name: LAPP CRIMPEINSATZ PEW 12.091 61813803 Crimp inset 10 up to 25 mm²
Brand: LAPP
SKU: 3368420

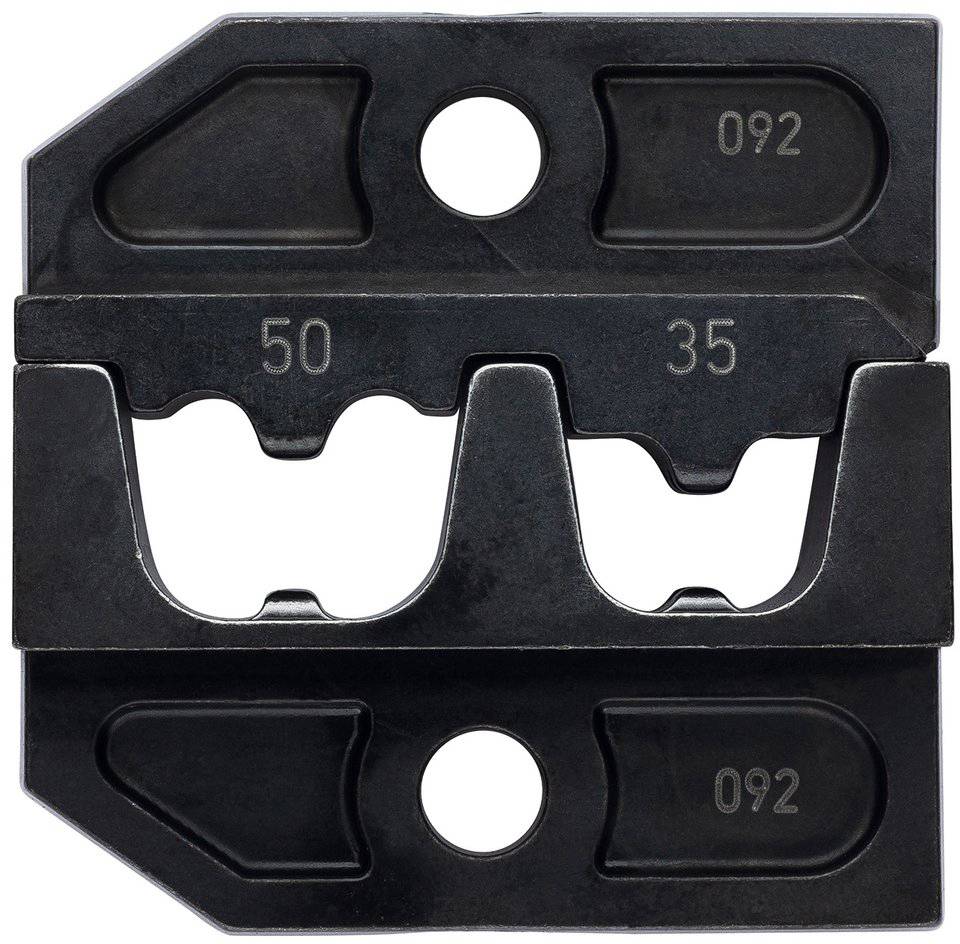

Metal stencil with two sections, numbered '50' and '35', showing precise cutouts and circular holes, symmetrically designed.

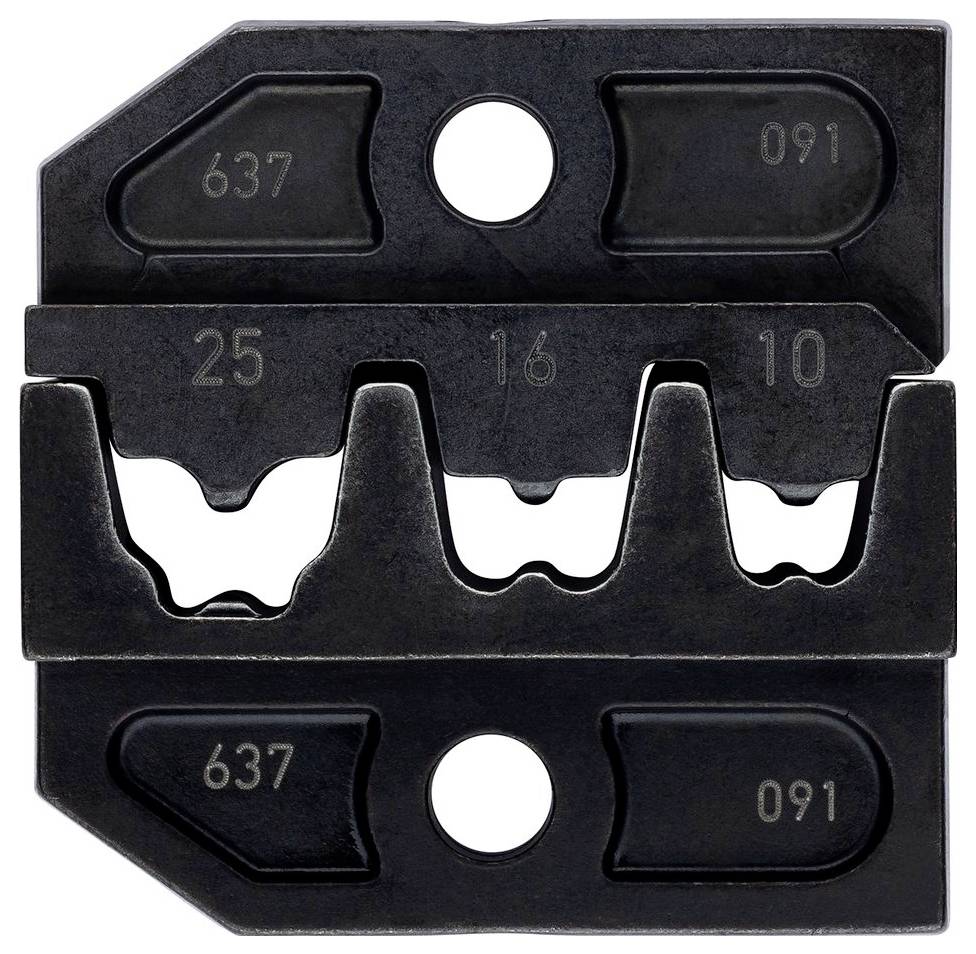

Metal blade with multiple cutting teeth, two round holes and impressed numbers '637' and '091', potentially for industrial cutting machines.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Crimp inset

Manufacturer part #: 61813803

Crimp area (min.): 10 mm²

Crimp area (max.): 25 mm²

Crimp area: 10 up to 25 mm²

Documents & Downloads

Datasheet

Datasheet 3368420 LAPP CRIMPEINSATZ PEW 12.091 61813803 Crimp inset 10 up to 25 mm²

User & Safety Instructions

User & Safety Instructions 3368420 LAPP CRIMPEINSATZ PEW 12.091 61813803 Crimp inset 10 up to 25 mm²

Description

CRIMP INSERT PEW 12,091 Crimp insert; For cross-section (min./max.): 10mm² - 25mm²; Crimp profile: W-crimp; For crimping tool: PEW 12, E-PEW 12, CM 25-1

This text is machine translated.

Description

CRIMP INSERT PEW 12,091 Crimp insert; For cross-section (min./max.): 10mm² - 25mm²; Crimp profile: W-crimp; For crimping tool: PEW 12, E-PEW 12, CM 25-1

This text is machine translated.
