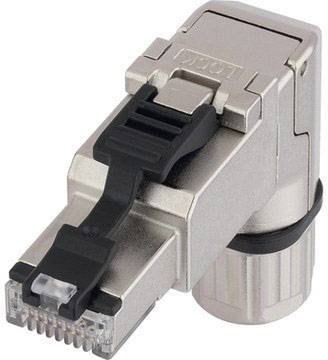

LAPP ED-IE-90-6A-A-20-FD-FC LAPP ED-IE-90-6A-A-20-FD-FC N/A 21700639 Plug, right angle No. of pins (RJ) 8 1 pc(s) 217006
EAN:
Part number:
Item no:
Product type
RJ45 plug
Connector type
Plug, right angle
No. of pins
8
Specification
CAT 6A
Connector standard
RJ45 Cat6
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 27.72
3
4% = € 1.21
€ 26.51
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 27.72 / piece)
€ 27.72
plus VAT.
Only 2 Piece(s) available
Highlights & Details
LAPP ED-IE-90-6A-A-20-FD-FC N/A 21700639 Plug, right angle No. of pins (RJ) 8 1 pc(s)
- CAT.6A ACC. TO ISO/IEC 11801
- Color-coded mounting aid
- Installation without any tools
Technical specifications
- AWG solid 26 - 24
- AWG 7-wire: 27 - 24
- AWG 19-wire 26
- External diameter in mm min. 5.5
- External diameter in mm max. 10
- Type
ED-IE-90-6A-A-20-FD-FC
- Product type
RJ45 plug
- Connector type
Plug, right angle
- No. of pins
8
CAT 6A
- Connector standard
RJ45 Cat6
- AWG max.
7
- AWG (min.)
19
- Type A
RJ45 plug
- Content
1 pc(s)
- Material
Zinc (die-cast)
- Width
10 mm
- Height
5.5 mm
- Cross section (flexible) (max.)
1.1 mm²
- Cross section (inflexible) (max.)
1.1 mm²
- Cross section (flexible) (min.)
0.85 mm²
- Cross section (inflexible) (min.)
0.85 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2226343 LAPP ED-IE-90-6A-A-20-FD-FC LAPP ED-IE-90-6A-A-20-FD-FC N/A 21700639 Plug, right angle No. of pins (RJ) 8 1 pc(s) 217006
User & Safety Instructions
User & Safety Instructions 2226343 LAPP ED-IE-90-6A-A-20-FD-FC LAPP ED-IE-90-6A-A-20-FD-FC N/A 21700639 Plug, right angle No. of pins (RJ) 8 1 pc(s) 217006
Description
Field-attachable Industrial Ethernet plug, RJ45, straight and angled, IP20, suitable for up to 10 Gbit/s, wire manager with PROFINET or TIA color coding
This text is machine translated.
This text is machine translated.
Scope of delivery
- LAPP ED-IE-90-6A-A-20-FD-FC RJ45 PLUG
