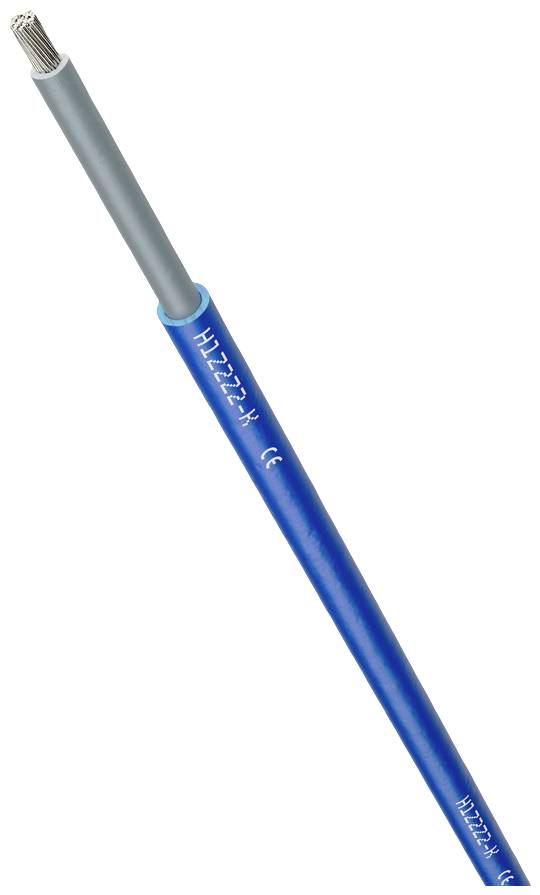

LAPP H1Z2Z2-K 1023791/500 PV cable 1 x 10 mm² Blue Sold per metre
EAN:
Part number:
Item no:
Product type
PV cable
Cable type
H1Z2Z2-K
No. of leads
1 x
Cross section (each core)
10 mm²
Content
Sold per metre
Quantity (meter)
Savings
Package size (plus VAT.)
1
-
€ 3.35
10
7% = € 0.25
€ 3.10
25
10% = € 0.35
€ 3.00
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.35 / piece)
€ 3.35
plus VAT.
Only 10 meter available
Technical specifications
- Product type
PV cable
- Cable type
H1Z2Z2-K
- No. of leads
1 x
- Cross section (each core)
10 mm²
- Cross section
1 x 10 mm²
- Cable features
weatherproof
Abrasion resistant
Charpy impact tested
UV-resistant
Halogen-free
- Outside Ø
7.10 mm
- Factory colour
Blue
- Content
Sold per metre
- Nominal voltage
1000 V AC
1500 V DC
- Insulation material
Polyolefin
- Bend radius (no. of ODs for fixed installation)
4
- Sold per metre
Yes
- Halogen-free
Yes
- Manufacturer part #
1023791/500
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
+90 °C
- Min. temperature range (flexible installation)
-25 °C
- Max. temperature range (flexible installation)
+90 °C
- Type
1023791/500
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2813547 LAPP H1Z2Z2-K 1023791/500 PV cable 1 x 10 mm² Blue Sold per metre
Description
The photovoltaic cable type B1Z2Z2-K according to the design standard EN 50618 is basically weather, abrasion, notch and UV resistant. The halogen-free, double insulated and networked solar cables are suitable for constant outdoor use for connection of grounded and non-earthed solar-powered systems, if necessary also freely suspended. They are used for cabling solar modules with one another as well as for connecting the individual module series and the inverter. A common standard of application is HD 60364-7-712/VDE 0100-712 "Building low-voltage systems – Part 7-712: Requirements for industrial facilities, rooms and systems of a special kind – Photovoltaic (PV) power supply systems..."
This text is machine translated.
This text is machine translated.
Hints
This product is what are known as 'no Lapp Brand' merchandise.
Production takes place in accordance with the corresponding EN50618 standard.
