LAPP ÖLFLEX® CLASSIC 110 H Control lead 2 x 2.5 mm² Grey 10019944/500 500 m
EAN:
Part number:
Item no:
Cable type
ÖLFLEX® CLASSIC 110 H
Cross section (each core)
2.5 mm²
Outside Ø
7.60 mm
No. of leads
2 x
Product type
Control lead
Datasheet (PDF)
7 Set(s)
Sales and shipping:
Number
Total (1 m = € 2.97)
€
Only 7 Set(s) available
Highlights & Details

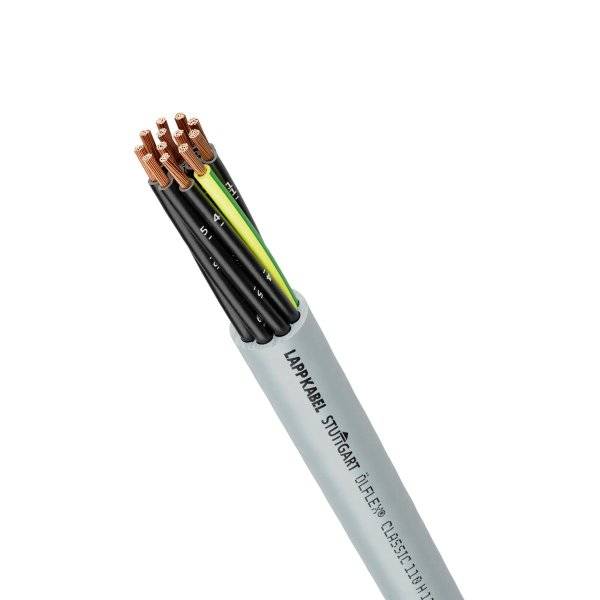

ÖLFLEX® CLASSIC 110 H, Control cable
- Number coded
- High flexibility
- Oil-resistant
Technical specifications
- Bend radius (no. of ODs for flexible installation)
15
- Bend radius (no. of ODs for fixed installation)
4
- Cable type
ÖLFLEX® CLASSIC 110 H
- Content
500 m
- Cross section
2 x 2.5 mm²
- Factory colour
Grey
- Cross section (each core)
2.5 mm²
- Halogen-free
Yes
- Cable features
Halogen-free
Oil-resistant
highly flexible
Cold-resistant
Flame-retardant
UV-resistant
- Manufacturer part #
10019944/500
- Type
ÖLFLEX CLASSIC 110 H 2X2,5 N
- Nominal voltage
500 V
- Outside Ø
7.60 mm
- Nominal voltage U0
300 V
- Max. temperature range (fixed installation)
+80 °C
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (flexible installation)
+70 °C
- Min. temperature range (flexible installation)
-30 °C
- No. of leads
2 x
- Packaged
Yes
- Core layout
Finely stranded
- Test voltage
4000 V
- Sold per metre
No
- Product type
Control lead
Documents & Downloads
Datasheet
Datasheet 1335266 LAPP ÖLFLEX® CLASSIC 110 H Control lead 2 x 2.5 mm² Grey 10019944/500 500 m
User & Safety Instructions
User & Safety Instructions 1335266 LAPP ÖLFLEX® CLASSIC 110 H Control lead 2 x 2.5 mm² Grey 10019944/500 500 m
Description
Suitable in industrial environment with average mechanical load. For fixed laying as well as also for flexible applications with free, not constantly recurring movement without tensile load or forced guiding, at average mechanical load.
