Buy LAPP ÖLFLEX® SERVO FD 7DSL Servo lead 4 G 1.5 mm² + 2 x 1 mm² Orange 1023278/50 50 m

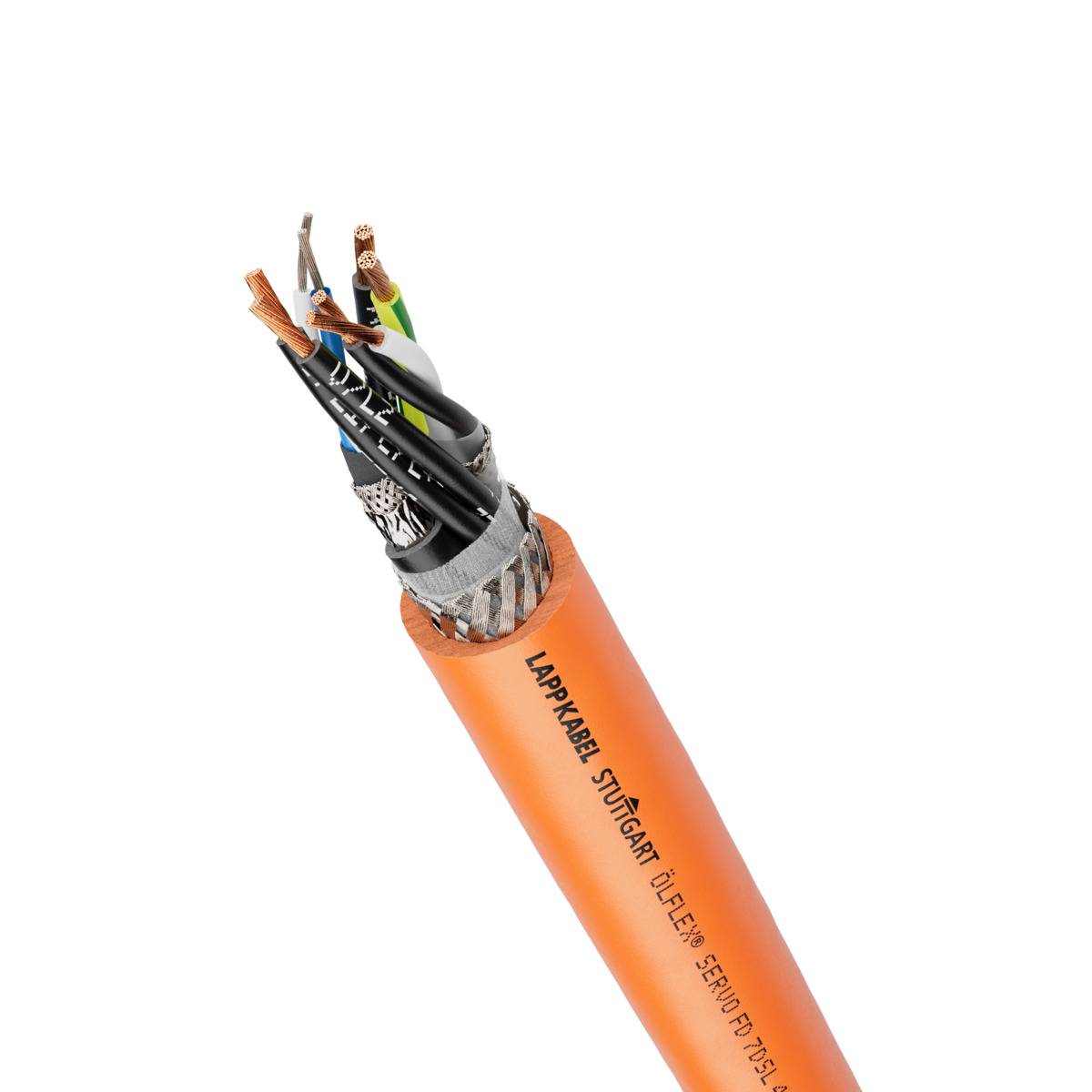

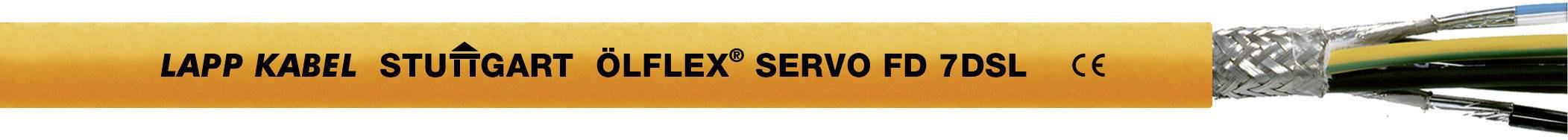

An orange cable with the inscription 'LAPP KABEL STUTTGART ÖLFLEX SERVO FD 7DSL'. Cable cores visible at the end.

Image similar

Product type

Servo lead

No. of leads

4 G

Cross section (each core)

1.5 mm²

Cable type

ÖLFLEX® SERVO FD 7DSL

Outside Ø

13.20 mm

Datasheet (PDF)

1 Set(s)

Sales and shipping:

Packaging units

Number

Set(s)

Total (1 m = € 11.18)

€

Only 1 Set(s) available

Report legal concerns

Highlights & Details

Hybrid cable ÖLFLEX ® SERVO FD7 DSL

Technical specifications

Product type: Servo lead

No. of leads: 4 G

Content: 50 m

Cross section (each core): 1.5 mm²

Cable features: Halogen-free
Flame-retardant
Oil-resistant
PUR coating
highly flexible

Cross section (each core) (part 2): 1 mm²

No. of leads (part 2): 2 x

Cable type: ÖLFLEX® SERVO FD 7DSL

Outside Ø: 13.20 mm

Packaged: Yes

Bend radius (no. of ODs for fixed installation): 5

Bend radius (no. of ODs for flexible installation): 7.5

Halogen-free: Yes

Manufacturer part #: 1023278/50

Factory colour: Orange

Insulation material: Polyurethane

Sold per metre: No

Nominal voltage: 1000 V

Nominal voltage U0: 600 V

Cross section: 4 G 1.5 mm² + 2 x 1 mm²

Max. temperature range (flexible installation): +90 °C

Min. temperature range (flexible installation): -40 °C

Max. temperature range (fixed installation): +70 °C

Min. temperature range (fixed installation): -40 °C

Type: ÖLFLEX SERVO FD 7DSL 4G1,5+(2x1)+(2x22A)

Variants(All information is without VAT, plus shipping costs)

Content

Cross section (each core) (part 2)

Cable type

Cross section (each core)

Outside Ø

Cable features

LAPP ÖLFLEX® SERVO FD 7DSL Servo lead 4 G 1.5 mm² + 2 x 0.32 mm² Orange 1023275/100 100 m

Item no:1335267

100 m

0.32 mm²

ÖLFLEX® SERVO FD 7DSL

1.5 mm²

11.20 mm

Halogen-freeFlame-retardantOil-resistantPUR coatinghighly flexible

LAPP ÖLFLEX® SERVO FD 7DSL Servo lead 4 G 1.5 mm² + 2 x 0.32 mm² Orange 1023275/50 50 m

Item no:1335269

50 m

0.32 mm²

ÖLFLEX® SERVO FD 7DSL

1.5 mm²

11.20 mm

Halogen-freeFlame-retardantOil-resistantPUR coatinghighly flexible

LAPP ÖLFLEX® SERVO FD 7DSL Servo lead 4 G 1.5 mm² + 2 x 0.32 mm² Orange 1023275/500 500 m

Item no:1335270

500 m

0.32 mm²

ÖLFLEX® SERVO FD 7DSL

1.5 mm²

11.20 mm

Halogen-freeFlame-retardantOil-resistantPUR coatinghighly flexible

LAPP ÖLFLEX® SERVO 7DSL Servo lead 4 G 1.5 mm² + 2 x 0.32 mm² Orange 1023290/100 100 m

Item no:1335291

100 m

0.32 mm²

ÖLFLEX® SERVO 7DSL

1.5 mm²

11.20 mm

Flame-retardantOil-resistant

LAPP ÖLFLEX® SERVO 7DSL Servo lead 4 G 1.5 mm² + 2 x 0.32 mm² Orange 1023290/50 50 m

Item no:1335293

50 m

0.32 mm²

ÖLFLEX® SERVO 7DSL

1.5 mm²

11.20 mm

Flame-retardantOil-resistant

LAPP ÖLFLEX® SERVO 7DSL Servo lead 4 G 1.5 mm² + 2 x 0.32 mm² Orange 1023290/500 500 m

Item no:1335294

500 m

0.32 mm²

ÖLFLEX® SERVO 7DSL

1.5 mm²

11.20 mm

Flame-retardantOil-resistant

LAPP ÖLFLEX® SERVO 7DSL Servo lead 4 G 2.5 mm² + 2 x 0.32 mm² Orange 1023291/500 500 m

Item no:1335298

500 m

0.32 mm²

ÖLFLEX® SERVO 7DSL

2.5 mm²

12.60 mm

Flame-retardantOil-resistant

LAPP ÖLFLEX® SERVO 7DSL Servo lead 4 G 4 mm² + 2 x 0.32 mm² Orange 1023292/50 50 m

Item no:1335301

50 m

0.32 mm²

ÖLFLEX® SERVO 7DSL

4 mm²

14.0 mm

Flame-retardantOil-resistant

LAPP ÖLFLEX® SERVO 7DSL Servo lead 4 G 4 mm² + 2 x 0.32 mm² Orange 1023292/500 500 m

Item no:1335302

500 m

0.32 mm²

ÖLFLEX® SERVO 7DSL

4 mm²

14.0 mm

Flame-retardantOil-resistant

LAPP ÖLFLEX® SERVO 7DSL Servo lead 4 G 1.5 mm² + 2 x 1 mm² Orange 1023293/100 100 m

Item no:1335303

100 m

1 mm²

ÖLFLEX® SERVO 7DSL

1.5 mm²

13.20 mm

Flame-retardantOil-resistant

Documents & Downloads

Datasheet

Datasheet 1335281 LAPP ÖLFLEX® SERVO FD 7DSL Servo lead 4 G 1.5 mm² + 2 x 1 mm² Orange 1023278/50 50 m

User & Safety Instructions

User & Safety Instructions 1335281 LAPP ÖLFLEX® SERVO FD 7DSL Servo lead 4 G 1.5 mm² + 2 x 1 mm² Orange 1023278/50 50 m

Description

Well-suited for use in power chains, the electric drive technology as well as connecting wire between Servo regulator and motor. Easy to install.
