LAPP Servo lead 4 x 16 mm² 1020051/500 500 m
EAN:
Part number:
Item no:
Product type
Servo lead
No. of leads
4 x
Cross section (each core)
16 mm²
Outside Ø
22.5 mm
Content
500 m
Datasheet (PDF)
Technical specifications
- Product type
Servo lead
- No. of leads
4 x
- Content
500 m
- Cross section (each core)
16 mm²
- Outside Ø
22.5 mm
- Manufacturer part #
1020051/500
- Nominal voltage
1000 V
- Nominal voltage U0
600 V
- Cross section
4 x 16 mm²
- Type
ÖLFLEX® SERVO 719 CY 4G16+(2x1,5)
16 mm²
1 kV
Orange
Copper
Polyvinyl chloride (PVC)
0.6 kV
4
22.5 mm
TRUE
Bare
337.5 mm
135.0 mm
Polypropylene (PP)
Other
Round
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3363617 LAPP Servo lead 4 x 16 mm² 1020051/500 500 m
User & Safety Instructions
User & Safety Instructions 3363617 LAPP Servo lead 4 x 16 mm² 1020051/500 500 m
Description

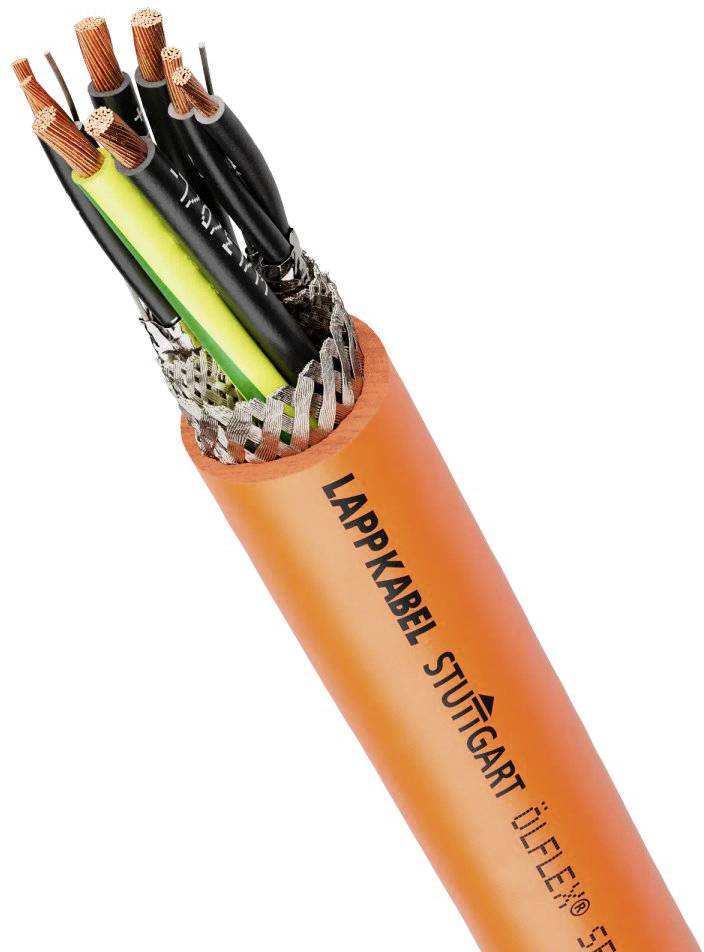

ÖLFLEX® SERVO 719 CY 4G16+(2x1.5) Power Line; 4G16+(2x1.5); U0/U: 0,6/1 kV; PVC; Shielded; UL recognized; flexible
