LAPP SKINTOP CUBE 20X20 ASI BUS Cable routing frame selectable Polypropylene 5 pc(s)
EAN:
Part number:
Item no:
Product type
Cable routing frame
Features
selectable
Material
Polypropylene
Min. temperature
-20 °C
Max. temperature
+80 °C
Datasheet (PDF)
Highlights & Details

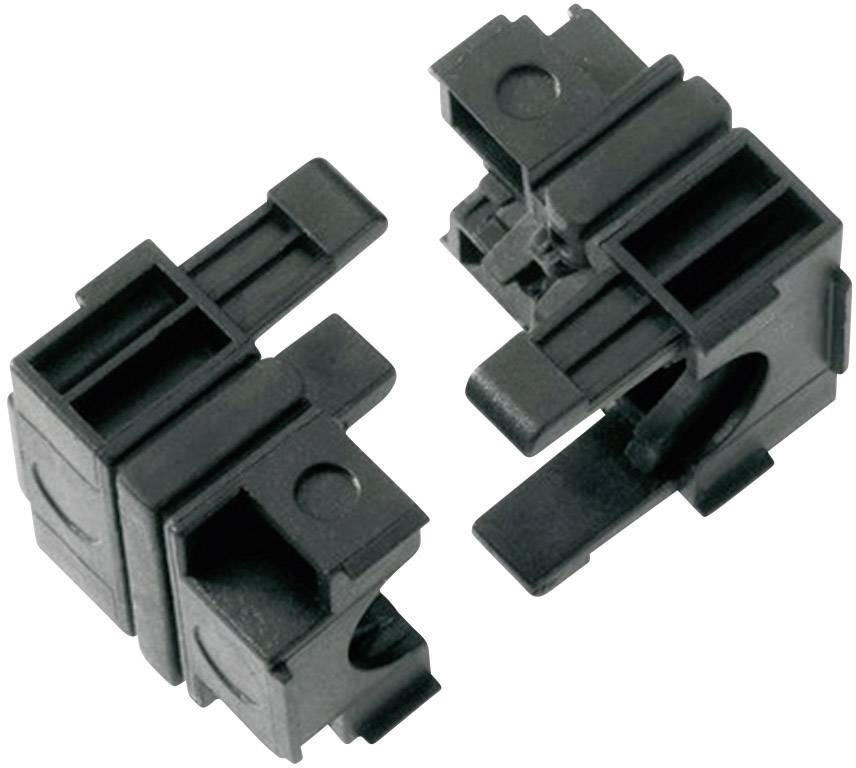

SKINTOP ® CUBE MODULE
- Oil-resistant
- Vibration-proof locking of the modules
- Variable clamping range
Technical specifications
- Product type
Cable routing frame
- Features
selectable
- Material
Polypropylene
- Min. temperature
-20 °C
- Max. temperature
+80 °C
IP64
- Halogen-free
No
- Content
5 pc(s)
- Manufacturer part #
52220040
- Type
SKINTOP CUBE 20X20 ASI BUS
- RoHS-compliant
Yes
- Material properties
oil-resistant
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1043823 LAPP SKINTOP CUBE 20X20 ASI BUS Cable routing frame selectable Polypropylene 5 pc(s)
User & Safety Instructions
User & Safety Instructions 1043823 LAPP SKINTOP CUBE 20X20 ASI BUS Cable routing frame selectable Polypropylene 5 pc(s)
Description

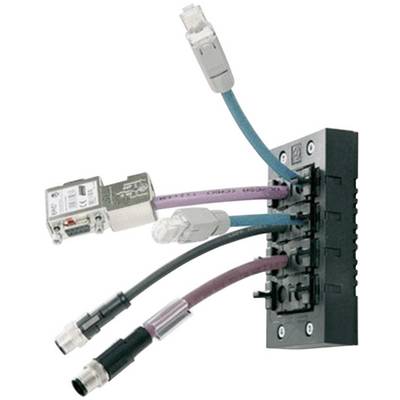

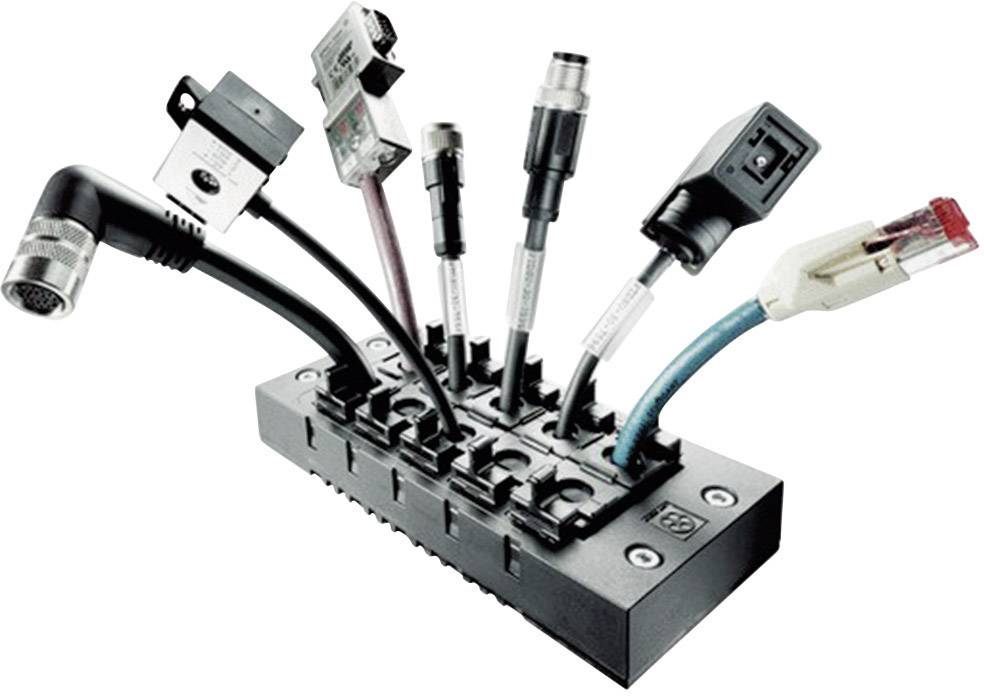

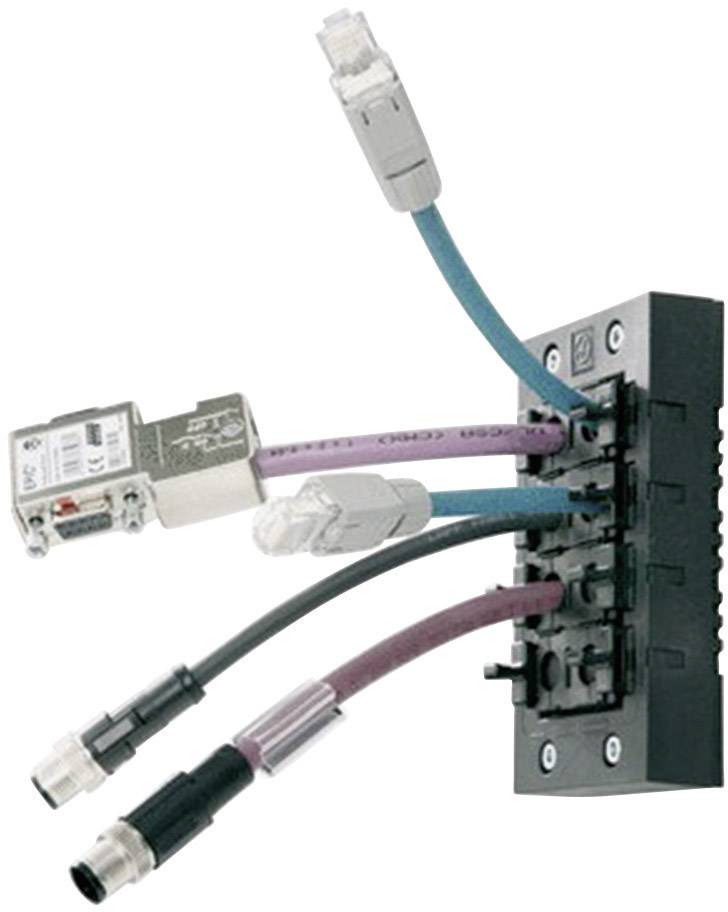

Innovative multi-way cable entry with variable clamping ranges for high flexibility during installation.
After removal, the frame is not removed from the chassis, the plug-in seal module remains safely on the cable.

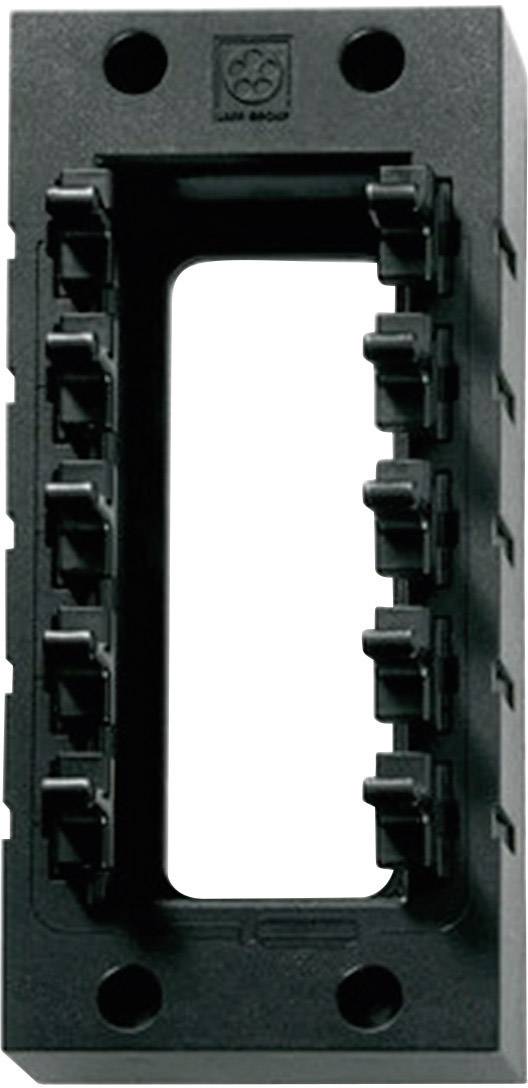

The system consists of the SKINTOP ® CUBE FRAME SKINTOP ® CUBE FRAME, as well as the plug-in seal modules
SKINTOP ® CUBE MODULE.
For plug connector mounting cutouts with standard bore holes.
For plug connector mounting cut-outs of 16-pin (36 x 86 mm)
24-pin connector for mounting cut-outs (36 x 112 mm)
This text is machine translated.
After removal, the frame is not removed from the chassis, the plug-in seal module remains safely on the cable.
The system consists of the SKINTOP ® CUBE FRAME SKINTOP ® CUBE FRAME, as well as the plug-in seal modules
SKINTOP ® CUBE MODULE.
For plug connector mounting cutouts with standard bore holes.
For plug connector mounting cut-outs of 16-pin (36 x 86 mm)
24-pin connector for mounting cut-outs (36 x 112 mm)
This text is machine translated.
Hints
SKINTOP ® CUBE MODULE 20 x 20 blind can be used as a dummy module, or for clamping range 1-3 mm.
