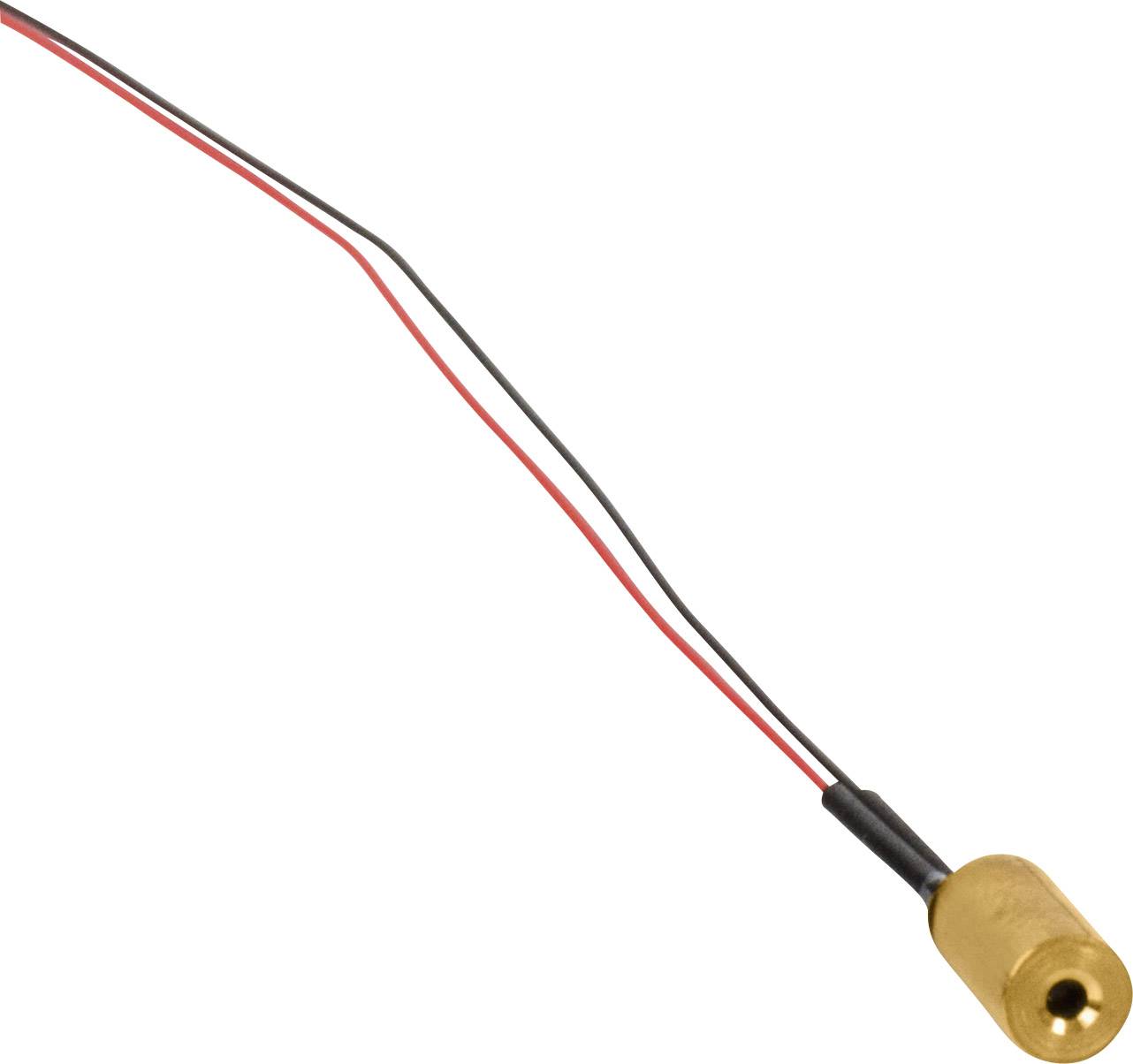

Laser Components Laser module Dot Red 1 mW LC-LMD -650-01-01-A-C
EAN:
Part number:
Item no:
Datasheet (PDF)
92 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
5% = € 0.75
€ 14.37
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€
Highlights & Details
Low-cost laser point red
- Red
- Laser category: 2
- Emission characteristics: Dot
Technical specifications
- Working Distance: 50 mm to infinity
- Type
LC-LMD -650-01-01-A-C
- Emission characteristics
Dot
- Focus properties
collimated
- Factory colour
Red
- Wavelength
650 nm
1 mW
- Laser category
2
- Beam divergence
2 mrad
- Clearance
50 mm
- Operating voltage
3 V DC
- Operating voltage
2.5 - 3.3 V DC
- Operating current
20 mA
- Dim
(Ø x L) 3 mm x 8 mm
- (Ø)
3 mm
- Length
8 mm
- Min. operating voltage
2.5 V DC
- Max. operating voltage
3.3 V DC
- Max. temperature
40 °C
- Min. temperature
0 °C
- Product type
Laser module
Documents & Downloads
Datasheet
Datasheet 1782875 Laser Components Laser module Dot Red 1 mW LC-LMD -650-01-01-A-C
Description
Bright red point, Collimated. Laser in small size.
This text is machine translated.
This text is machine translated.
Hints
Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
