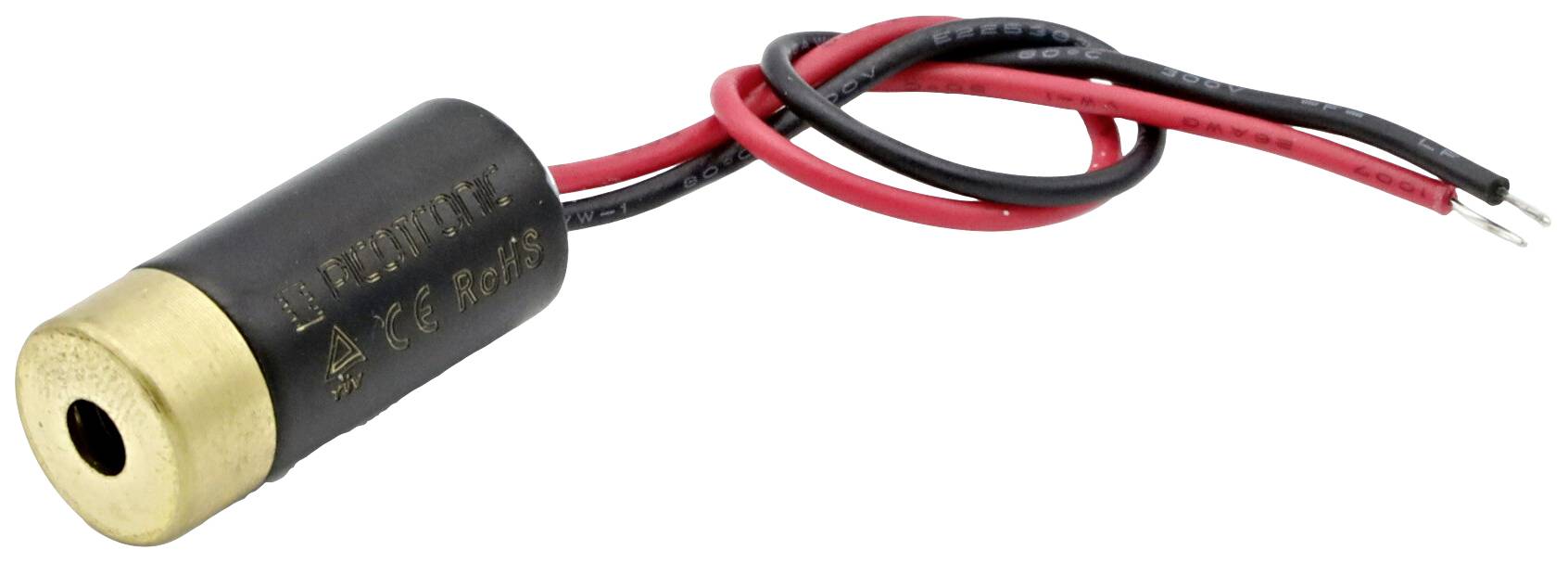

Laserfuchs Cross line laser Cross 3.5 mW
EAN:
Part number:
Item no:
Product type
Cross line laser
Emission characteristics
Cross
Wavelength
650 nm
Power
3.5 mW
(Ø)
6 mm
Highlights & Details
Cross laser, red, 650nm, 5mW, 45°, laser class 1, focus 1m, 3-12V DC, 10x22mm
- Laser category: 1
- Emission characteristics: Cross
Technical specifications
- Material: Brass
- Optical power 3.5 mW
- Lifetime 3,000 h
- Operating temperature: -20°C to 40 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Cross
- Class 1 laser
- Divergent: H - 1.0 mrad
- Aperture angle: 45 °
- 1 m operating distance
- Acrylic lens
- Laser technology: Diode
- Focus: Fixed (1000mm)
- Potential of the enclosure: VDD(+)
- Potential of the housing: VDD(+)Focus: Fixed (1000mm)
- Cable color GND: Black
- Cable length 100 mm
- Cable type: 26AWG, 0.14mm²

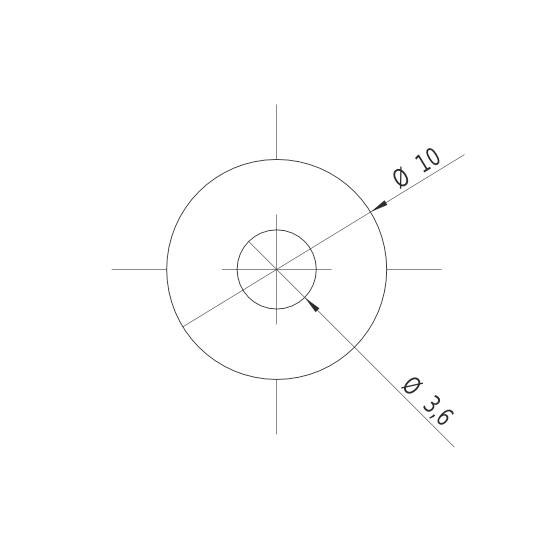

- Outlet diameter of optical 6 mm
- Product type
Cross line laser
- Emission characteristics
Cross
- Focus properties
1000 mm fixed-focus
- Wavelength
650 nm
3.5 mW
- (Ø)
6 mm
- Length
22 mm
- Laser category
1
- Angular aperture
45°
- Beam divergence
1.0 mrad
- Clearance
1 m
- Operating voltage
12 V DC
- Operating current
20 mA
- Material
Brass
- Dim
(Ø x L) 6 mm x 22 mm
- Weight
9 g
- RoHS-compliant
Yes
- Width
10 mm
- Max. temperature
40 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987455 Laserfuchs Cross line laser Cross 3.5 mW
Information
Information 2987455 Laserfuchs Cross line laser Cross 3.5 mW
Conformity certificate
Conformity certificate 2987455 Laserfuchs Cross line laser Cross 3.5 mW
Description
Features
- Cross laser, red, 650nm, 5mW, 45°, laser class 1, focus 1m, 3-12V DC, 10x22mm

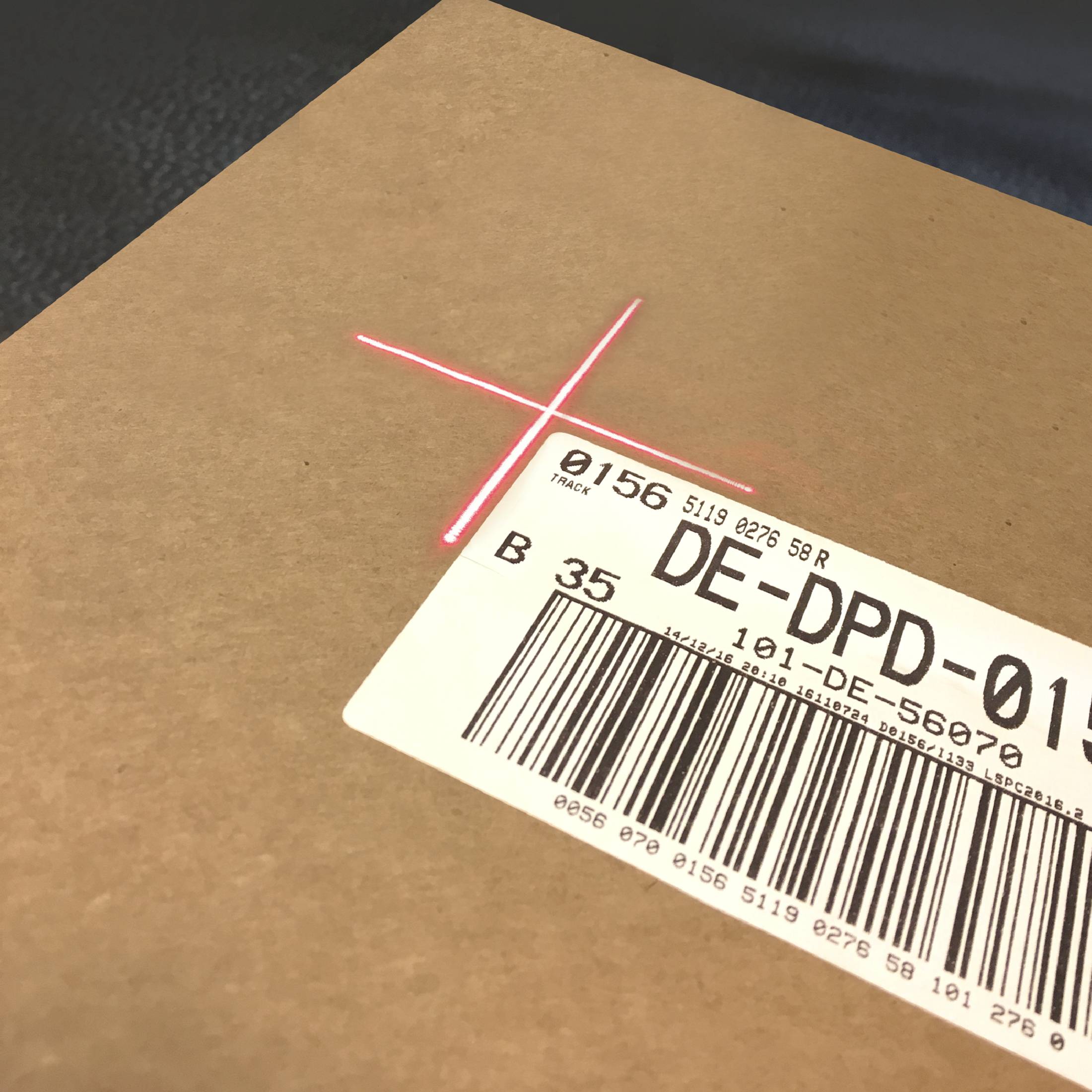

- The type LFC650-5-12(10x22)45 is a laser for projection of a red laser cross with a wavelength 650nm. The laser has a very compact design (10 x 22 mm). The service life of the laser module is greater than 3,000 hours. The angle of detection of 45° generates a laser cross of 0.8 m length at a distance of 1 m. You can use our power supply unit LFNT-3, for example. This cross laser is used for e.g. leveling systems, laser marking systems and for accurate positioning of objects. Typical usage areas are low-cost applications. This module falls into the laser class 1.
- Radiation characteristics: Cross, line thickness 1.2mm@1m
- Optical output: Laser class 1; focus 1m
- Compact design: 10x22mm; opening angle: 45°; axis deviation: Up to 3.0°

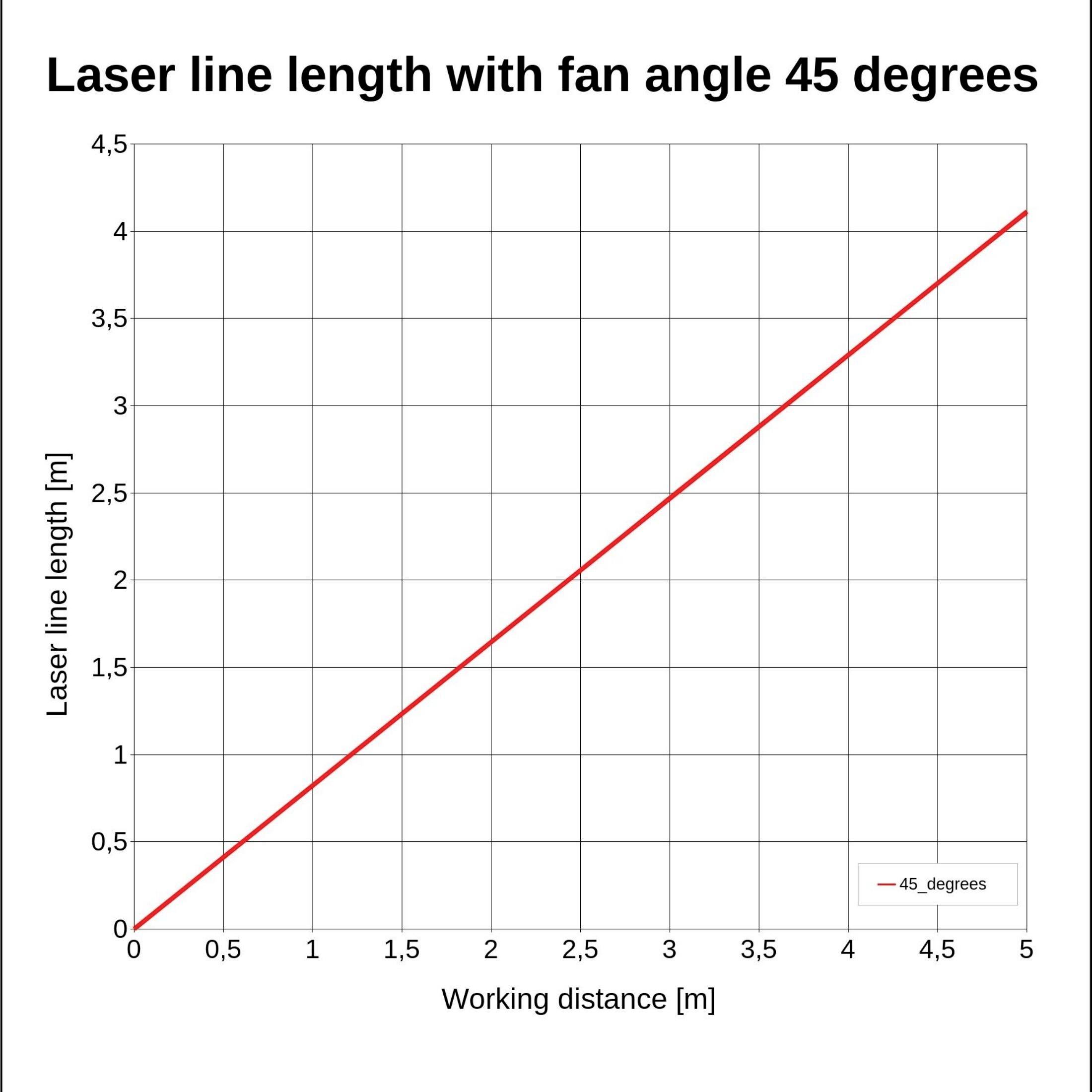

- At a working distance of 1m, the opening angle (45°) generates a laser line length of 0.8m.
- For applications in e.g. laser spirit levels, laser marking systems, robot technology and show sector. Power supply 3V to 12V. For the power supply you can use our Picotronic power supply LFNT-3.
- This text is machine translated.
