Buy Laserfuchs Cross line laser Cross 5 mW

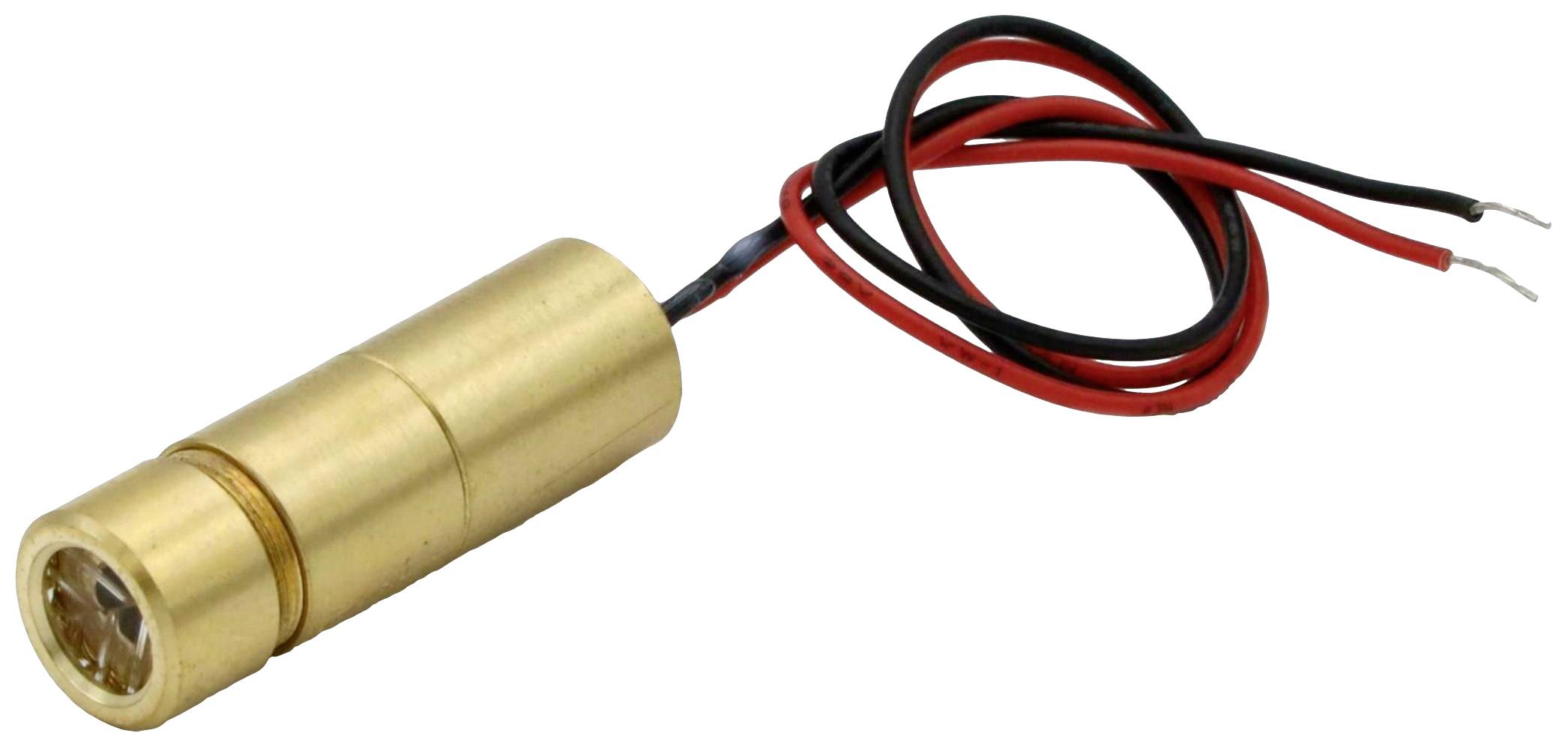

Small, cylindrical laser module with red and black cables. Typically used for technical applications.

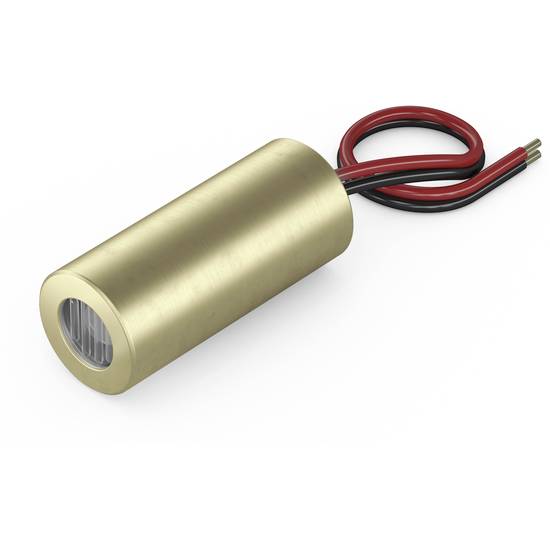

Cylindrical, gold-coloured LED mount with two protruding wires in red and black.

A person is lying with raised arms in a medical scanner. Red laser lines are visible on their face and neck.

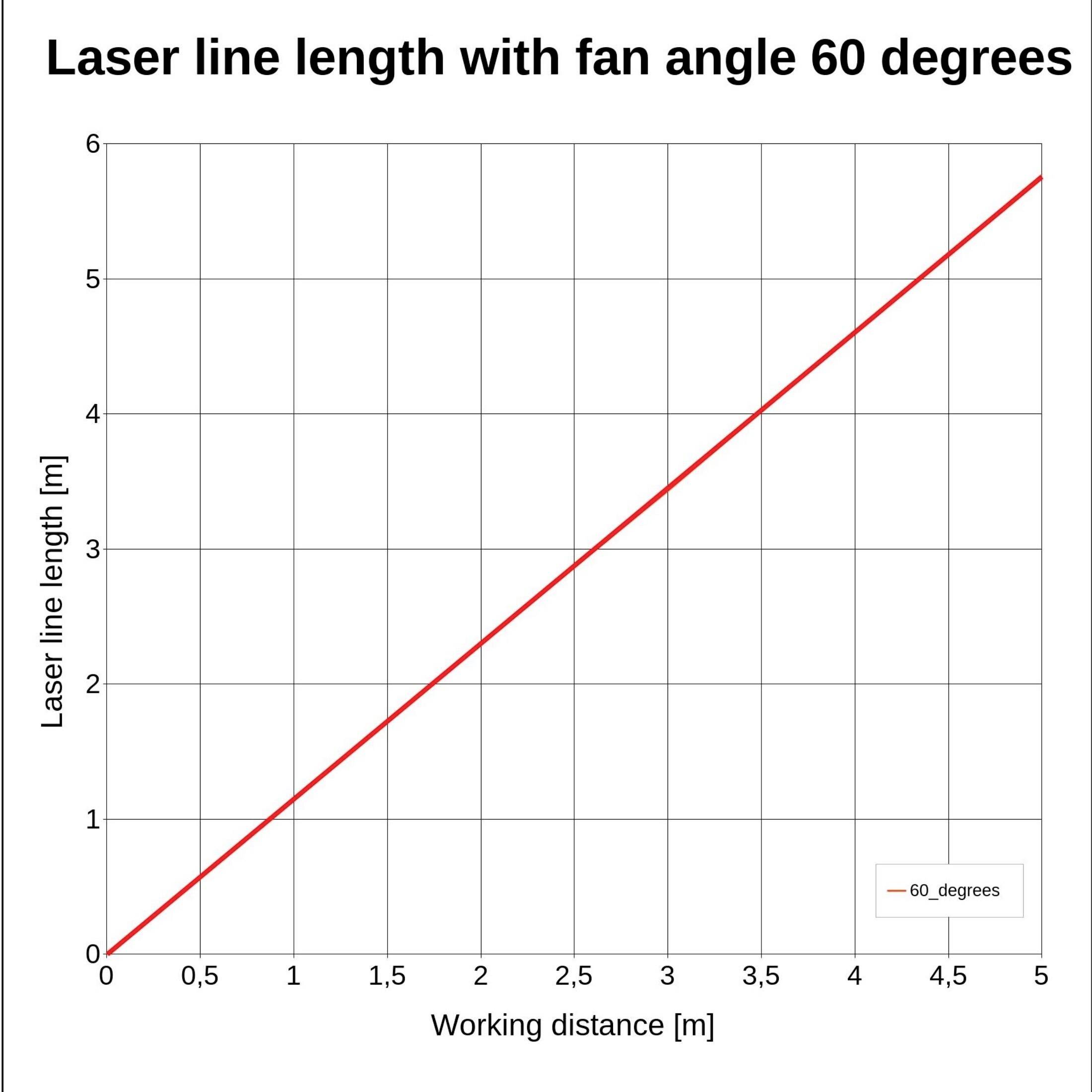

'Diagram shows laser line length at a 60-degree fan angle. X-axis: Working distance (0 to 5 m), Y-axis: Line length (0 to 6 m). Line rises linearly.'

1/4

Product type

Cross line laser

Emission characteristics

Cross

Wavelength

650 nm

Power

5 mW

(Ø)

9 mm

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Focusable cross laser, red, 650nm, 5mW, 60°, Laser class 1, focus adjustable, 3-5V DC, 9x26mm

Laser category: 1
Emission characteristics: Cross

Technical specifications

Material: Brass
Optical power 5 mW
Lifetime 10,000 h
Operating temperature: -10°C - 40 °C
Storage temperature: -40°C to 80 °C.
Beam form: Cross
Class 1 laser
Divergence B-0.3 mrad
Aperture angle: 60 °
3 m operating distance
Acrylic lens
Laser technology: Single mode diode
Focus adjustable
Potential of the enclosure: VDD(+)
Potential of the housing: VDD(+)Focus: Adjustable
Cable color GND: Black
Cable length: 150 mm.
Cable type Belden 1007 26AWG
Outlet diameter of optical 6 mm

Product type: Cross line laser

Emission characteristics: Cross

Focus properties: adjustable

Wavelength: 650 nm

: 5 mW

(Ø): 9 mm

Length: 26 mm

Laser category: 1

Angular aperture: 60°

Beam divergence: 0.3 mrad

Clearance: 3 m

Operating voltage: 5 V DC

Operating current: 30 mA

Material: Brass

Dim: (Ø x H) 9 mm x 26 mm

Weight: 8.1 g

RoHS-compliant: Yes

Width: 9 mm

Height: 26 mm

Max. temperature: 40 °C

Min. temperature: -10 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2987318 Laserfuchs Cross line laser Cross 5 mW

Information

Information 2987318 Laserfuchs Cross line laser Cross 5 mW

Conformity certificate

Conformity certificate 2987318 Laserfuchs Cross line laser Cross 5 mW

Description

Features

Focusable cross laser, red, 650nm, 5mW, 60°, Laser class 1, focus adjustable, 3-5V DC, 9x26mm
The CB650-5-5(9x26)60-ADJ type is a laser for projection of a red laser cross with a wavelength of 650nm. The laser is available in a very compact design (9x26mm). The service life of the laser module is greater than 3,000 hours. The angle of detection of 60° generates a laser cross of 1.1m length at a distance of 1m. The adjustable focus allows the laser line thickness to be varied. The current consumption is very low at approx. 30mA, therefore 2 batteries can be used to supply the power without any problem. The laser module can be used mobile. As power supply you can use our Battery-Pack with 2 x 1.5 Volt Batteries (AA). This cross laser is used for e.g. leveling systems, laser marking systems and for accurate positioning of objects. Typical usage areas are low-cost applications. This module falls into the laser class 1.
Radiation characteristic: Cross, line thickness can be varied
Optical power: 5mW (laser class 1); adjustable focus
Compact design: 9x26mm; opening angle: 60°; axis deviation: Up to 3.0°
At a working distance of 1m, the opening angle (60°) generates a laser line length of 1.1m.
For applications in e.g. laser spirit levels, laser marking systems, robot technology and show sector. Power supply 3V to 5V. For the power supply, you can use e.g. our Picotronic battery pack 3V or the power pack Picotronic LFNT-3.
