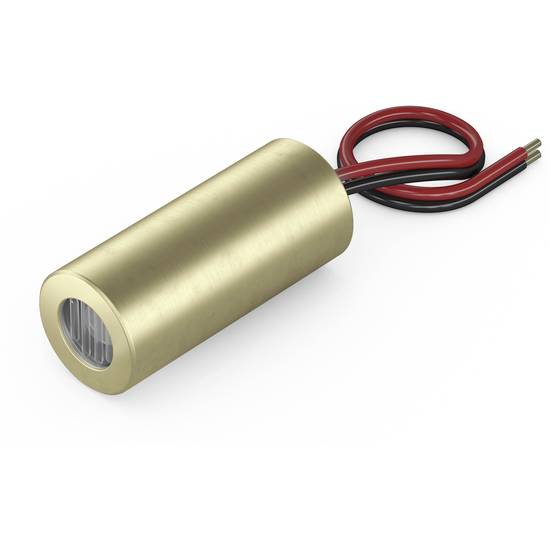

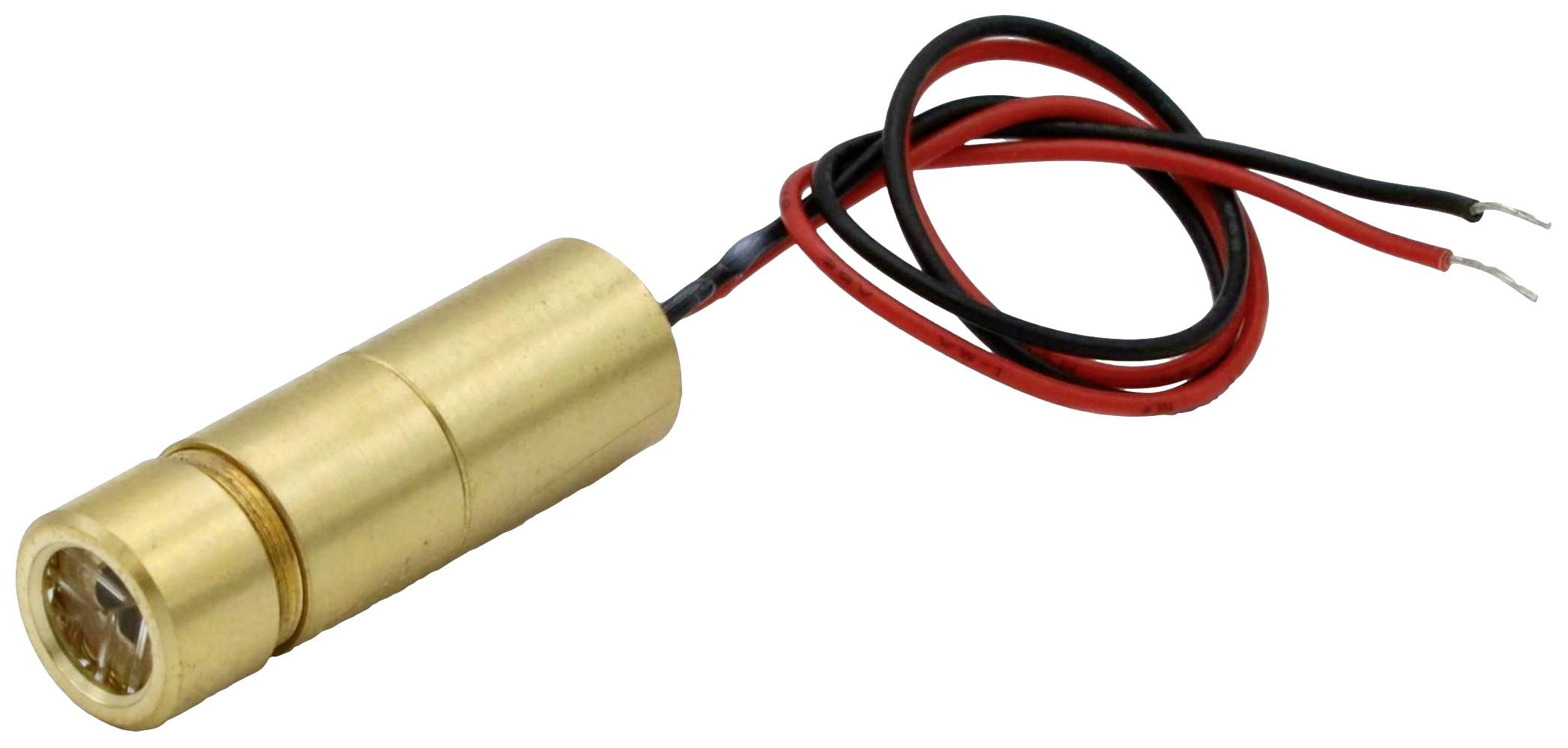

Laserfuchs Cross line laser Cross 5 mW
EAN:
Part number:
Item no:
Product type
Cross line laser
Emission characteristics
Cross
Wavelength
635 nm
Power
5 mW
(Ø)
9 mm
Highlights & Details
Focusable cross laser, red, 635nm, 5mW, 60°, Laser class 1, focus adjustable, 3-5V DC, 9x26mm
- Laser category: 1
- Emission characteristics: Cross
Technical specifications
- Material: Brass
- Optical power 5 mW
- Lifetime 10,000 h
- Operating temperature: -10°C - 40 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Cross
- Class 1 laser
- Divergence B-0.3 mrad
- Aperture angle: 60 °
- 3 m operating distance
- Acrylic lens
- Laser technology: Single mode diode
- Focus adjustable
- Potential of the enclosure: VDD(+)
- Potential of the housing: VDD(+)Focus: Adjustable
- Cable color GND: Black
- Cable length: 150 mm.
- Cable type Belden 1007 26AWG
- Outlet diameter of optical 6 mm
- Product type
Cross line laser
- Emission characteristics
Cross
- Focus properties
Selectable focus
- Wavelength
635 nm
5 mW
- (Ø)
9 mm
- Length
26 mm
- Laser category
1
- Angular aperture
60°
- Beam divergence
0.3 mrad
- Clearance
3 m
- Operating voltage
5 V DC
- Operating current
30 mA
- Material
Brass
- Dim
(Ø x L) 9 mm x 26 mm
- Weight
8.1 g
- RoHS-compliant
Yes
- Max. temperature
40 °C
- Min. temperature
-10 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987664 Laserfuchs Cross line laser Cross 5 mW
Information
Information 2987664 Laserfuchs Cross line laser Cross 5 mW
Conformity certificate
Conformity certificate 2987664 Laserfuchs Cross line laser Cross 5 mW
Description
Features
- Focusable cross laser, red, 635nm, 5mW, 60°, Laser class 1, focus adjustable, 3-5V DC, 9x26mm
- The CB635-5-5(9x26)60-ADJ type is a laser for projection of a red laser cross that is much better visible due to the 635nm wavelength than a comparable 650nm laser. The laser is available in a very compact design (9x26mm). The service life of the laser module is greater than 3,000 hours. The angle of detection of 60° generates a laser cross of 1.1m length at a distance of 1m. The adjustable focus allows the laser line thickness to be varied. The current consumption is very low at approx. 30mA, therefore 2 batteries can be used to supply the power without any problem. The laser module can be used mobile. As power supply you can use our Battery-Pack with 2 x 1.5 Volt Batteries (AA). This cross laser is used for e.g. leveling systems, laser marking systems and for accurate positioning of objects. Typical usage areas are low-cost applications. This module falls into the laser class 1.
- Radiation characteristic: Cross, line thickness can be varied; 635nm lasers have a better visibility than 650nm lasers, for example.
- Optical power: 5mW (laser class 1); adjustable focus
- Compact design: 9x26mm; opening angle: 60°; axis deviation: Up to 3.0°

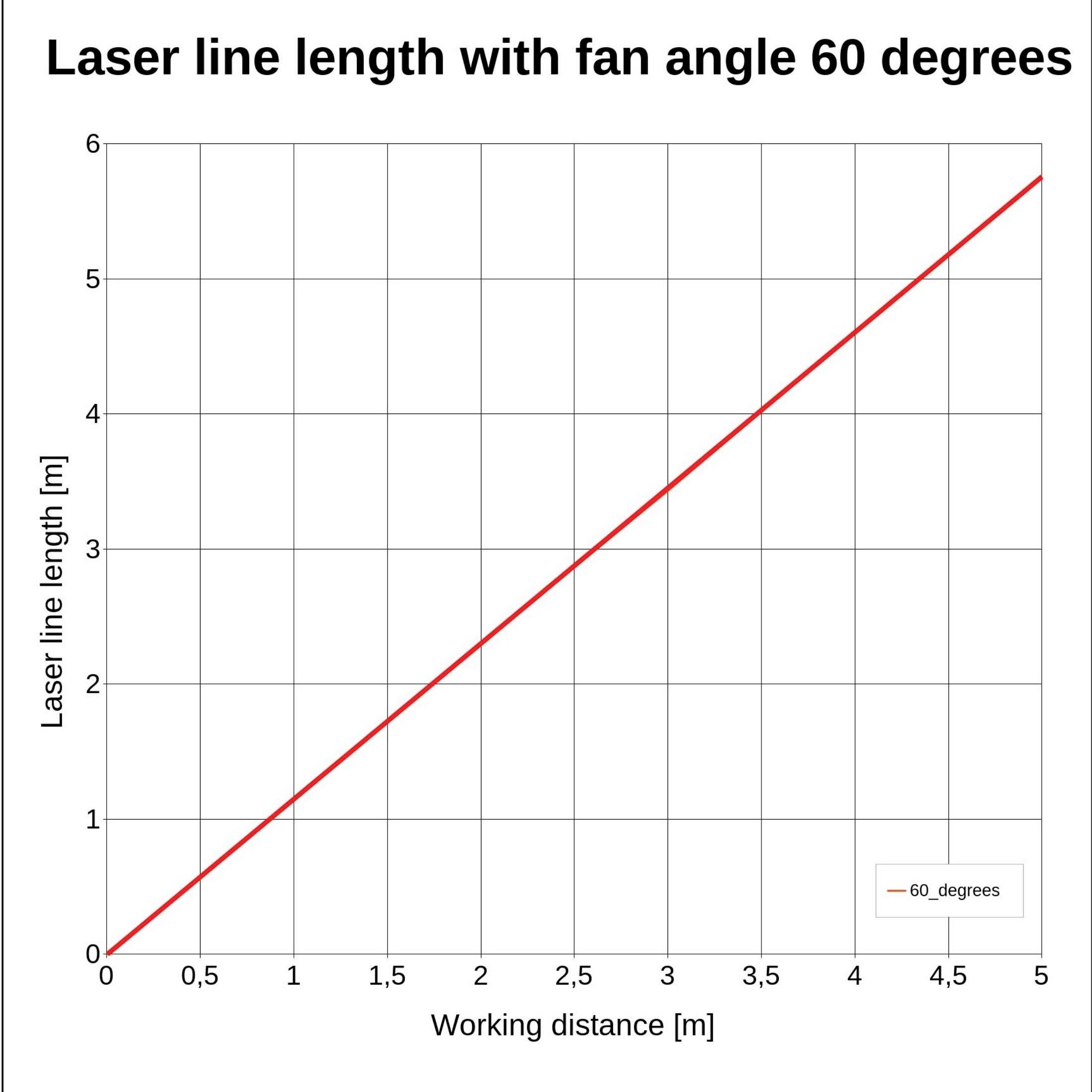

- At a working distance of 1m, the opening angle (60°) generates a laser line length of 1.1m.
- For applications in e.g. laser spirit levels, laser marking systems, robot technology and show sector. Power supply 3V to 5V. For the power supply, you can use e.g. our Picotronic battery pack 3V or the power pack Picotronic LFNT-3.
- This text is machine translated.
