Name: Laserfuchs Cross line laser Cross 5 mW
Brand: Laserfuchs
SKU: 2987713

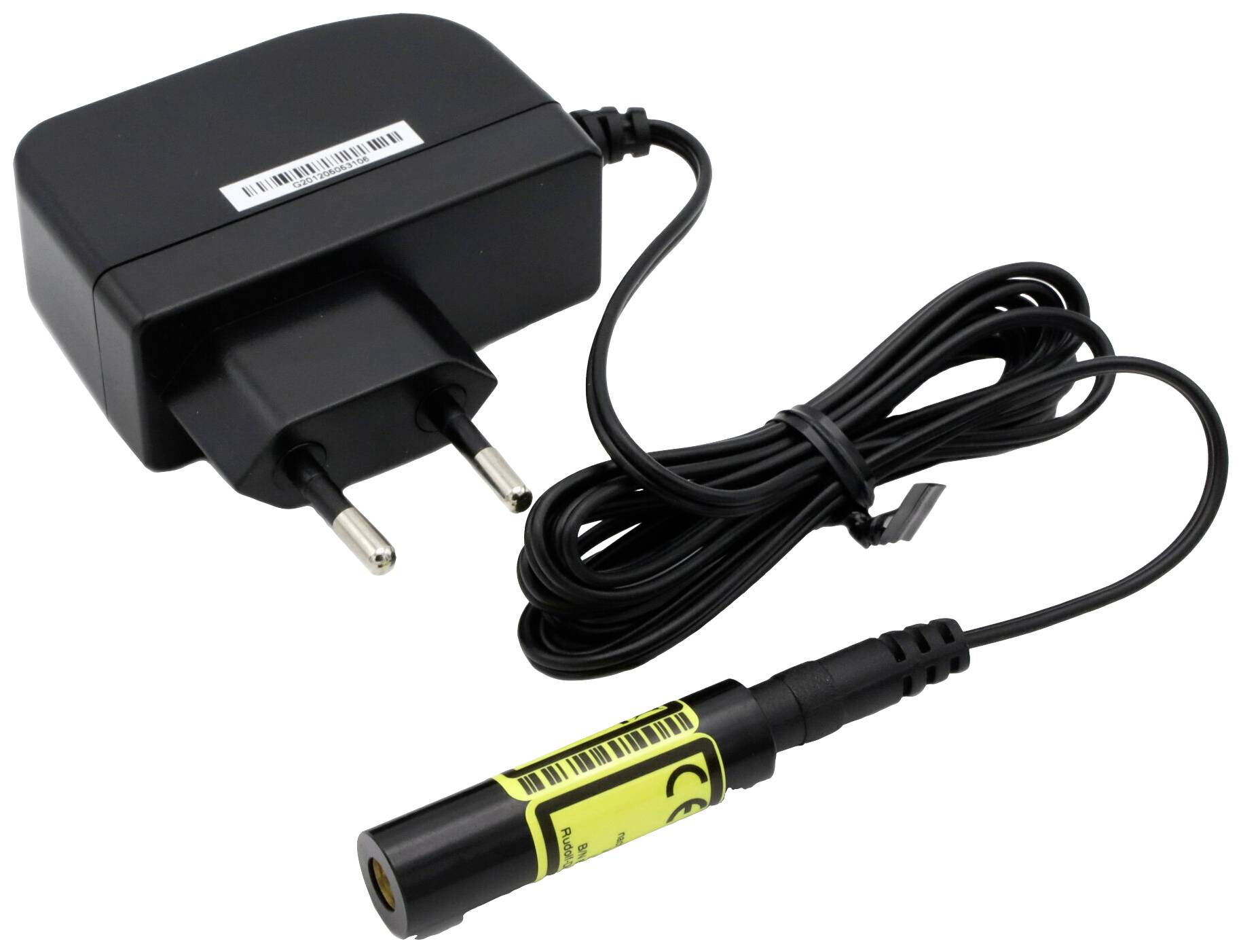

A black power adapter with an EU plug and a detachable cable. The cable is coiled and the connection plug is attached to a small yellow device.

A brown package with a shipping label 'DE-DPD-0156' and a barcode is being scanned by a red laser.

'Laser continuous line with fan angle 45 degrees' shows linear increase from 0 to 4.5 m at 5 m working distance. Axes: 'Length' and 'Distance'.

1/3

Product type

Cross line laser

Emission characteristics

Cross

Wavelength

635 nm

Power

5 mW

(Ø)

12 mm

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Cross laser, red, 635nm, 5mW, 45°, Laser class 1, Focus 1m, 5V DC, 12x45mm, Incl Mains adapter

Laser category: 1
Emission characteristics: Cross

Technical specifications

Material: Aluminium
Optical power 5 mW
Lifetime 3,000 h
Operating temperature: -20°C to 40 °C
Storage temperature: -40°C to 80 °C.
Beam form: Cross
Class 1 laser
Divergence G - 0.8 mrad
Aperture angle: 45 °
1 m operating distance
Acrylic lens
Laser technology: Diode
Focus: Fixed (1000mm)
Potential of the enclosure: VDD(+)
Cable length 1,360 mm
Outlet diameter of optical 6 mm
Black enclosure

Product type: Cross line laser

Emission characteristics: Cross

Focus properties: 1000 mm fixed-focus

Wavelength: 635 nm

: 5 mW

(Ø): 12 mm

Length: 45 mm

Laser category: 1

Angular aperture: 45°

Beam divergence: 0.8 mrad

Clearance: 1 m

Operating voltage: 5 V DC

Operating current: 40 mA

Material: Aluminium

Dim: (Ø x H) 12 mm x 45 mm

Weight: 100 g

RoHS-compliant: Yes

Width: 12 mm

Height: 45 mm

Max. temperature: 40 °C

Min. temperature: -20 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2987713 Laserfuchs Cross line laser Cross 5 mW

Information

Information 2987713 Laserfuchs Cross line laser Cross 5 mW

Conformity certificate

Conformity certificate 2987713 Laserfuchs Cross line laser Cross 5 mW

Features

Cross laser, red, 635nm, 5mW, 45°, Laser class 1, Focus 1m, 5V DC, 12x45mm, Incl Mains adapter
The type LFC635-5(12x45)45-NT is a laser for the projection of a red laser cross, which is considerably better visible due to the wavelength of 635nm than a comparable 650nm laser. Due to the special optics the laser module generates a sharp cross and manages without rotating polygon mirrors and motors. High-quality laser module in sturdy metal housing. The angle of detection of 45° generates a laser cross of 0.8 m length at a distance of 1 m. The optimum working range of the laser is at 1m. The module is very suitable for leveling and positioning tasks. This positioning laser is a universal tool for industry, hobby and trade and considerably simplifies the positioning, marking and alignment of workpieces. This module falls into the laser class 1.
Radiation characteristic: Cross, line thickness 1.2mm@1m; lasers with 635nm have a better visibility than, for example, lasers with 650nm.
Optical output: Laser class 1; focus 1m
Compact design: 12x45mm; opening angle: 45°; axis deviation: Up to 3.0°; DC-hollow plug 2.1mm
At a working distance of 1m, the opening angle (45°) generates a laser line length of 0.8m.
For applications in e.g. laser marking systems, the robot technology, industry, handicraft, hobby and the show area. The power supply unit included in the delivery is connected separable with the laser module.
Including a Picotronic power supply LFNT-5-C.
This text is machine translated.

Description

Features

Cross laser, red, 635nm, 5mW, 45°, Laser class 1, Focus 1m, 5V DC, 12x45mm, Incl Mains adapter
The type LFC635-5(12x45)45-NT is a laser for the projection of a red laser cross, which is considerably better visible due to the wavelength of 635nm than a comparable 650nm laser. Due to the special optics the laser module generates a sharp cross and manages without rotating polygon mirrors and motors. High-quality laser module in sturdy metal housing. The angle of detection of 45° generates a laser cross of 0.8 m length at a distance of 1 m. The optimum working range of the laser is at 1m. The module is very suitable for leveling and positioning tasks. This positioning laser is a universal tool for industry, hobby and trade and considerably simplifies the positioning, marking and alignment of workpieces. This module falls into the laser class 1.
Radiation characteristic: Cross, line thickness 1.2mm@1m; lasers with 635nm have a better visibility than, for example, lasers with 650nm.
Optical output: Laser class 1; focus 1m
Compact design: 12x45mm; opening angle: 45°; axis deviation: Up to 3.0°; DC-hollow plug 2.1mm
At a working distance of 1m, the opening angle (45°) generates a laser line length of 0.8m.
For applications in e.g. laser marking systems, the robot technology, industry, handicraft, hobby and the show area. The power supply unit included in the delivery is connected separable with the laser module.
Including a Picotronic power supply LFNT-5-C.
This text is machine translated.
