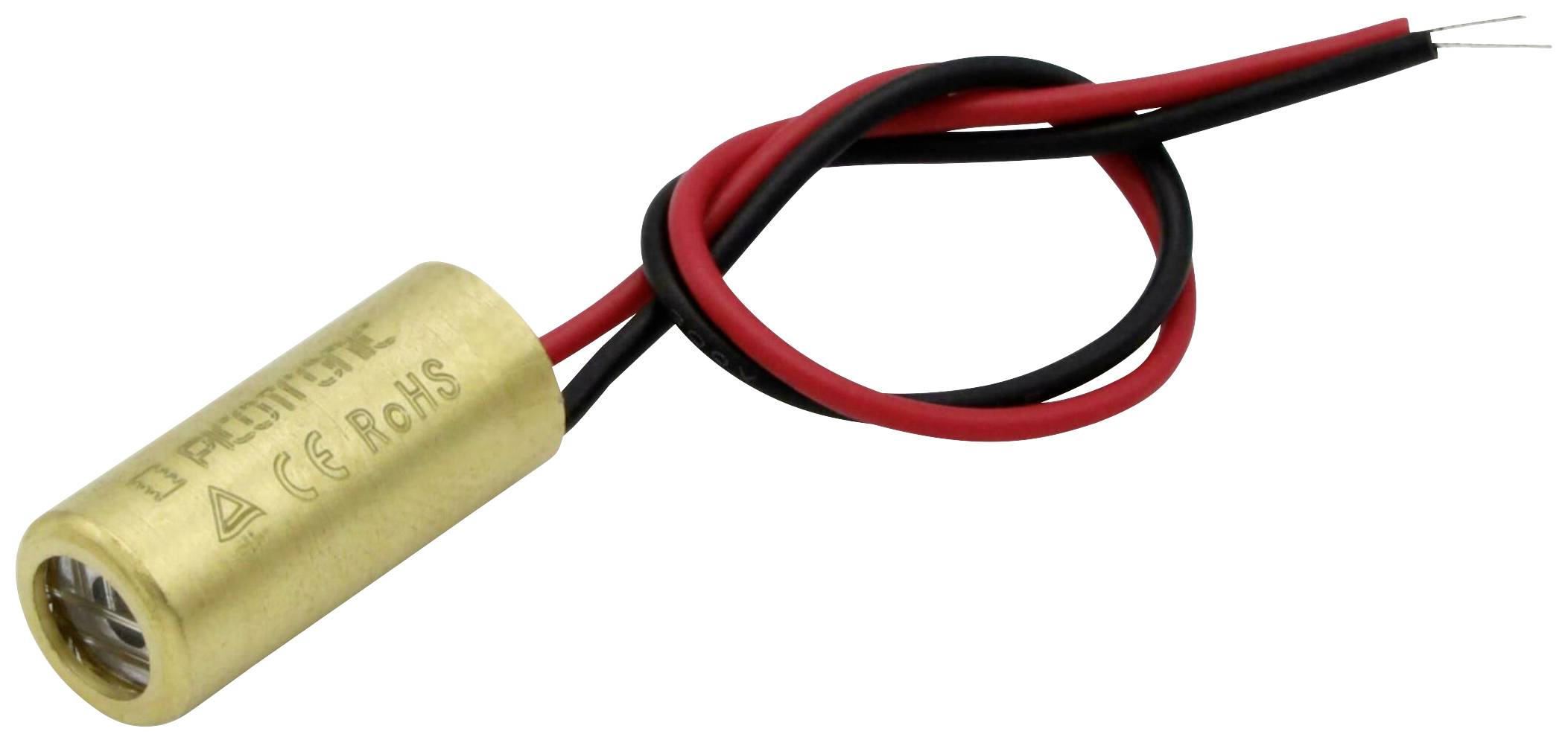

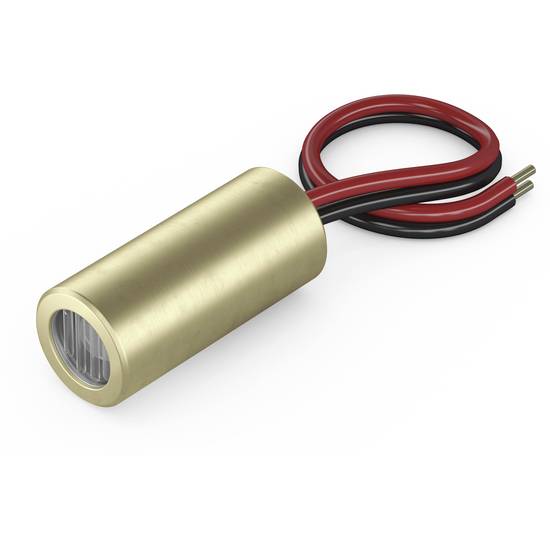

Laserfuchs Cross line laser Cross Red 3.5 mW
EAN:
Part number:
Item no:
Product type
Cross line laser
Emission characteristics
Cross
Wavelength
650 nm
Power
3.5 mW
(Ø)
6 mm
Highlights & Details
Cross laser, red, 650nm, 5mW, 45°, laser class 1, focus 0,1m, 3-12V DC, 9x20mm
- Red
- Laser category: 1
- Emission characteristics: Cross
Technical specifications
- Material: Brass
- Optical power 3.5 mW
- Lifetime 3,000 h
- Operating temperature: -20°C to 40 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Cross
- Class 1 laser
- Divergent: H - 1.0 mrad
- Aperture angle: 45 °
- 0.1 m operating distance
- Acrylic lens
- Laser technology: Diode
- Focus: Fixed (100 mm)
- Potential of the enclosure: VDD(+)
- Enclosure Potential: VDD(+)Focus: Fixed (100mm)
- Cable color GND: Black
- Cable length 100 mm
- Outlet diameter of optical 6 mm
- Product type
Cross line laser
- Emission characteristics
Cross
- Focus properties
100 mm fixed-focus
- Factory colour
Red
- Wavelength
650 nm
3.5 mW
- (Ø)
6 mm
- Length
20 mm
- Laser category
1
- Angular aperture
45°
- Beam divergence
1.0 mrad
- Clearance
0.1 m
- Operating voltage
3 V DC
- Operating current
30 mA
- Material
Brass
- Dim
(Ø x L) 6 mm x 20 mm
- Weight
6 g
- RoHS-compliant
Yes
- Width
9 mm
- Max. temperature
40 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987331 Laserfuchs Cross line laser Cross Red 3.5 mW
Information
Information 2987331 Laserfuchs Cross line laser Cross Red 3.5 mW
Conformity certificate
Conformity certificate 2987331 Laserfuchs Cross line laser Cross Red 3.5 mW
Description
Features
- Cross laser, red, 650nm, 5mW, 45°, laser class 1, focus 0,1m, 3-12V DC, 9x20mm
- The type LFC650-5-12(9x20)45-F100 is a laser for projection of a red laser cross with 650nm. The laser is extremely compact (9x20 mm). The service life of the laser module is greater than 3,000 hours. The angle of detection of 45° generates a laser cross of 0.08m in length at a distance of 0.1m. You can use our power supply unit LFNT-3, for example. This cross laser is used for e.g. leveling systems, laser marking systems and for accurate positioning of objects. Typical usage areas are low-cost applications. This module falls into the laser class 1.
- Radiation characteristic: Cross, line thickness 1mm@0.1m;
- Optical output: Laser class 1; focus 0.1m
- Compact design: 9x20 mm; opening angle: 45°; axis deviation: Up to 3.0°

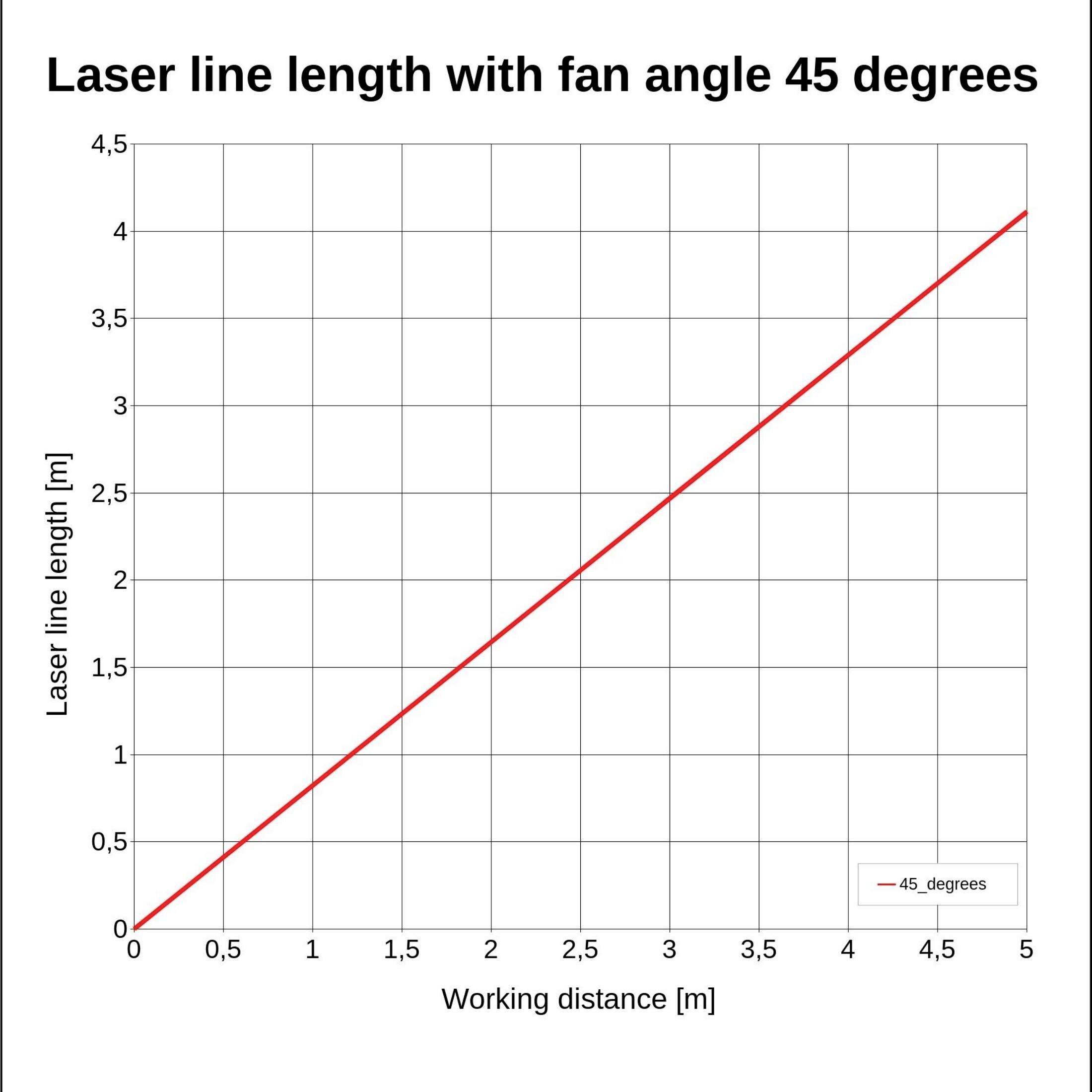

- The opening angle (45°) creates a laser line length of 0.08m at a working distance of 0.1m.
- For applications in e.g. laser spirit levels, laser marking systems, robot technology and show sector. Power supply 3V to 12V. For the power supply you can use our Picotronic power supply LFNT-3.
