Laserfuchs Line laser level Line 16 mW
EAN:
Part number:
Item no:
Product type
Line laser level
Emission characteristics
Line
Wavelength
650 nm
Power
16 mW
Length
90 mm
Highlights & Details
Line laser, red, 650nm, 16mW, 90°, Laser class 2, Focus 3M, 3V DC, 16x90mm, incl. Mains adapter
- Laser category: 2
- Emission characteristics: Line
Technical specifications
- Material: Aluminium
- Optical power 16 mW
- Lifetime 5000 h
- Operating temperature: -20°C to 40 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Line
- Class 2 laser
- Divergent: H - 1.0 mrad
- Aperture angle: 90 °
- 3 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Diode
- Focus: Fixed (3000mm)
- Potential of the enclosure: VDD(+)
- Cable length 1,400 mm
- Product type
Line laser level
- Emission characteristics
Line
- Focus properties
3000 mm fixed-focus
- Wavelength
650 nm
16 mW
- Length
90 mm
- Laser category
2
- Angular aperture
90°
- Beam divergence
1.0 mrad
- Clearance
3 m
- Operating voltage
3 V DC
- Operating current
70 mA
- Material
Aluminium
- Dim

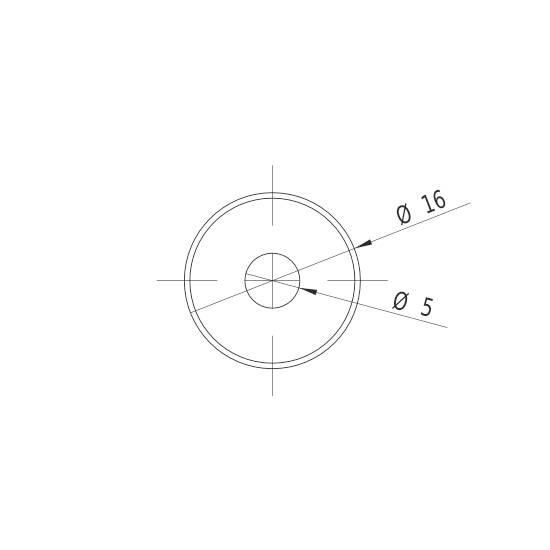

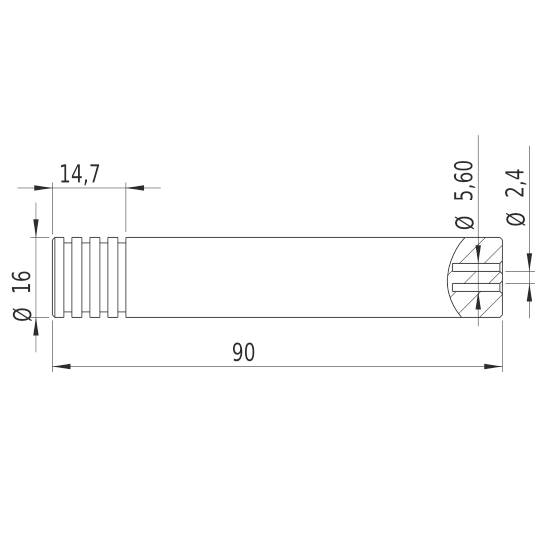

(L x W) 90 mm x 16 mm
- Weight
46 g
- RoHS-compliant
Yes
- Width
16 mm
- Max. temperature
40 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987381 Laserfuchs Line laser level Line 16 mW
Information
Information 2987381 Laserfuchs Line laser level Line 16 mW
Conformity certificate
Conformity certificate 2987381 Laserfuchs Line laser level Line 16 mW
Description
Features
- Line laser, red, 650nm, 16mW, 90°, Laser class 2, Focus 3M, 3V DC, 16x90mm, incl. Mains adapter
- The type LFL650-16-3(16x90)-NT is a line laser with a wavelength of 650nm. This laser module is characterized by its compact design (16x90mm). The service life of the laser module is greater than 5,000 hours. The angle of 90° generates a line of 6 m in length at a distance of 3M. The accompanying power supply provides a stable and reliable power supply HER. This line laser is used in e.g. leveling devices, laser marking systems and for accurate positioning of objects. This module falls into the laser class 2.
- Radiation characteristic: Line, line thickness 1mm@3m;
- Optical output: Laser class 2; focus 3M

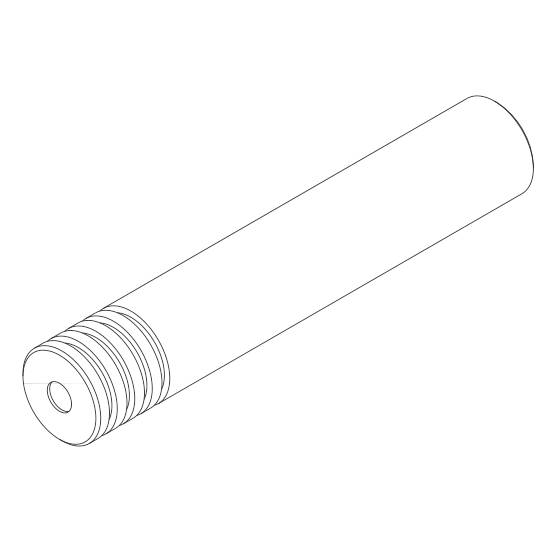

- Compact design: 16x90mm; opening angle: 90°; axis deviation: Up to 3.0°; DC-hollow plug 2.5mm

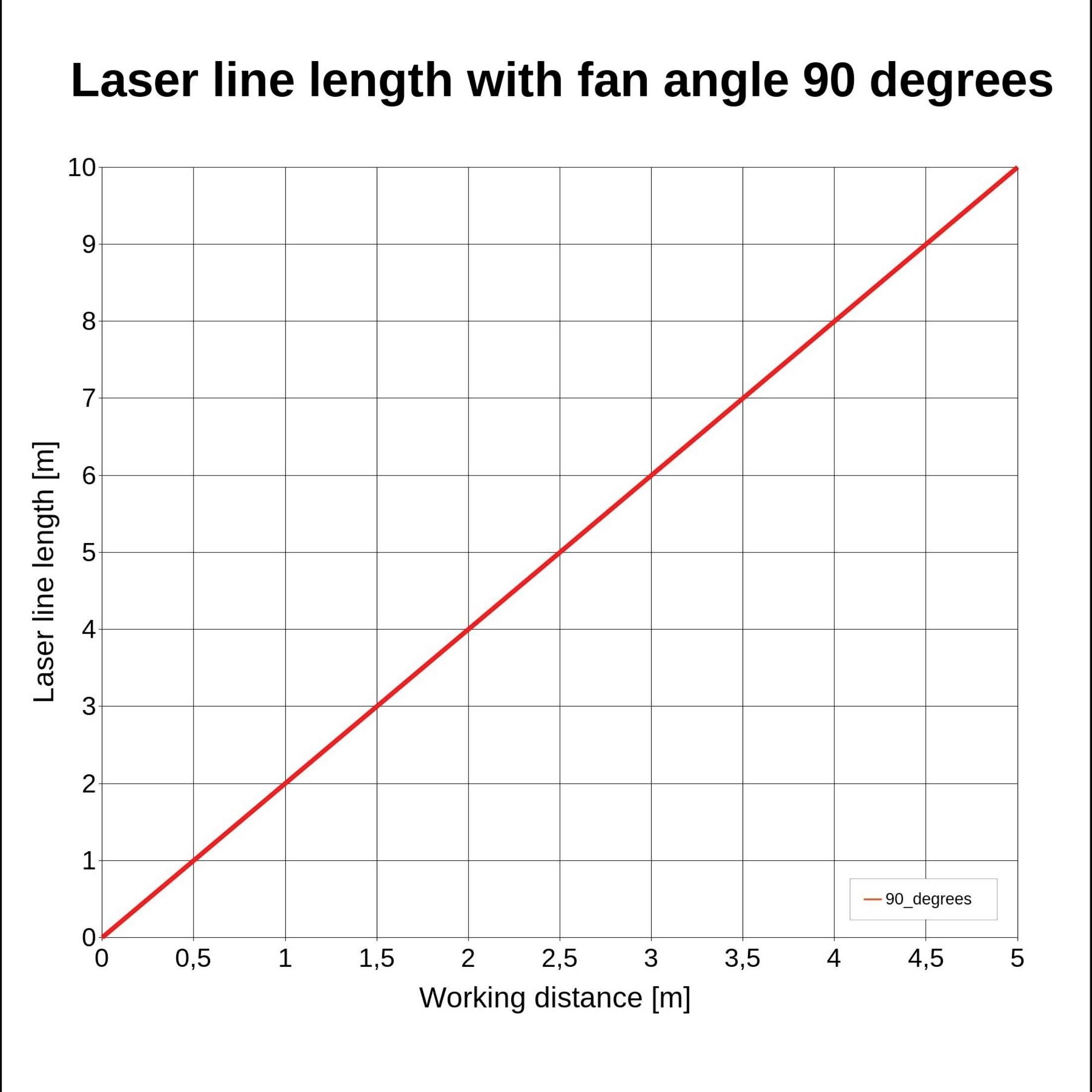

- The opening angle (90°) generates a laser line length of 6m at a working distance of 3M.
- For applications in e.g. laser spirit levels, laser marking systems, robot technology, hobby and show range. The power supply unit included in the delivery is connected separable with the laser module.

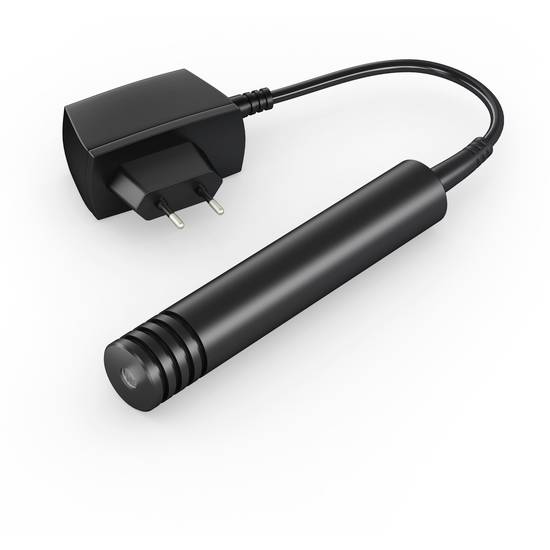

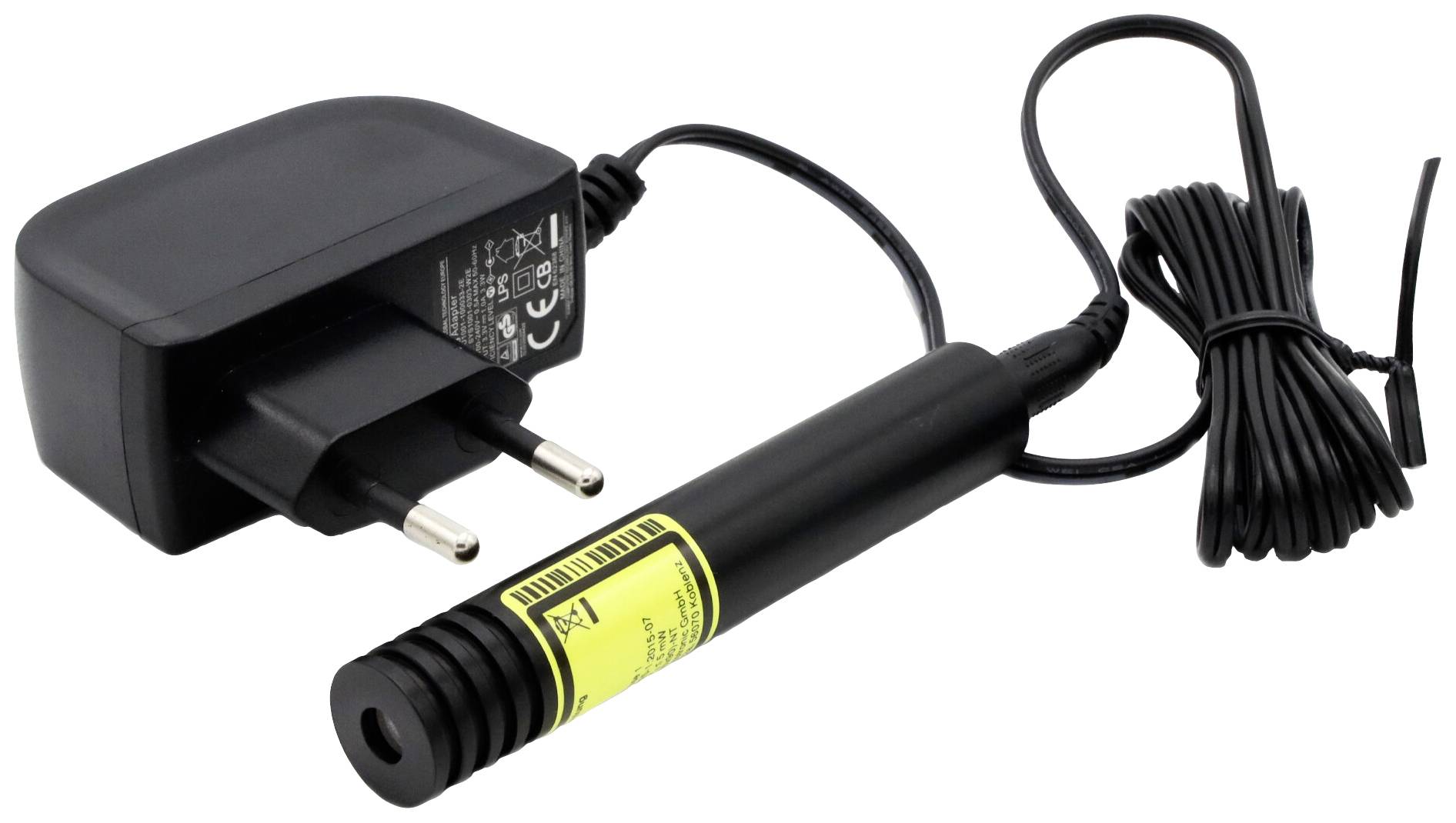

- Including a Picotronic power supply LFNT-3-C.
- This text is machine translated.
