Laserfuchs Line laser level Line 4 mW
EAN:
Part number:
Item no:
Product type
Line laser level
Emission characteristics
Line
Power
4 mW
(Ø)
3 mm
Length
30 mm
Highlights & Details
LD650-4-5 (11x30)-F1000
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Material: Aluminium
- Optical power 4 mW
- Lifetime 20,000 h
- Operating temperature: -20°C to 40 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Line
- Class 1 laser
- Divergence D - 0.5 mrad
- Aperture angle: 90 °
- 1 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Diode
- Focus: Fixed (1000mm)
- Potential of the housing: Isolated
- Potential of the housing: IsolatenFocus: Fixed (1000mm)
- Cable color GND: Black
- Cable length: 400 mm
- Cable type: 26AWG, 0.14mm²
- Outlet diameter of optical 3 mm
- Protective lens: Yes
- Product type
Line laser level
- Emission characteristics
Line
- Focus properties
1000 mm fixed-focus
4 mW
- (Ø)
3 mm
- Length
30 mm
- Laser category
1
- Angular aperture
90°
- Beam divergence
0.5 mrad
- Clearance
1 m
- Operating voltage
5 V DC
- Operating current
40 mA
- Material
Aluminium
- Dim
(Ø x L) 3 mm x 30 mm
- Weight
6 g
- RoHS-compliant
Yes
- Width
11 mm
- Max. temperature
40 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987477 Laserfuchs Line laser level Line 4 mW
Information
Information 2987477 Laserfuchs Line laser level Line 4 mW
Conformity certificate
Conformity certificate 2987477 Laserfuchs Line laser level Line 4 mW
Description
Features

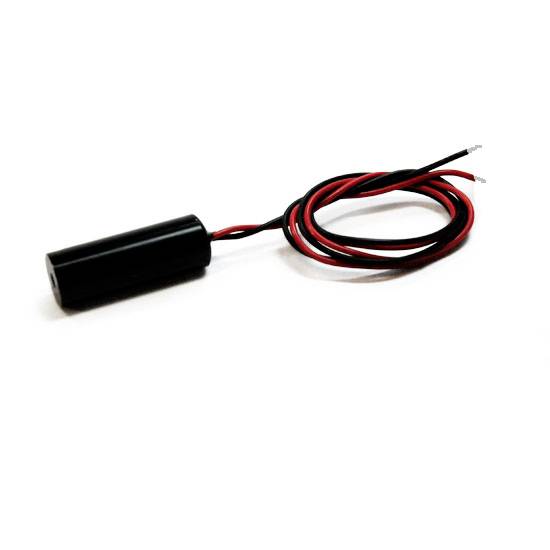

- The type LD650-4-5(11x30) is a laser for projecting a red laser line with a very thin line.
- The line width is focused on 1 meters, i.e. the line there is smaller than 1mm wide. This diode laser module is installed in a high-quality aluminum housing with dimensions 11 x 30 mm.
- The use of high-quality optical glass for optics produces a considerably thinner line than with conventional plastic lenses. In addition, the module is protected against dust or rain with a protective lens. The optimum working range of the laser is 0.5-1m. This module falls into the laser class 1. By means of a high-quality glass optics the laser module generates a sharp line and manages without rotating polygon mirrors and motors. The cable length is 400mm.
- Compact design
- Protective lens
- Anti-reflex coated glass lenses
- Uniform illumination
- For medical devices
