Laserfuchs Line laser level Line 5 mW
EAN:
Part number:
Item no:
Product type
Line laser level
Emission characteristics
Line
Wavelength
635 nm
Power
5 mW
(Ø)
12 mm
Highlights & Details
Line laser, red, 635nm, 5mW, 60°, Laser class 1, Focus 1m, 5V DC, 12x45mm, Incl Mains adapter
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Material: Aluminium
- Optical power 5 mW
- Lifetime 3,000 h
- Operating temperature: -20°C to 40 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Line
- Class 1 laser
- Divergence G - 0.8 mrad
- Aperture angle: 60 °
- 1 m operating distance
- Acrylic lens
- Laser technology: Single mode diode
- Focus: Fixed (1000mm)
- Potential of the enclosure: VDD(+)
- Cable length 1,360 mm
- Outlet diameter of optical 6 mm
- Black enclosure
- Product type
Line laser level
- Emission characteristics
Line
- Focus properties
1000 mm fixed-focus
- Wavelength
635 nm
5 mW
- (Ø)
12 mm
- Length
45 mm
- Laser category
1
- Angular aperture
60°
- Beam divergence
0.8 mrad
- Clearance
1 m
- Operating voltage
5 V DC
- Operating current
40 mA
- Material
Aluminium
- Dim
(Ø x L) 12 mm x 45 mm
- Weight
100 g
- RoHS-compliant
Yes
- Width
12 mm
- Max. temperature
40 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987511 Laserfuchs Line laser level Line 5 mW
Information
Information 2987511 Laserfuchs Line laser level Line 5 mW
Conformity certificate
Conformity certificate 2987511 Laserfuchs Line laser level Line 5 mW
Description
Features
- Line laser, red, 635nm, 5mW, 60°, Laser class 1, Focus 1m, 5V DC, 12x45mm, Incl Mains adapter
- The LFL635-5(12x45)60-NT type is a line laser that is much better visible by the 635nm wavelength than a comparable 650nm laser. This laser module is characterized by its compact design (12x45mm). The service life of the laser module is greater than 3,000 hours. The angle of detection of 60° generates a line of 1.1m length at a distance of 1m. The accompanying power supply provides a stable and reliable power supply HER. This line laser is used in e.g. leveling devices, laser marking systems and for accurate positioning of objects. Typical usage areas are low-cost applications. This module falls into the laser class 1.
- Radiation characteristic: Line, line thickness 1.2mm@1m; lasers with 635nm have a better visibility than, for example, lasers with 650nm.
- Optical output: Laser class 1; focus 1m
- Compact design: 12x45mm; opening angle: 60°; axis deviation: Up to 3.0°; DC-hollow plug 2.1mm

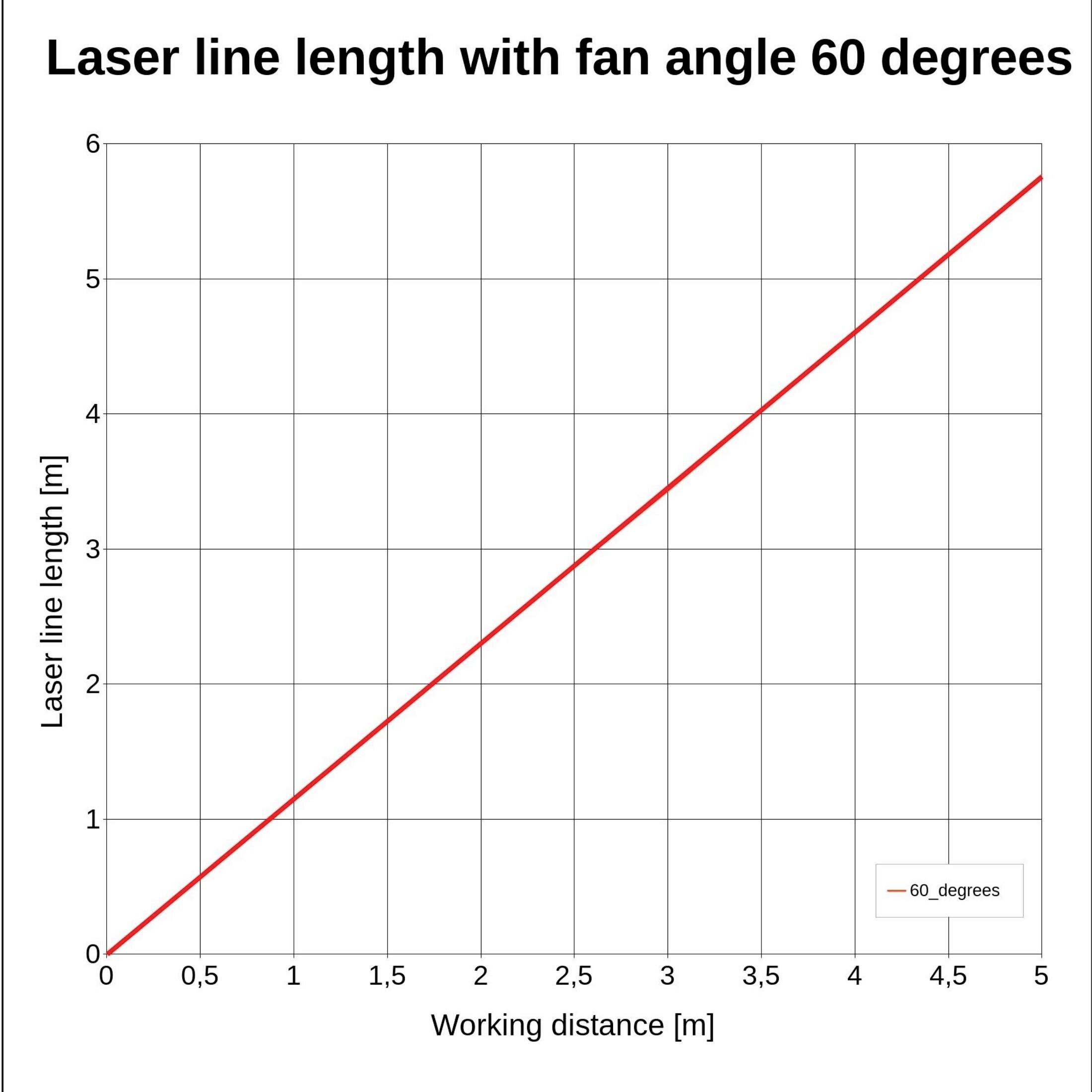

- At a working distance of 1m, the opening angle (60°) generates a laser line length of 1.1m.
- For applications in e.g. laser spirit levels, laser marking systems, robot technology and show sector. The power supply unit included in the delivery is connected separable with the laser module.

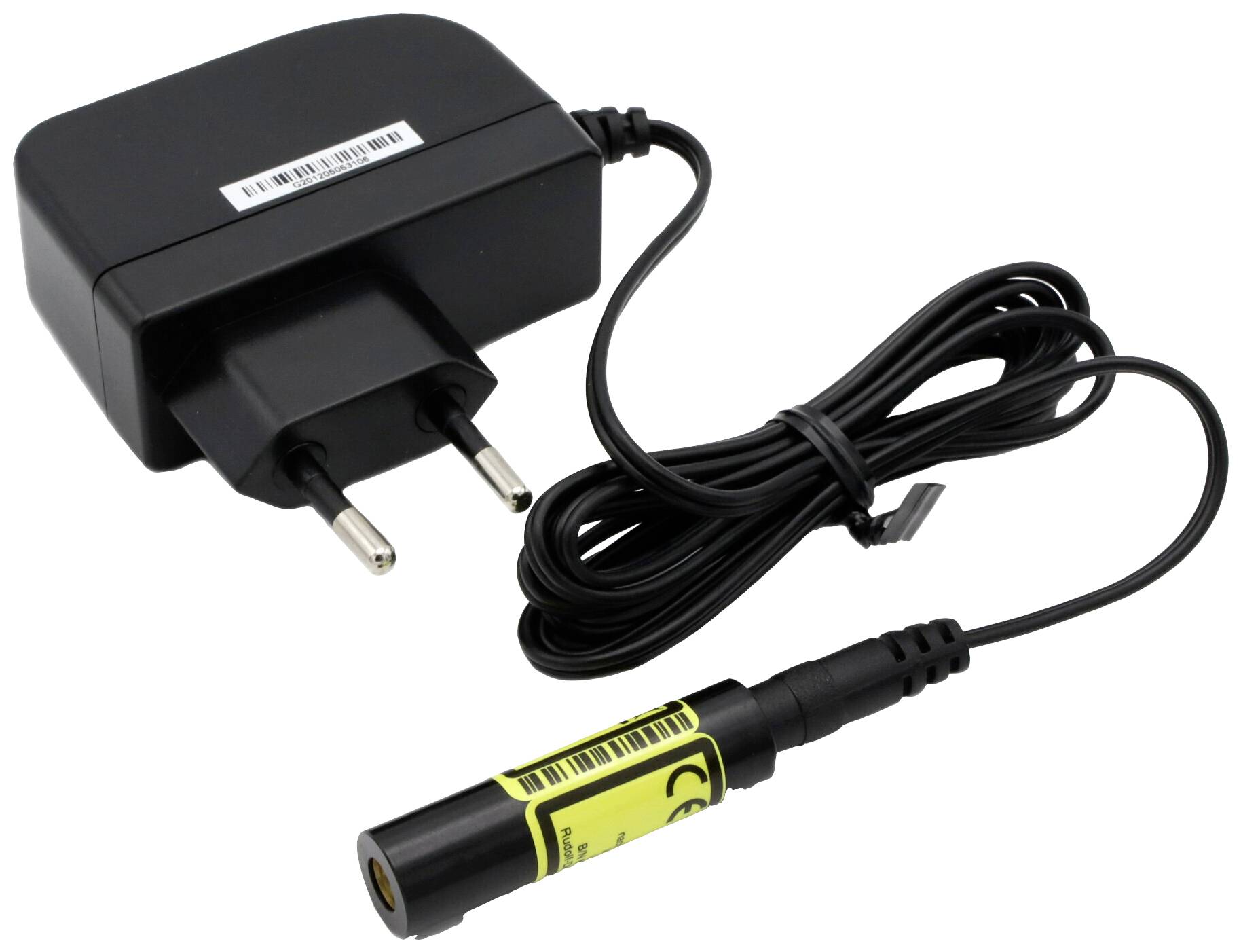

- Including a Picotronic power supply LFNT-5-C.
- This text is machine translated.
