Name: Laserfuchs Line laser level Line 5 mW
Brand: Laserfuchs
SKU: 2987622

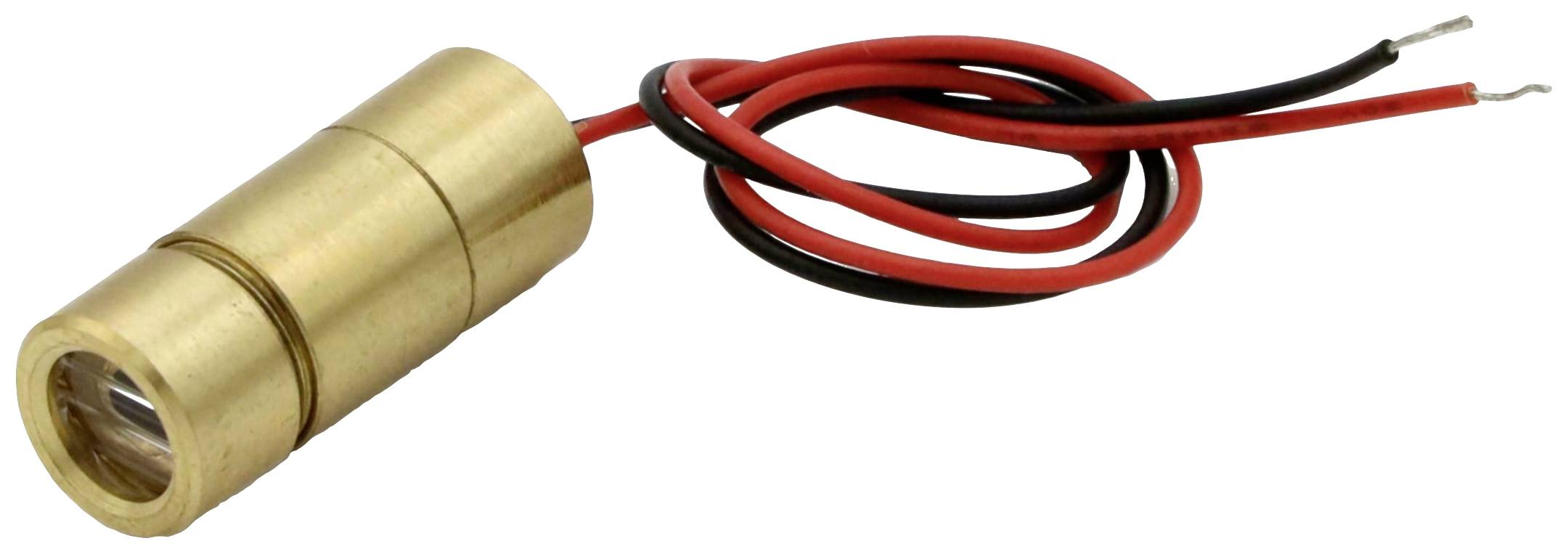

A cylindrical brass laser with two wires (red and black) for electrical connections.

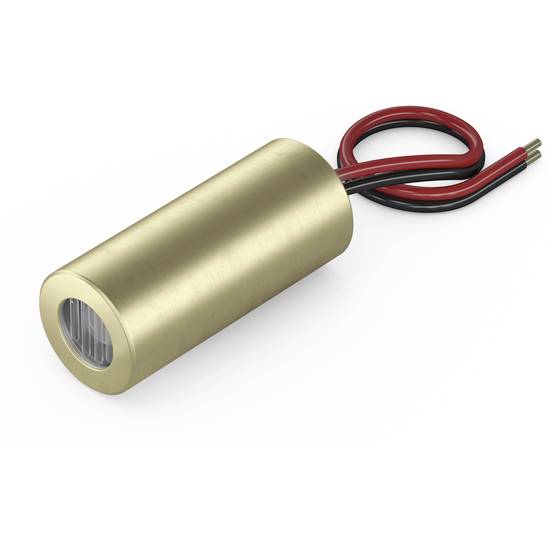

Small cylindrical, golden LED torch with red and black cables.

A thin horizontal red line on a black background.

A circular saw quickly cuts through a wooden board, creating a glowing red line at the cutting point.

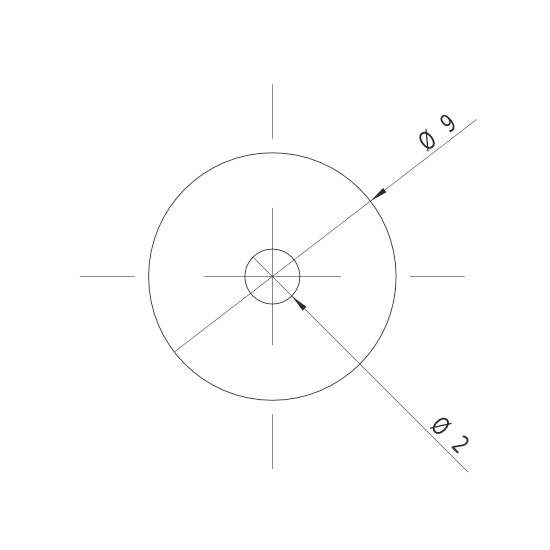

Technical drawing of a circle with marked diameters Ø9 and Ø2, illustrating size and proportion.

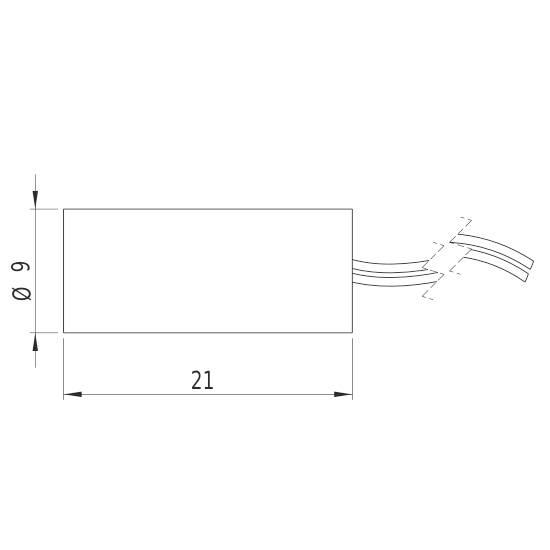

Sketch of a rectangular component with a length of 21 and a diameter of 9. Two cables protrude on the right side.

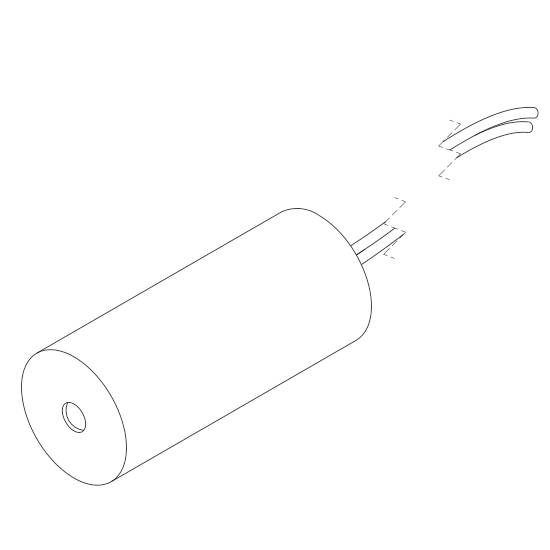

Diagram of a cylindrical electric motor with two protruding cables on the right.

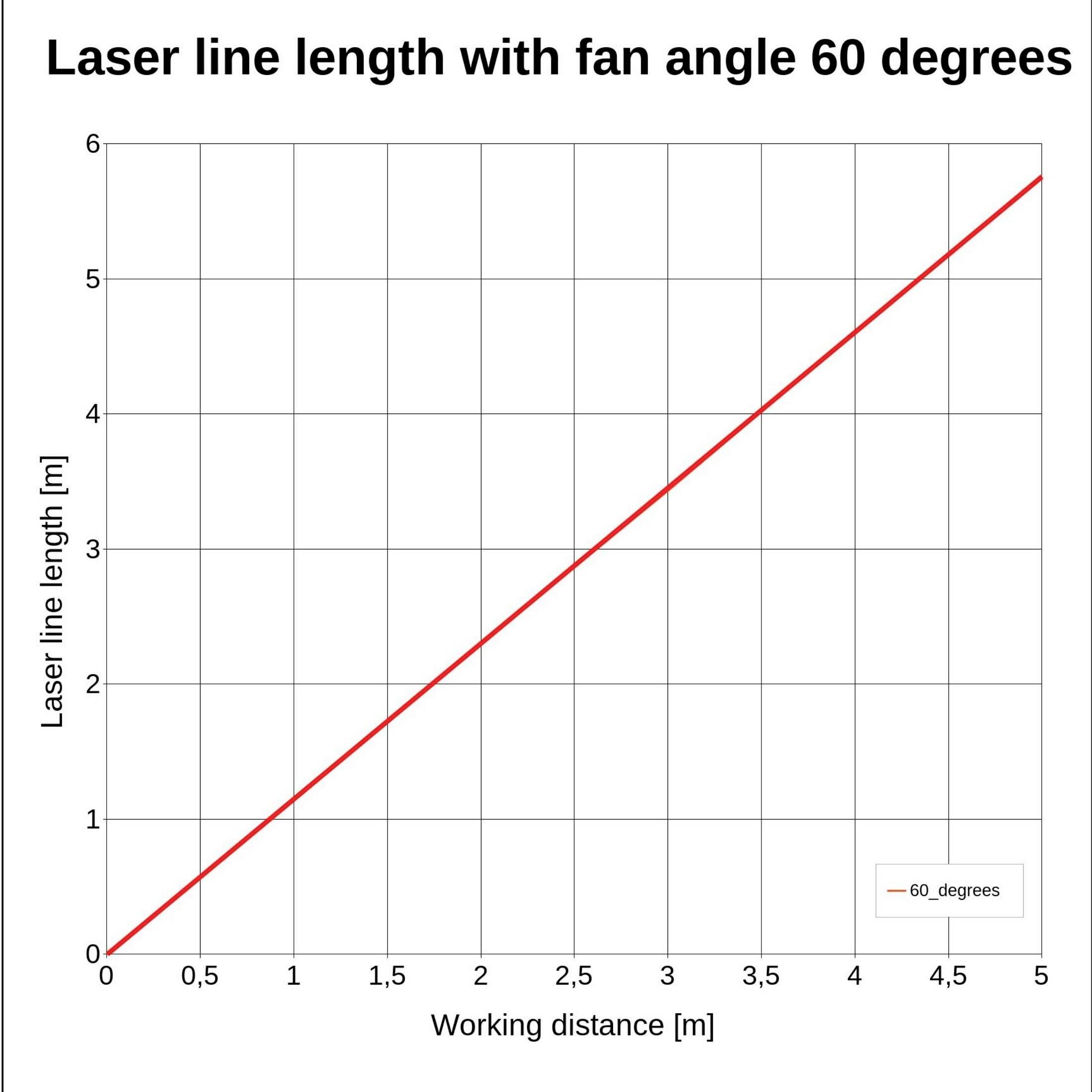

Diagram shows 'Laser Line Length at Fan Angle 60 Degrees'. X-axis: Working Distance [m]. Y-axis: Laser Line Length [m]. Line rises linearly.

1/8

Product type

Line laser level

Emission characteristics

Line

Wavelength

635 nm

Power

5 mW

(Ø)

9 mm

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Focusable line laser, red, 635nm, 5mW, 60°, Laser class 1, focus adjustable, 3-5V DC, 9x21mm

Laser category: 1
Emission characteristics: Line

Technical specifications

Material: Brass
Optical power 5 mW
Lifetime 10,000 h
Operating temperature: -10°C - 40 °C
Storage temperature: -40°C to 80 °C.
Beam form: Line
Class 1 laser
Divergent: H - 1.0 mrad
Aperture angle: 60 °
3 m operating distance
Acrylic lens
Laser technology: Single mode diode
Focus adjustable
Potential of the enclosure: VDD(+)
Potential of the housing: VDD(+)Focus: Adjustable
Cable color GND: Black
Cable length: 150 mm.
Cable type Belden 1007 26AWG
Outlet diameter of optical 6 mm

Product type: Line laser level

Emission characteristics: Line

Focus properties: Selectable focus

Wavelength: 635 nm

: 5 mW

(Ø): 9 mm

Length: 21 mm

Laser category: 1

Angular aperture: 60°

Beam divergence: 1.0 mrad

Clearance: 3 m

Operating voltage: 5 V DC

Operating current: 30 mA

Material: Brass

Dim: (Ø x L) 9 mm x 21 mm

Weight: 7.3 g

RoHS-compliant: Yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2987622 Laserfuchs Line laser level Line 5 mW

Information

Information 2987622 Laserfuchs Line laser level Line 5 mW

Conformity certificate

Conformity certificate 2987622 Laserfuchs Line laser level Line 5 mW

Features

Focusable line laser, red, 635nm, 5mW, 60°, Laser class 1, focus adjustable, 3-5V DC, 9x21mm
The LH635-5-5(9x21)60-ADJ type is a line laser module that is much better visible due to the 635nm wavelength than a comparable 650nm laser. The laser has a very compact design (9x21mm). The service life of the laser module is greater than 3,000 hours. The angle of detection of 60° generates a laser line of 1.1m length at a distance of 1m. The adjustable focus allows the laser line thickness to be varied. The current consumption is very low at approx. 30mA, therefore 2 batteries can be used to supply the power without any problem. The laser module can be used mobile. As power supply you can use our Battery-Pack with 2 x 1.5 Volt Batteries (AA). This line laser is used in e.g. leveling devices, laser marking systems and for accurate positioning of objects in industry, handicraft, hobby and the show area. Typical usage areas are low-cost applications. This module falls into the laser class 1.
Radiation characteristic: Line, line thickness can be varied; 635nm lasers have a better visibility than 650nm lasers, for example.
Optical power: 5mW (laser class 1); adjustable focus
Compact design: 9x21mm; opening angle: 60°; axis deviation: Up to 3.0°
At a working distance of 1m, the opening angle (60°) generates a laser line length of 1.1m.
For applications in e.g. laser spirit levels, laser marking systems, robot technology and show sector. Power supply 3V to 5V. For the power supply, you can use e.g. our Picotronic battery pack 3V or the power pack Picotronic LFNT-3.
