Laserfuchs Line laser level Line 5 mW
EAN:
Part number:
Item no:
Product type
Line laser level
Emission characteristics
Line
Wavelength
532 nm
Power
5 mW

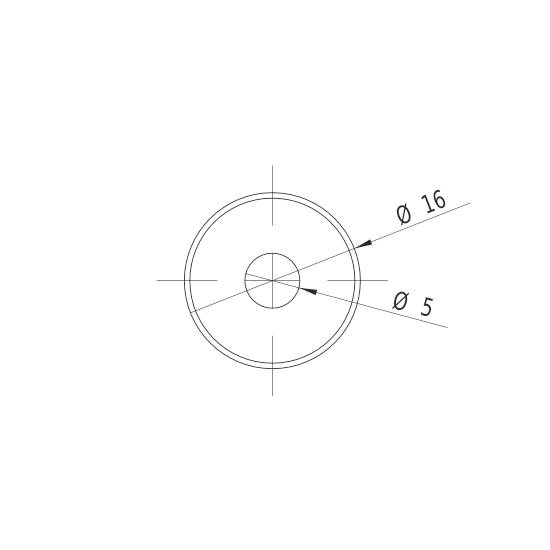

(Ø)
16 mm
Highlights & Details

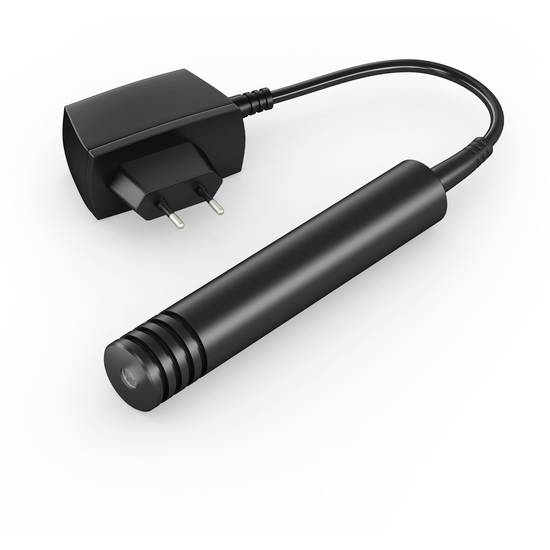

Line laser, green, 532nm, 5mW, 90°, Laser class 1, Focus 3M, 3V DC, 16x90mm, incl. Mains adapter
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Material: Aluminium
- Optical power 5 mW
- Lifetime 5000 h
- Operating temperature 15°C - 30 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Line
- Class 1 laser
- Divergent: H - 1.0 mrad
- Aperture angle: 90 °
- 3 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: YVO4+KTP
- Focus: Fixed (3000mm)
- Potential of the enclosure: VDD(+)
- Cable length 1,500 mm
- Outlet diameter of optical 6 mm
- Protective lens: Yes
- Product type
Line laser level
- Emission characteristics
Line
- Focus properties
3000 mm fixed-focus
- Wavelength
532 nm
5 mW
- (Ø)
16 mm
- Length
90 mm
- Laser category
1
- Angular aperture
90°
- Beam divergence
1.0 mrad
- Clearance
3 m
- Operating voltage
3 V DC
- Operating current
350 mA
- Material
Aluminium
- Dim

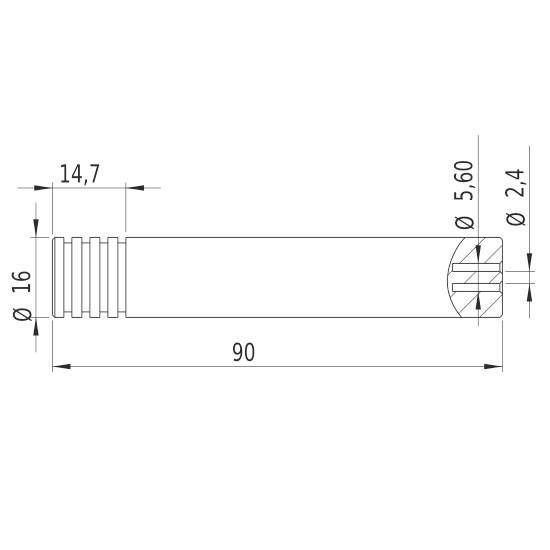

(Ø x H) 16 mm x 90 mm
- Weight
127.6 g
- RoHS-compliant
Yes
- Width
16 mm
- Height
90 mm
- Max. temperature
30 °C
- Min. temperature
15 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987696 Laserfuchs Line laser level Line 5 mW
Information
Information 2987696 Laserfuchs Line laser level Line 5 mW
Conformity certificate
Conformity certificate 2987696 Laserfuchs Line laser level Line 5 mW
Description
Features
- Line laser, green, 532nm, 5mW, 90°, Laser class 1, Focus 3M, 3V DC, 16x90mm, incl. Mains adapter

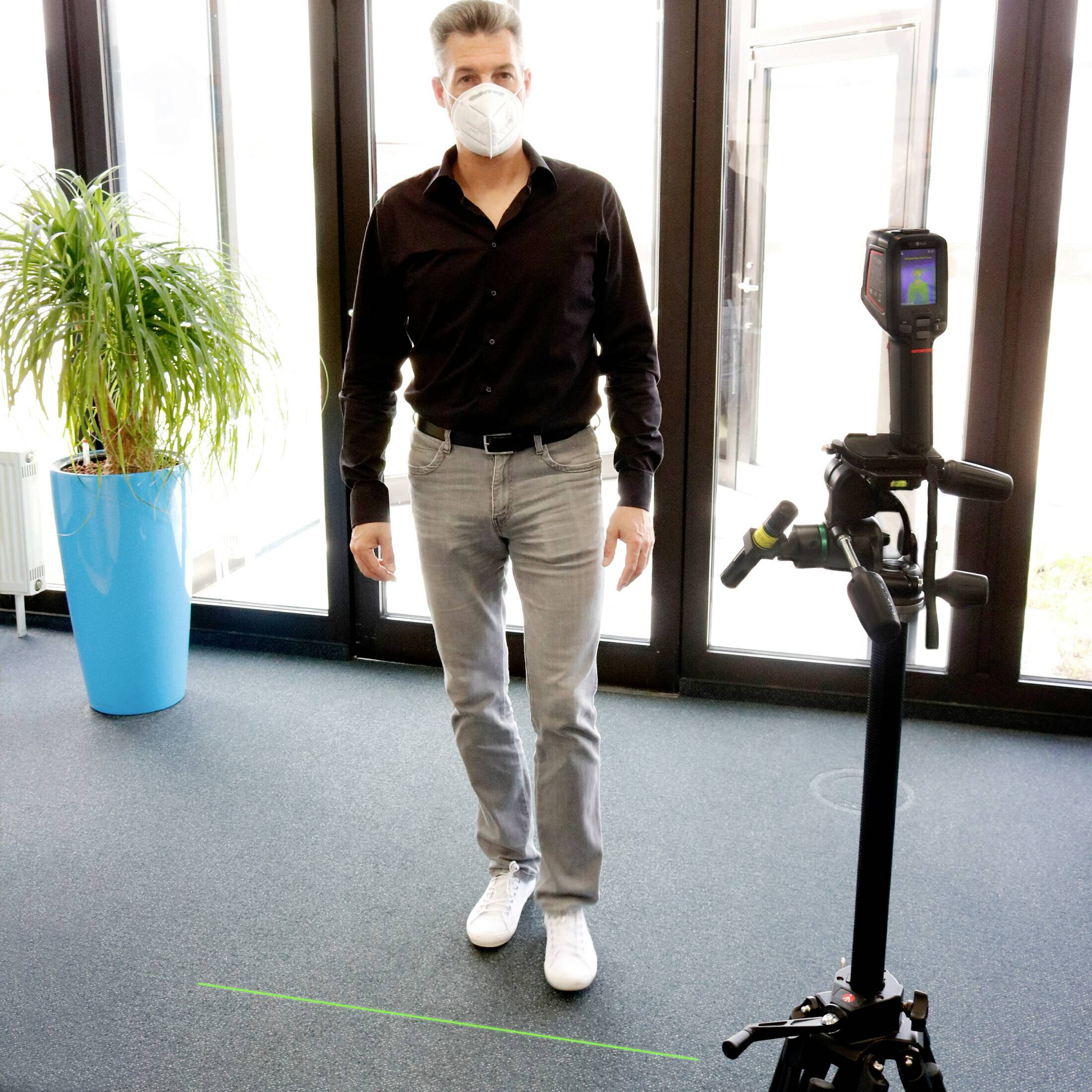

- The type LFL532-5-3(16x90)-NT is a laser module for projection of a green laser line with a wavelength of 532nm. The laser has a compact design (16x90mm). The service life of the laser module is greater than 5,000 hours. The angle of detection of 90° generates a laser line of 6 m length at a distance of 3M. The laser module is delivered including power supply unit. This line laser line is used in laser marking systems, industry, crafts and for precise positioning of objects. This module falls into the laser class 1.
- Radiation characteristics: Line, line thickness 2mm@3m
- Optical output: Laser class 1; focus 3M
- Design: 16x90mm; opening angle: 90°; axis deviation: Up to 3.0°; DC-hollow plug 2.5mm

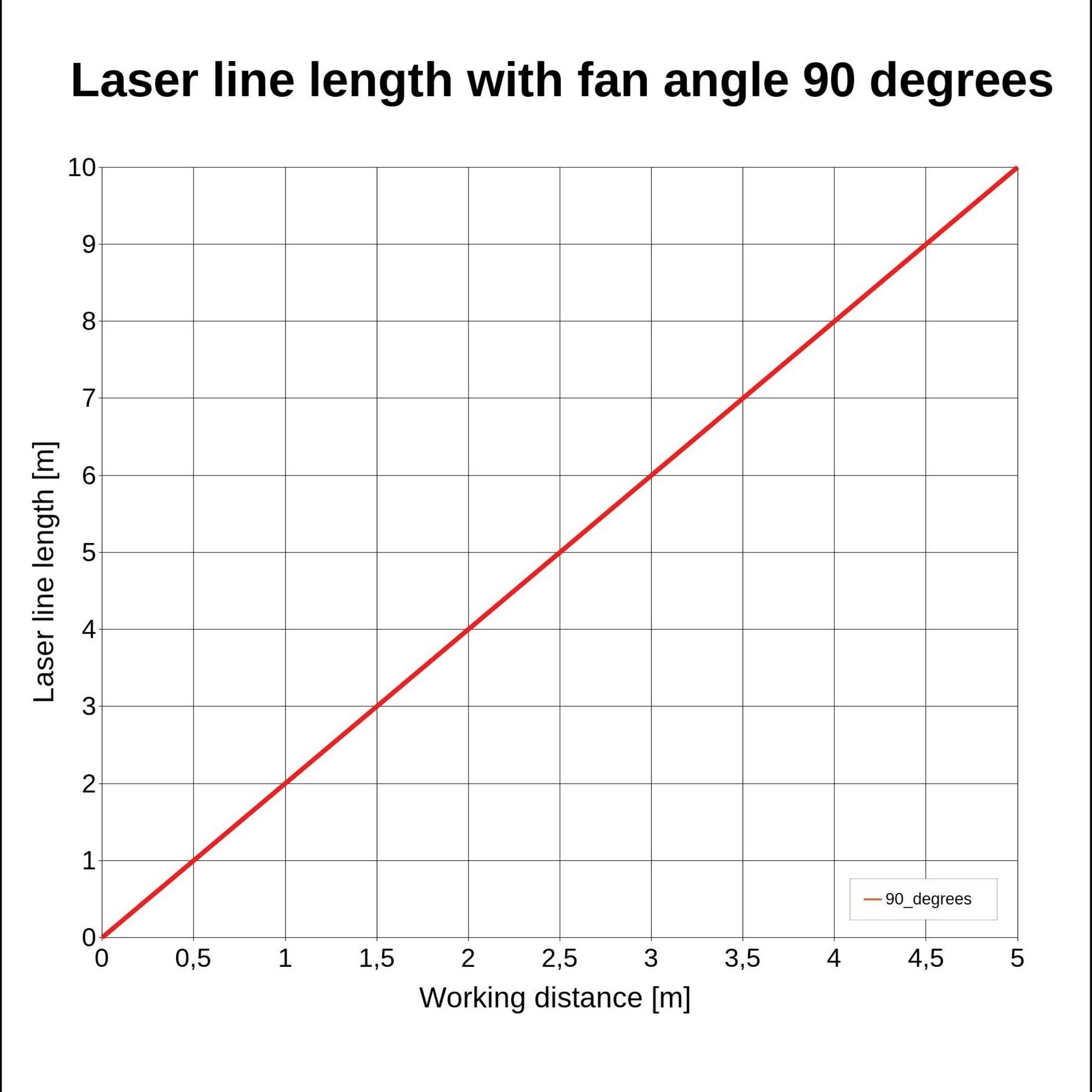

- The opening angle (90°) generates a laser line length of 6m at a working distance of 3M.
- For applications in e.g. laser marking systems, the robot technology, industry, handicraft and the show area. Power supply 3V. The power supply unit provided is separable connected with the laser module.

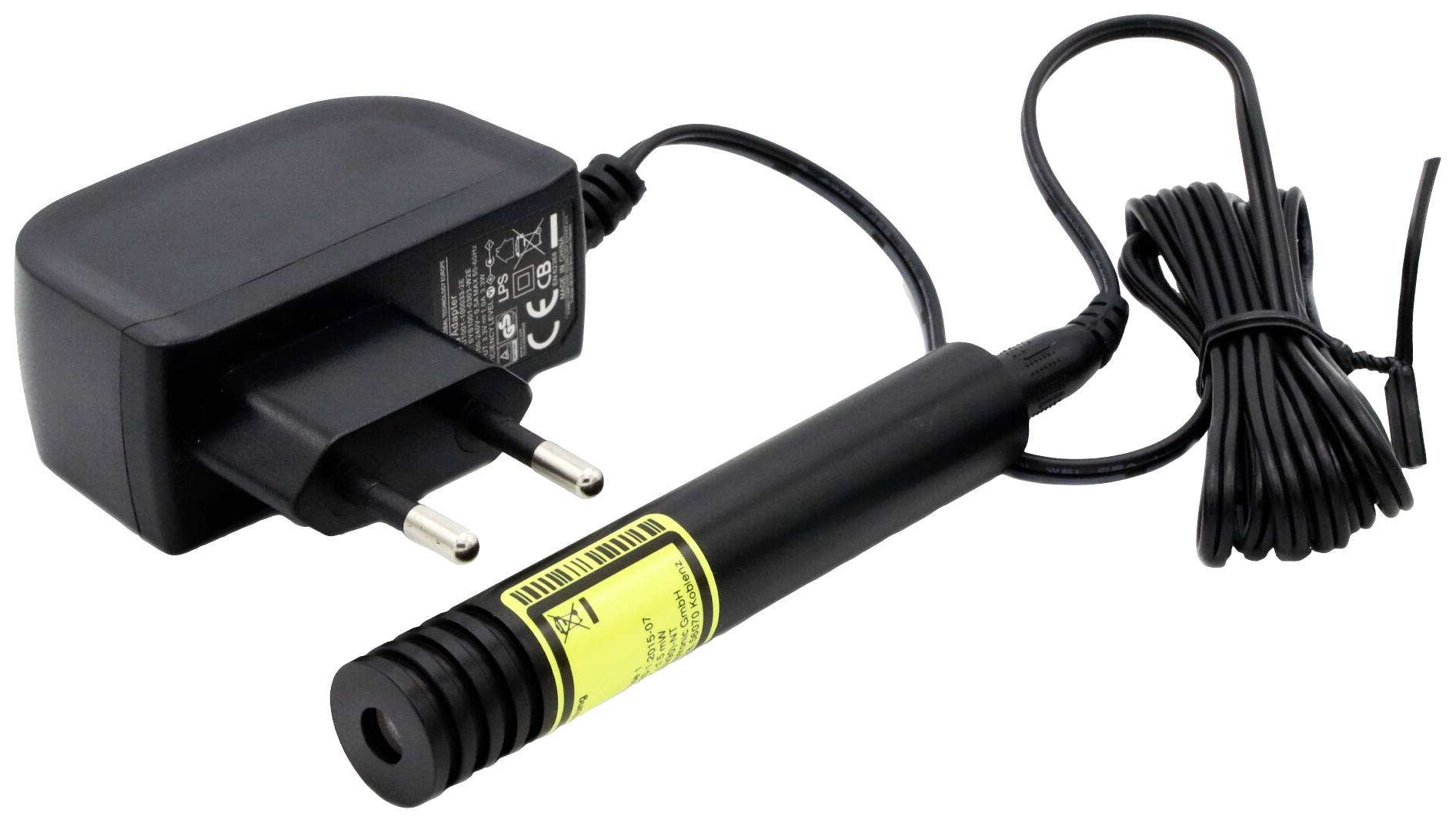

- Including a Picotronic power supply LFNT-3-C.
