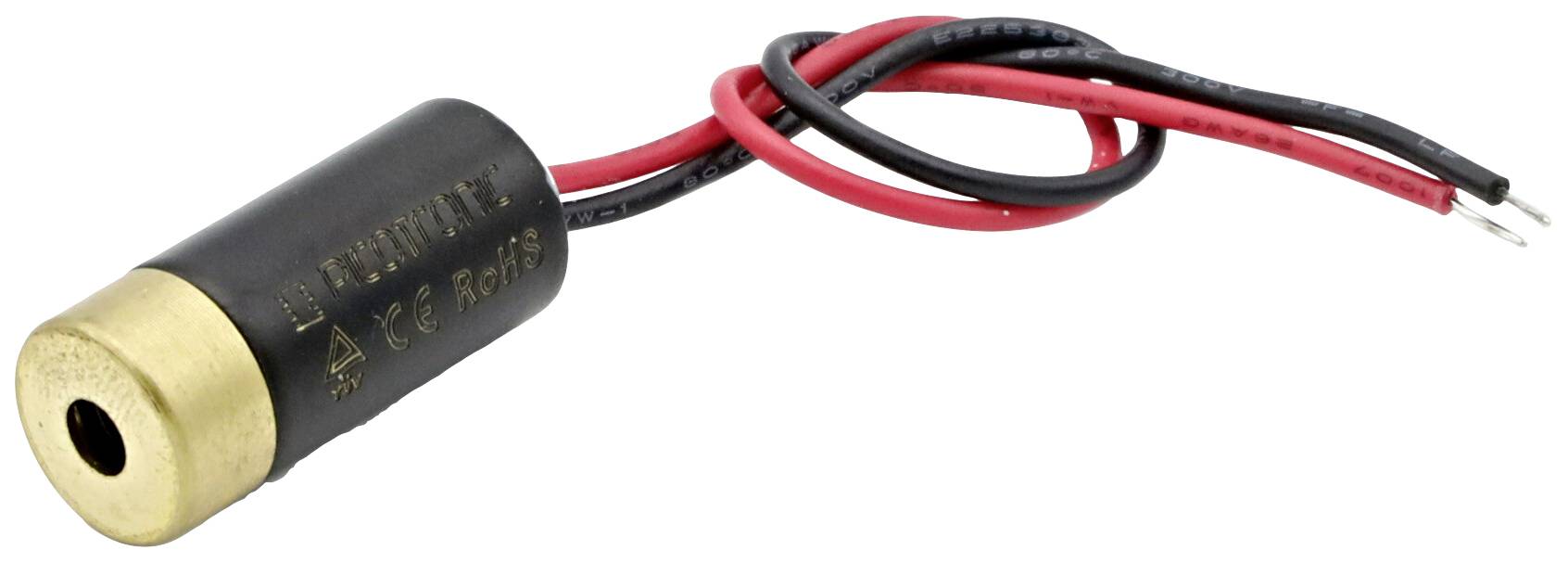

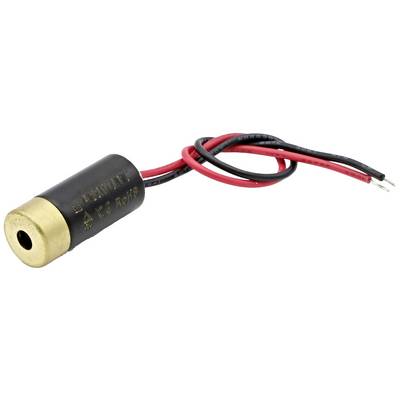

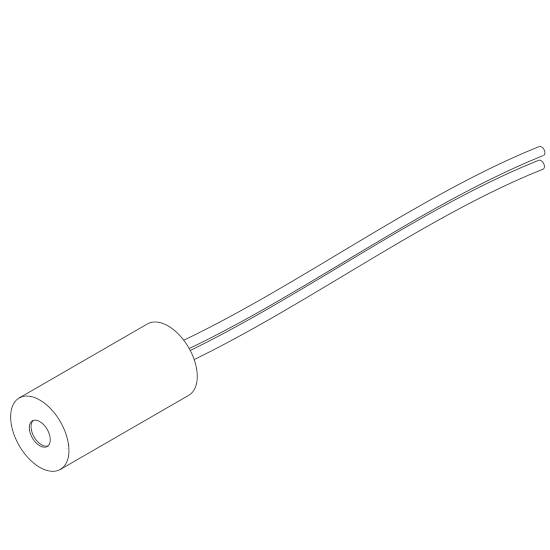

Laserfuchs Line laser level Line 5 mW
EAN:
Part number:
Item no:
Product type
Line laser level
Emission characteristics
Line
Wavelength
650 nm
Power
5 mW
(Ø)
6 mm
Highlights & Details
Line laser, red, 650nm, 5mW, 90°, laser class 1, Focus 1m, 3-12V DC, 10x22 mm
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Material: Brass
- Optical power 5 mW
- Lifetime 3,000 h
- Operating temperature: -20°C to 40 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Line
- Class 1 laser
- Divergent: H - 1.0 mrad
- Aperture angle: 90 °
- 1 m operating distance
- Acrylic lens
- Laser technology: Diode
- Focus: Fixed (1000mm)
- Potential of the enclosure: VDD(+)
- Potential of the housing: VDD(+)Focus: Fixed (1000mm)
- Cable color GND: Black
- Cable length 100 mm
- Cable type: 26AWG, 0.14mm²
- Outlet diameter of optical 6 mm
- Product type
Line laser level
- Emission characteristics
Line
- Focus properties
1000 mm fixed-focus
- Wavelength
650 nm
5 mW
- (Ø)
6 mm
- Length
22 mm
- Laser category
1
- Angular aperture
90°
- Beam divergence
1.0 mrad
- Clearance
1 m
- Operating voltage
12 V DC
- Operating current
15 mA
- Material
Brass
- Dim
(Ø x L) 6 mm x 22 mm
- Weight
9 g
- RoHS-compliant
Yes
- Width
10 mm
- Max. temperature
40 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987707 Laserfuchs Line laser level Line 5 mW
Information
Information 2987707 Laserfuchs Line laser level Line 5 mW
Conformity certificate
Conformity certificate 2987707 Laserfuchs Line laser level Line 5 mW
Description
Features
- Line laser, red, 650nm, 5mW, 90°, laser class 1, Focus 1m, 3-12V DC, 10x22 mm
- The type LFL650-5-12(10x22)90 is a line laser module with a wavelength of 650nm. The laser has a compact design (10 x 22 mm). The service life of the laser module is greater than 3,000 hours. The angle of detection of 90° generates a laser line of 2m length at a distance of 1m. You can use our power supply unit LFNT-3, for example. This line laser is used in e.g. leveling devices, laser marking systems and for accurate positioning of objects. Typical usage areas are low-cost applications. This module falls into the laser class 1.
- Radiation characteristics: Line, line thickness 1.2mm@1m
- Optical output: Laser class 1; focus 1m

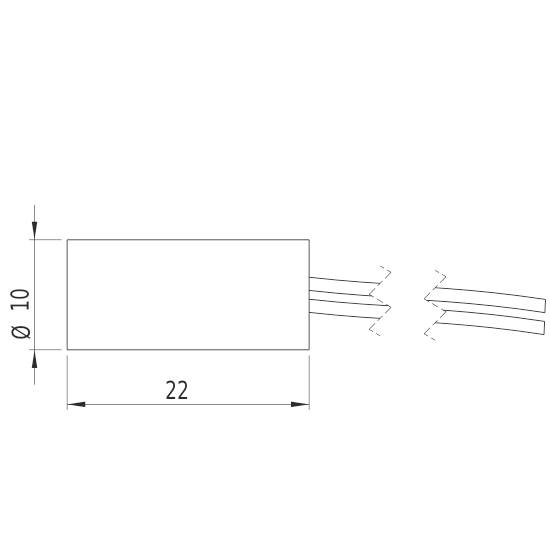

- Compact design: 10x22mm; opening angle: 90°; axis deviation: Up to 3.0°

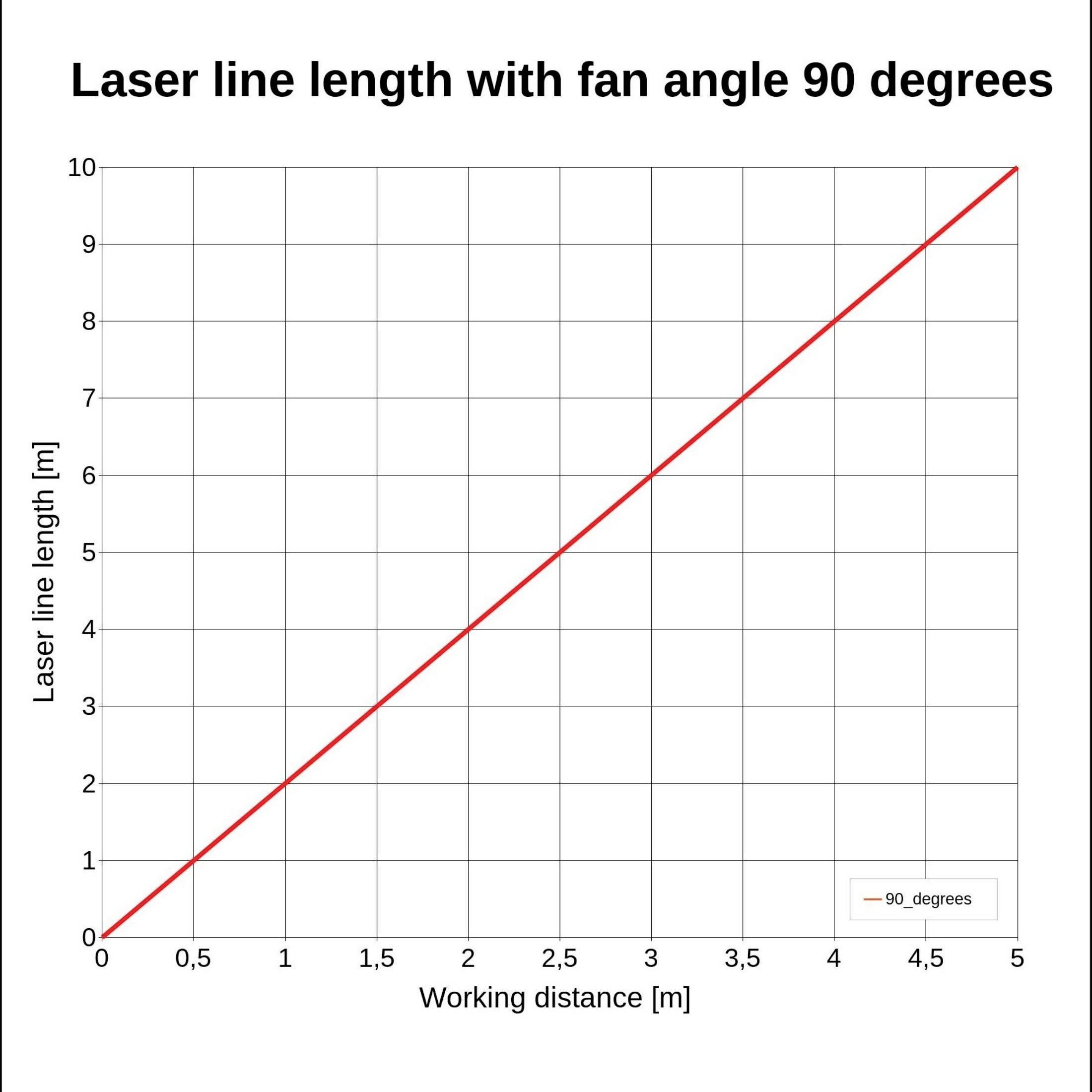

- At a working distance of 1m, the opening angle (90°) generates a laser line length of 2m.
- For applications in e.g. laser spirit levels, laser marking systems, robot technology and show sector. Operating voltage 3V to 12V. For power supply you can use our mains adapter Picotronic LFNT-3.
- This text is machine translated.
