Laserfuchs Line laser level Line Red 5 mW
EAN:
Part number:
Item no:
Product type
Line laser level
Emission characteristics
Line
Wavelength
650 nm
Power
5 mW
(Ø)
9 mm
Highlights & Details

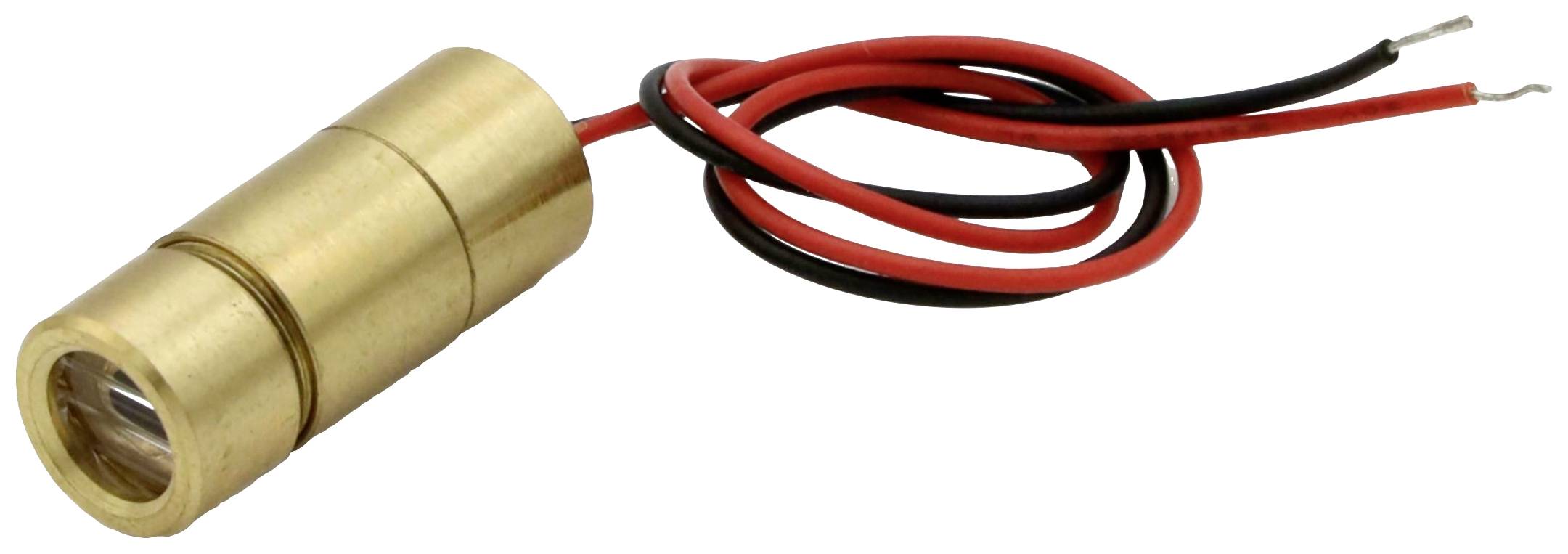

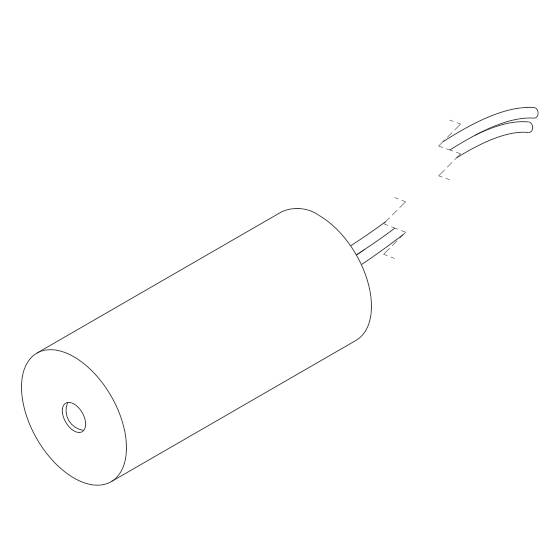

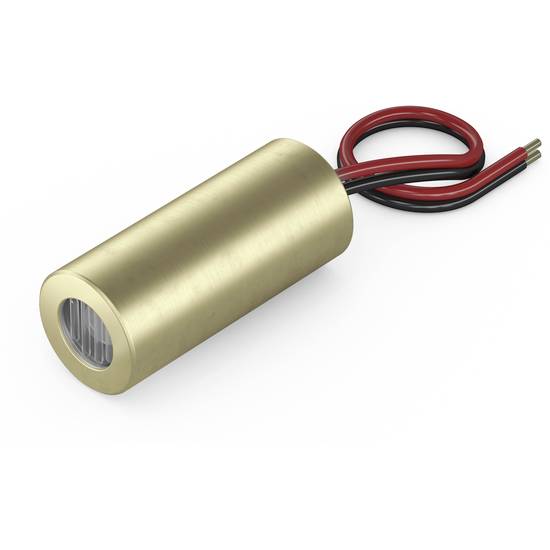

Focusable line laser, red, 650nm, 5mW, 60°, Laser class 1, focus adjustable, 3-5V DC, 9x21mm
- Red
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Material: Brass
- Optical power 5 mW
- Lifetime 10,000 h
- Operating temperature: -10°C - 40 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Line
- Class 1 laser
- Divergent: H - 1.0 mrad
- Aperture angle: 60 °
- 3 m operating distance
- Acrylic lens
- Laser technology: Single mode diode
- Focus adjustable
- Potential of the enclosure: VDD(+)
- Potential of the housing: VDD(+)Focus: Adjustable
- Cable color GND: Black
- Cable length: 140 mm
- Cable type Belden 1007 26AWG

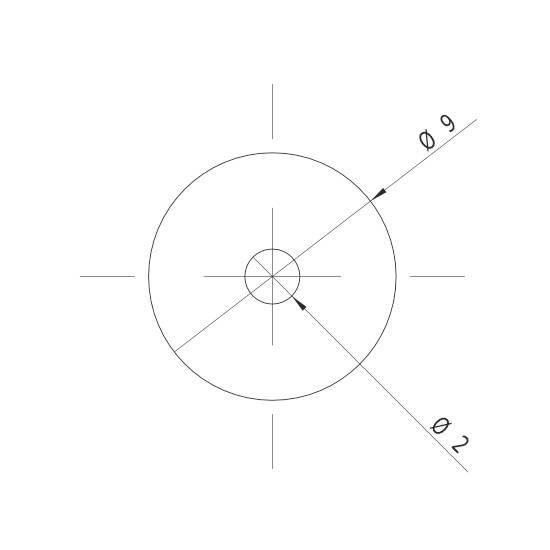

- Outlet diameter of optical 6 mm
- Product type
Line laser level
- Emission characteristics
Line
- Focus properties
Selectable focus
- Factory colour
Red
- Wavelength
650 nm
5 mW
- (Ø)
9 mm
- Length
21 mm
- Laser category
1
- Angular aperture
60°
- Beam divergence
1.0 mrad
- Clearance
3 m
- Operating voltage
5 V DC
- Operating current
30 mA
- Material
Brass

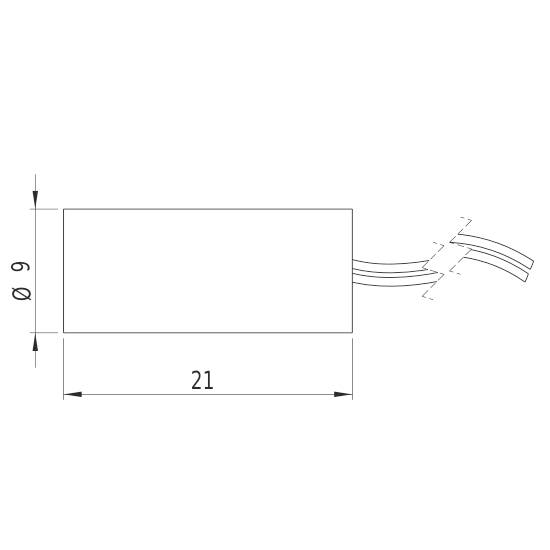

- Dim
(Ø x H) 9 mm x 21 mm
- Weight
7.3 g
- RoHS-compliant
Yes
- Width
9 mm
- Height
21 mm
- Max. temperature
40 °C
- Min. temperature
-10 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987587 Laserfuchs Line laser level Line Red 5 mW
Information
Information 2987587 Laserfuchs Line laser level Line Red 5 mW
Conformity certificate
Conformity certificate 2987587 Laserfuchs Line laser level Line Red 5 mW
Description
Features
- Focusable line laser, red, 650nm, 5mW, 60°, Laser class 1, focus adjustable, 3-5V DC, 9x21mm
- The LH650-5-5(9x21)60-ADJ is a line laser module with a wavelength of 650nm. The laser has a very compact design (9x21mm). The service life of the laser module is greater than 3,000 hours. The angle of detection of 60° generates a laser cross of 1.1m length at a distance of 1m. The adjustable focus allows the laser line thickness to be varied. The current consumption is very low at approx. 30mA, therefore 2 batteries can be used to supply the power without any problem and the laser module can be used mobile. As power supply you can use our Battery-Pack with 2 x 1.5 Volt Batteries (AA). This line laser is used in e.g. leveling devices, laser marking systems and for accurate positioning of objects in industry, handicraft, hobby and the show area. Typical usage areas are low-cost applications. This module falls into the laser class 1.
- Radiation characteristic: Line, line thickness can be varied
- Optical power: 5mW (laser class 1); adjustable focus
- Compact design: 9x21mm; opening angle: 60°; axis deviation: Up to 3.0°

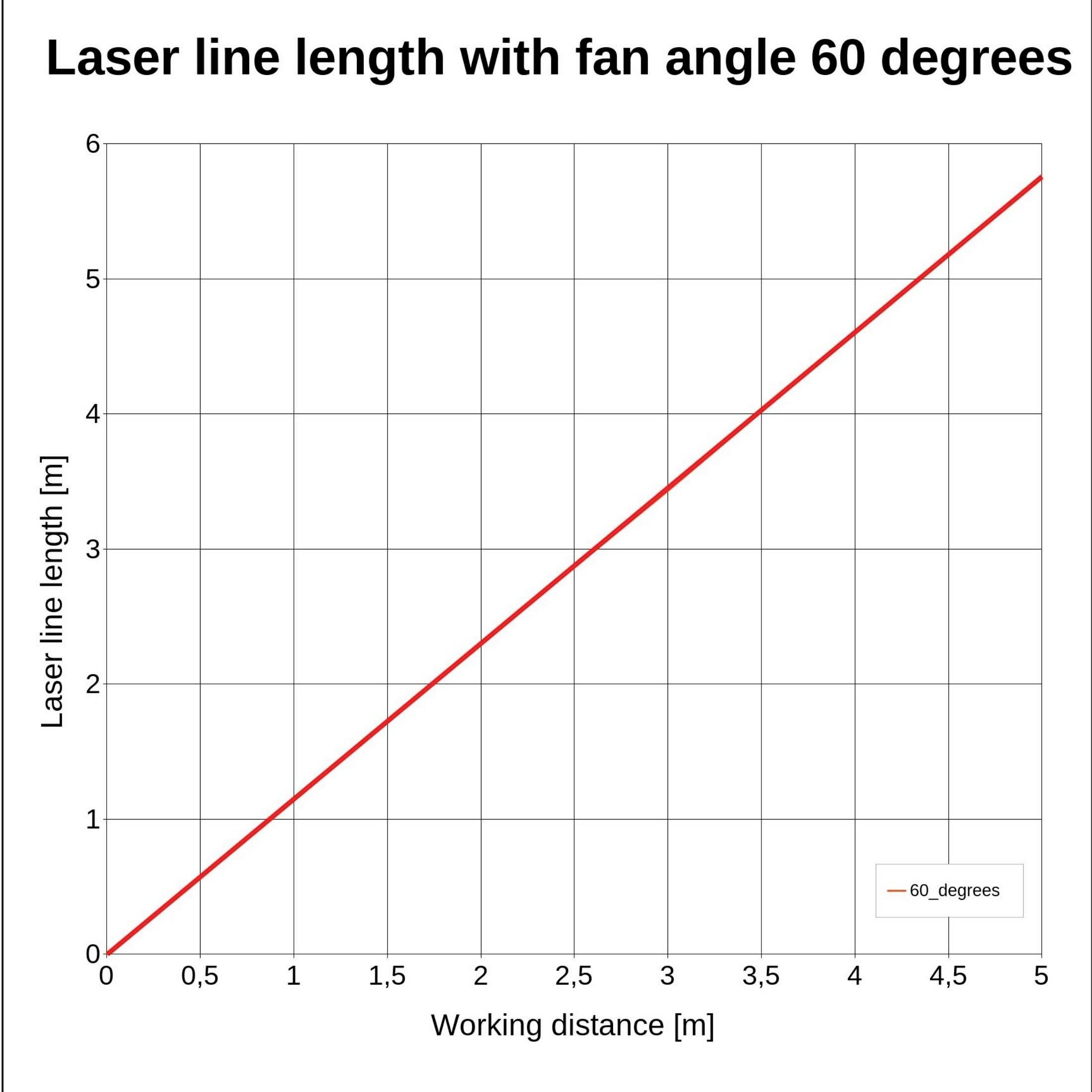

- At a working distance of 1m, the opening angle (60°) generates a laser line length of 1.1m.
- For applications in e.g. laser spirit levels, laser marking systems, robot technology and show sector. Power supply 3V to 5V. For the power supply, you can use e.g. our Picotronic battery pack 3V or the power pack Picotronic LFNT-3.
