Laserfuchs Plumb dot laser Dot 1 mW
EAN:
Part number:
Item no:
Product type
Plumb dot laser
Emission characteristics
Dot
Wavelength
532 nm
Power
1 mW

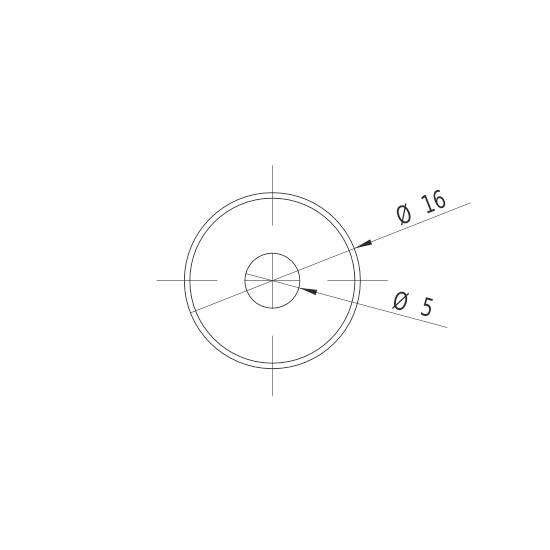

(Ø)
16 mm
Highlights & Details
Point laser, green, 532nm, 1mW, laser class 2, Focus collimated, 3V DC, 16x90mm, axis parallel, inc. Mains adapter
- Laser category: 2
- Emission characteristics: Dot
Technical specifications
- Material: Brass
- Optical power 1 mW
- Lifetime 3,000 h
- Operating temperature 15°C - 30 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Class 2 laser
- Divergence D - 0.5 mrad
- Optics: Anti-reflex coated glass lenses
- Laser technology: YVO4+KTP
- Focus: Fixed (10.0m)
- Potential of the enclosure: VDD(+)
- Cable length 1,650 mm
- Outlet diameter of optical 3.5 mm
- Beam diameter 3 mm
- Product type
Plumb dot laser
- Emission characteristics
Dot
- Focus properties
10 m fixed-focus
- Wavelength
532 nm
1 mW
- (Ø)
16 mm
- Length
90 mm
- Laser category
2
- Beam divergence
0.5 mrad
- Operating voltage
3 V DC
- Operating current
250 mA
- Material
Brass

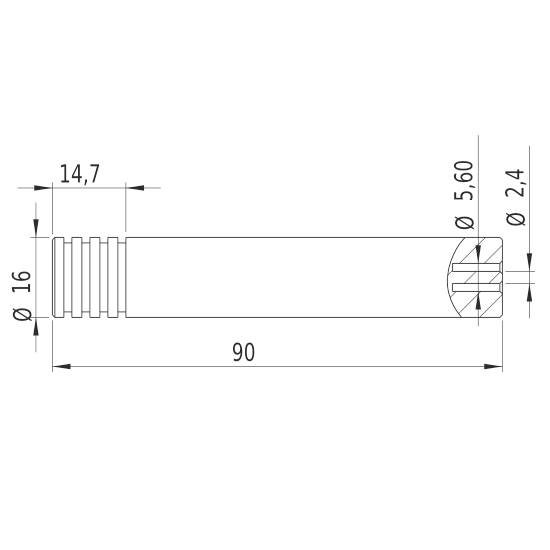

- Dim
(Ø x L) 16 mm x 90 mm
- Weight
100 g
- RoHS-compliant
Yes
- Max. temperature
80 °C
- Min. temperature
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987327 Laserfuchs Plumb dot laser Dot 1 mW
Information
Information 2987327 Laserfuchs Plumb dot laser Dot 1 mW
Conformity certificate
Conformity certificate 2987327 Laserfuchs Plumb dot laser Dot 1 mW
Description
Features
- Point laser, green, 532nm, 1mW, laser class 2, Focus collimated, 3V DC, 16x90mm, axis parallel, inc. Mains adapter

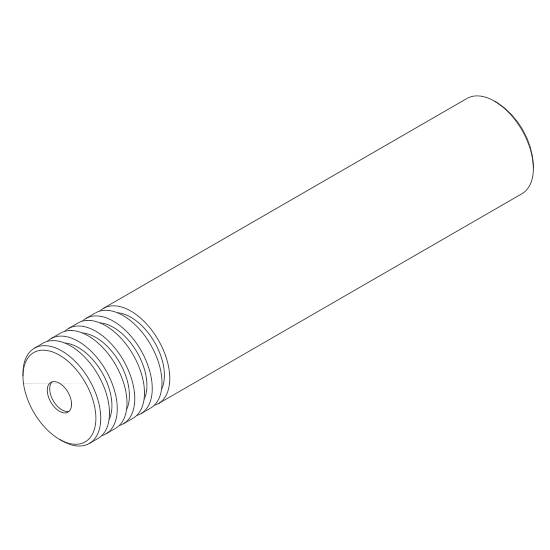

- The LFD532-1-3(16x90) AP-NT is a green dot laser with a wavelength of 532nm. This laser module is characterized by its solid design (16x90mm). The service life of the laser module is greater than 3,000 hours. The beam direction error (axis deviation) is less than 1.0°. The accompanying power supply provides a stable and reliable power supply HER. This point laser is used in e.g. leveling devices, laser marking systems and for accurate positioning of objects. For industrial, handicraft, hobby and the show area. This module falls into the laser class 2.
- Radiation characteristic: Elliptical point, point size 3..5mm@10m
- Optical power: 1mW (laser class 2); focus: 10m
- Compact design: 16x90mm; Axle deviation: Up to 1.0°; DC-hollow plug 2.5mm
- For applications in e.g. laser spirit levels, laser marking systems, robotics, industry, handicrafts, Hobby and the show area.

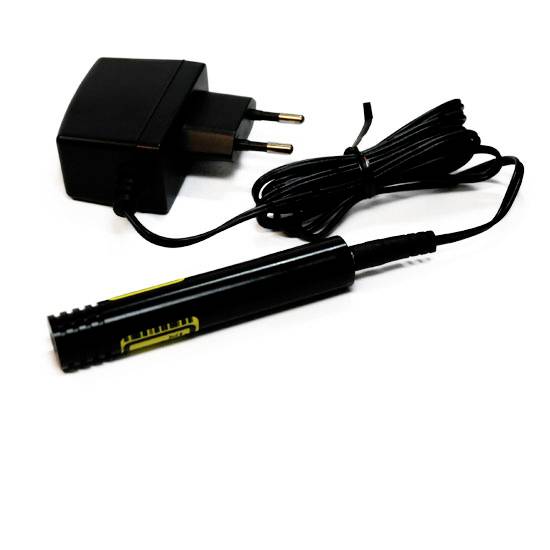

- The power supply unit included in the delivery is connected separable with the laser module.

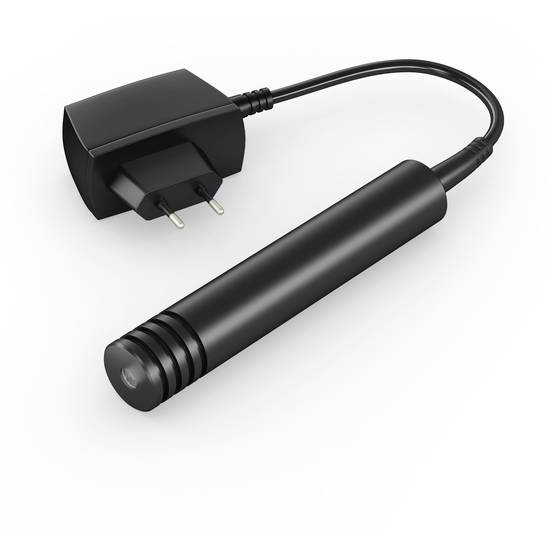

- Including a Picotronic power supply LFNT-3-C.
- This text is machine translated.
