Laserfuchs Plumb dot laser Dot 1 mW
EAN:
Part number:
Item no:
Product type
Plumb dot laser
Emission characteristics
Dot
Wavelength
650 nm
Power
1 mW
(Ø)
9 mm
Highlights & Details
Point laser, red, 650nm, 1mW, laser class 2, Focus collimated, 3-6V DC, 9x20mm, cable 0.2 m
- Laser category: 2
- Emission characteristics: Dot
Technical specifications
- Material: Brass
- Optical power 1 mW
- Lifetime 3,000 h
- Operating temperature: -20°C to 40 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Class 2 laser
- Divergent: H - 1.0 mrad
- 10 m operating distance
- Acrylic lens
- Laser technology: Diode
- Focus: Collides
- Focus: Collides
- Cable color GND: Black
- Cable length 200 mm
- Cable type: 26AWG, 0.14mm²

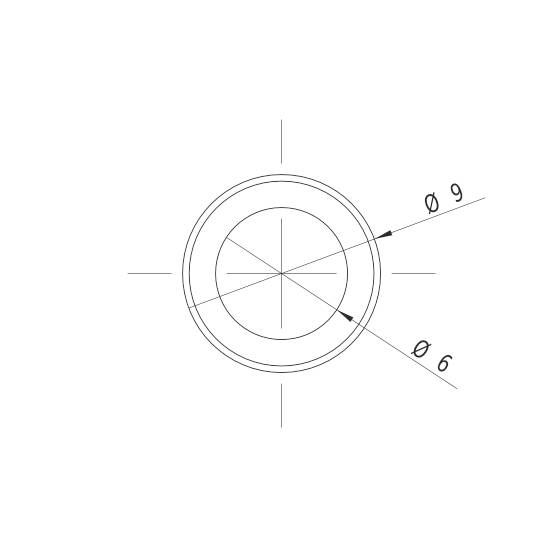

- Outlet diameter of optical 3 mm
- Beam diameter 3 mm
- Product type
Plumb dot laser
- Emission characteristics
Dot
- Focus properties
collimated
- Wavelength
650 nm
1 mW
- (Ø)
9 mm
- Length
20 mm
- Laser category
2
- Beam divergence
1.0 mrad
- Clearance
10 m
- Operating voltage
3 V DC
- Operating current
6 mA
- Material
Brass
- Dim

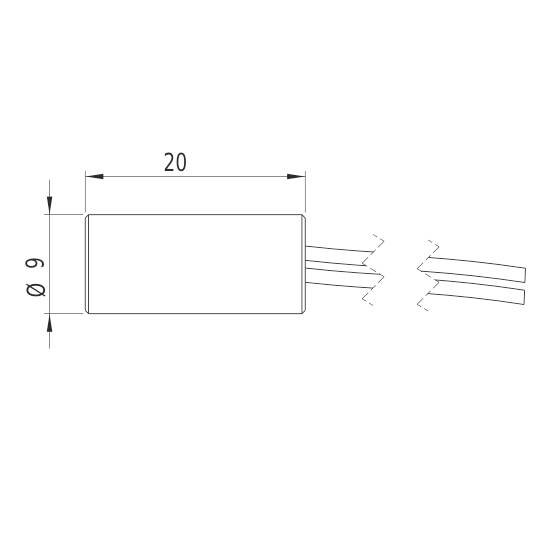

(Ø x H) 9 mm x 20 mm
- Weight
6 g
- RoHS-compliant
Yes
- Width
9 mm
- Height
20 mm
- Max. temperature
40 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987711 Laserfuchs Plumb dot laser Dot 1 mW
Information
Information 2987711 Laserfuchs Plumb dot laser Dot 1 mW
Conformity certificate
Conformity certificate 2987711 Laserfuchs Plumb dot laser Dot 1 mW
Description
Features
- Point laser, red, 650nm, 1mW, laser class 2, Focus collimated, 3-6V DC, 9x20mm, cable 0.2 m

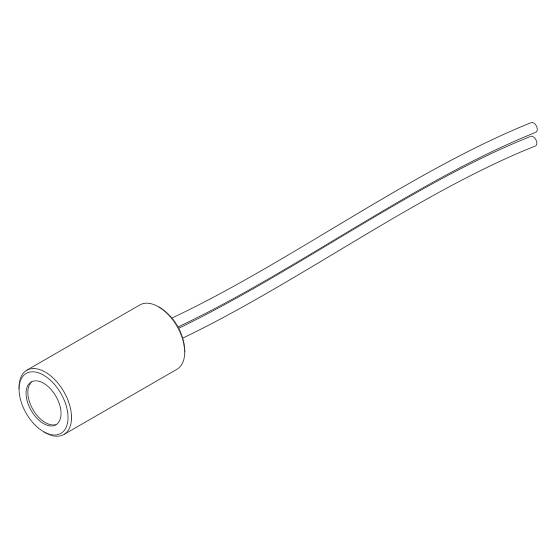

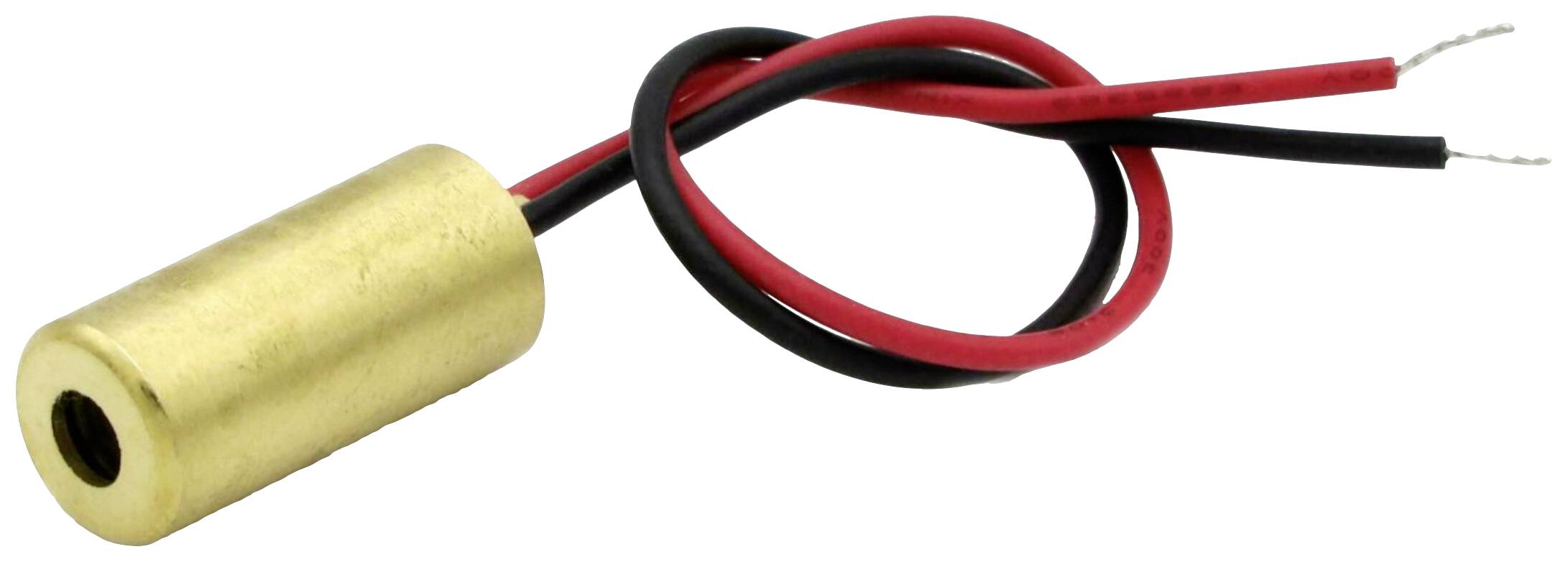

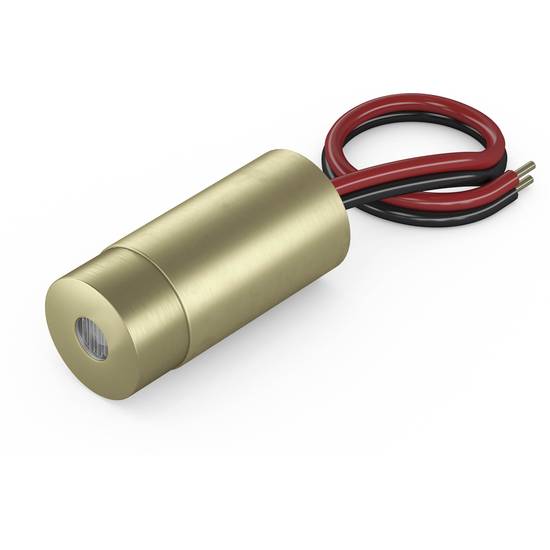

- The type LFD650-1-6(9x20)-C200 is a laser for projection of a red laser point with a wavelength of 650nm. The laser is extremely compact (9x20 mm). The service life of the laser module is greater than 3,000 hours. Due to the collimated laser beam, the generated spot size increases steadily slightly with increasing working distance. The current consumption is very low at approx. 6mA, therefore 2 batteries can be used as power supply without any problem and the laser module can be used mobile. As power supply you can use our Battery-Pack with 2 x 1.5 Volt Batteries (AA). This point laser is used in e.g. leveling devices, laser marking systems and for accurate positioning of objects. Typical usage areas are low-cost applications. This module falls into the laser class 2.
- Radiation characteristic: Elliptical point, point size 4..5mm@5m
- Optical power: 1mW (laser class 2); focus collimated
- Compact design: 9x20mm; axis deviation: Up to 3.0°, cable length 0.2m
- For applications in e.g. laser spirit levels, laser marking systems, robot technology and show sector.
- Power supply 3V to 6V. For the power supply, you can use e.g. our Picotronic battery pack 3V or the power pack Picotronic LFNT-3.
