Laserfuchs Plumb dot laser Elliptical 0.4 mW
EAN:
Part number:
Item no:
Product type
Plumb dot laser
Emission characteristics
Elliptical
Wavelength
650 nm
Power
0.4 mW
(Ø)
12 mm
Highlights & Details
Point laser, red, 650nm, 0.4mW, laser class 1, Focus collimated, 5V, 12x45mm, inc. Mains adapter
- Laser category: 1
- Emission characteristics: Elliptical
Technical specifications
- Material: Aluminium
- Optical power 0.4 mW
- Lifetime 3,000 h
- Operating temperature: -20°C to 40 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Class 1 laser
- Divergent: H - 1.0 mrad
- 10 m operating distance
- Acrylic lens
- Laser technology: Diode
- Focus: Collides
- Potential of the enclosure: VDD(+)
- Cable length 1,360 mm
- Outlet diameter of optical 6 mm
- Black enclosure
- Product type
Plumb dot laser
- Emission characteristics
Elliptical
- Focus properties
collimated
- Wavelength
650 nm
0.4 mW
- (Ø)
12 mm
- Length
45 mm
- Laser category
1
- Beam divergence
1.0 mrad
- Clearance
10 m
- Operating voltage
5 V DC
- Operating current
20 mA
- Material
Aluminium
- Dim
(Ø x H) 12 mm x 45 mm
- Weight
82 g
- RoHS-compliant
Yes
- Width
12 mm
- Height
45 mm
- Max. temperature
40 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987678 Laserfuchs Plumb dot laser Elliptical 0.4 mW
Information
Information 2987678 Laserfuchs Plumb dot laser Elliptical 0.4 mW
Conformity certificate
Conformity certificate 2987678 Laserfuchs Plumb dot laser Elliptical 0.4 mW
Description
Features
- Point laser, red, 650nm, 0.4mW, laser class 1, Focus collimated, 5V, 12x45mm, inc. Mains adapter
- The LFD650-0.4(12x45)-NT is a laser for projection of a red laser point with a wavelength of 650nm. This laser module is characterized by its compact design (12x45mm). The service life of the laser module is greater than 3,000 hours. Due to the collimated laser beam, the generated spot size increases steadily slightly with increasing working distance. The current consumption is very low at approx. 15mA. This point laser is used for example leveling systems, laser marking systems, in trade, industry, hobby and for accurate positioning of objects. The built-in protective lens permits the use of the laser module even in dusty environment and under harsh industrial conditions. Typical usage areas are low-cost applications. This module falls into the laser class 1.
- Radiation characteristic: Elliptical point, point size 4..5mm@5m
- Optical power: 0.4mW (laser class 1); focus collimated
- Compact design: 12x45mm; Axle deviation: Up to 3.0°; DC-hollow plug 2.1mm
- For applications in e.g. laser spirit levels, laser marking systems, robotics, industry, handicrafts, Hobby and the show area.

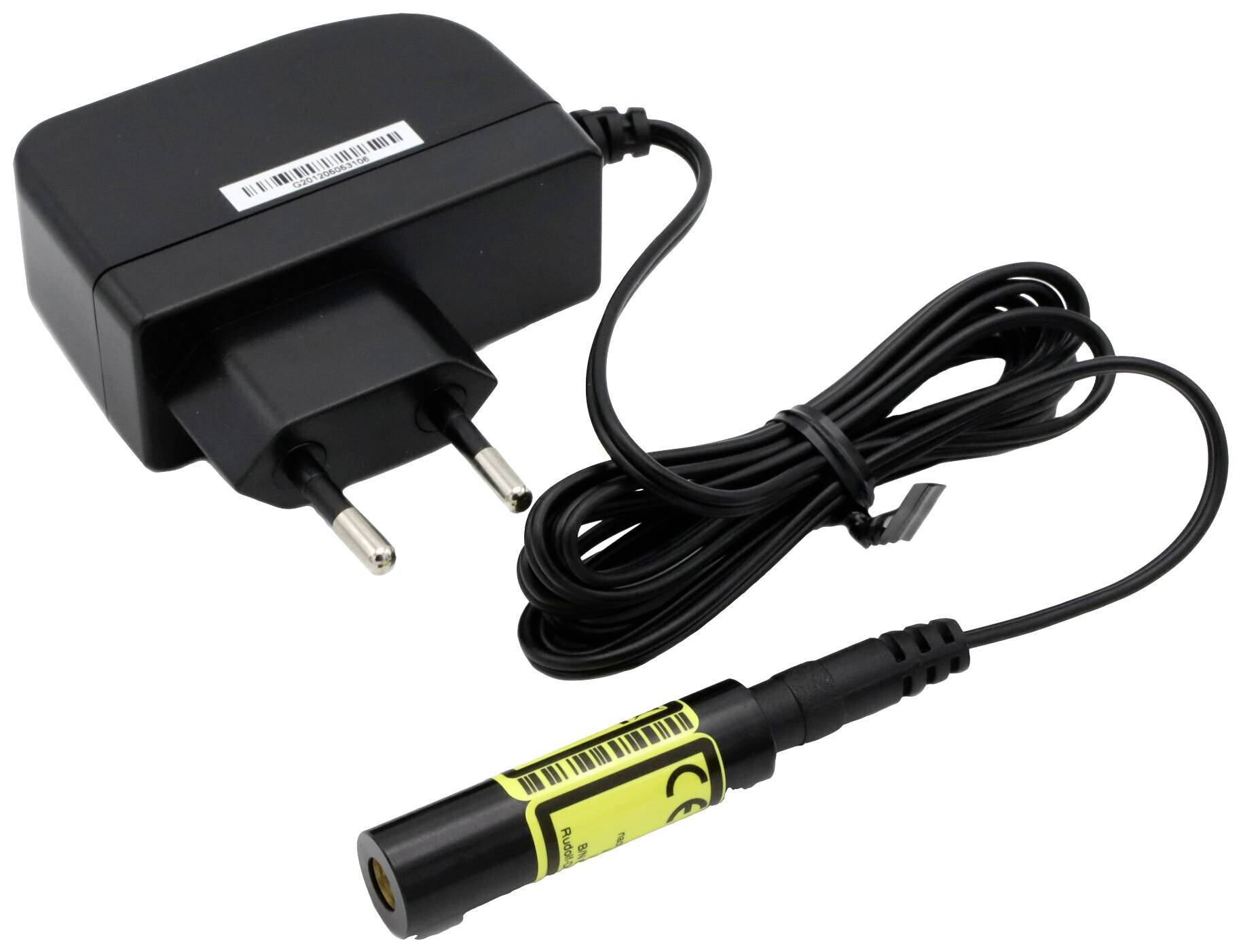

- The power supply unit included in the delivery is connected separable with the laser module.
- Including a Picotronic power supply LFNT-5-C.
- This text is machine translated.
