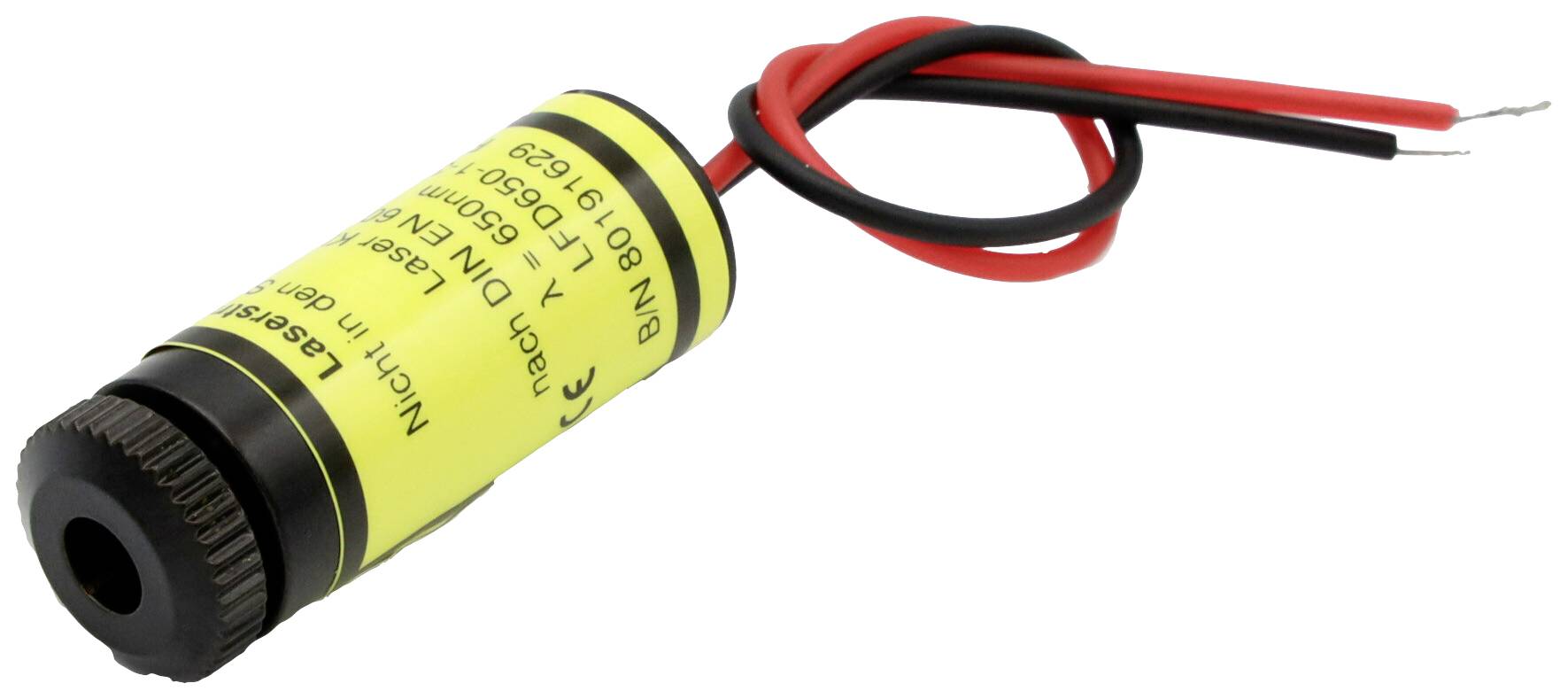

Laserfuchs Plumb dot laser Elliptical 1 mW
EAN:
Part number:
Item no:
Product type
Plumb dot laser
Emission characteristics
Elliptical
Wavelength
635 nm
Power
1 mW
(Ø)
12 mm
Highlights & Details
Focusable point laser, red, 635nm, 1mW, laser class 2, Focus adjustable, 3V DC, 12x30.5mm, cable 0.4m
- Laser category: 2
- Emission characteristics: Elliptical
Technical specifications
- Material: Brass
- Optical power 1 mW
- Lifetime 3,000 h
- Operating temperature: -20°C to 40 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Class 2 laser
- Divergent: H - 1.0 mrad
- 10 m operating distance
- Acrylic lens
- Laser technology: Diode
- Focus adjustable
- Potential of the enclosure: VDD(+)
- Potential of the housing: VDD(+)Focus: Adjustable
- Cable color GND: Black
- Cable length: 400 mm
- Cable type: 26AWG, 0.14mm²

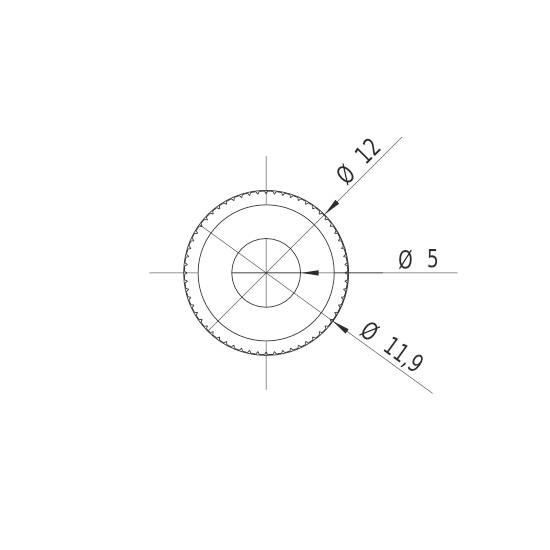

- Outlet diameter of optical 4 mm
- Product type
Plumb dot laser
- Emission characteristics
Elliptical
- Focus properties
Selectable focus
- Wavelength
635 nm
1 mW
- (Ø)
12 mm
- Length
30.5 mm
- Laser category
2
- Beam divergence
1.0 mrad
- Clearance
10 m
- Operating voltage
3 V DC
- Operating current
30 mA
- Material
Brass
- Dim

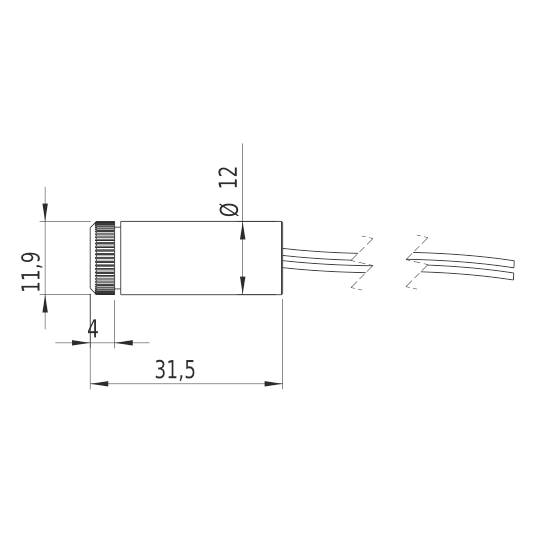

(Ø x H) 12 mm x 30.5 mm
- Weight
18.6 g
- RoHS-compliant
Yes
- Width
12 mm
- Height
30.5 mm
- Max. temperature
40 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987362 Laserfuchs Plumb dot laser Elliptical 1 mW
Information
Information 2987362 Laserfuchs Plumb dot laser Elliptical 1 mW
Conformity certificate
Conformity certificate 2987362 Laserfuchs Plumb dot laser Elliptical 1 mW
Description
Features
- Focusable point laser, red, 635nm, 1mW, laser class 2, Focus adjustable, 3V DC, 12x30.5mm, cable 0.4m
- The LFD635-1-3(12x30.5)-C400 is a point laser for projecting a red laser point. This type is a laser module that is much better visible due to the 635nm wavelength than a comparable 650nm laser. The optical diode power of the laser module is 1mW. Typical usage areas are low-cost applications. The laser is available in a very compact design (12 x 30.5mm). TÜV registration is not required because of the classification in laser class 2. The laser can be used, for example, at discos or when installing it into tools. (The laser safety measures must nevertheless be observed!)The power consumption is very low at approx. 30mA, therefore 2 batteries can be used to supply the power without any problem and the laser module can be used mobile.
- Radiation characteristic: Elliptical dot, dot size can be changed; lasers with 635nm have a better visibility than, e.g. laser with 650nm.
- Optical power: 1mW (laser class 2); focus adjustable
- Compact design: 12x30.5mm; shaft deviation: Up to 3.0°; cable length 400mm
- For applications in e.g. laser spirit levels, laser marking systems, robotics, industry, trade, Hobby and the show area.
- Power supply 3V. For the power supply, you can use e.g. our Picotronic battery pack 3V or the power pack Picotronic LFNT-3.
