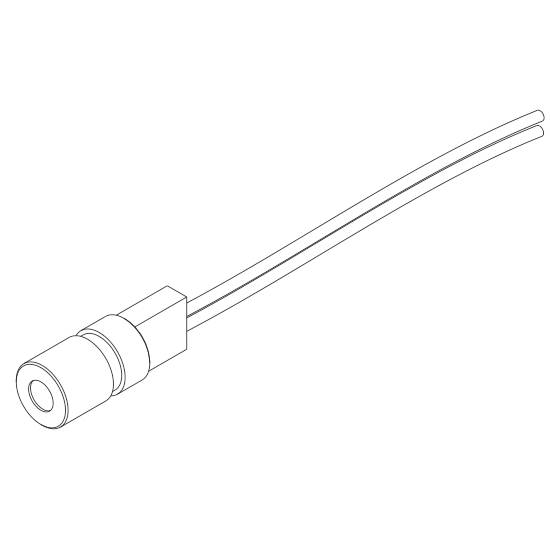

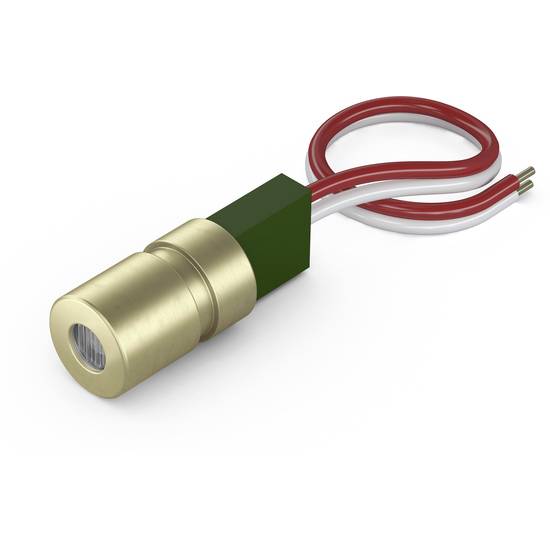

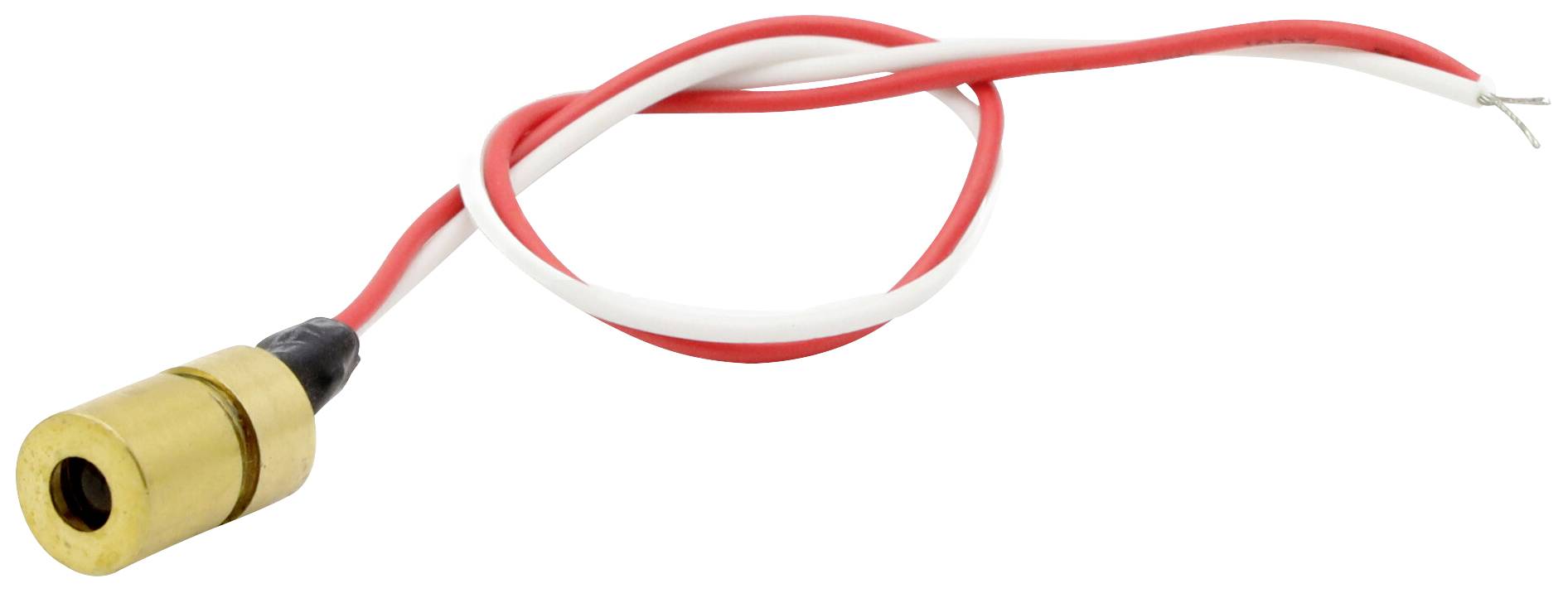

Laserfuchs Plumb dot laser Elliptical 1 mW
EAN:
Part number:
Item no:
Product type
Plumb dot laser
Emission characteristics
Elliptical
Wavelength
635 nm
Power
1 mW
(Ø)
3.5 mm
Highlights & Details
Point laser, red, 635nm, 1mW, laser class 2, Focus collimated, 3V DC, 8x23mm
- Laser category: 2
- Emission characteristics: Elliptical
Technical specifications
- Material: Brass
- Optical power 1 mW
- Lifetime 3,000 h
- Operating temperature: -20°C to 40 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Class 2 laser
- Divergence G - 0.8 mrad
- 10 m operating distance
- Acrylic lens
- Laser technology: Diode
- Focus: Collides
- Potential of the enclosure: VDD(+)
- Potential of the enclosure: VDD(+)Focus: Collimated
- Cable color GND: White
- Cable length 100 mm
- Outlet diameter of optical 3.5 mm
- Product type
Plumb dot laser
- Emission characteristics
Elliptical
- Focus properties
collimated
- Wavelength
635 nm
1 mW
- (Ø)
3.5 mm
- Length
23 mm
- Laser category
2
- Beam divergence
0.8 mrad
- Clearance
10 m
- Operating voltage
3 V DC
- Operating current
30 mA
- Material
Brass

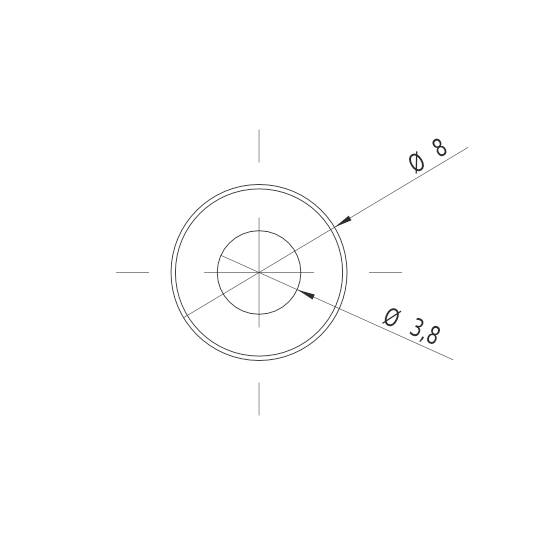

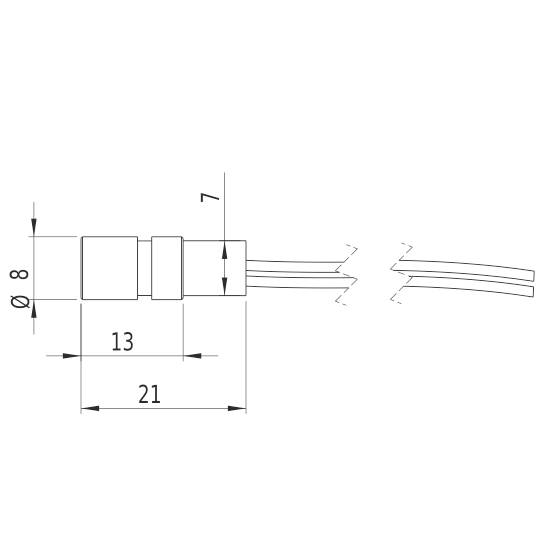

- Dim
(Ø x L) 3.5 mm x 23 mm
- Weight
3.5 g
- RoHS-compliant
Yes
- Width
8 mm
- Max. temperature
40 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987369 Laserfuchs Plumb dot laser Elliptical 1 mW
Information
Information 2987369 Laserfuchs Plumb dot laser Elliptical 1 mW
Conformity certificate
Conformity certificate 2987369 Laserfuchs Plumb dot laser Elliptical 1 mW
Description
Features
- Point laser, red, 635nm, 1mW, laser class 2, Focus collimated, 3V DC, 8x23mm
- The type LFD635-1-3(8x23) is a laser for projecting a red laser point, which is considerably better visible due to the wavelength of 635nm than a comparable 650nm laser. The laser has a very compact design (8x23mm). The service life of the laser module is greater than 3,000 hours. Due to the collimated laser beam, the generated spot size increases steadily slightly with increasing working distance. The current consumption is very low at approx. 30mA, therefore 2 batteries can be used to supply the power without any problem. The laser module can be used mobile. As power supply you can use our Battery-Pack with 2 x 1.5 Volt Batteries (AA). This point laser is used in e.g. leveling devices, laser marking systems and for accurate positioning of objects. Typical usage areas are low-cost applications. This module falls into the laser class 2.
- Radiation characteristic: Elliptical dot, point size 4..6mm@5m; lasers with 635nm have a better visibility than, for example, laser with 650nm.
- Optical power: 1mW (laser class 2); focus collimated
- Very compact design: 8x23mm; Axis deviation: Up to 3.0°
- For applications in e.g. laser spirit levels, laser marking systems, robotics, hobbies, handicrafts, the industry and the show sector.
- Power supply 3V. For the power supply, you can use e.g. our Picotronic battery pack 3V or the power pack Picotronic LFNT-3.
