Buy Laserfuchs Plumb dot laser Elliptical 1 mW

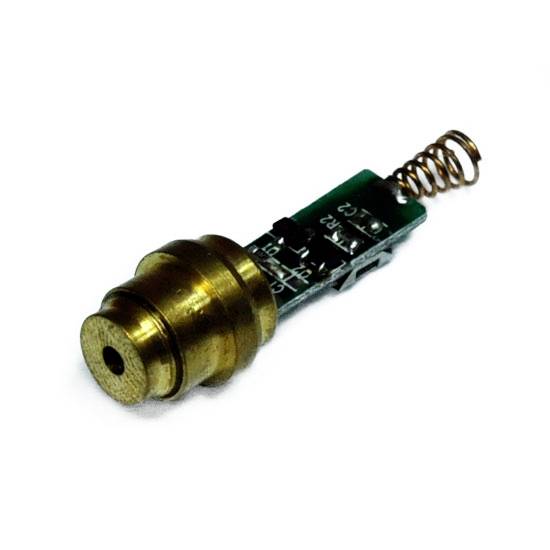

A small mechanical component with a spring and a metal cylinder, possibly a valve or piston, on a white background.

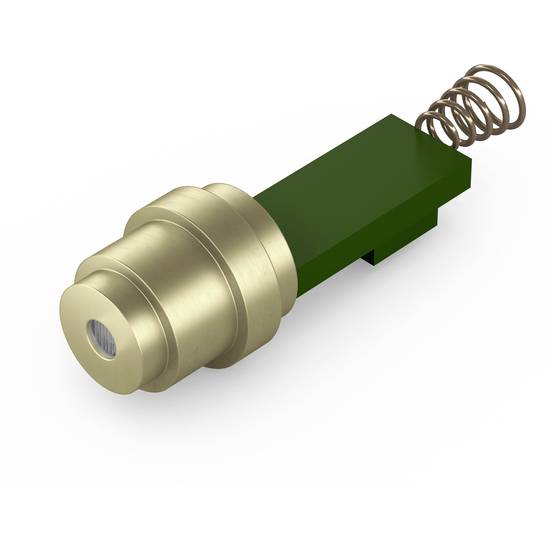

A green connector with a golden metal housing and a spring at the end, likely a component in an electronic device.

Single red dot on black background.<br><br>(Note: This is already very close to British English, so minimal changes were needed.)

A woman is working in a laboratory with a laser being guided through multiple lenses. A computer screen glows in the background.

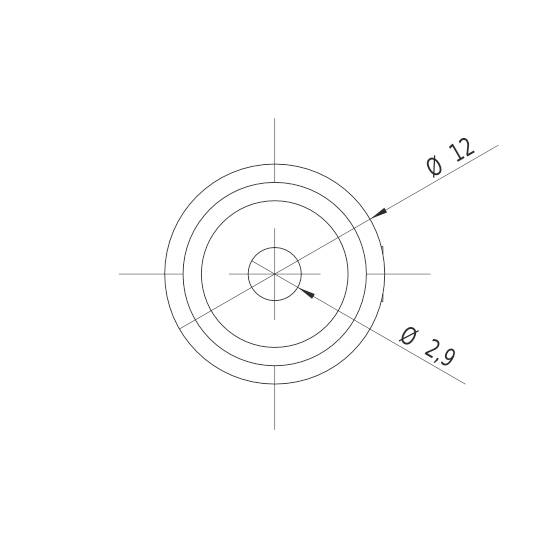

Technical drawing of a circle with two concentric rings. Specified diameters: 12 mm for the outer ring, 2.9 mm for the inner circle.

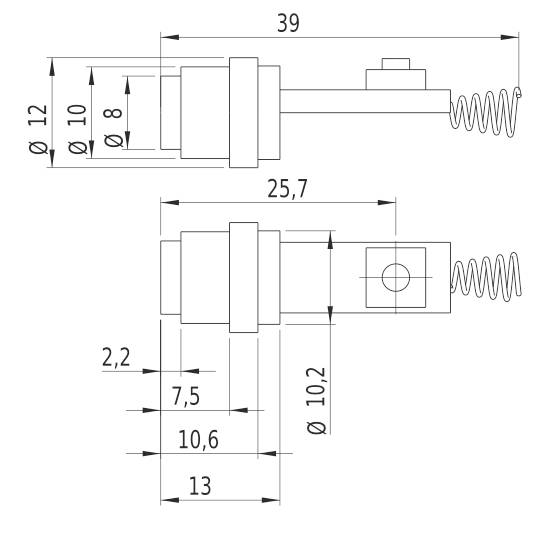

Technical drawing of a cylindrical component with dimensions. Shows diameter, distances, and lengths of various components.<br><br>Technical Drawing of a Cylindrical Component with Dimensions. Shows the Diameter, Distances and Lengths of Various Components.

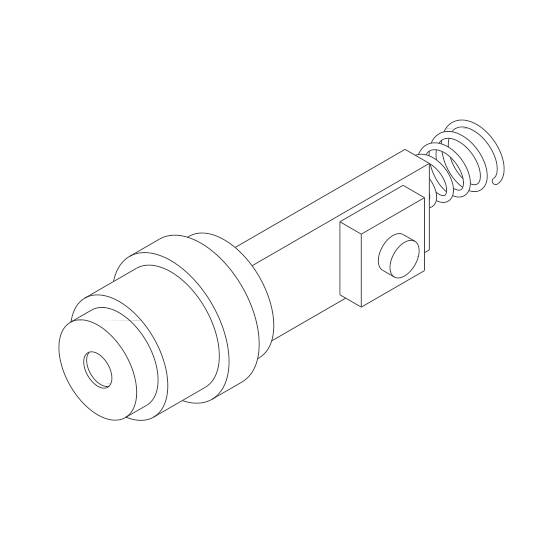

A technical drawing of a metal part with cylindrical and spring structure, potentially part of a mechanical device.

1/7

Product type

Plumb dot laser

Emission characteristics

Elliptical

Wavelength

650 nm

Power

1 mW

(Ø)

2.5 mm

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Point laser, red, 650nm, 1mW, laser class 2, Focus 5m, 3V DC, 12 x 32mm

Laser category: 2
Emission characteristics: Elliptical

Technical specifications

Material: Brass
Optical power 1 mW
Lifetime 5000 h
Operating temperature: -20°C to 40 °C
Storage temperature: -40°C to 80 °C.
Beam form: Point
Class 2 laser
Divergence G - 0.8 mrad
Optics: Anti-reflex coated glass lenses
Laser technology: Diode
Focus: Fixed (5.0m)
Potential of the enclosure: VDD(+)
Outlet diameter of optical 2.5 mm
Beam diameter 2.5 mm

Product type: Plumb dot laser

Emission characteristics: Elliptical

Focus properties: 5000 mm fixed-focus

Wavelength: 650 nm

: 1 mW

(Ø): 2.5 mm

Length: 32 mm

Laser category: 2

Beam divergence: 0.8 mrad

Clearance: 5 m

Operating voltage: 3 V DC

Operating current: 15 mA

Material: Brass

Dim: (Ø x L) 2.5 mm x 32 mm

Weight: 6 g

RoHS-compliant: Yes

Width: 12 mm

Max. temperature: 40 °C

Min. temperature: -20 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2987459 Laserfuchs Plumb dot laser Elliptical 1 mW

Information

Information 2987459 Laserfuchs Plumb dot laser Elliptical 1 mW

Conformity certificate

Conformity certificate 2987459 Laserfuchs Plumb dot laser Elliptical 1 mW

Description

Features

Point laser, red, 650nm, 1mW, laser class 2, Focus 5m, 3V DC, 12 x 32mm
The type LFD650-1-3(12x32) is a laser for projection of a red laser point with a wavelength of 650nm. The laser has a compact design (12x32mm). The service life of the laser module is greater than 5,000 hours. The current consumption is very low at approx. 15mA. The module is activated via a button on the circuit board. This point laser is used in e.g. leveling devices, laser marking systems and for accurate positioning of objects. Typical usage areas are low-cost applications. This module falls into the laser class 2.
Radiation characteristic: Elliptical point, point size 4..6mm@5m
Optical power: 1mW (laser class 2); focus 5m
Compact design:12x32mm; shaft deviation: Up to 3.0°, button for activation on board, housing (+), spring (GND)
For applications in e.g. laser spirit levels, laser marking systems, in industry, trade, hobby activities, Robot technology and the show sector.
Power supply 3V. For the power supply, you can use e.g. our Picotronic battery pack 3V or the power pack Picotronic LFNT-3.
This text is machine translated.
