Laserfuchs Plumb dot laser Elliptical 1 mW
EAN:
Part number:
Item no:
Product type
Plumb dot laser
Emission characteristics
Elliptical
Wavelength
532 nm
Power
1 mW

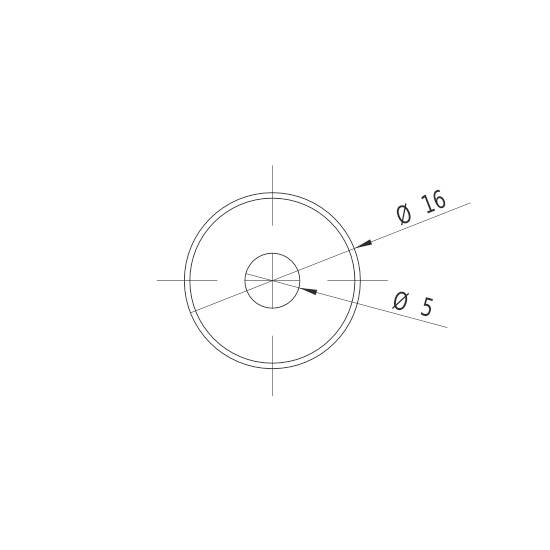

(Ø)
16 mm
Highlights & Details

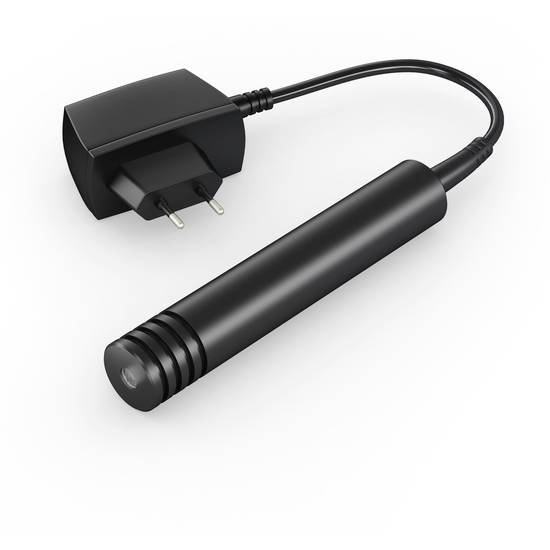

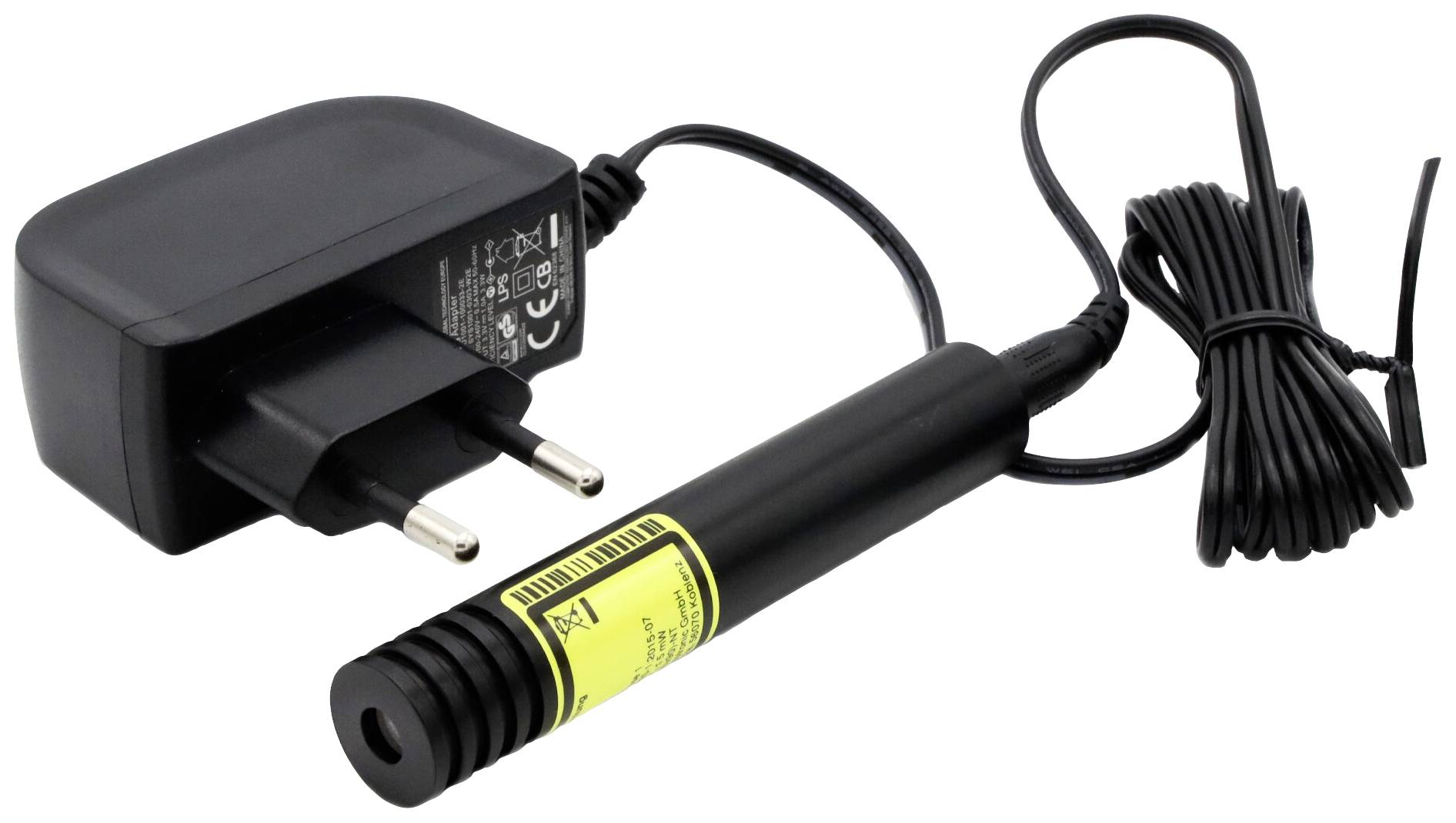

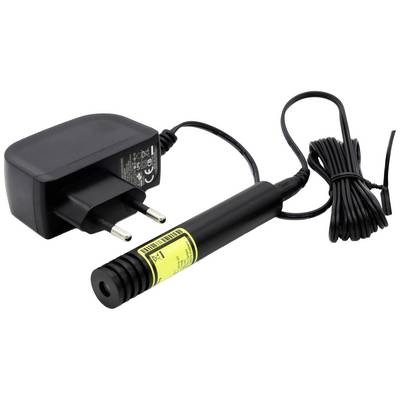

Point laser, green, 532nm, 1mW, laser class 2, Focus collimated, 3V DC, 16x90mm, inc. Mains adapter
- Laser category: 2
- Emission characteristics: Elliptical
Technical specifications
- Material: Brass
- Optical power 1 mW
- Lifetime 3,000 h
- Operating temperature 15°C - 30 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Class 2 laser
- Divergence D - 0.5 mrad
- Optics: Anti-reflex coated glass lenses
- Laser technology: YVO4+KTP
- Focus: Collides
- Potential of the enclosure: VDD(+)
- Cable length 1,650 mm
- Outlet diameter of optical 3.5 mm
- Beam diameter 3 mm
- Product type
Plumb dot laser
- Emission characteristics
Elliptical
- Focus properties
collimated
- Wavelength
532 nm
1 mW
- (Ø)
16 mm
- Length
90 mm
- Laser category
2
- Beam divergence
0.5 mrad
- Operating voltage
3 V DC
- Operating current
250 mA
- Material
Brass

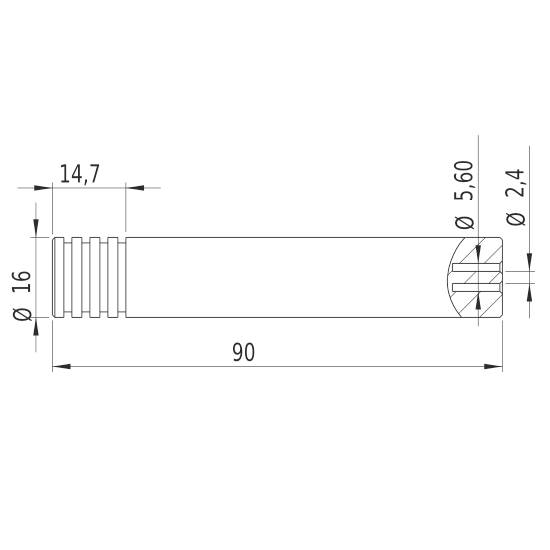

- Dim
(Ø x H) 16 mm x 90 mm
- Weight
100 g
- RoHS-compliant
Yes
- Width
16 mm
- Height
90 mm
- Max. temperature
30 °C
- Min. temperature
15 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987645 Laserfuchs Plumb dot laser Elliptical 1 mW
Information
Information 2987645 Laserfuchs Plumb dot laser Elliptical 1 mW
Conformity certificate
Conformity certificate 2987645 Laserfuchs Plumb dot laser Elliptical 1 mW
Description
Features
- Point laser, green, 532nm, 1mW, laser class 2, Focus collimated, 3V DC, 16x90mm, inc. Mains adapter
- The LFD532-1-3(16x90) NT type is a green dot laser with a wavelength of 532nm. This laser module is characterized by its solid design (16x90mm). The service life of the laser module is greater than 3,000 hours. Due to the collimated laser beam, the generated spot size increases steadily slightly with increasing working distance. The accompanying power supply provides a stable and reliable power supply HER. This point laser is used in e.g. leveling devices, laser marking systems and for accurate positioning of objects. For industrial, handicraft, hobby and the show area. Typical usage areas are low-cost applications. This module falls into the laser class 2.
- Radiation characteristic: Elliptical point, point size 3..5mm@10m
- Optical power: 1mW (laser class 2); focus: Collimated
- Compact design: 16x90mm; Axle deviation: Up to 3.0°; DC-hollow plug 2.5mm
- For applications in e.g. laser spirit levels, laser marking systems, robotics, industry, handicrafts, Hobby and the show area.
- The power supply unit included in the delivery is connected separable with the laser module.
- Including a Picotronic power supply LFNT-3-C.
