Laserfuchs Plumb dot laser Elliptical 1 mW
EAN:
Part number:
Item no:
Product type
Plumb dot laser
Emission characteristics
Elliptical
Wavelength
650 nm
Power
1 mW
(Ø)
10 mm
Highlights & Details

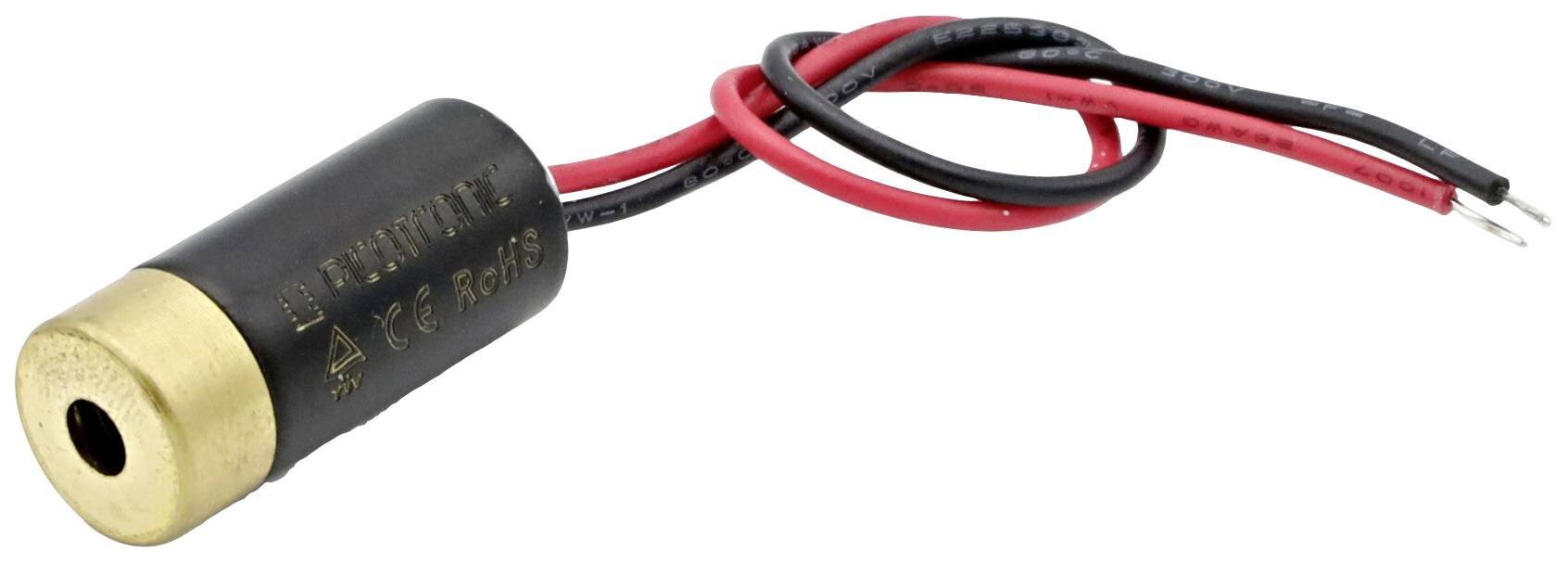

Point laser, red, 650nm, 1mW, laser class 2, Focus 5 m, 3-12V DC, 10x22 mm
- Laser category: 2
- Emission characteristics: Elliptical
Technical specifications
- Material: Brass
- Optical power 0.75 mW
- Lifetime 3,000 h
- Operating temperature: -20°C to 40 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Class 2 laser
- Divergent: H - 1.0 mrad
- 5 m operating distance
- Acrylic lens
- Laser technology: Diode
- Focus: Fixed (5.0m)
- Potential of the enclosure: VDD(+)
- Potential of housing: VDD(+)Focus: Fixed (5.0m)
- Cable color GND: Black
- Cable length 100 mm
- Cable type: 26AWG, 0.14mm²
- Outlet diameter of optical 3.5 mm
- Beam diameter 3.5 mm
- Product type
Plumb dot laser
- Emission characteristics
Elliptical
- Wavelength
650 nm
1 mW
- (Ø)
10 mm
- Length
22 mm
- Laser category
2
- Beam divergence
1.0 mrad
- Clearance
5 m
- Operating voltage
12 V DC
- Operating current
15 mA
- Material
Brass

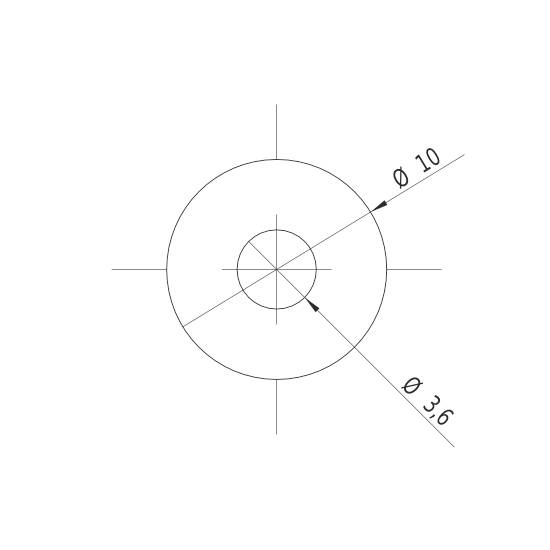

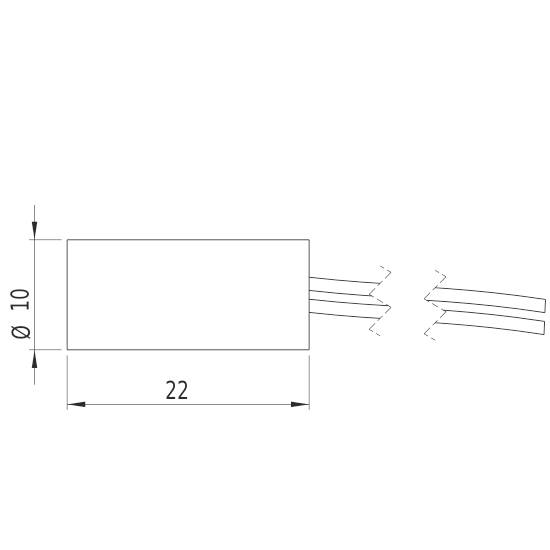

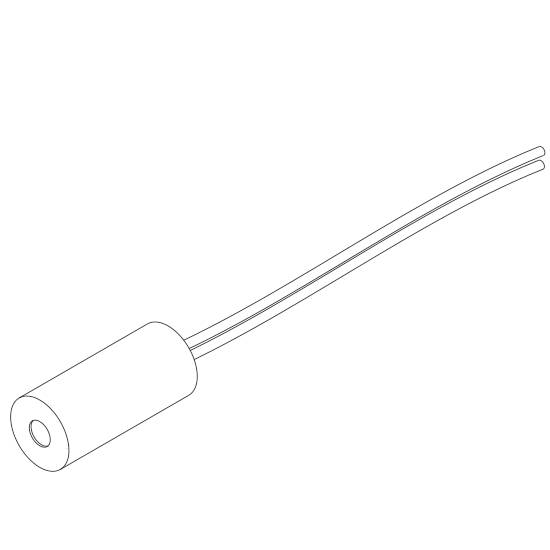

- Dim
(Ø x H) 10 mm x 22 mm
- Weight
9 g
- RoHS-compliant
Yes
- Width
10 mm
- Height
22 mm
- Max. temperature
40 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987656 Laserfuchs Plumb dot laser Elliptical 1 mW
Information
Information 2987656 Laserfuchs Plumb dot laser Elliptical 1 mW
Conformity certificate
Conformity certificate 2987656 Laserfuchs Plumb dot laser Elliptical 1 mW
Description
Features
- Point laser, red, 650nm, 1mW, laser class 2, Focus 5 m, 3-12V DC, 10x22 mm
- The type LFD650-1-12(10x22) is a point laser for projection of a red laser point. The laser module emits 650nm wavelength radiation. The laser has a very compact design (10x22 mm). The optimum working area of the laser is at 5m. The nominal voltage is 12V, but the module can be operated in a range from 3 - 12V. The current consumption is very low at approx. 15 mA, therefore 2 batteries can be used for power supply without any problem and the laser module can be used mobile. As power supply you can use our Battery-Pack with 2 x 1.5 Volt Batteries (AA). This positioning laser is a universal tool for industry, hobby and trade and considerably simplifies the positioning, marking and alignment of workpieces. This module falls into the laser class 2.
- Radiation characteristic: Elliptical point, point size 4..6mm@5m
- Optical power: 1mW (laser class 2); focus 5m
- Compact design: 10x22mm; shaft deviation: Up to 3.0°
- For applications in e.g. laser spirit levels, laser marking systems, robotics, industry, trade, Hobby and the show area.
- Power supply 3V to 12V. For the power supply, you can use e.g. our Picotronic battery pack 3V or the power pack Picotronic LFNT-3.
