Name: Laserfuchs Plumb dot laser Elliptical 1 mW
Brand: Laserfuchs
SKU: 2987657

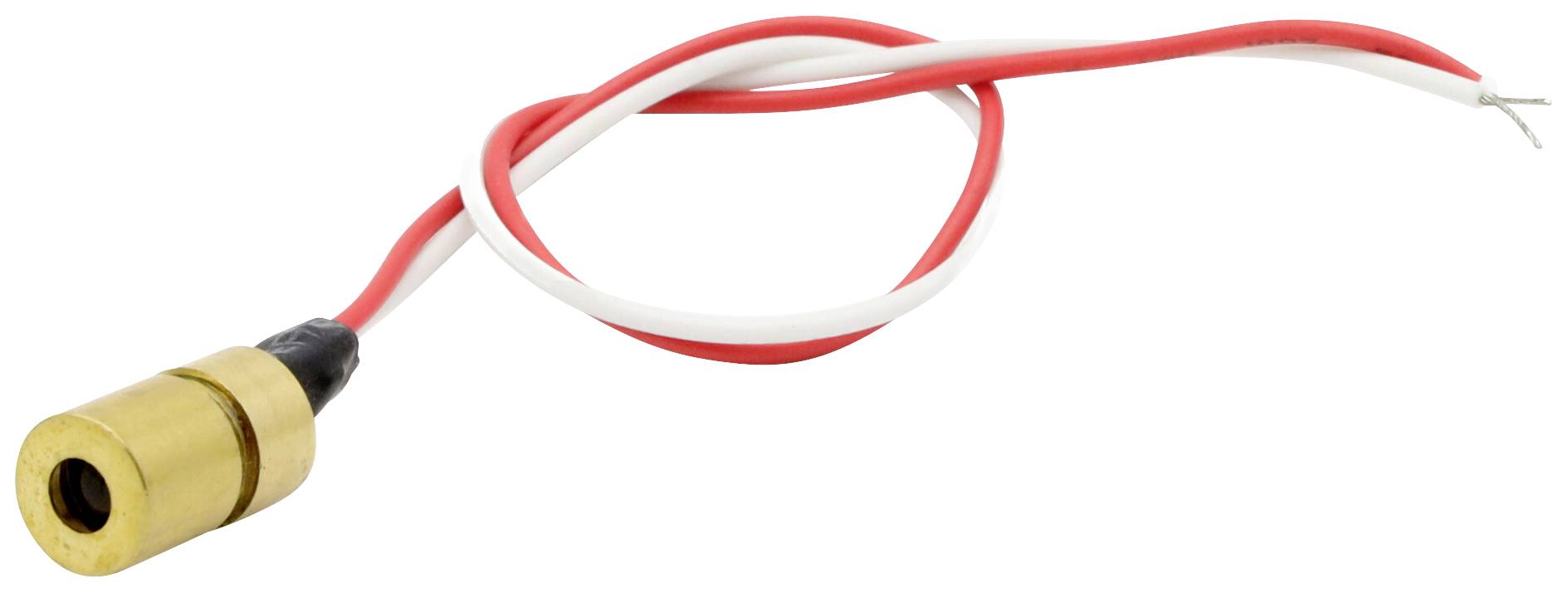

Laser diode module with a short red and white wire connection. Used in electronic applications for light emission.

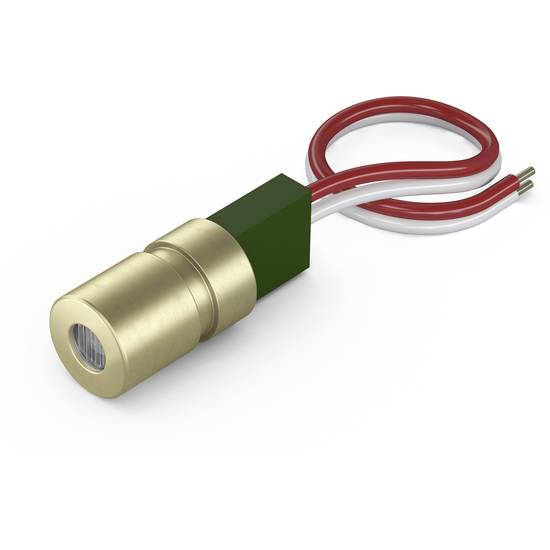

A small, cylindrical laser with a golden casing and red wires, suitable for technical applications.

A woman is working on a laser experiment in a laboratory surrounded by several lenses and mirrors. A illuminated monitor is visible in the background.

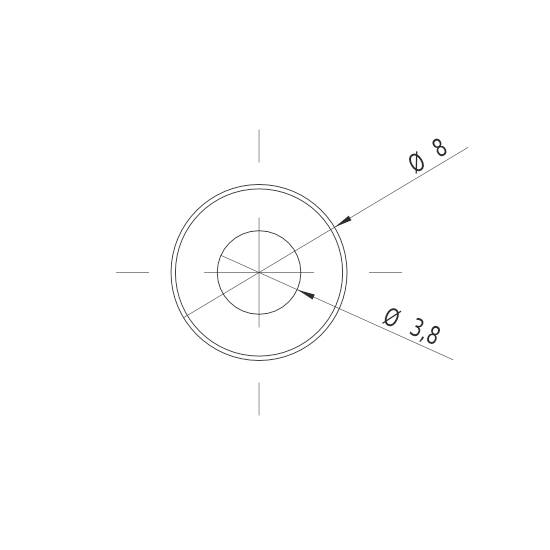

Technical drawing of a circle with two diameter specifications: 8 mm and 3.8 mm. It shows precise measurements for components.

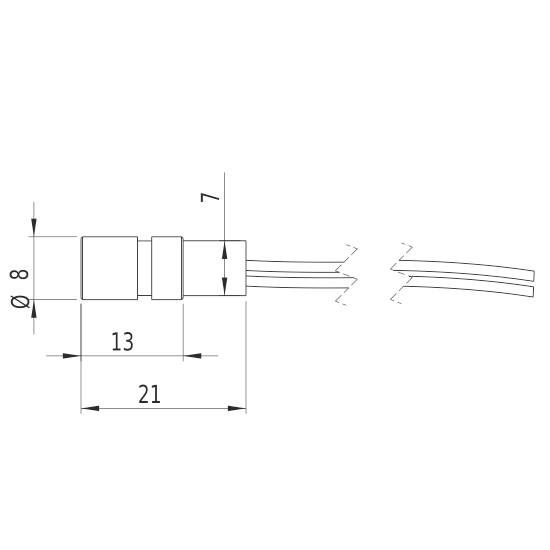

Technical drawing of a cylindrical sensor with dimensions: 8 mm diameter, 21 mm length, cable connection on the right-hand side.

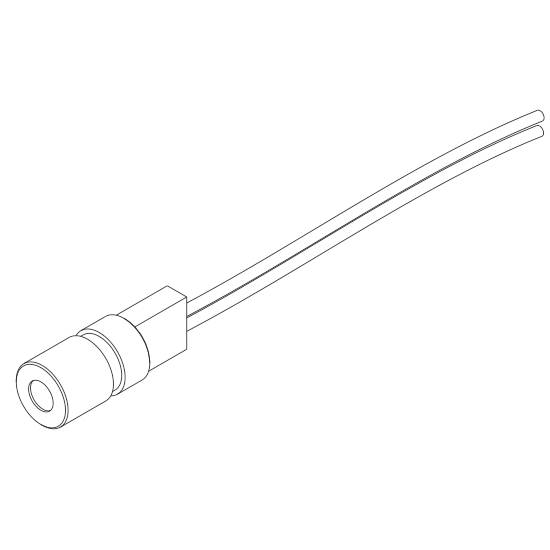

Plug with two wires for electronic devices, showing the connection side and cable routing.

1/7

Product type

Plumb dot laser

Emission characteristics

Elliptical

Wavelength

650 nm

Power

1 mW

(Ø)

8 mm

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Point laser, red, 650nm, 1mW, laser class 2, Focus collimated, 3V DC, 8x23mm

Laser category: 2
Emission characteristics: Elliptical

Technical specifications

Material: Brass
Optical power 1 mW
Lifetime 3,000 h
Operating temperature: -20°C to 40 °C
Storage temperature: -40°C to 80 °C.
Beam form: Point
Class 2 laser
Divergence G - 0.8 mrad
10 m operating distance
Acrylic lens
Laser technology: Diode
Focus: Collides
Potential of the enclosure: VDD(+)
Potential of the enclosure: VDD(+)Focus: Collimated
Cable color GND: White
Cable length 100 mm
Cable type: 26AWG, 0.14mm²
Outlet diameter of optical 3.5 mm
Beam diameter 3.5 mm

Product type: Plumb dot laser

Emission characteristics: Elliptical

Focus properties: collimated

Wavelength: 650 nm

: 1 mW

(Ø): 8 mm

Length: 23 mm

Laser category: 2

Beam divergence: 0.8 mrad

Clearance: 10 m

Operating voltage: 3 V DC

Operating current: 15 mA

Material: Brass

Dim: (Ø x H) 8 mm x 23 mm

Weight: 3.5 g

RoHS-compliant: Yes

Width: 8 mm

Height: 23 mm

Max. temperature: 40 °C

Min. temperature: -20 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2987657 Laserfuchs Plumb dot laser Elliptical 1 mW

Information

Information 2987657 Laserfuchs Plumb dot laser Elliptical 1 mW

Conformity certificate

Conformity certificate 2987657 Laserfuchs Plumb dot laser Elliptical 1 mW

Features

Point laser, red, 650nm, 1mW, laser class 2, Focus collimated, 3V DC, 8x23mm
The type LFD650-1-3(8x23) is a point laser for projection of a red laser point. TÜV registration is not required because of the classification in laser class 2. The laser can be used, for example, at discos or when installing it into tools. (However, the laser safety measures must still be observed!)The laser module is equipped with an electronic control unit and only needs to be connected to a voltage source (DC voltage). Typical usage areas are low-cost applications. The current consumption is very low at approx. 15 mA, therefore 2 batteries can be used for power supply without any problem and the laser module can be used mobile. The service life of the laser module exceeds 3000 hours. As power supply you can use our Battery-Pack with 2 x 1.5 Volt Batteries (AA).
Radiation characteristic: Elliptical point, point size 4..6mm@5m
Optical power: 1mW (laser class 2); focus collimated
Very compact design: 8x23mm; Axis deviation: Up to 3.0°
For applications in e.g. laser spirit levels, laser marking systems, robotics, hobbies, handicrafts, the industry and the show sector.
Power supply 3V. For the power supply, you can use e.g. our Picotronic battery pack 3V or the power pack Picotronic LFNT-3.
This text is machine translated.

Description

Features

Point laser, red, 650nm, 1mW, laser class 2, Focus collimated, 3V DC, 8x23mm
The type LFD650-1-3(8x23) is a point laser for projection of a red laser point. TÜV registration is not required because of the classification in laser class 2. The laser can be used, for example, at discos or when installing it into tools. (However, the laser safety measures must still be observed!)The laser module is equipped with an electronic control unit and only needs to be connected to a voltage source (DC voltage). Typical usage areas are low-cost applications. The current consumption is very low at approx. 15 mA, therefore 2 batteries can be used for power supply without any problem and the laser module can be used mobile. The service life of the laser module exceeds 3000 hours. As power supply you can use our Battery-Pack with 2 x 1.5 Volt Batteries (AA).
Radiation characteristic: Elliptical point, point size 4..6mm@5m
Optical power: 1mW (laser class 2); focus collimated
Very compact design: 8x23mm; Axis deviation: Up to 3.0°
For applications in e.g. laser spirit levels, laser marking systems, robotics, hobbies, handicrafts, the industry and the show sector.
Power supply 3V. For the power supply, you can use e.g. our Picotronic battery pack 3V or the power pack Picotronic LFNT-3.
This text is machine translated.
