Laserfuchs Plumb dot laser Elliptical 1 mW
EAN:
Part number:
Item no:
Product type
Plumb dot laser
Emission characteristics
Elliptical
Wavelength
635 nm
Power
1 mW
(Ø)
16 mm
Highlights & Details
Point laser, red, 635nm, 1mW, laser class 2
- Laser category: 2
- Emission characteristics: Elliptical
Technical specifications
- Material: Aluminium
- Optical power 1 mW
- Lifetime 5000 h
- Operating temperature: -20°C to 40 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Class 2 laser
- Divergence D - 0.5 mrad
- 5 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: Single mode diode
- Focus: Fixed (5.0m)
- Potential of the enclosure: VDD(+)
- Cable length 1,400 mm
- Outlet diameter of optical 5 mm
- Black enclosure
- Product type
Plumb dot laser
- Emission characteristics
Elliptical
- Focus properties
5000 mm fixed-focus
- Wavelength
635 nm
1 mW
- (Ø)
16 mm
- Length
90 mm
- Laser category
2
- Beam divergence
0.5 mrad
- Clearance
5 m
- Operating voltage
3 V DC
- Operating current
70 mA
- Material
Aluminium
- Dim
(Ø x H) 16 mm x 90 mm
- Weight
46 g
- RoHS-compliant
Yes
- Width
16 mm
- Height
90 mm
- Max. temperature
40 °C
- Min. temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987725 Laserfuchs Plumb dot laser Elliptical 1 mW
Information
Information 2987725 Laserfuchs Plumb dot laser Elliptical 1 mW
Conformity certificate
Conformity certificate 2987725 Laserfuchs Plumb dot laser Elliptical 1 mW
Description
Features

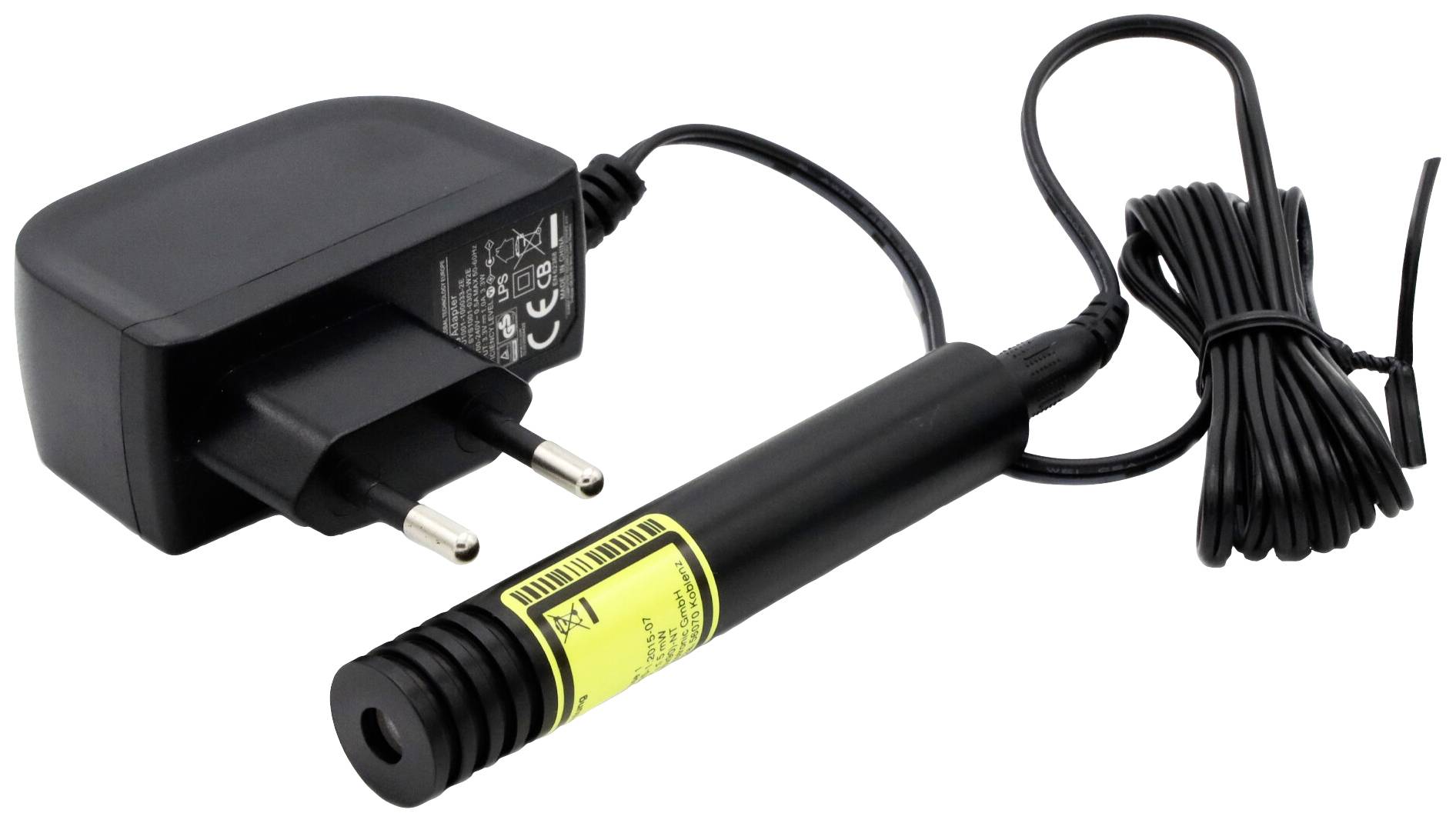

- Point laser, red, 635nm, 1mW, laser class 2, Focus 5m, 3V, 16x90mm, incl. super smash bros. Mains adapter
- The type LFD635-1-3(16x90)-NT is a point laser that is much better visible due to the wavelength of 635nm than a comparable 650nm laser. This laser module is characterized by its solid design (16x90mm). The service life of the laser module is greater than 5,000 hours. The accompanying power supply provides a stable and reliable power supply HER. This point laser is used in e.g. leveling devices, laser marking systems and for accurate positioning of objects. For industrial, handicraft, hobby or the show area. Typical usage areas are low-cost applications. This module falls into the laser class 2.
- Radiation characteristic: Elliptical point, point size 3..5mm@5m
- Optical power: 1mW (laser class 2); focus 5m
- Design: 16x90mm; axis deviation: Up to 3.0°, DC-hollow plug 2.5mm
- For applications in e.g. laser spirit levels, laser marking systems, robot technology and show sector.
- The power supply unit included in the delivery is connected separable with the laser module.
- Including a Picotronic power supply LFNT-3-C.
- This text is machine translated.
