Laserliner MultiMeter XP Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 256.30 / piece)
€ 256.30
plus VAT.
Only 1 Piece(s) available
Highlights & Details
MultiMeter XP
- CAT III 1000 V, CAT IV 600 V
Technical specifications
- Duty cycle pulse width: 100 μs - 100 ms
- Measurement rate: 3 measurements/sec.
- AC/DC voltage (LOW Z): 0.001 V - 1000 V
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.001 V
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
0.1 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.1 µA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
0.1 Ω - 60 MΩ
- Reading range - capacity
0,001 nF - 6000 µF
- Frequency reading range
0.001 Hz - 9,999 kHz
- Temperature
-20°C-760 °C
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
0.8 %
- Measurement type (details)
Average
- Frequency range
50 - 1000 Hz
- Power supply (details)
4 x 1.5 V batteries type AAA
- Height
48 mm
- Width
170 mm
- Length
75 mm
- Weight
416 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
MultiMeter XP
- Display
Digital
- Display (counts)
6000
- Dim
(L x W x H) 75 x 170 x 48 mm
- Interfaces
Bluetooth®
Documents & Downloads
Datasheet
Datasheet 1697323 Laserliner MultiMeter XP Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
User & Safety Instructions
User & Safety Instructions 1697323 Laserliner MultiMeter XP Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
User & Safety Instructions 1697323 Laserliner MultiMeter XP Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
User & Safety Instructions 1697323 Laserliner MultiMeter XP Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
User & Safety Instructions 1697323 Laserliner MultiMeter XP Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
Warranty Terms
Warranty Terms 1697323 Laserliner MultiMeter XP Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
Description

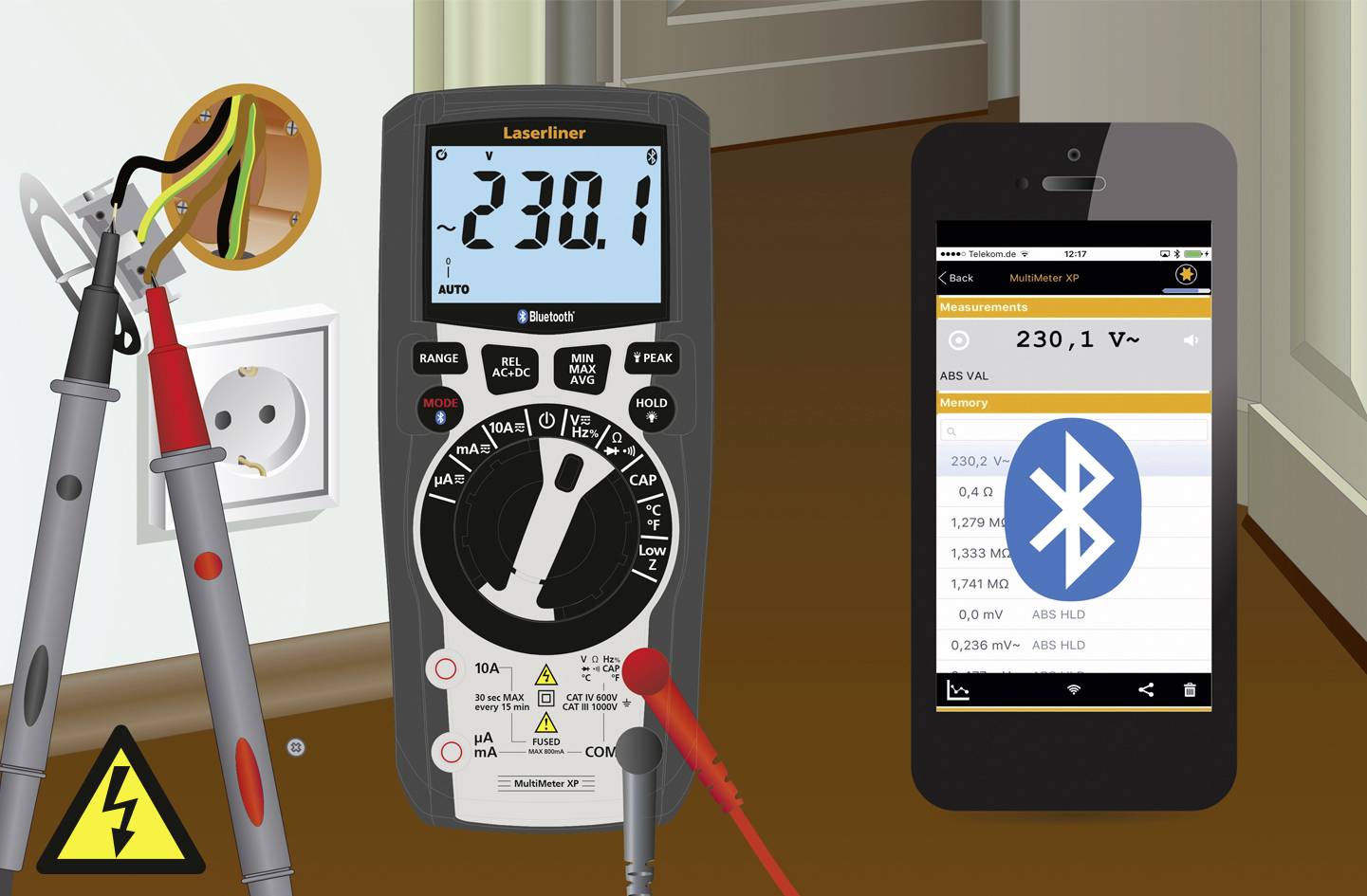

Robust professional multimeter with low-Z low impedance mode and Bluetooth for precise and fast measurements in the areas of voltage, current, resistance, capacitance, frequency, duty cycle and contact temperature.
This text is machine translated.
This text is machine translated.
Features

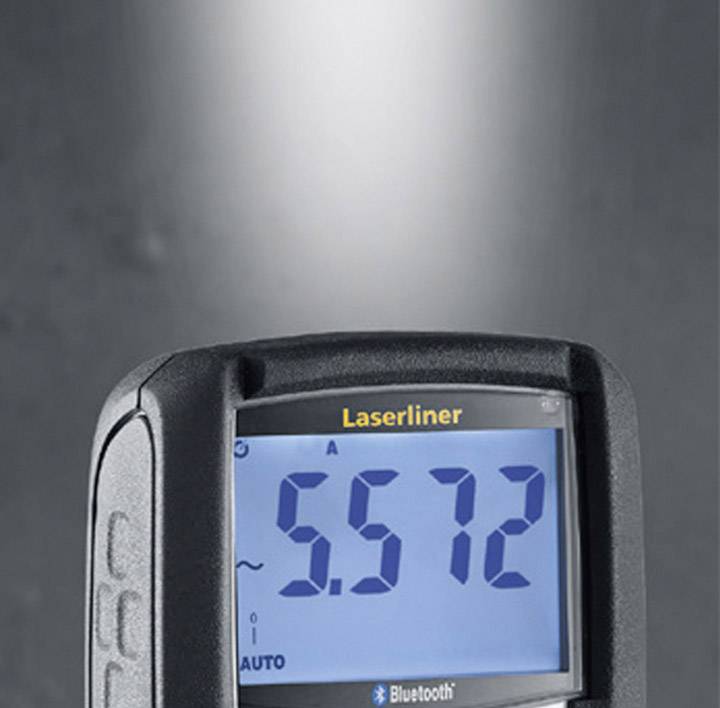

- High-resolution, analogue bar graph scale with 61 segments for secure signal analysis
- Relative measurement and data hold function
- Wide measuring range for frequency measurements from 10 Hz to 10 KHz
- Automatic continuity tester with acoustic signal.
- Automatic range switching and manual range selection
- Diode test function for function and polarity determination
- Shock-resistant, ergonomic casing with protective rubber coating and stand
- Thermometer function
Scope of delivery
- MultiMeter XP
- Carrying case

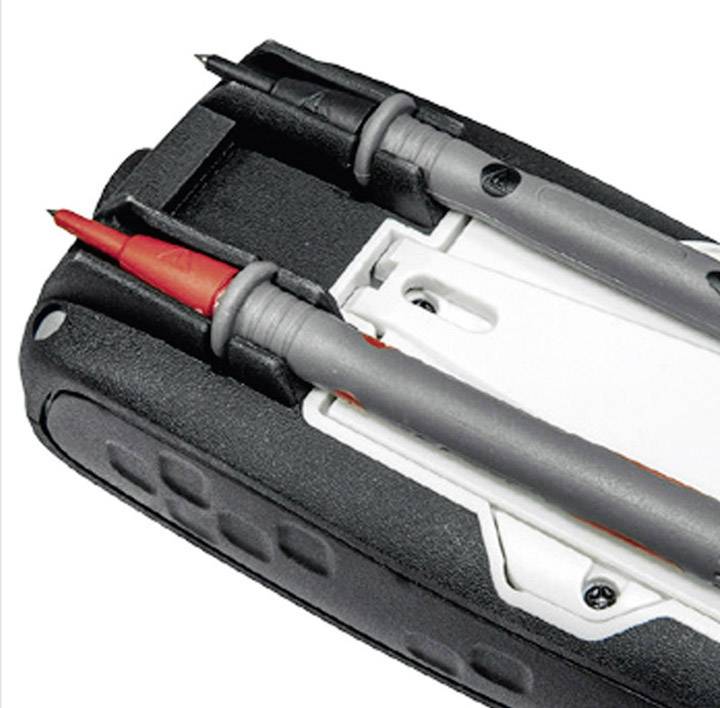

- Probes

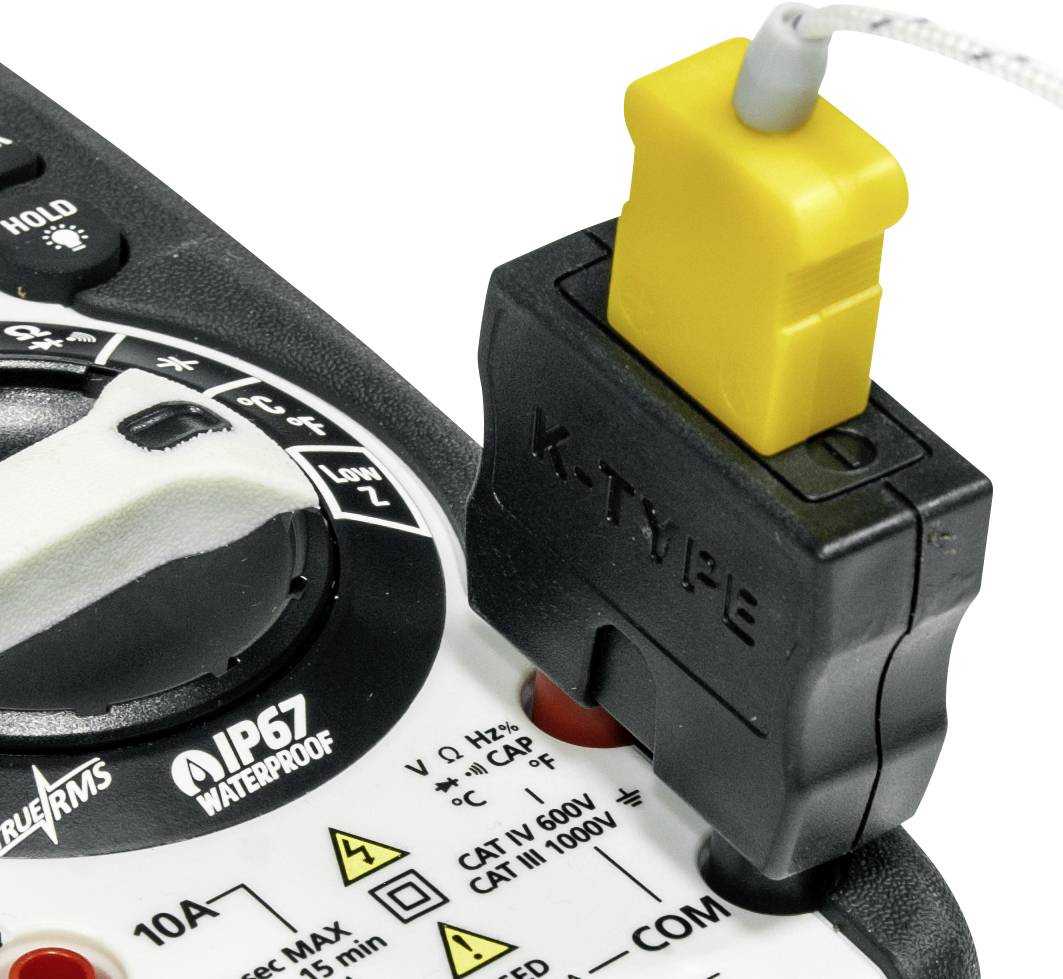

- K-type thermocouple
- Batteries
