Buy Laserliner ThermoCamera Connect IR camera -20 up to 350 °C 220 x 165 Pixel 9 Hz Built-in digital camera

An infrared thermometer with a display shows temperature measurements. It has buttons for operation and a digital interface.

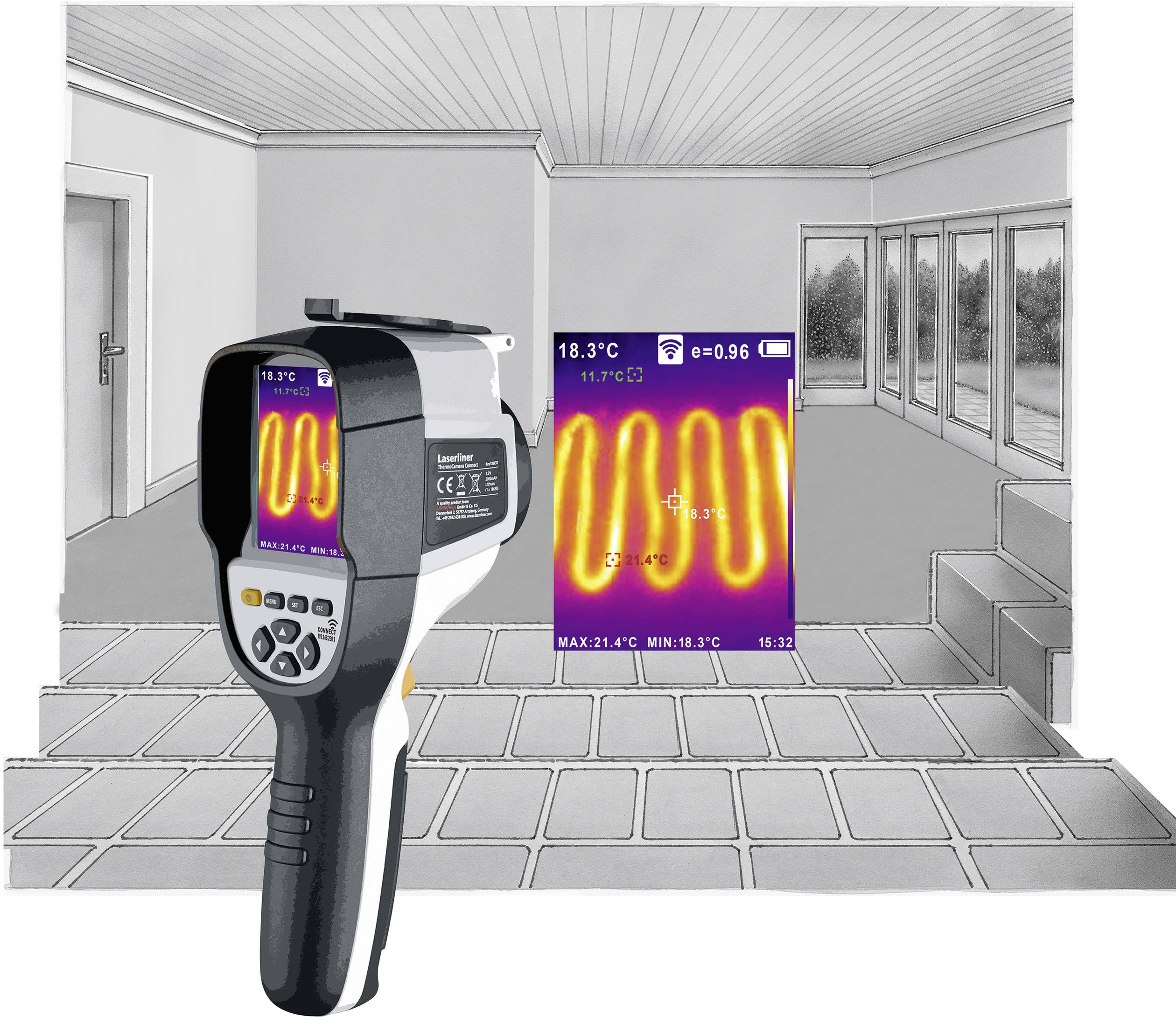

An infrared thermometer shows the temperature distribution of the floor in a room. Warm areas are marked in yellow and red.

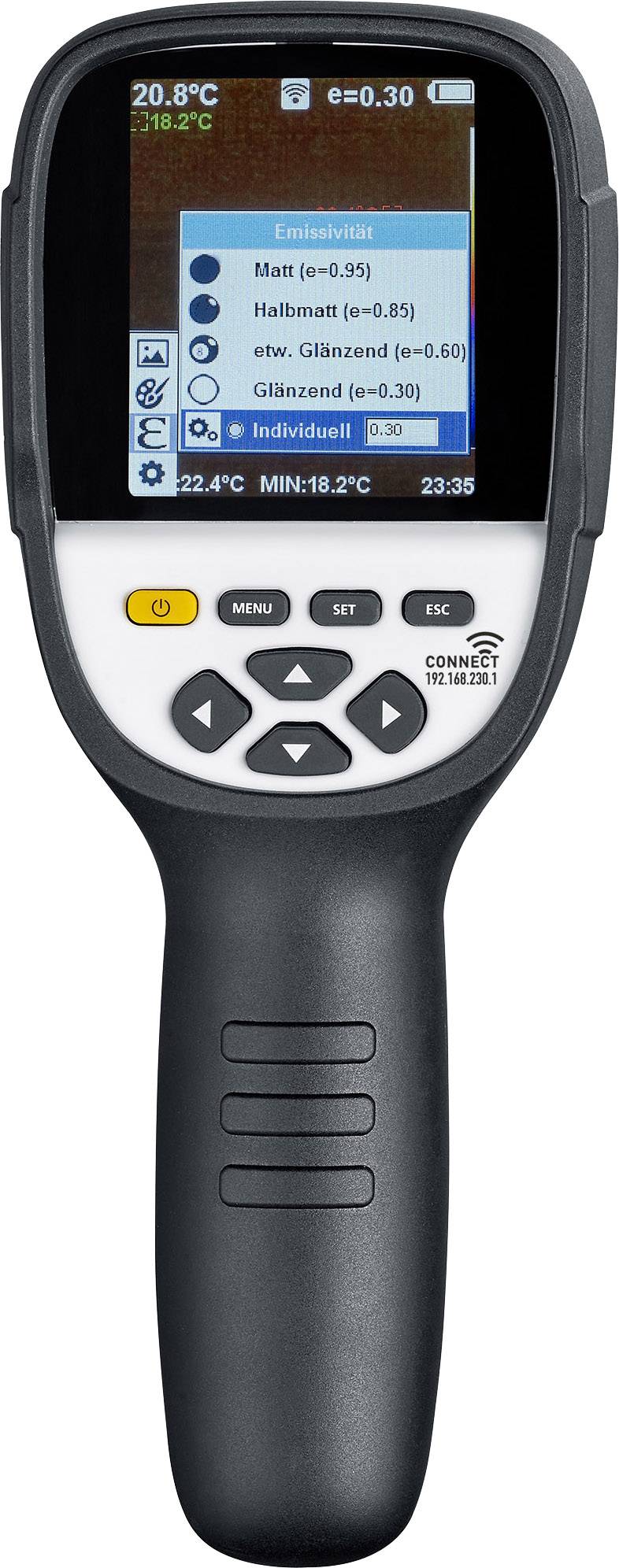

A portable infrared thermometer displays different emissivity levels on its screen, including 'Matt', 'Semi-matt' and 'Glossy'.

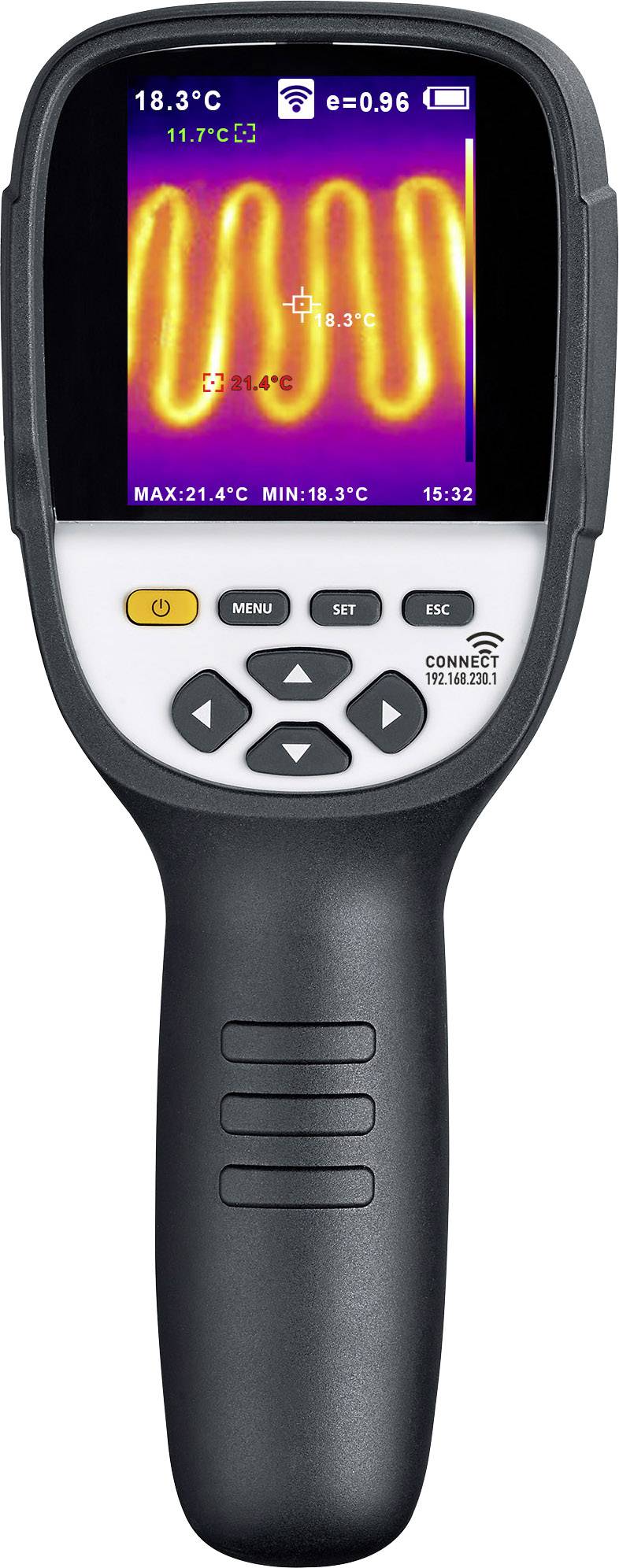

Thermal imaging camera shows heat distribution of a heating element. Colours range from blue (cold) to yellow/red (warm), temperatures displayed at the top.

'Black case with Laserliner ThermoCamera Connect. Print shows thermal images and technical details of the camera on the front.'

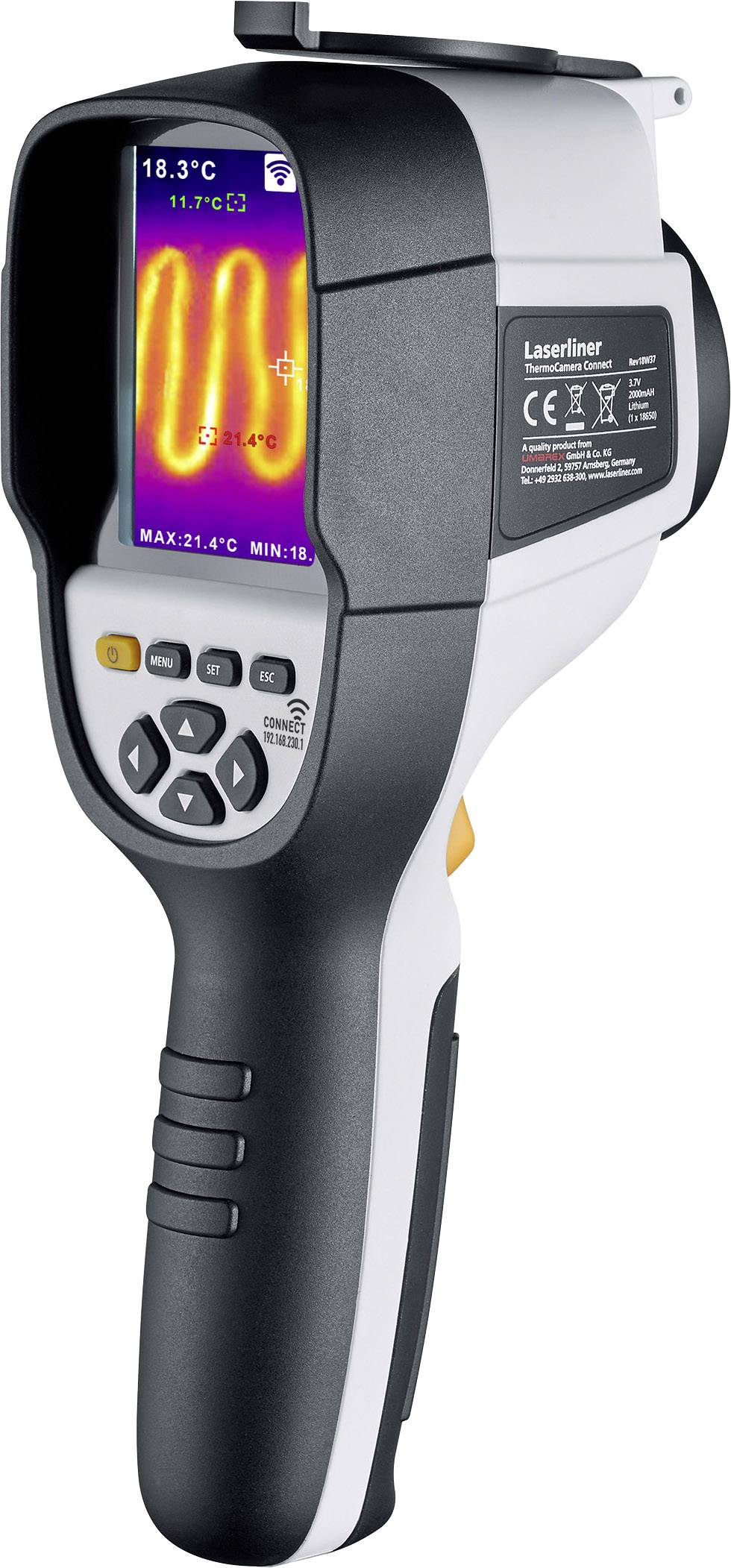

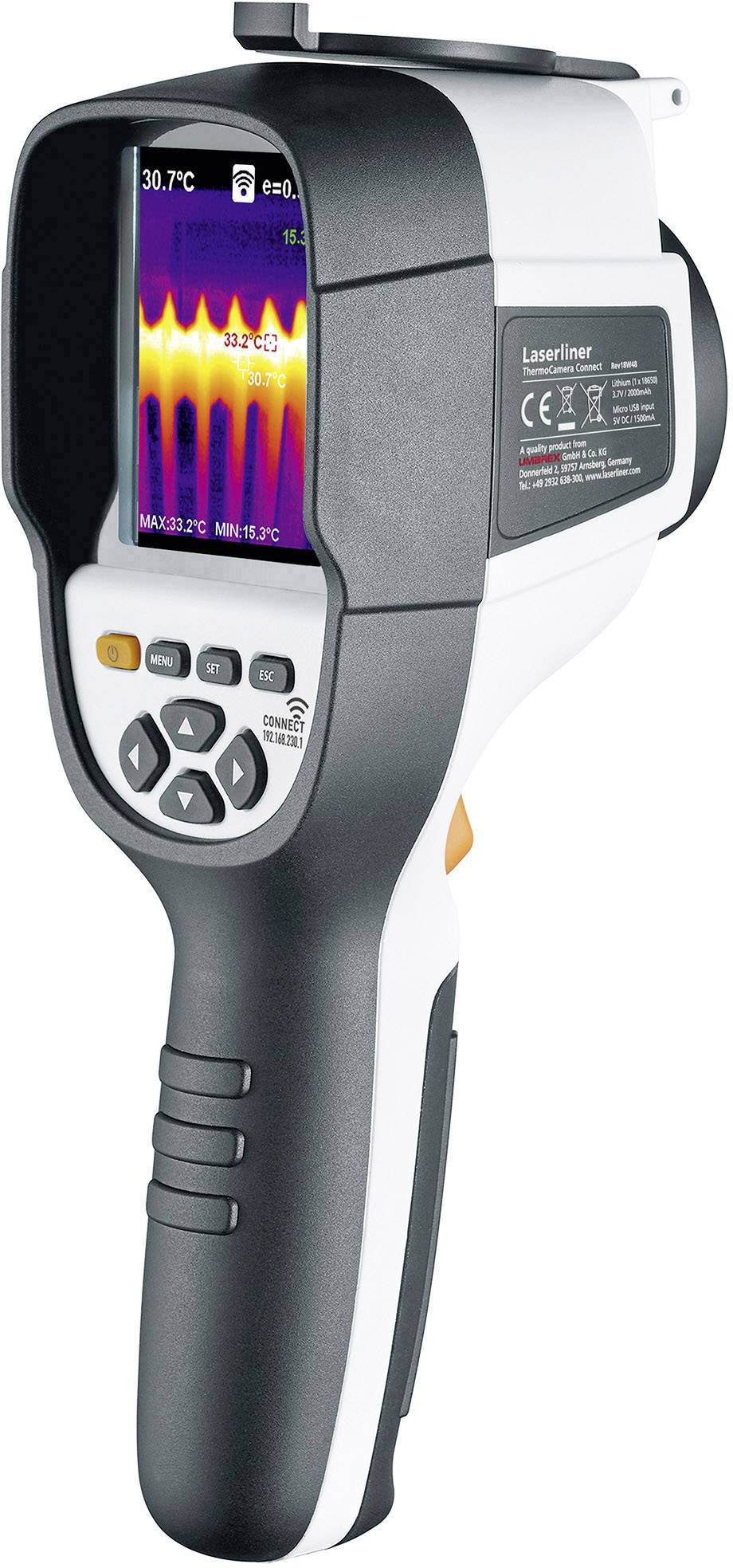

Handheld infrared thermometer showing thermal image on the display, temperature reading at the top, control buttons underneath, product label on the side.

Thermal image of a house with menu for emission value setting: 'Matte', 'Semi-matte', 'Slightly glossy', 'Glossy', 'Custom'.

Thermal imaging camera 'Laserliner ThermoCamera Connect' with accessories including USB cables, charger, plug adapters and transport case.

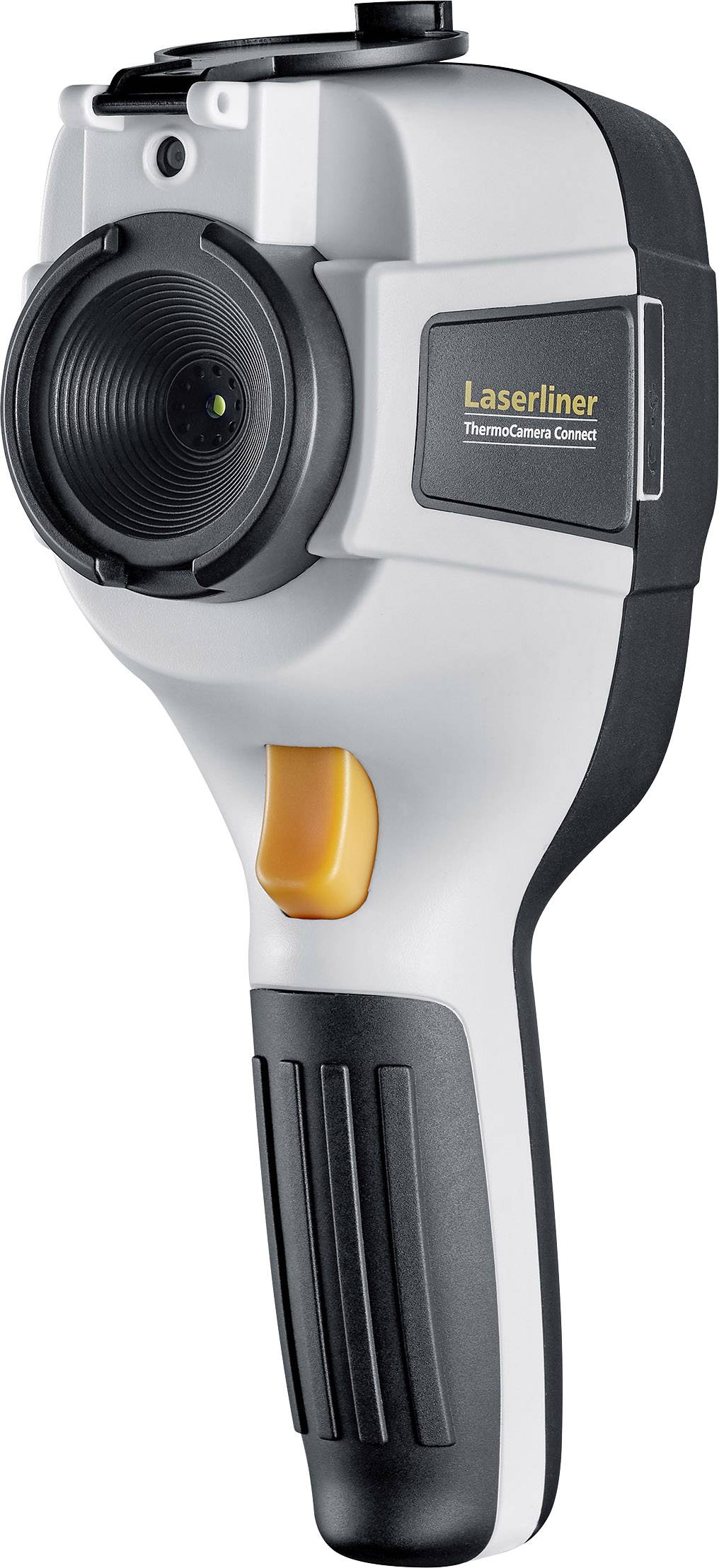

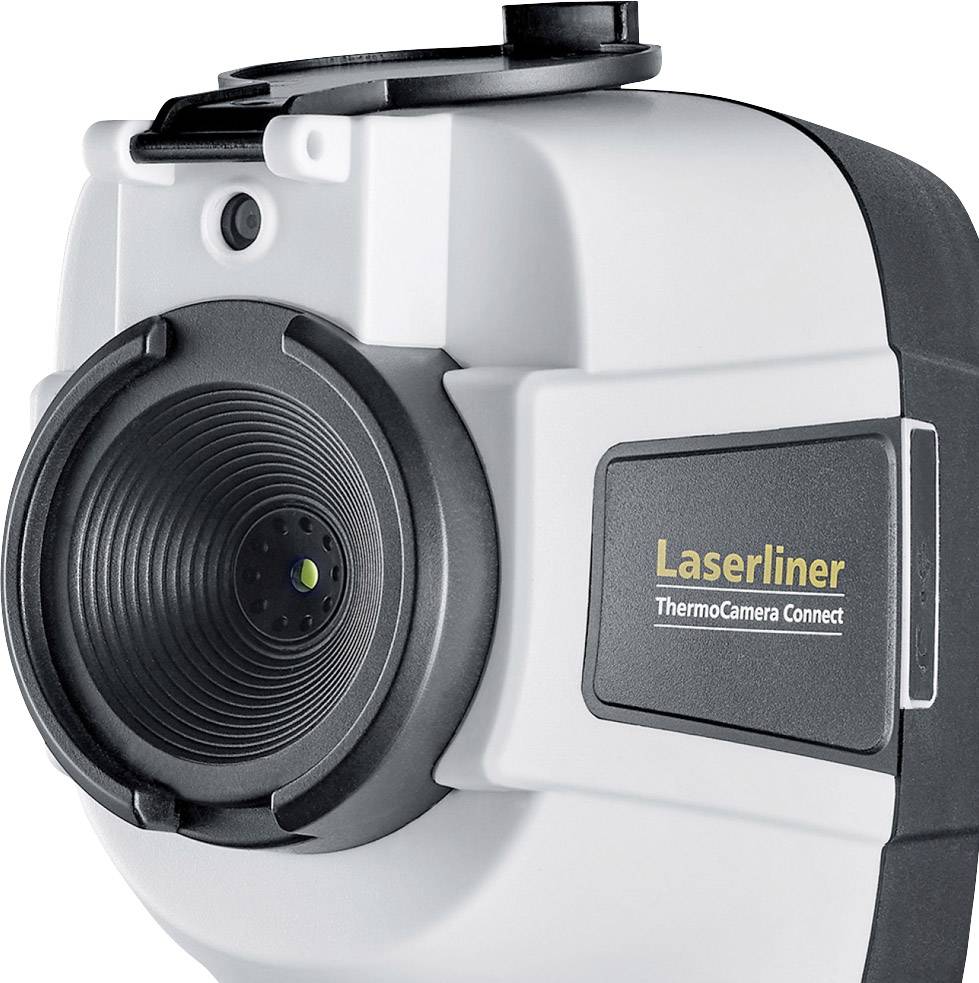

Close-up of a thermal camera with the label 'Laserliner ThermoCamera Connect'. The camera is finished in white and black.

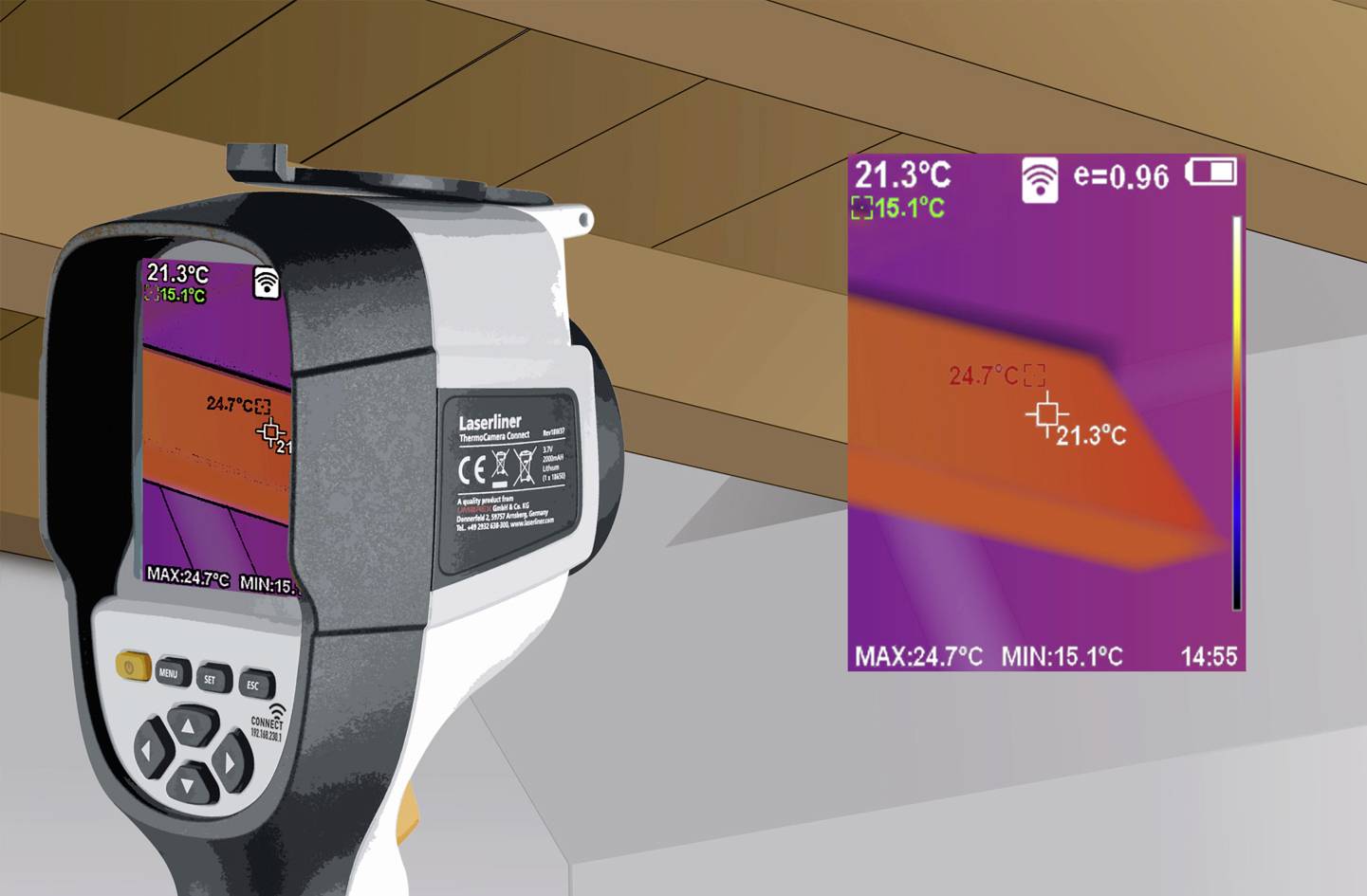

A thermal imaging camera displays temperature differences on a wall, with values ranging from 21.3°C to 24.7°C on the display.

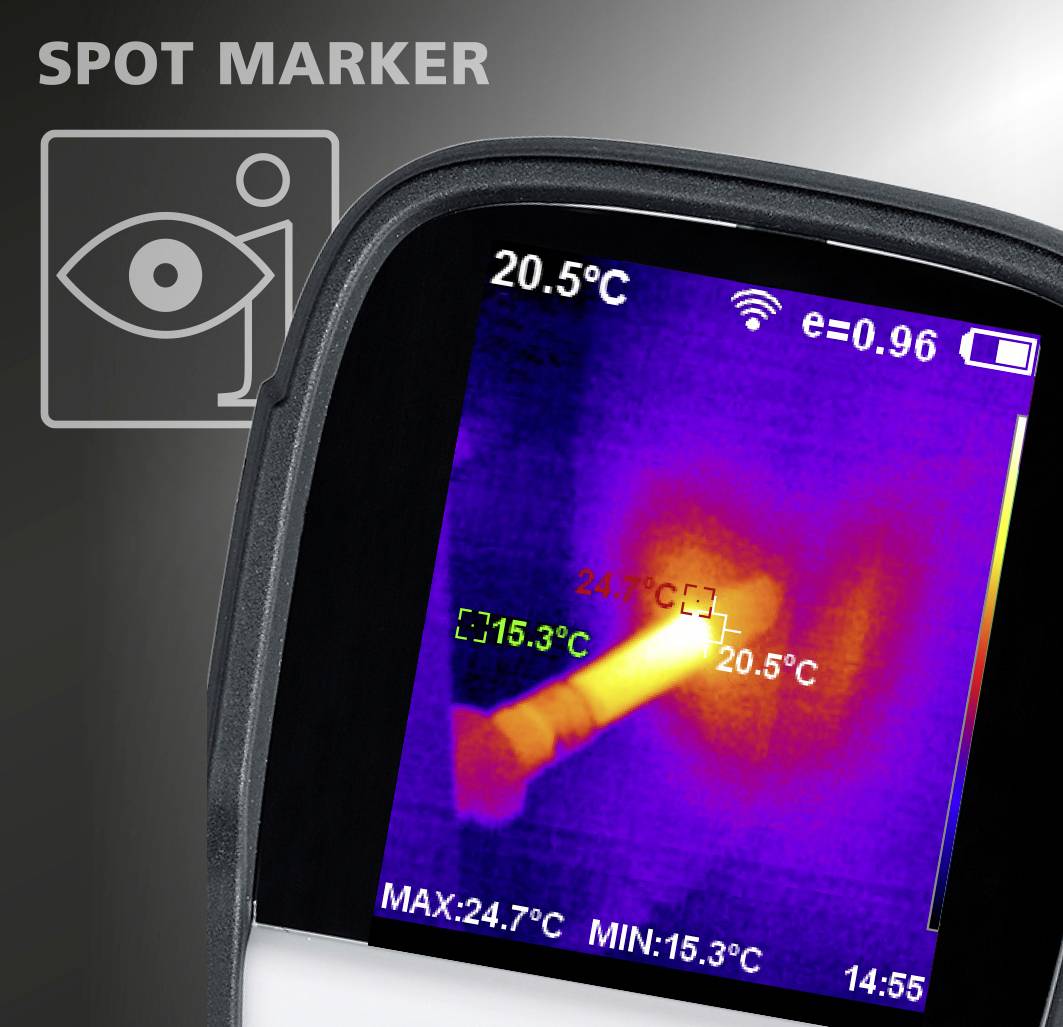

Thermal imaging camera shows temperature differences with colour scale. Display indicates 20.5°C. Symbols for spot marking and battery level are visible.

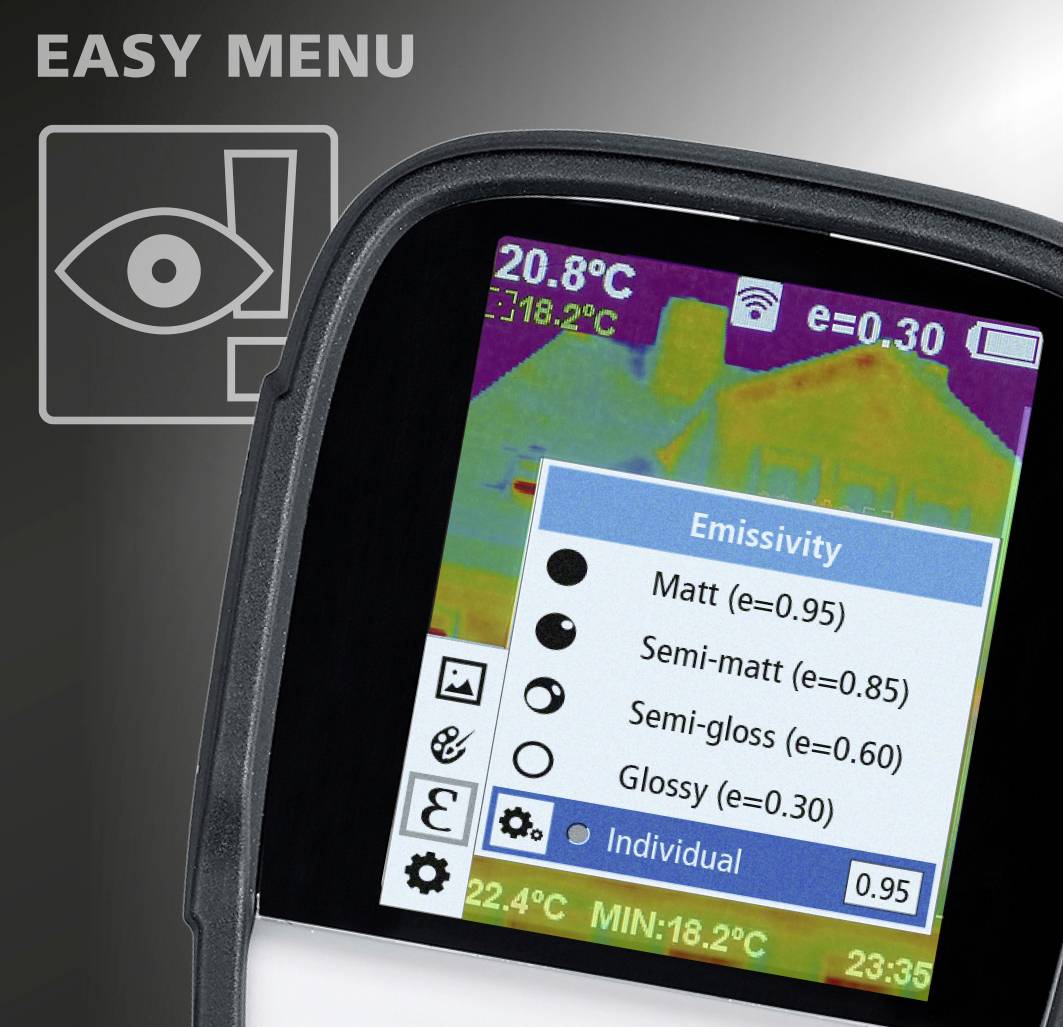

'Display of a thermal imaging device with various emissivity options: Matt, Gloss, High-Gloss. Current temperature: 22.4°C.'

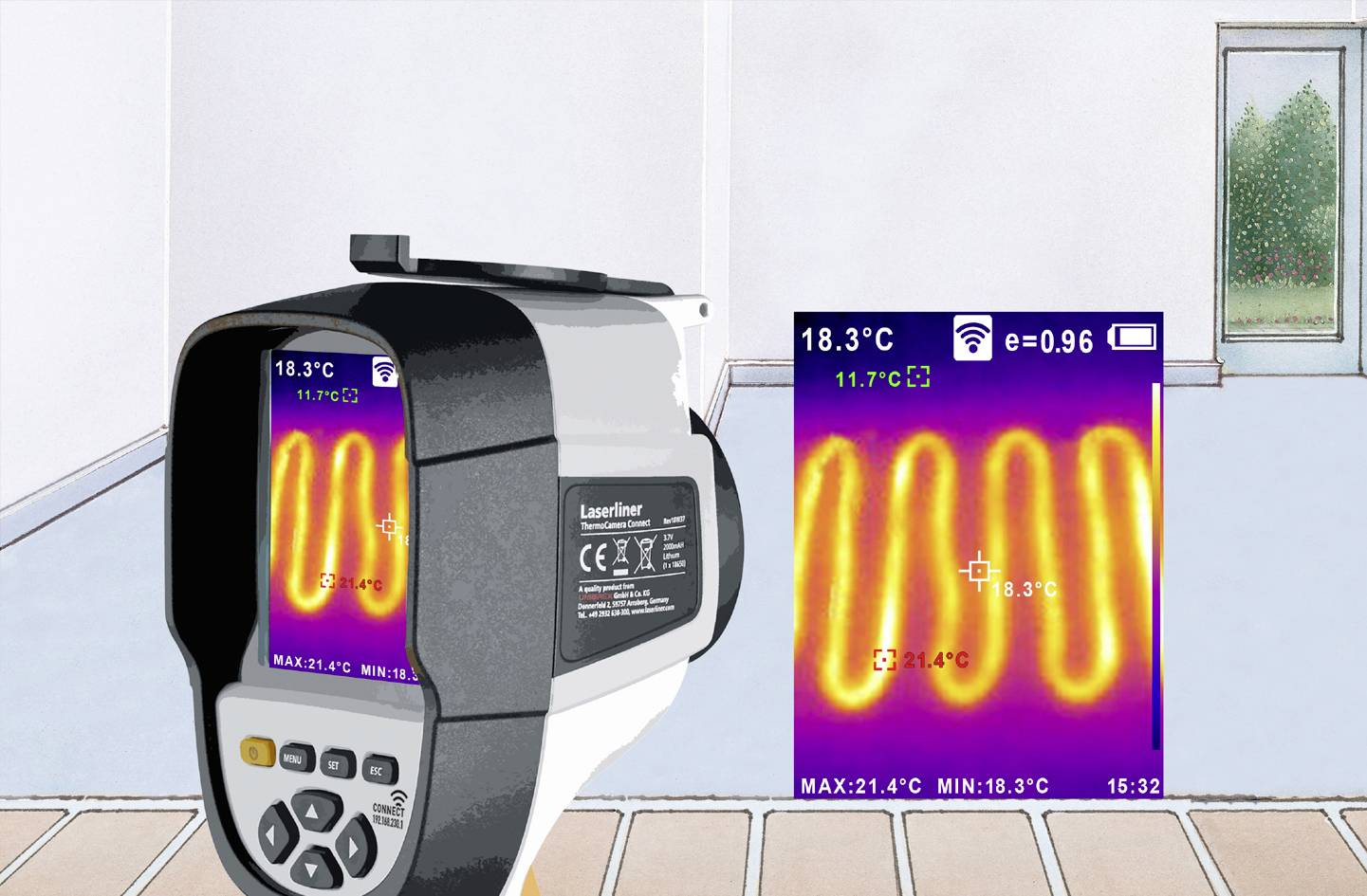

A thermal imaging camera shows underfloor heating pipes with temperatures between 18.3°C and 21.4°C in a room.

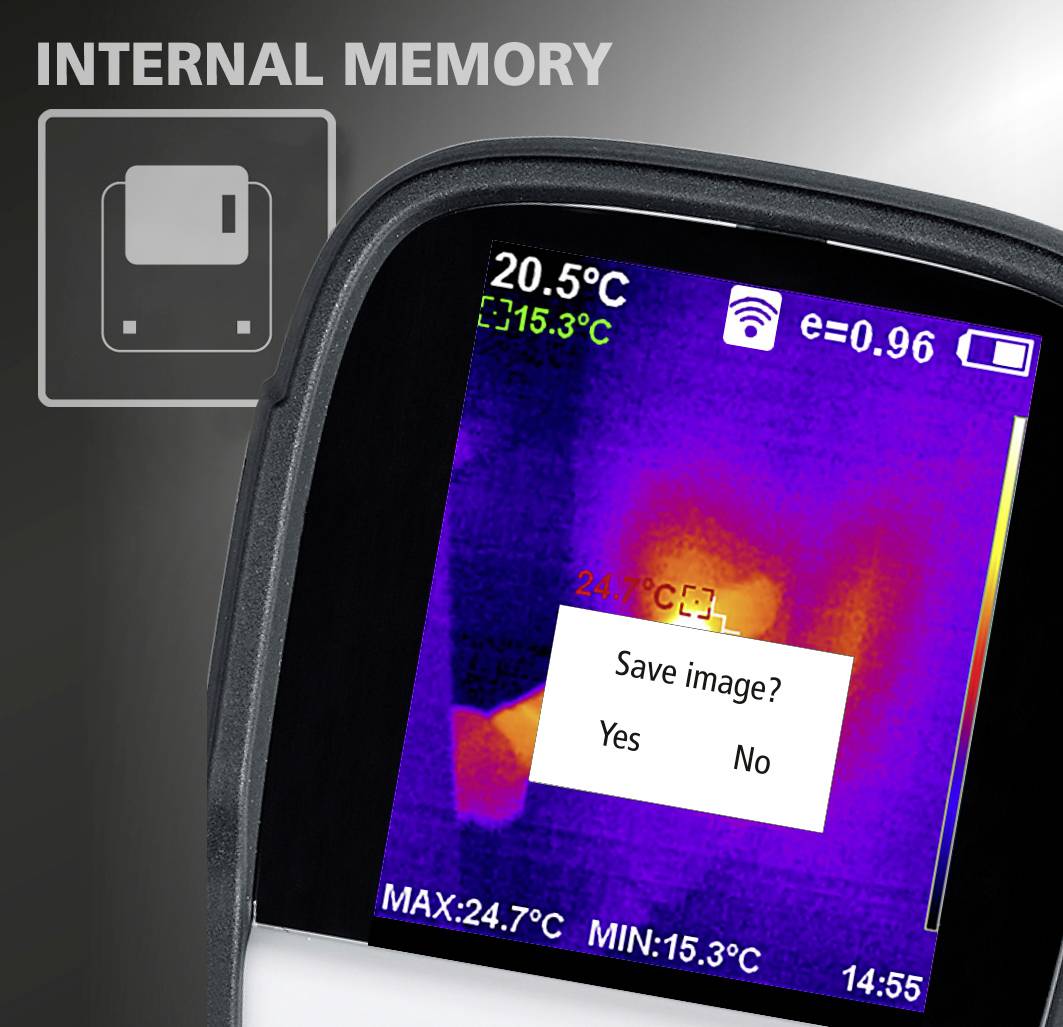

Thermal imaging camera screen shows temperature measurement of 24.7°C in red and purple. A dialogue asks: 'Save image?'. At the top it reads 'INTERNAL MEMORY'.

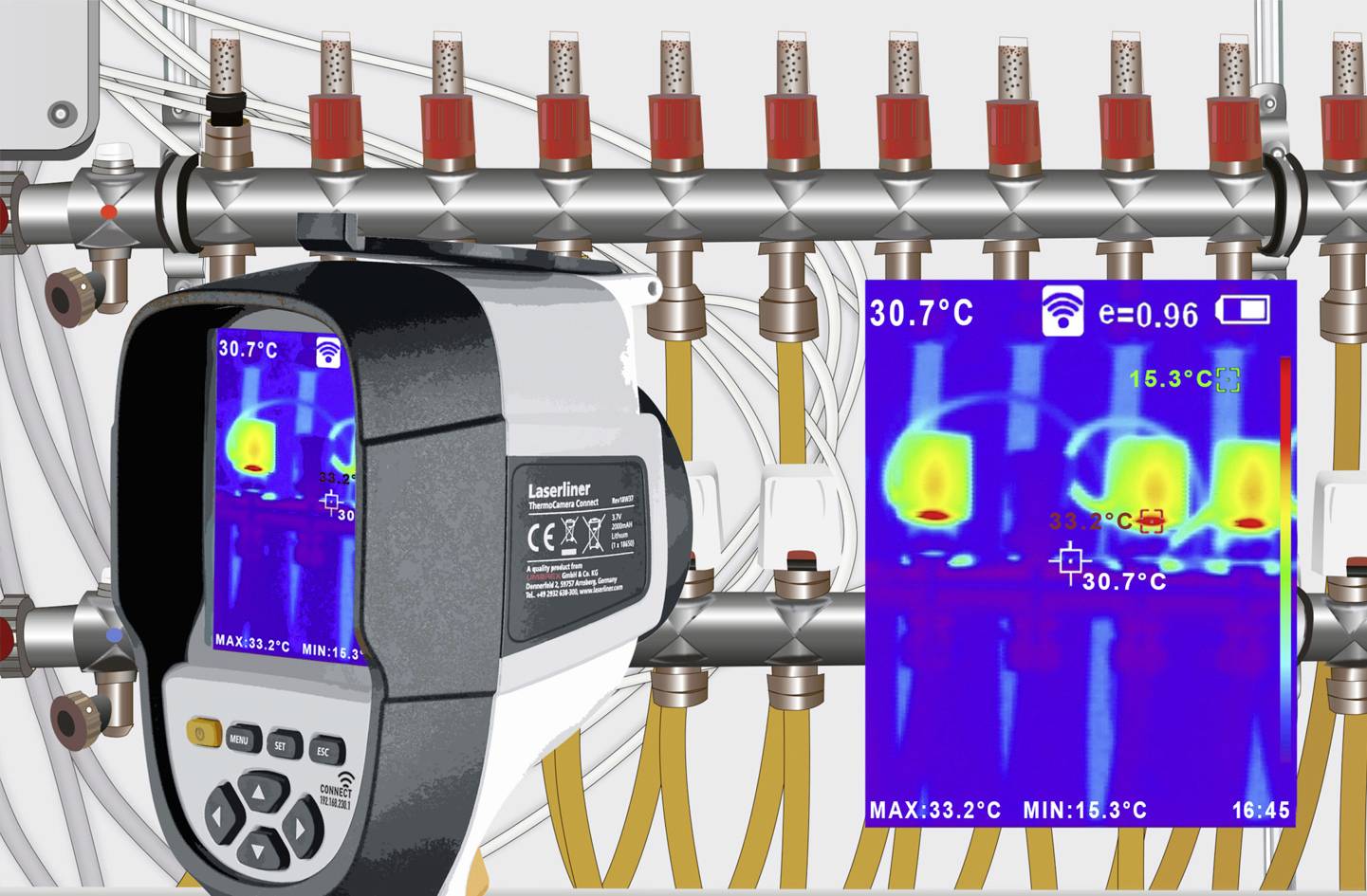

Thermal imaging camera measures temperature variations in pipes, highlighting hot areas in red. Instrument display shows temperature data.

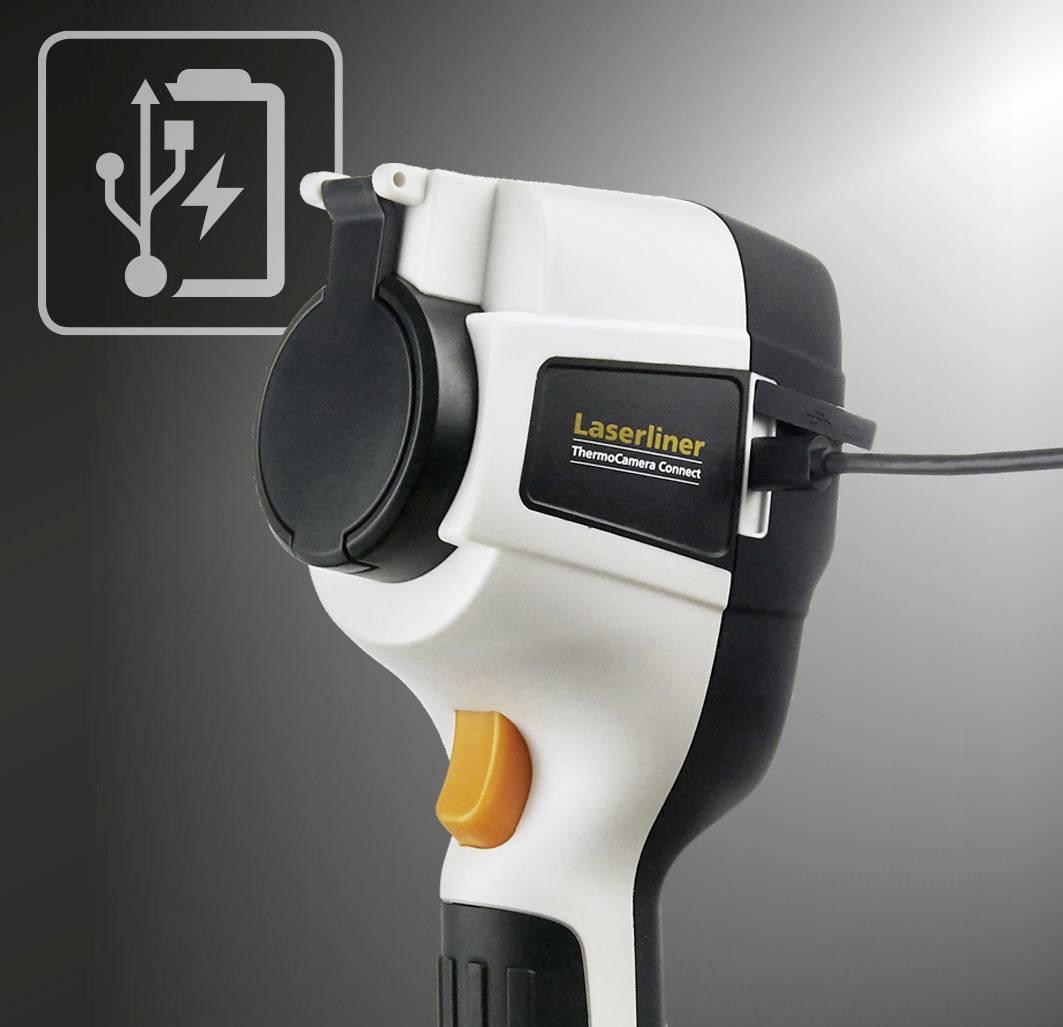

'Laserliner ThermoCamera Connect' shows a portable thermal imaging device with a USB connection, symbolised by a charging icon in the top left corner.

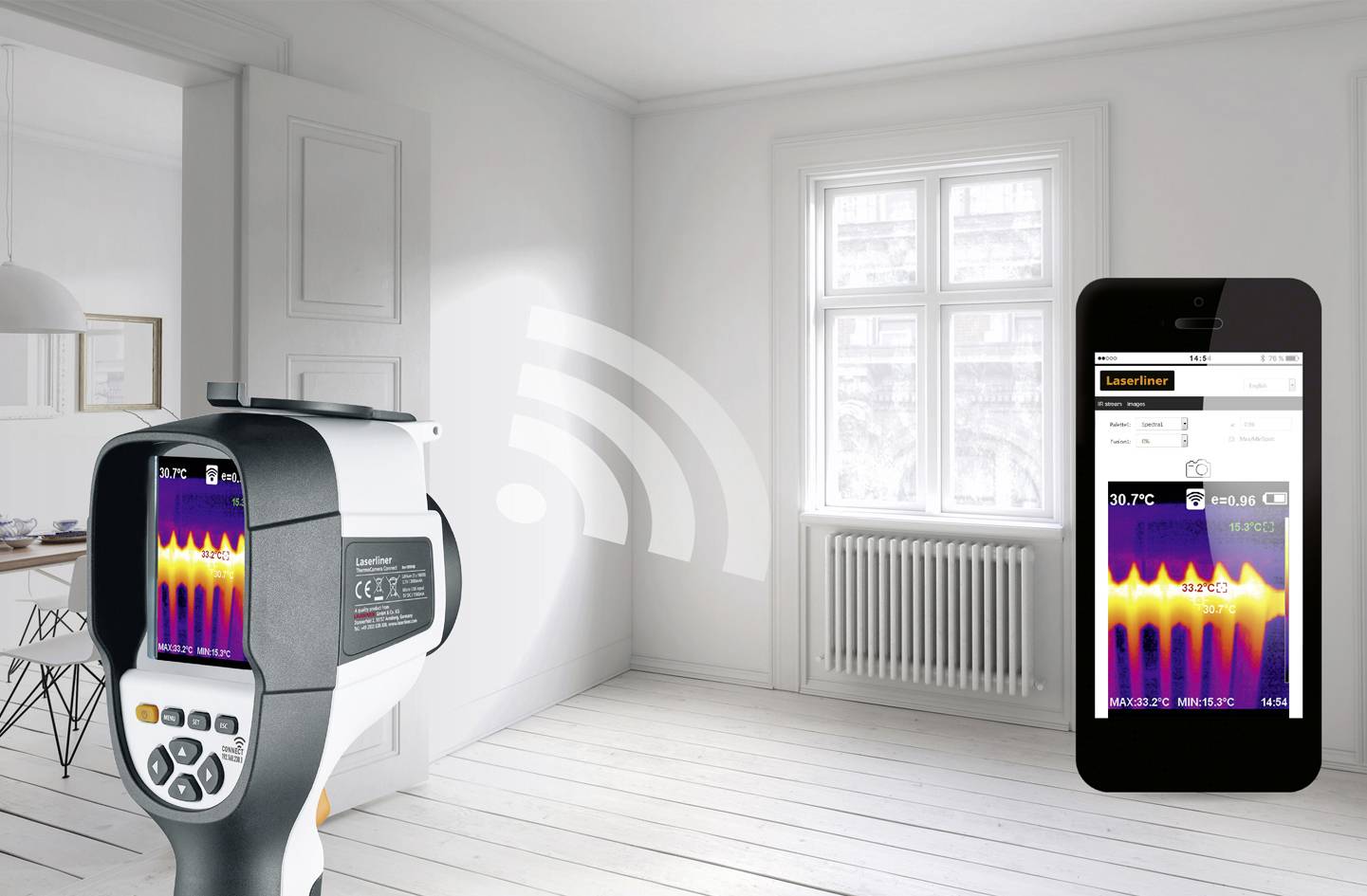

A thermal imaging camera measures the temperature of a room, displaying colourful thermograms. Wireless connection to a smartphone display.

1/19

Datasheet (PDF)

Dispatches on Fri, 9 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,004.20 / piece)

€ 1,004.20

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Laserliner ThermoCamera Connect

High-resolution 3.2" color display
Infrared sensor with 220 x 160 pixel resolution
Large measuring range of -20°C ... 350°C,

Technical specifications

Type: ThermoCamera Connect

Product type: IR camera

Bolometer array: 220 x 165 Pixel

Interfaces: Wi-Fi

Temperature reading range (max.): 350 °C

Colour schemes: 5

Temperature reading range (min.): -20 °C

Optics: 27°x35°

Frame rate: 9 Hz

: IP54

Thermal sensitivity: 0.07 °C

Dim: (L x W x H) 90 x 105 x 223 mm

Temperature resolution: 0.07 °C

Display: 8.13 cm

Emission level (max.): 1.0

Emission level (min.): 0.01

Focus: Fixed-focus

Weight: 389 g

Basic accuracy: 2 %

Accuracy ± °C: 2 °C

Temperature reading range: -20 up to 350 °C

Min. focusing distance: 0.5 m

Width: 105 mm

Height: 223 mm

Length: 90 mm

Connection: Wi-Fi (802.11b/g)

Features: Built-in digital camera

Documents & Downloads

Datasheet

Datasheet 2104253 Laserliner ThermoCamera Connect IR camera -20 up to 350 °C 220 x 165 Pixel 9 Hz Built-in digital camera

User & Safety Instructions

User & Safety Instructions 2104253 Laserliner ThermoCamera Connect IR camera -20 up to 350 °C 220 x 165 Pixel 9 Hz Built-in digital camera

Warranty Terms

Warranty Terms 2104253 Laserliner ThermoCamera Connect IR camera -20 up to 350 °C 220 x 165 Pixel 9 Hz Built-in digital camera

Description

The compact thermal camera is suitable for applications in construction, electrical engineering and mechanical engineering. The high-resolution 3.2" color display helps in the safe evaluation and analysis of temperature states, the infrared sensor with its resolution of 220 x 160 pixels enables a fast and simple measurement for the evaluation of temperature profiles. The camera has a large measuring range of -20°C…350°C, the emission value range is adjustable from 0.01 to 1.0. In addition, there are preset surfaces to choose from. The analysis can be switched to different picture modes: Full screen: Infrared, digital, MIX image: Cross-fading infrared/digital image. The camera has a central measuring point for temperature analysis and additional hot/cold point measurement. The standard color palettes can be selected: Spectrum, IRON, COLD, WHITE, BLACK. The data transfer and control via WLAN, enables the display of the infrared live image.

This text is machine translated.

Scope of delivery

Carrying case
Li-ion battery pack
Mains/charger and international Adapter
USB charging cable
