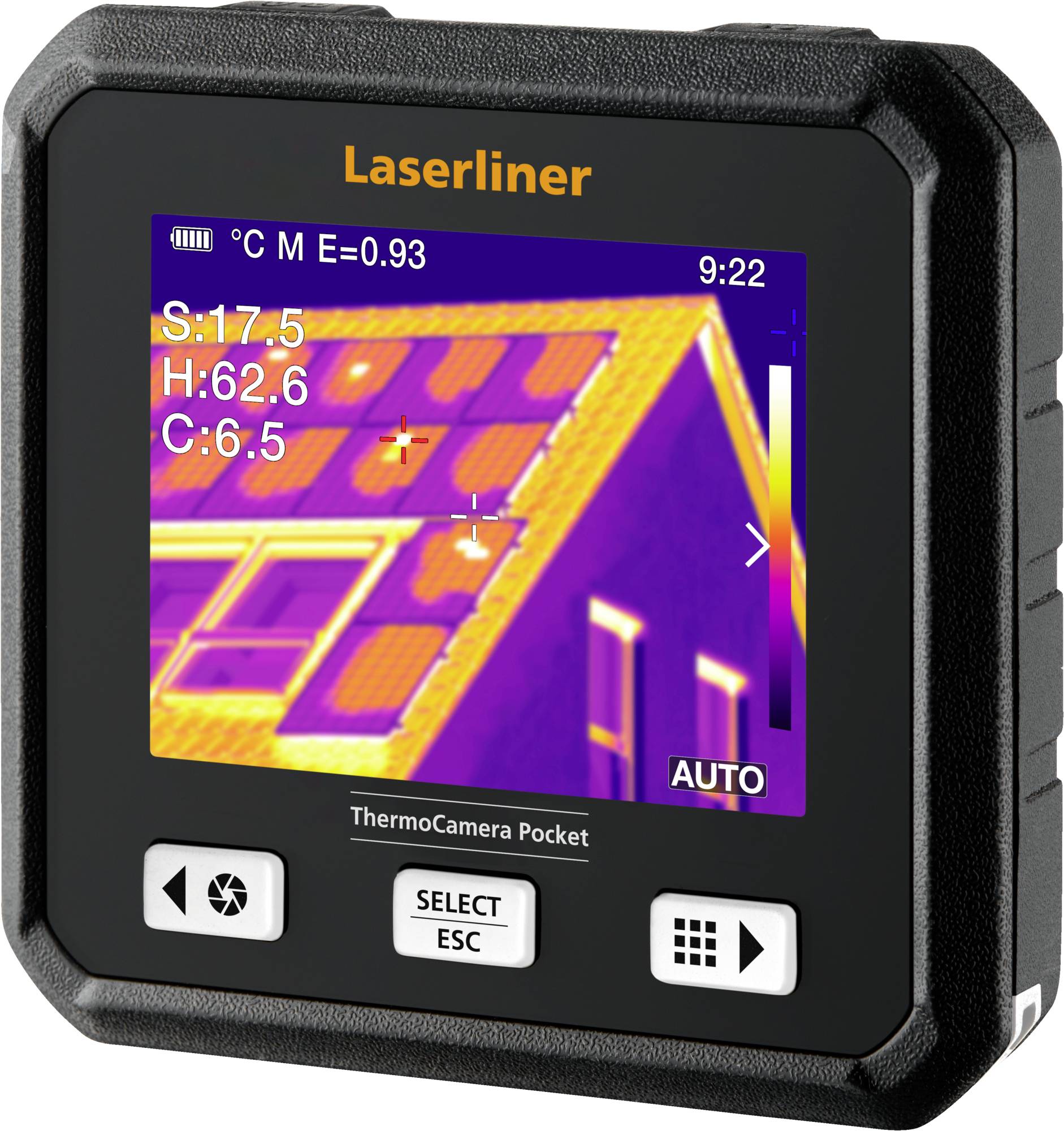

Laserliner ThermoCamera Pocket IR camera -20 up to 550 °C 9 Hz
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 424.37 / piece)
€ 424.37
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Extremely handy infrared camera with professional infrared properties – perfect for fast and reliable image analysis
- 9 Hz Thermal imaging camera
- Temperature reading range -20 up to 550 °C
- Bolometer matrix
- Thermal sensitivity 0.05 °C
Technical specifications
- Type
ThermoCamera Pocket
- Product type
IR camera
- Interfaces
USB C®
- Temperature reading range (max.)
550 °C
- Temperature reading range (min.)
-20 °C
- Frame rate
9 Hz
- Display resolution
320 x 240 Pixel
IP54
- Thermal sensitivity
0.05 °C
- Temperature resolution
0.1 °C
- Basic accuracy
2 %
- Accuracy ± °C
2 °C
- Temperature reading range
-20 up to 550 °C
- Connection
USB
- Power supply (details)
Li-Ion battery pack 3.7V / 1.5Ah / 5,55Wh
- Rechargeable battery technology
Li-ion
- Factory colour
Black
- Screen size diagonal (inches)
2.8 inch
- Touchscreen (display)
No
- Battery capacity
1500 mAh
- Sensor type
uncooled microbolometer
- Thermal sensitivity (NETD)
50 mK
- Image frequency
9 Hz
- Accuracy
2 °C
- Temperature measurement range
-20 - 550 °C
- Built-in display
yes
Documents & Downloads
Datasheet
Datasheet 3758614 Laserliner ThermoCamera Pocket IR camera -20 up to 550 °C 9 Hz
User & Safety Instructions
User & Safety Instructions 3758614 Laserliner ThermoCamera Pocket IR camera -20 up to 550 °C 9 Hz
User & Safety Instructions 3758614 Laserliner ThermoCamera Pocket IR camera -20 up to 550 °C 9 Hz
Description
This handy infrared camera is Ideal for precise and fast image analysis in construction, mechanical engineering and electrical engineering. Your high-resolution infrared microbolometer sensor captures even small temperature differences with impressive detail. The high thermal sensitivity allows the detection of thermal bridges and insulation faults in buildings, analysis of heating cables, locating overheating in components, cables and fuses. With the CustomApp function the infrared camera can be configured quickly for various standard applications even in extensive parameter setups. The large, easy to read color display provides convenient operation and clear display of the temperature patterns. A powerful lithium-ion battery ensures a long operating life, while the USB-C interface is used for fast transfer of the measured data to a Windows PC.
This text is machine translated.
This text is machine translated.
Features
- Position
- Alarm
- Image capture
- Real-time transmission
- Customapps
- min.-/max.
- Temperature range manual / automatic / histogram
- Video recording
- USB mass storage
Scope of delivery
- Thermal camera pocket
- USB-A to USB-C cable
- Micro SD card
- Wrist strap
- Carrying case
