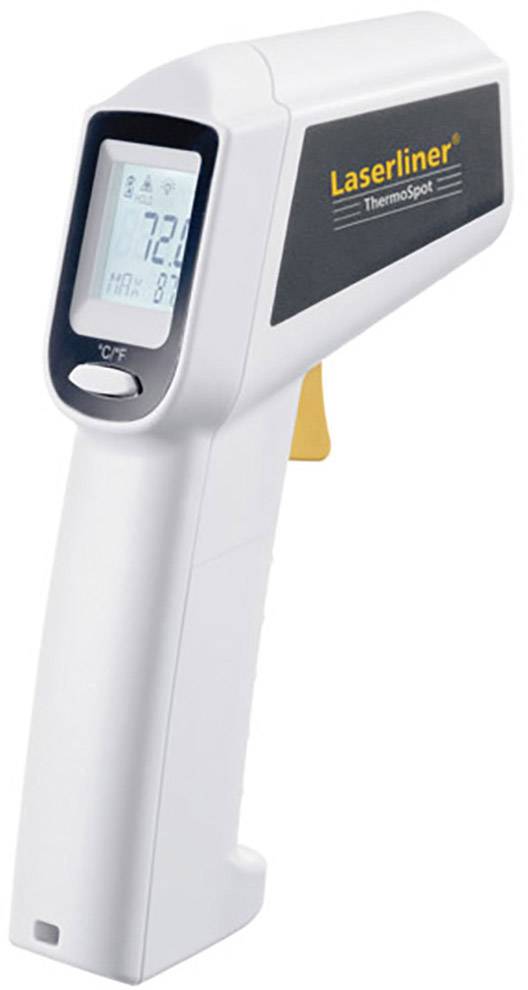

Laserliner ThermoSpot IR thermometer Display (thermometer) 8:1 -20 - +315 °C
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 63.86 / piece)
€ 63.86
plus VAT.
Only 5 Piece(s) available
Highlights & Details
ThermoSpot - non-contact infrared temperature measurement , with laser point for aiming
- Display (thermometer) 8:1
- -20 - +315 °C
- Emission level 0.95 - 0.95
Technical specifications
- Measurement range/ACCURACY ma. 40 -20 °C to 315 °C / ±2 °C or + 2% depending on the larger value, -10 °C to 60 °C / + 1.5%
- 8:1 optics
- Resolution 0.1 °C
- Emission level 0.95
- Laser wavelength 650 nm
- Class 2M laser,< 5 mW
- Power supply 9 V E block
- Working temperature 0°; 40 °C
- Dimensions (W x H x D) 108 x 161 x 38 mm
- Weight 0.185 kg
- Product type
IR thermometer
- Max. temperature
+315 °C
- Basic accuracy
2 %
- Accuracy ± °C
2 °C
- Display
8:1
Manufacturer's standards (no certificate)
- Dim
(W x H x D) 108 x 161 x 38 mm
- Resolution (temperature)
0.1 °C
- Emission level (max.)
0.95
- Emission level (min.)
0.95
- Weight
185 g
- Width
108 mm
- Height
161 mm
- Depth
38 mm
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1052637 Laserliner ThermoSpot IR thermometer Display (thermometer) 8:1 -20 - +315 °C
User & Safety Instructions
User & Safety Instructions 1052637 Laserliner ThermoSpot IR thermometer Display (thermometer) 8:1 -20 - +315 °C
User & Safety Instructions 1052637 Laserliner ThermoSpot IR thermometer Display (thermometer) 8:1 -20 - +315 °C
Information
Information 1052637 Laserliner ThermoSpot IR thermometer Display (thermometer) 8:1 -20 - +315 °C
Warranty Terms
Warranty Terms 1052637 Laserliner ThermoSpot IR thermometer Display (thermometer) 8:1 -20 - +315 °C
Description
Functions: Surface Temperature, contact-less temperature detection: this contact-free measurement method is ideal for temperature measurements in hard to reach places. It can also be detrimental to the Measuring zones, such as moving machine parts or electrical installations.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Thermo Spot
- Battery
- User manual
