Buy Lavoce CAN123.00TH 12 inch Subwoofer 350 W 8 Ω

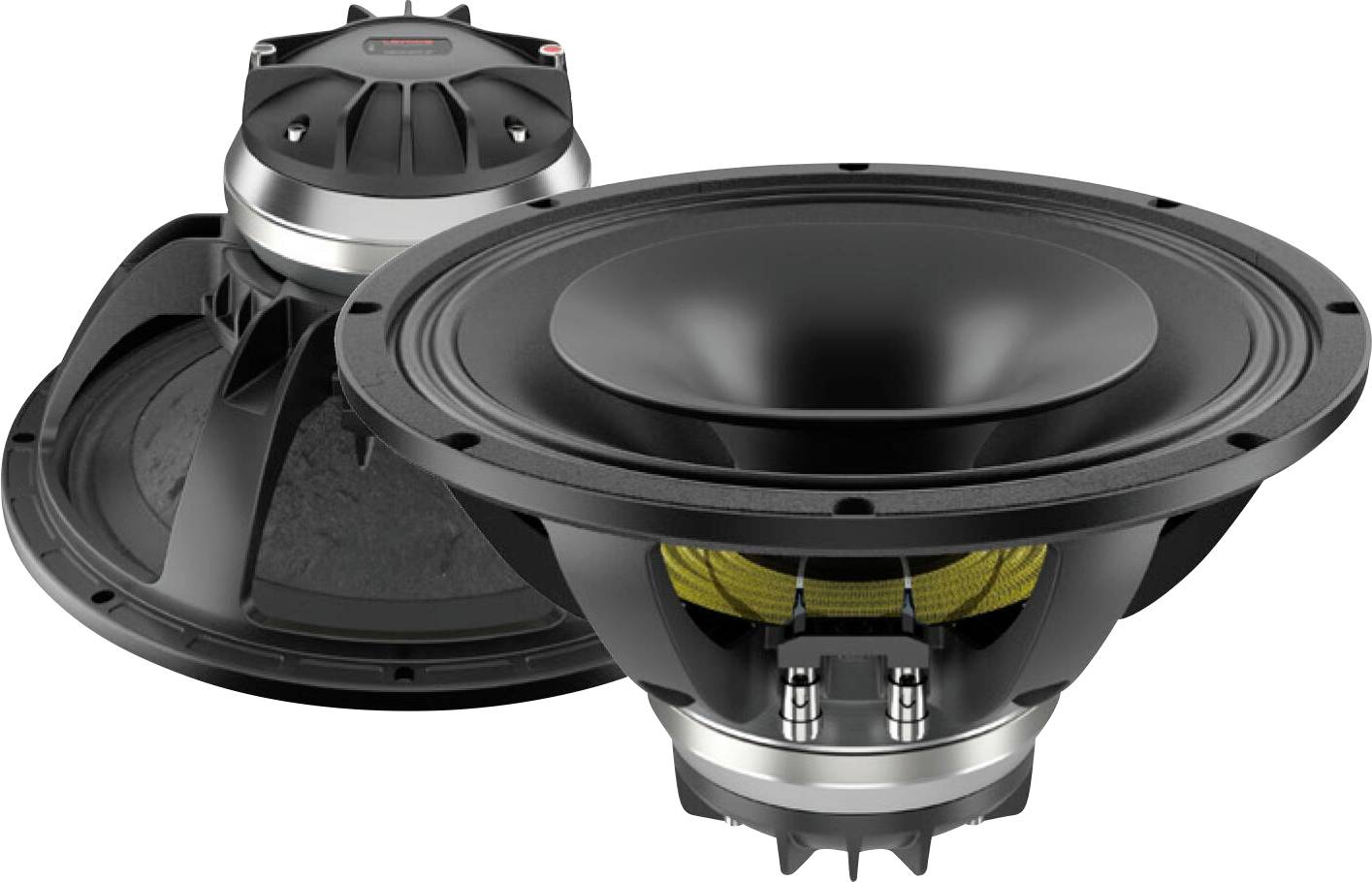

Two black speaker subwoofers, one standing upright and the other tilted, with metallic details and visible cone design, on a white background.

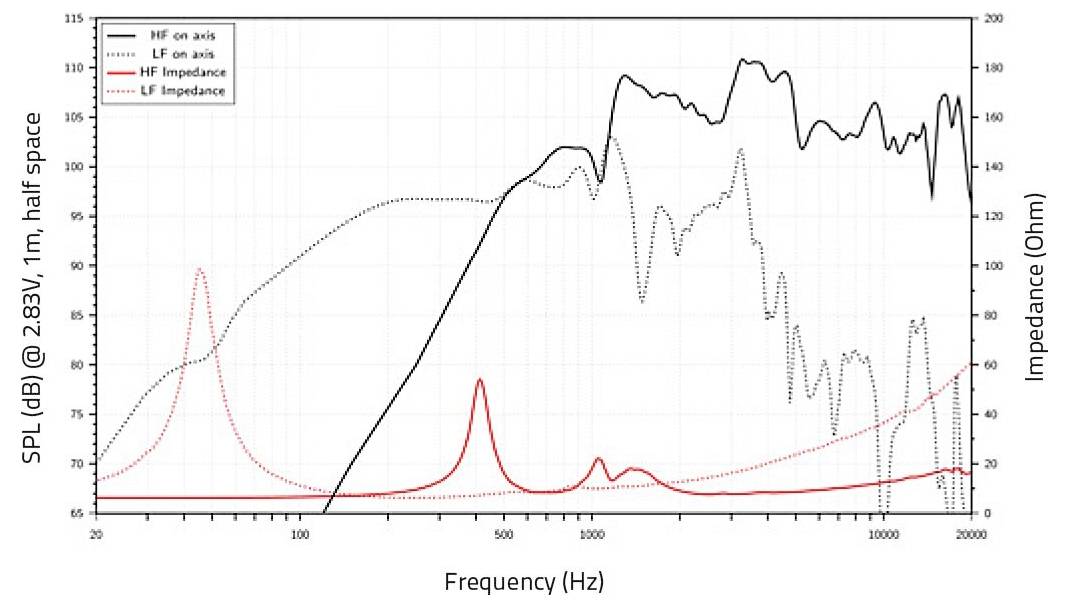

Graph showing speaker response: SPL (dB) vs. Frequency (Hz) in black, with impedance (Ohm) in red; frequency range 20Hz-20kHz.

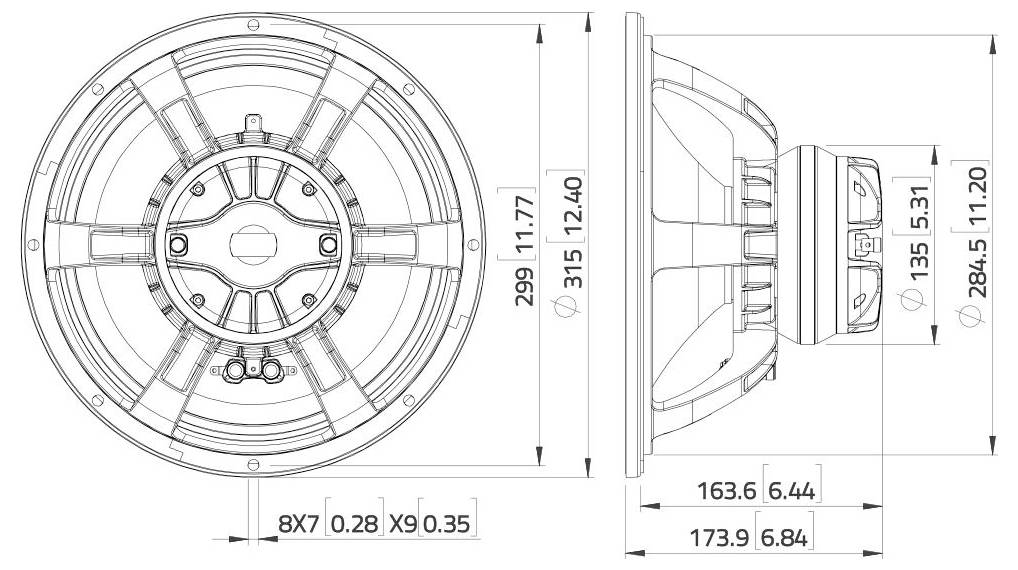

'Technical drawing of a loudspeaker with side and front views. Dimensions: diameter 299mm, depth 135mm, and other measurements labeled.'

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 12" woofer with a shared neodymium magnet with 2-fold demodulation ring; basket material: Aluminium; 3" moving coil woofer; diaphragm material: Titanium; 1.4" compression driver tweeter; 3" moving coil compression driver - high tone
MAXIMUM LOAD-CARRYING CAPACITY 80W AES HF
Frequency range 45 - 3500 Hz LF; 600 - 18000 Hz HF
Sensitivity 99.5 dB LF; 105.5 dB HF

Product type: Subwoofer

Speaker size (inch): 12 inch

RMS capacity: 350 W

Max. load: 80 W

Min. frequency: 45 Hz
600 Hz

Max. frequency: 3500 Hz
18000 Hz

Impedance: 8 Ω

Sound pressure: 99.5 dB

Weight: 4.80 kg

Frequency range: 45, 600 Hz, Hz - 3500, 18000 Hz, Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729683 Lavoce CAN123.00TH 12 inch Subwoofer 350 W 8 Ω

Description

350 W AES LF/80 W AES HF, 8 ohm LF/8 ohm HF, 99.5 dB LF/105.5 dB HF, 45-3500 Hz LF/600-18000 Hz HF. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.
