Buy Lavoce CAN143.00T 13.5 inch Subwoofer 8 Ω

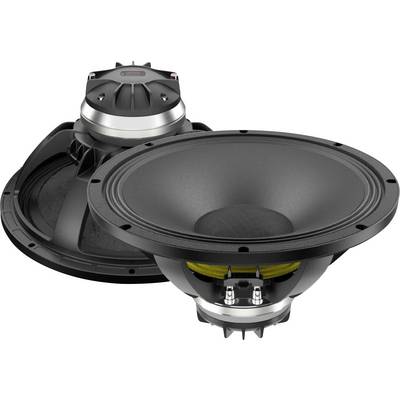

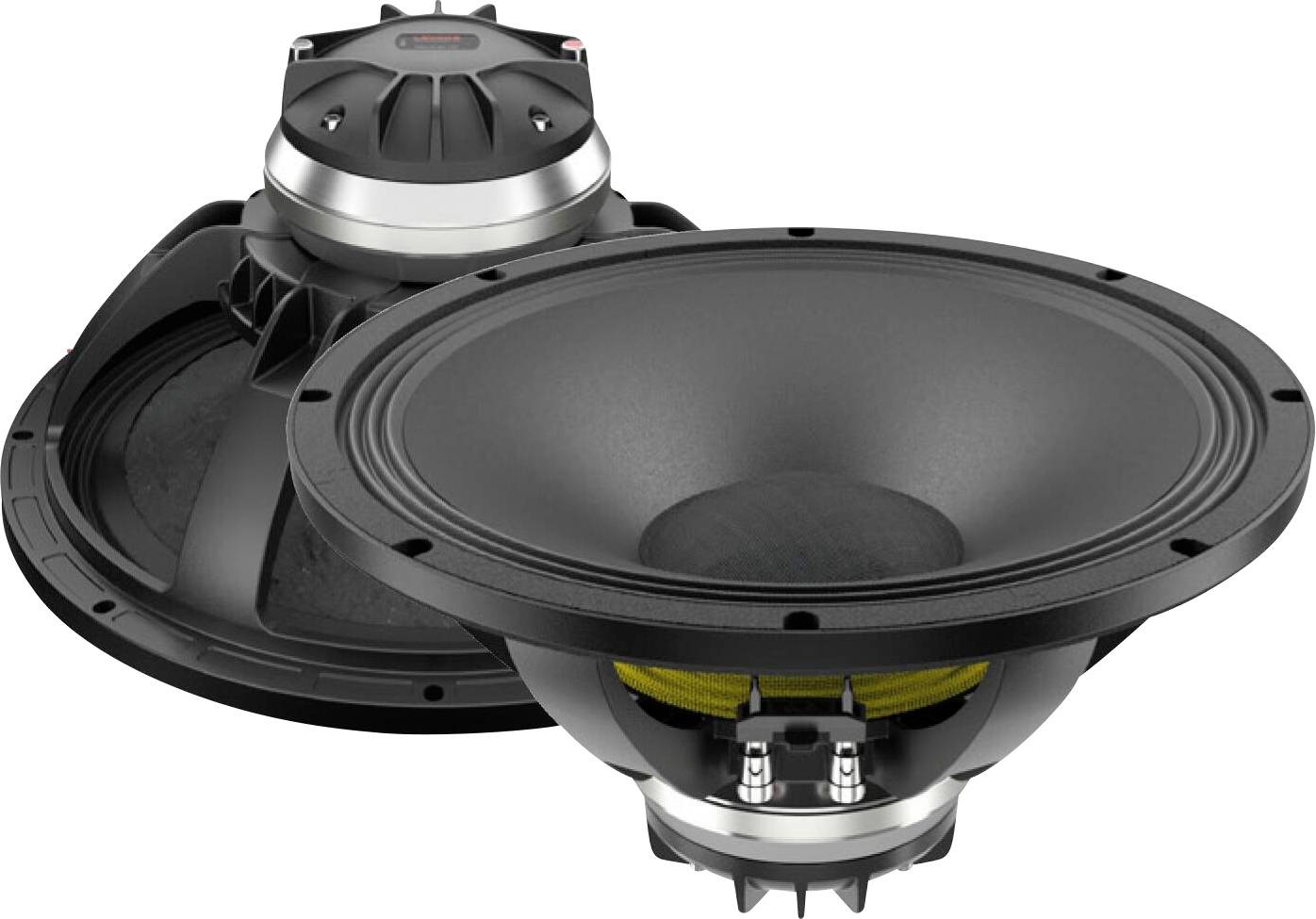

Two black and silver audio speakers, one upright and one tilted, displaying their large circular diaphragms and metal frames.

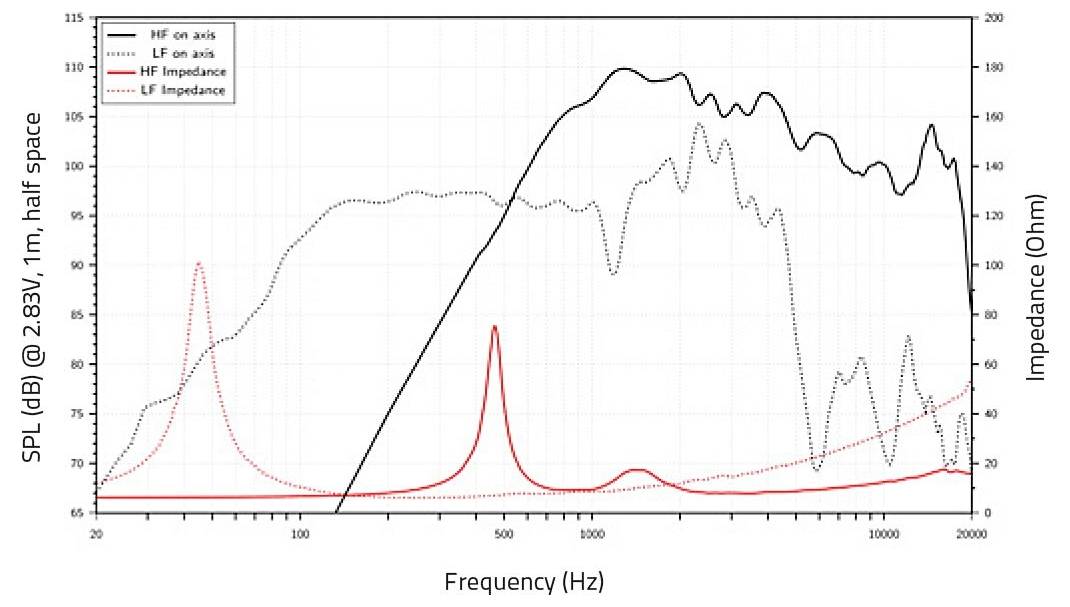

'Frequency Response Graph' showing SPL on axis and impedance across frequencies. SPL peaks at 1000 Hz and declines thereafter.

Lavoce CAN143.00T 13.5 inch Subwoofer 8 Ω-2

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 13.5" woofer with a shared neodymium magnet with 2-fold demodulation ring; basket material: Aluminium; 3" moving coil woofer; diaphragm material: Titanium; 1.4" compression driver tweeter; 3" moving coil compression driver - high tone
MAXIMUM LOAD-CARRYING CAPACITY 80W AES HF
Frequency range 45 - 3500 Hz; 600 - 18000 Hz
Sensitivity 99 dB LF; 105.5 dB HF

Product type: Subwoofer

Speaker size (inch): 13.5 inch

Max. load: 80 W

Min. frequency: 45 Hz
600 Hz

Max. frequency: 3500 Hz
18000 Hz

Impedance: 8 Ω

Sound pressure: 99 dB

Weight: 5.20 kg

Frequency range: 45, 600 Hz, Hz - 3500, 18000 Hz, Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729684 Lavoce CAN143.00T 13.5 inch Subwoofer 8 Ω

Description

400 W AES LF/80 W AES HF, 8 ohm LF/8 ohm HF, 99 dB LF/105.5 dB HF, 45-3500 Hz/600-18000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.
