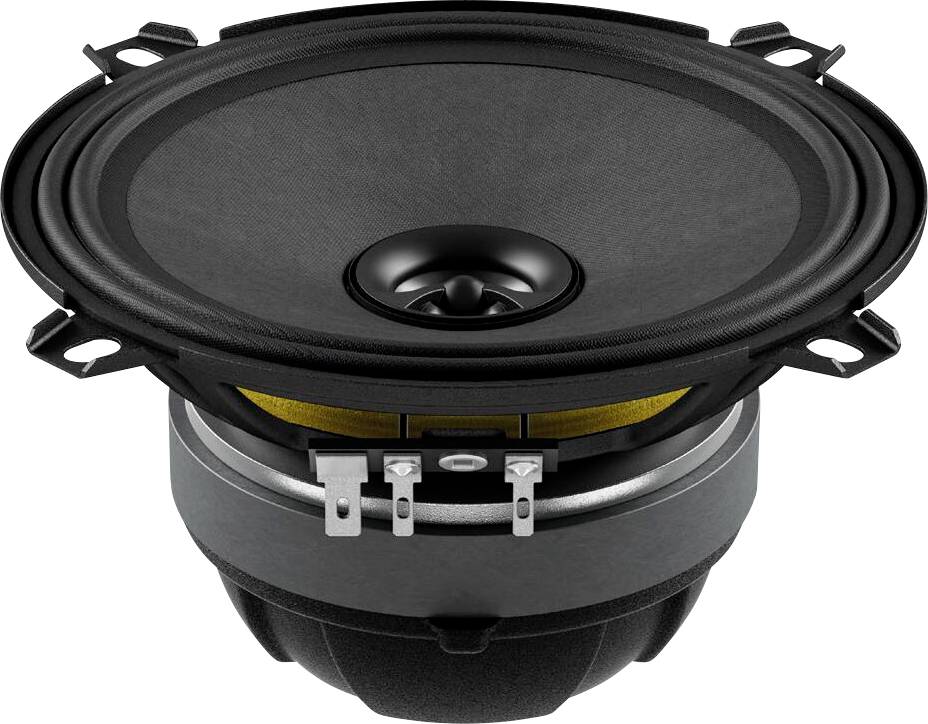

A close-up image of a car audio speaker showing the cone, surround, and mounting points used for installation.

A close-up image of a car audio speaker showing the cone, surround, and mounting points used for installation.

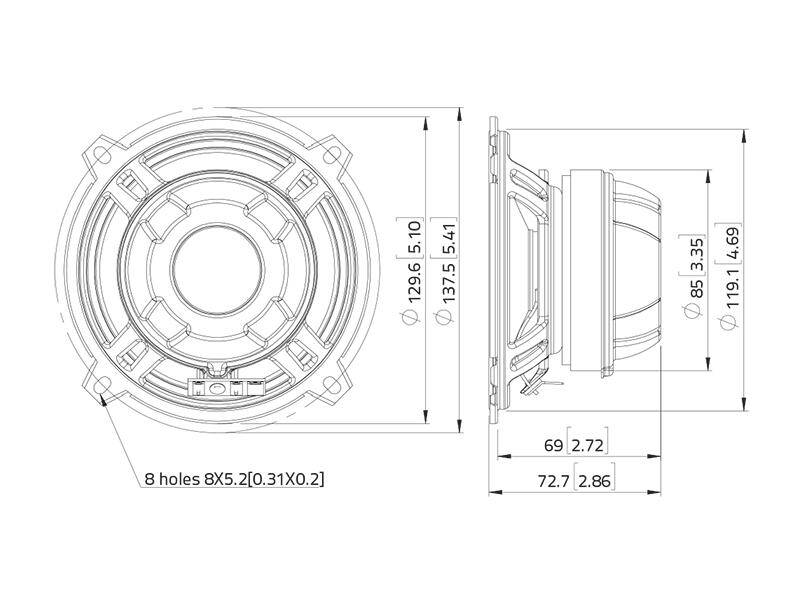

Technical drawing of a circular speaker with dimensions in millimeters and inches, side and front views shown, indicating hole and diameter measurements.

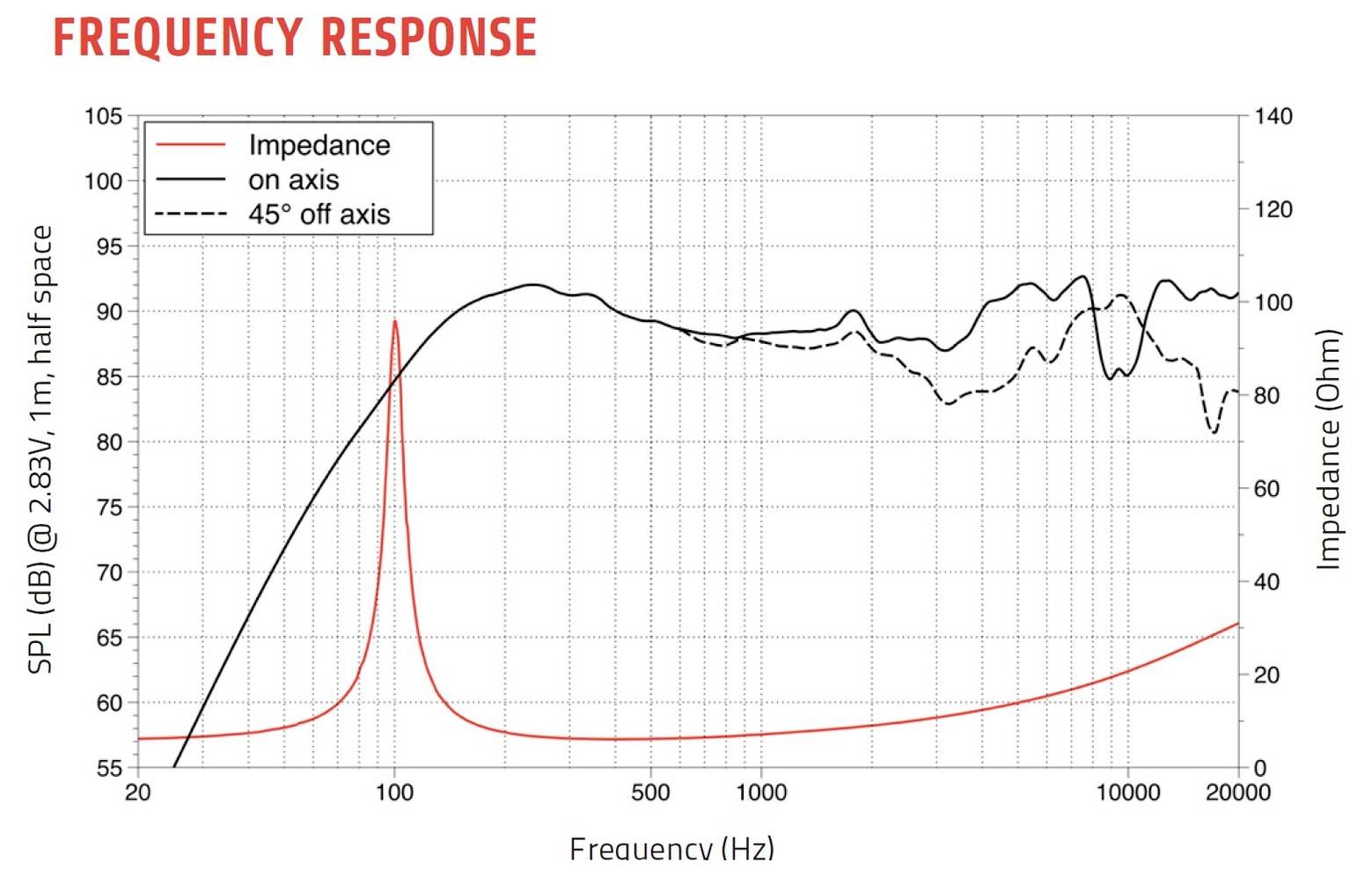

'FREQUENCY RESPONSE' graph showing SPL (dB) vs. Frequency (Hz) for on-axis and 45° off-axis lines, and Impedance (Ohm) curve.

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Speaker: 5" woofer with ferrite magnet; basket material: Steel; 1.25" moving coil woofer
Rating: 50W AES
Frequency range 100 22000 Hz
Sensitivity 92 dB

Product type: Subwoofer

Speaker size (inch): 5 inch

RMS capacity: 50 W

Max. load: 50 W

Min. frequency: 100 Hz

Max. frequency: 22000 Hz

Impedance: 8 Ω

Sound pressure: 92 dB

Weight: 0.77 kg

Frequency range: 100 Hz - 22000 Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729680 Lavoce CSF051.21 5 inch Subwoofer 50 W 8 Ω

Description

50 W AES, 8 ohm, 92 dB, 100 - 22000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x device.
