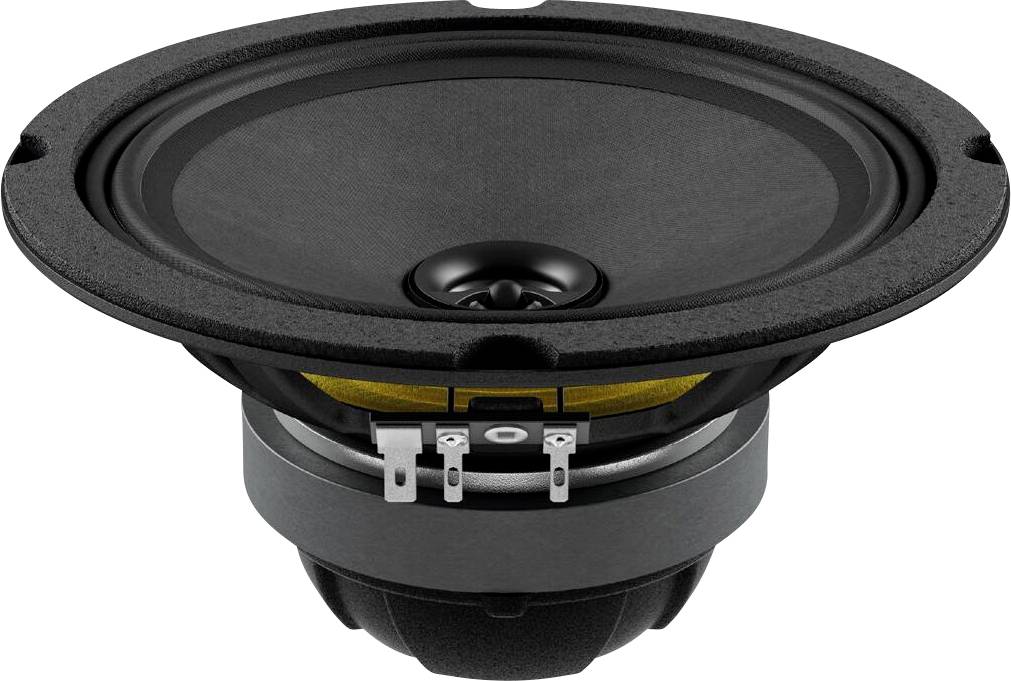

A round black speaker with a cone shape, viewed from the front. It has a central dome, metal rim, and connectors.

A round black speaker with a cone shape, viewed from the front. It has a central dome, metal rim, and connectors.

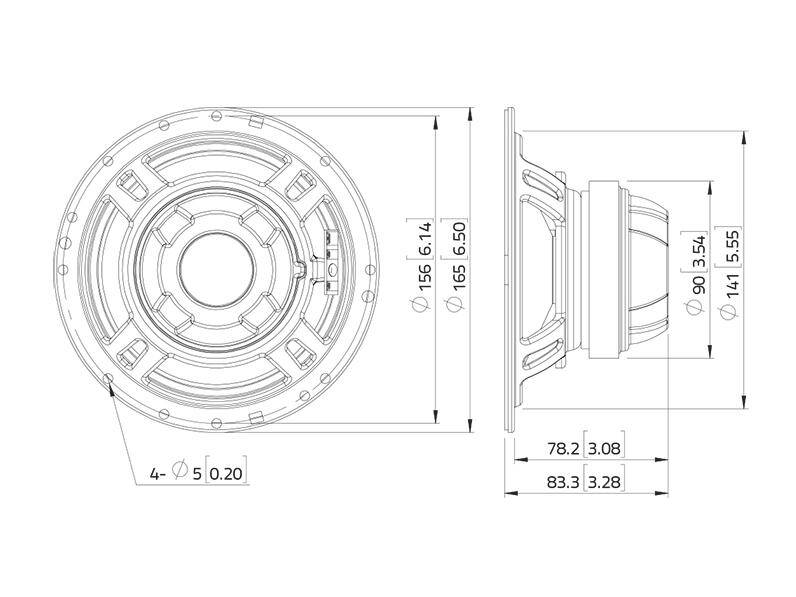

Technical drawing of a speaker with measurements. Front view shows diameter of 156 mm, side view shows depth of 78.2 mm.

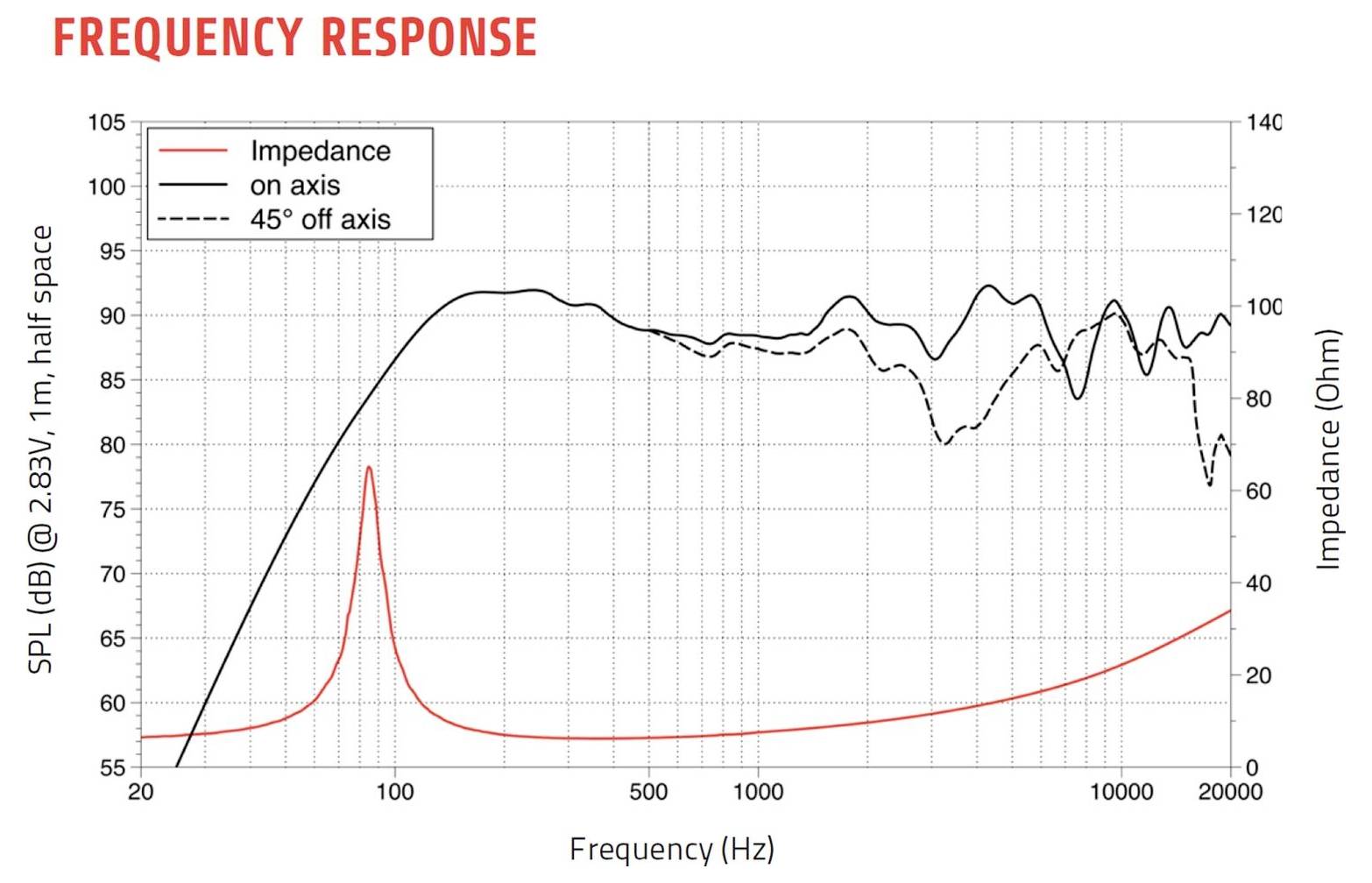

'Frequency Response' graph shows SPL (dB) vs. Frequency (Hz) and Impedance (Ohm). Solid line: impedance, dashed: 45° off-axis, dotted: on-axis.

1/3

Lavoce

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Speaker: 6.5" woofer with ferrite magnet; basket material: Steel; 1.25" moving coil woofer
Rating: 50W AES
Frequency range 80 22000 Hz
Sensitivity 92.5 dB

Product type: Subwoofer

Speaker size (inch): 6.5 inch

RMS capacity: 50 W

Max. load: 50 W

Min. frequency: 80 Hz

Max. frequency: 22000 Hz

Impedance: 8 Ω

Sound pressure: 92.5 dB

Weight: 0.96 kg

Frequency range: 80 Hz - 22000 Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729681 Lavoce CSF061.21 6.5 inch Subwoofer 50 W 8 Ω

Description

50 W AES, 8 ohm, 92.5 dB, 80 - 22000 Hz. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x device.
