Buy Lavoce CSF061.70K 6.5 inch Subwoofer 8 Ω weatherproof

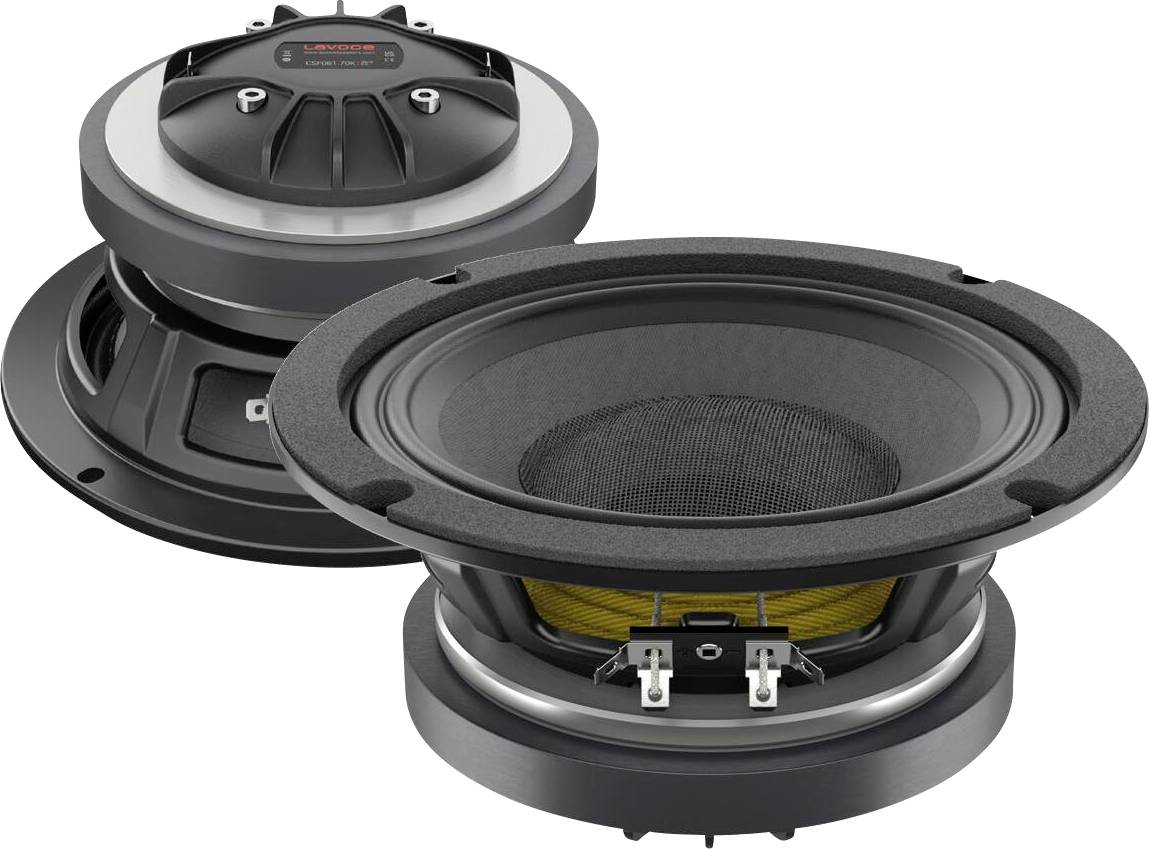

Two black and silver round speakers, one facing downward and one facing upward, showing the cone and connectors.

Graph showing sound pressure level (SPL) and impedance vs. frequency. SPL in dB on left axis; impedance in ohms on right. HF on axis peaks around 70-90 Hz; impedance peaks at 1000 Hz.

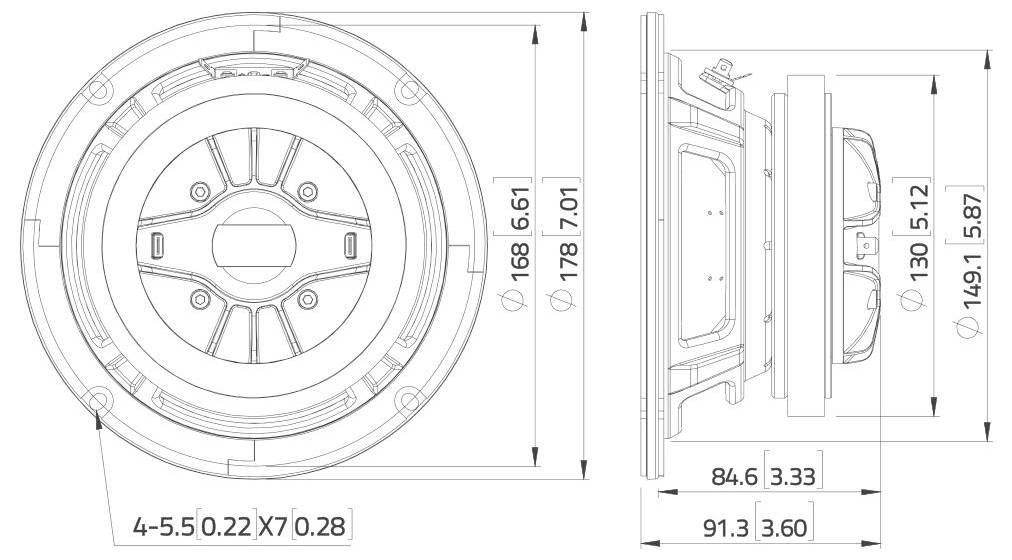

Two technical line drawings of a circular speaker: front and side views with labeled dimensions, showing mounting and depth specifications.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 6.5" woofer with shared ferrite magnet with 2-fold demodulation ring; basket material: Steel; cone material: Weatherproof cardboard/paper; 2" moving coil woofer; graphite material: Polyamide; 1" compression driver tweeter; 1.4" moving coil compression driver tweeter
CAPACITY 35W AES HF
Frequency range 95 - 6000 Hz LF; 1500 - 20000 Hz HF
Sensitivity 92 dB LF; 103.5 dB HF

Product type: Subwoofer

Speaker size (inch): 6.5 inch

Max. load: 35 W

Min. frequency: 95 Hz
1500 Hz

Max. frequency: 6000 Hz
20000 Hz

Impedance: 8 Ω

Sound pressure: 92 dB

Weight: 2.00 kg

Features: weatherproof

Frequency range: 95, 1500 Hz, Hz - 6000, 20000 Hz, Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729687 Lavoce CSF061.70K 6.5 inch Subwoofer 8 Ω weatherproof

Description

150 W AES LF/35 W AES HF, 8 ohm LF/8 ohm HF, 92 dB LF/103.5 dB HF, 95-6000 Hz LF/1500-20000 Hz HF. You can find more information on this product under "Downloads" in the data sheet.
