Buy Lavoce CSF082.00K 8 inch Subwoofer 8 Ω 2-way

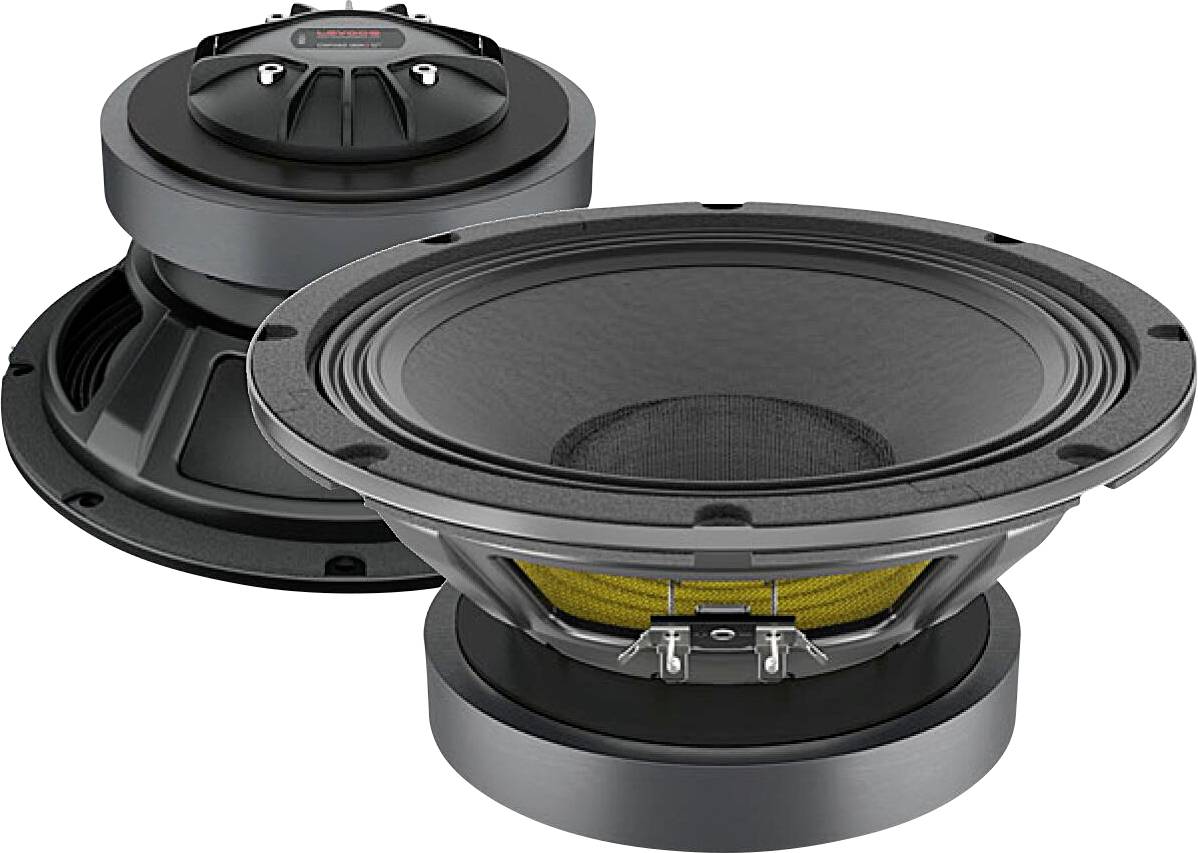

Two black subwoofers, one tilted to show the back and one upright, highlighting the speaker cones and design features.

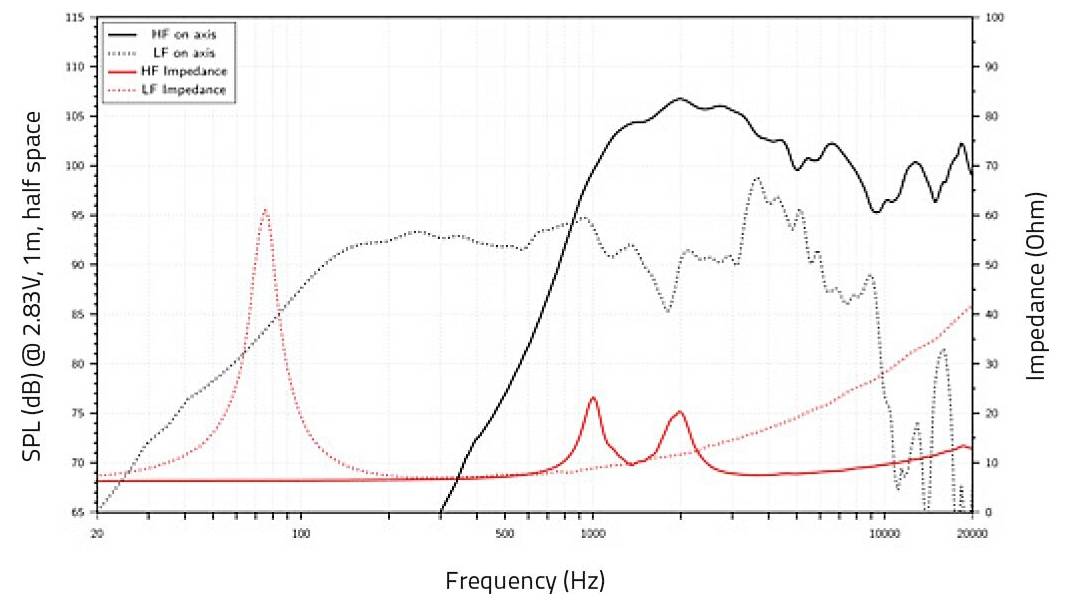

Graph shows SPL and impedance curves vs frequency from 20Hz to 20kHz. SPL (dB) for HF and LF on axis; impedance (Ohms) also plotted.

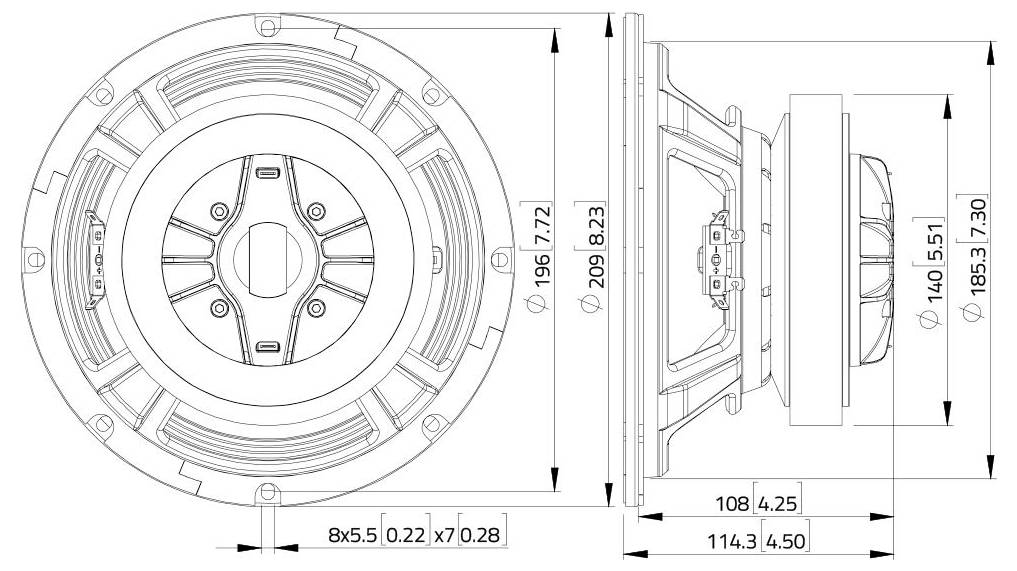

'Technical diagram of a speaker driver, showing front and side views with detailed measurements in millimeters and inches.'

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Loudspeaker: 8" woofer with shared ferrite magnet with 2-fold demodulation ring; basket material: Aluminium; 2" moving coil woofer; diaphragm material: Polymide; 1" compression driver tweeter; 1.4" moving coil compression driver - high tone
CAPACITY 35W AES HF
Frequency range 75 - 5500 Hz LF; 1500 - 20000 Hz HF
Sensitivity 96 dB LF; 103.5 dB HF

Product type: Subwoofer

Speaker size (inch): 8 inch

Max. load: 35 W

Min. frequency: 75 Hz
1500 Hz

Max. frequency: 5500 Hz
20000 Hz

Impedance: 8 Ω

Sound pressure: 96 dB

Weight: 2.97 kg

Features: 2-way

Frequency range: 75, 1500 Hz, Hz - 5500, 20000 Hz, Hz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729686 Lavoce CSF082.00K 8 inch Subwoofer 8 Ω 2-way

Description

200 W AES LF/35 W AES HF, 8 ohm LF/8 ohm HF, 96 dB LF/103.5 dB HF, 75-5500 Hz LF/1500-20000 Hz HF. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.
